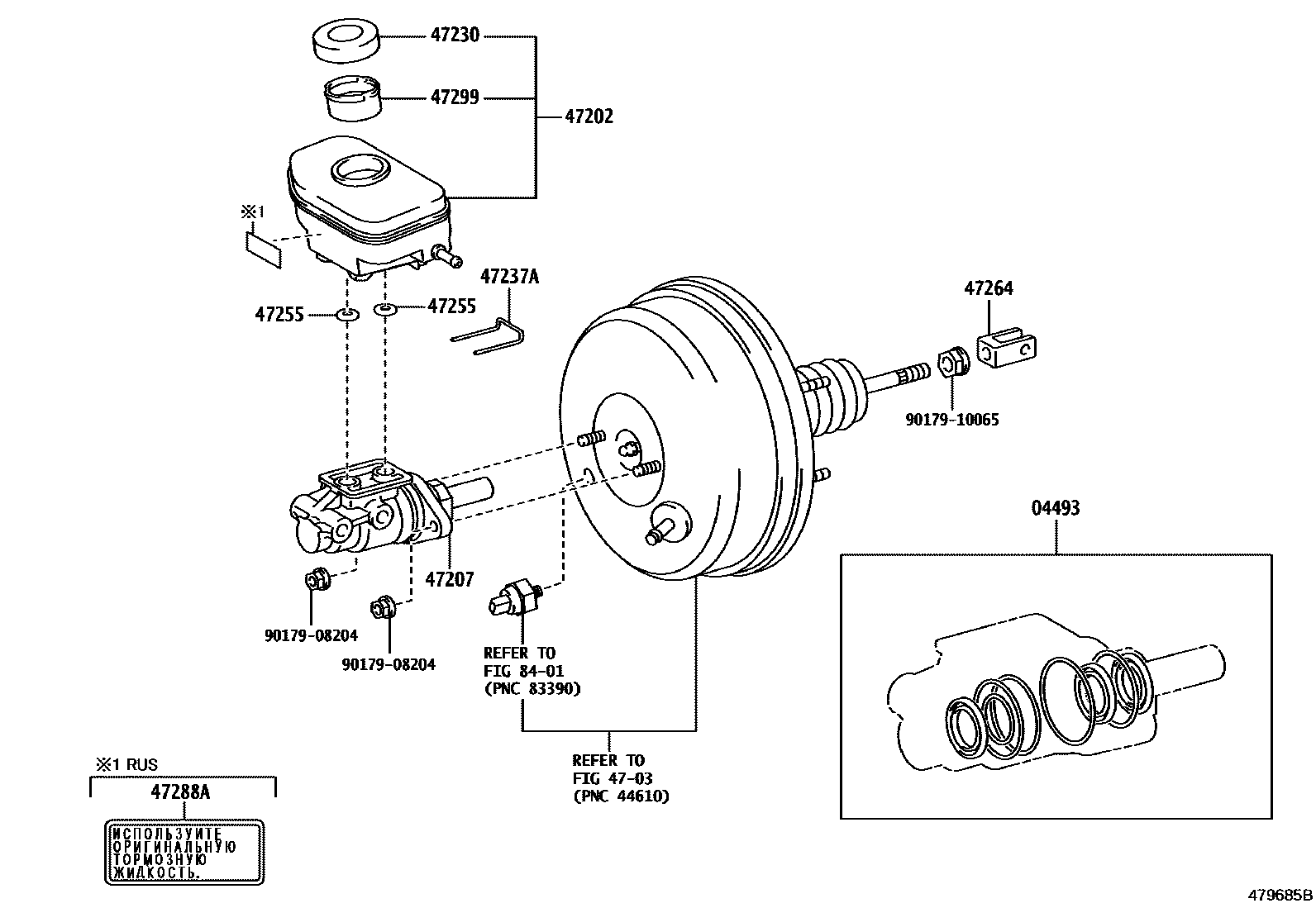

BRAKE MASTER CYLINDER

0001 1 0002 1

04493CYLINDER KIT, BRAKE MASTER

main04493-26220iKDH201..03S,06S;KDH201,223..(02S,12S,14S,16S)..(ARL,RUS,TH);KDH200,202,203,21#,220,221,222,LH20#,212,222,TRH20#,213,22#201312-201501

4703

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-26281iKDH223..5F..(ARL,RUS,TH);KDH20#,212,220,221,222,LH20#,212,222,TRH201,203,213,22#..5F201312-201501

main47220-26291iKDH201,21#,221,222,223,TRH20#,213,22#..4FC201312-201501

main47220-26300iLH20#..4D;LH222..LHD;TRH200..5F;TRH203..5F..GCC201501-202506

main47220-26310iKDH213..TH201501-202507

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-26010iKDH20#,21#,22#,LH20#,212,222,TRH20#,213,22#..RHD201312-201501

main47207-26020iKDH223..RUS;KDH20#,212,220,222,LH20#,212,222,TRH201,203,213,22#..LHD201312-201501

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33071iKDH223..ARL,RUS,TH;KDH20#,21#,220,221,222,LH20#,212,222,TRH20#,213,22#201312-201501

sub47230-33072

main47230-58021iTRH213..RHD..GEN201501-202507

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-20020iKDH223..ARL,RUS,TH;KDH20#,21#,220,221,222,LH20#,212,222,TRH20#,213,22#201312-201501

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-52010iKDH223..ARL,RUS,TH;KDH20#,21#,220,221,222,LH20#,212,222,TRH20#,213,22#201312-201501

main90015-AT001iKDH200..LHD..5D;TRH223..4FC..GL;TRH213..LHD..GEN;KDH221,LH222..RHD;TRH213,221..GCC,TH;KDH201..4D..03S..5F;KDH223..4FC..(GEN,TH);TRH223..LHD..STD..GEN;TRH223..STD..(201501-202507

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-60020iTRH201;KDH200..LHD..5D;TRH223..4FC..GL;TRH213..LHD..GEN;KDH221,LH222..RHD;TRH213,221..GCC,TH;KDH201..4D..03S..5F;KDH223..4FC..(GEN,TH);TRH223..LHD..STD..GEN;TRH223.201312-202507

47288ALABEL, BRAKE FLUID NOTICE

main47288-30010iKDH223,TRH223..RUS201501-201712

main47288-52010iKDH223,TRH223..RUS201312-201412

main47288-71010iTRH223..5F..GCC;KDH222..STD..GCC201701-202212

EGYPT SPEC

main47288-71010iTRH223..5F..GCC;KDH222..STD..GCC201701-201902

NIGERIA SPEC

main47288-71010iTRH223..5F..GCC;KDH222..STD..GCC201701-201902

CAUCASUS(4 COUNTRIES) SPEC

main47288-71010iTRH223..5F..GCC;KDH222..STD..GCC201701-201902

IRAN SPEC

main47288-71010iTRH221..SP..GEN201712-201902

LEBANON SPEC

main47288-71010iKDH200..GCC201701-202404

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52110iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507

8401

9017908204

main90179-08204

9017910065

main90179-10065

13 parts on this diagram · 2 diagrams in section
