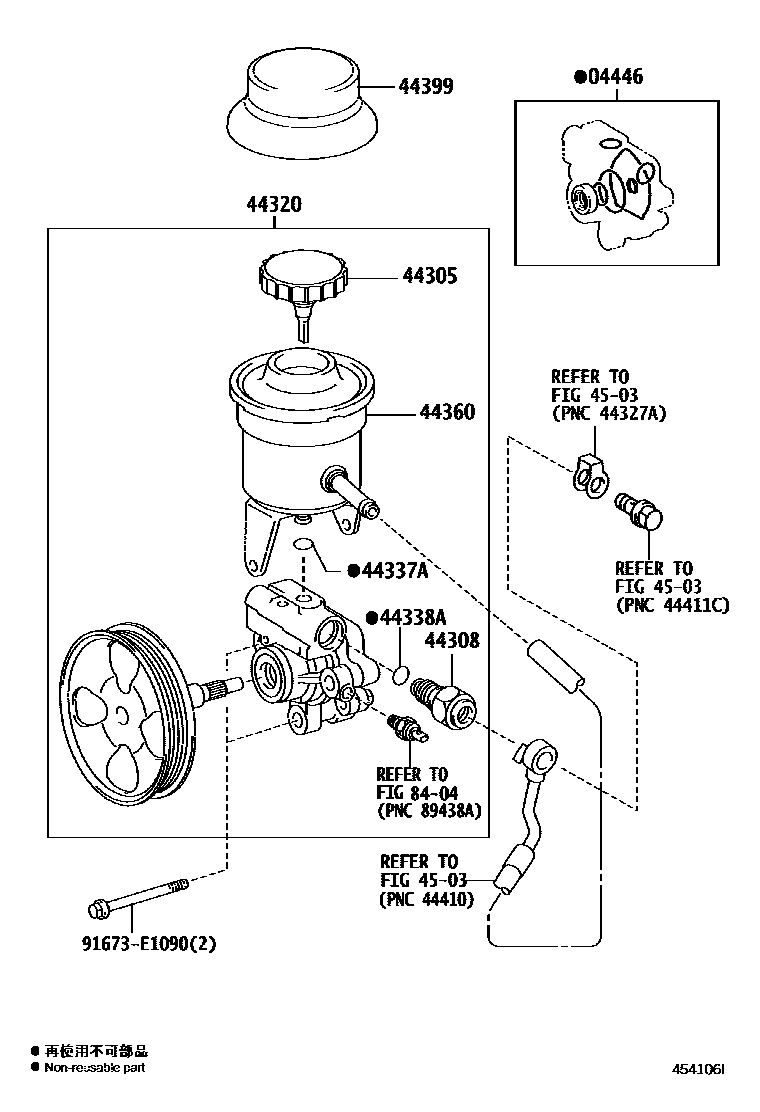

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1 0004 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iTRH200..6FC¥970201312-202507

main04446-35070iKDH222..STD..GCC;KDH213,222..RHD..GL¥1,280201312-202312

main04446-53030iLH200..5D¥1,360201312-202506

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22061iTRH203..4FC;TRH213..RHD..5F¥1,240201312-202507

main44305-26010iGDH201,223¥1,050201701

main44305-28051iKDH200..LHD..5D;KDH221,LH222..RHD;KDH201..4D..03S..5F;KDH223..4FC..(GEN,TH);KDH223..5F..(ARL,GEN,KEN,RUS,VN);KDH201,212,220..LHD..(03S,11S,13S,16S);KDH201,220,222..¥910201312-202506

44308UNION SUB-ASSY, PRESSURE PORT

main44308-26120iKDH200..LHD..4D;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥1,300201312-202312

main44308-42010iTRH221..SA¥1,990201312-202507

main44308-44020iLH20#,212,222..4D¥1,300201312-202506

44320PUMP ASSY, VANE

main44310-26371iTRH221..SG;TRH223..GCC¥66,100201312-202507

MARK=081

main44310-26380iKDH222..GL..GCC¥51,400201312-202312

main44320-26290iLH20#,212,222..4D¥51,400201312-202506

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iTRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)¥140201312-202507

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-18009iTRH200..5F;TRH203..5F..GCC¥140201312-202507

OD=22,ID=18.6

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-25060iTRH200..6FC¥6,400201312-202507

main44360-26141iKDH200,203..MA,SA,TH¥8,500201312-201712

main44360-26150iKDH222..KEN¥6,400201612-202506

main44360-26160iGDH201,223¥6,400201701

44399COVER, VANE PUMP OIL RESERVOIR

main44399-26012iTRH200..6FC¥200201312-202507

4503

8404

91673E1090

main91673-E1090¥190

11 parts on this diagram · 4 diagrams in section
