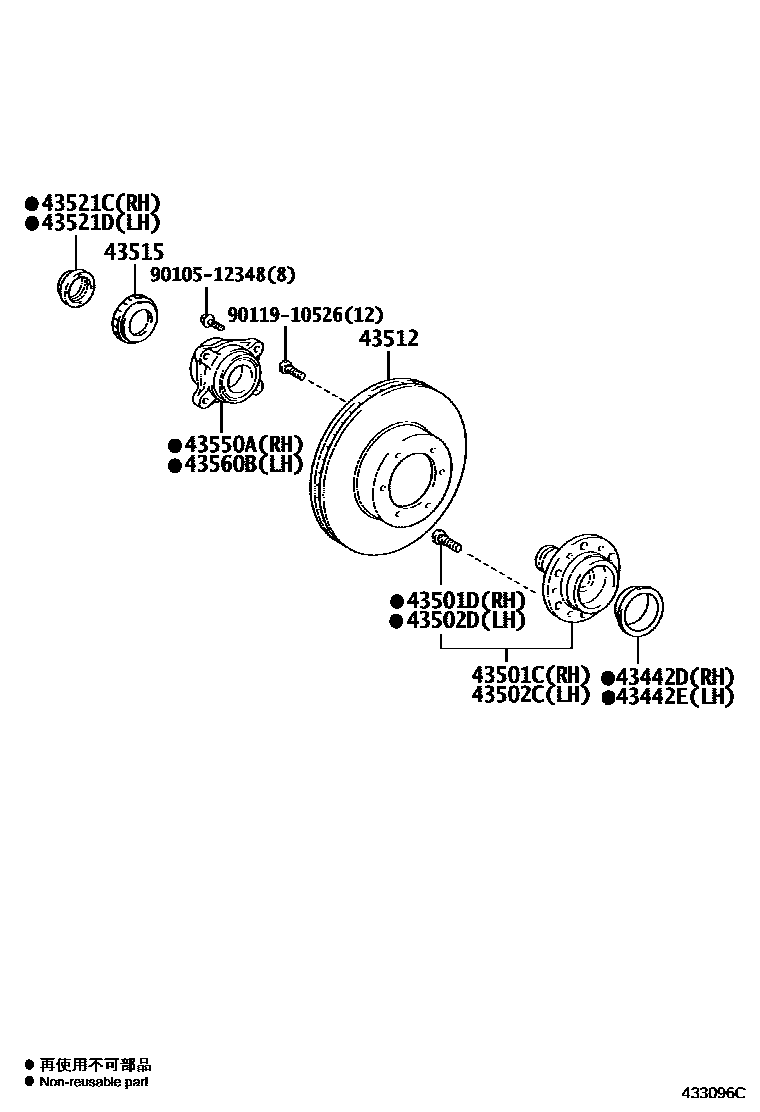

FRONT AXLE HUB
43442DCAP, KNUCKLE GREASE RETAINER, RH
main43442-26080iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901
43442ECAP, KNUCKLE GREASE RETAINER, LH
main43442-26080iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901
43501CHUB SUB-ASSY, FRONT AXLE, RH
main43502-26110iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901
43501DBOLT, HUB (FOR FRONT AXLE RH)
main90942-02047×6iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901
43502CHUB SUB-ASSY, FRONT AXLE, LH
main43502-26110iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901
43502DBOLT, HUB (FOR FRONT AXLE LH)
main90942-02047×6iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901
43512DISC, FRONT
main43512-26190×2iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901
43515ROTOR, SKID CONTROL, FRONT
ABS(ANTI-LOCK BRAKE SYSTEM)-WITH(ABS ONLY)
43521CNUT, FRONT WHEEL ADJUSTING, RH
main43521-35010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901
43521DNUT, FRONT WHEEL ADJUSTING, LH
main43521-35010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901
43550ABEARING (FOR FRONT AXLE HUB RH)
main43560-26010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901
43560BBEARING (FOR FRONT AXLE HUB LH)
main43560-26010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901
9010512348
main90105-12348
9011910526
main90119-10526
14 parts on this diagram · 2 diagrams in section
