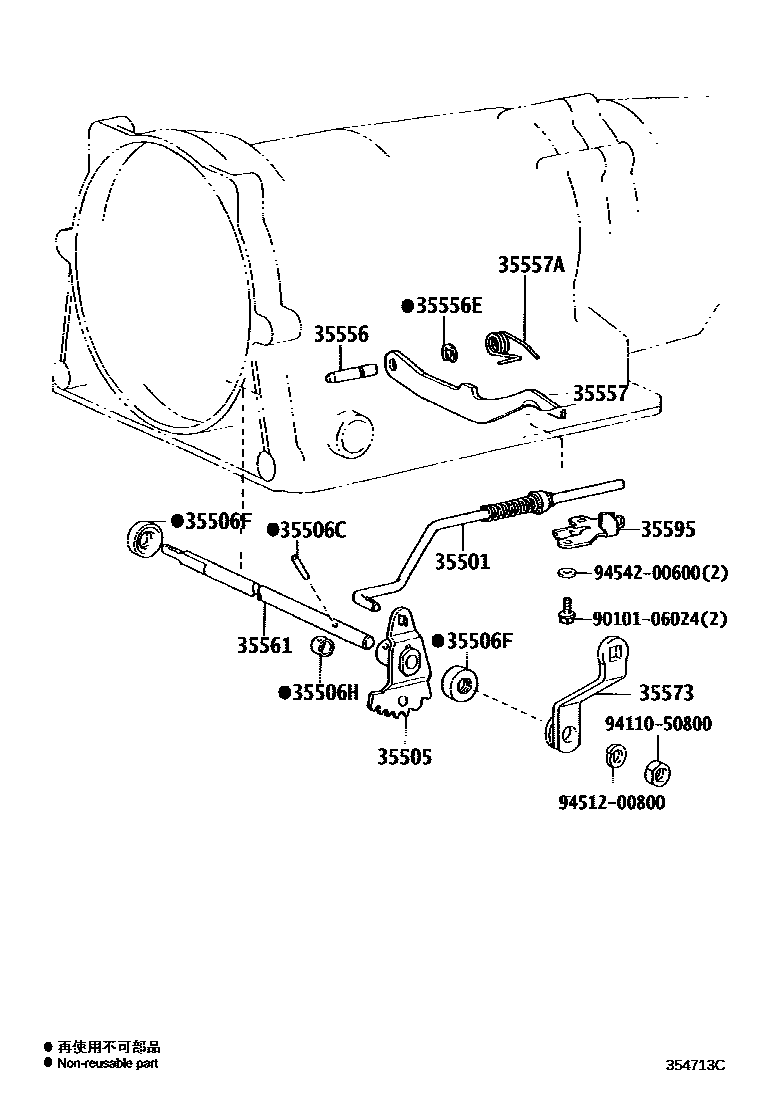

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A45DE 0002 1A340E,A343E 0003 1AC60E

35501ROD SUB-ASSY, PARKING LOCK

main35501-26020iTRH200¥1,310201312-201501

main35501-60010iTRH223..4FC..STD..GCC¥1,890201312-202301

main35501-71020iTRH200¥1,610201501-202507

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-26010iGDH201,223,TRH201,22#..6FC¥870201501-202507

main35505-26020iTRH203..4FC¥1,530201802-202301

main35505-60030iKDH201,21#,221,222,223,TRH201,203,213,22#..4FC¥1,840201312-201801

sub35505-26020¥1,530

main35505-71010iTRH200¥2,280201312-201501

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iTRH223..4FC..STD..GCC¥160201312-202507

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11003iTRH200¥260201312-201501

main90311-12002iTRH223..4FC..STD..GCC¥270201312-202507

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20025iKDH201,223..(03S,14S)..4FC..STD¥210201312-202507

35556SHAFT, PARKING LOCK PAWL

main35556-26010iTRH200¥670201312-201501

main35556-30020iTRH203..4FC¥440201312-202301

main35556-60020iGDH201,223,TRH201,22#..6FC¥380201501-202507

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iTRH203..4FC¥110201312-202507

35557PAWL, PARKING LOCK

main35557-26020iTRH200¥3,220201312-201501

main35557-60020iTRH223..4FC..STD..GCC¥2,490201312-202301

main35557-71010iGDH201,223¥2,810201701

main35557-71020iTRH200¥2,810201501-202507

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21001iTRH200¥220201312-201501

main90508-21002iTRH203..4FC¥190201312-202301

main90949-03123iTRH200¥120201501-202507

35561SHAFT, MANUAL VALVE LEVER

main35561-30060iTRH200¥2,280201312-201501

main35561-35010iTRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC¥2,070201312-202301

main35561-60030iTRH200..03S..6FC¥1,860201501-202507

35573LEVER, TRANSMISSION CONTROL SHAFT, LH

main35573-26090iTRH200¥1,070201312-201501

main35573-26100iTRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC¥670201312-202301

main35573-26110iTRH200¥590201501-202507

35595BRACKET, PARKING LOCK PAWL

main35595-40010iTRH200¥1,360201312-201501

main35595-60010iTRH203,223..4FC¥1,460201312-202301

main35595-71010iTRH200..03S..6FC¥800201501-202507

9010106024

main90101-06024¥80

9411050800

main94110-50800¥80

9451200800

main94512-00800¥80

9454200600

main94542-00600¥180

16 parts on this diagram · 3 diagrams in section
