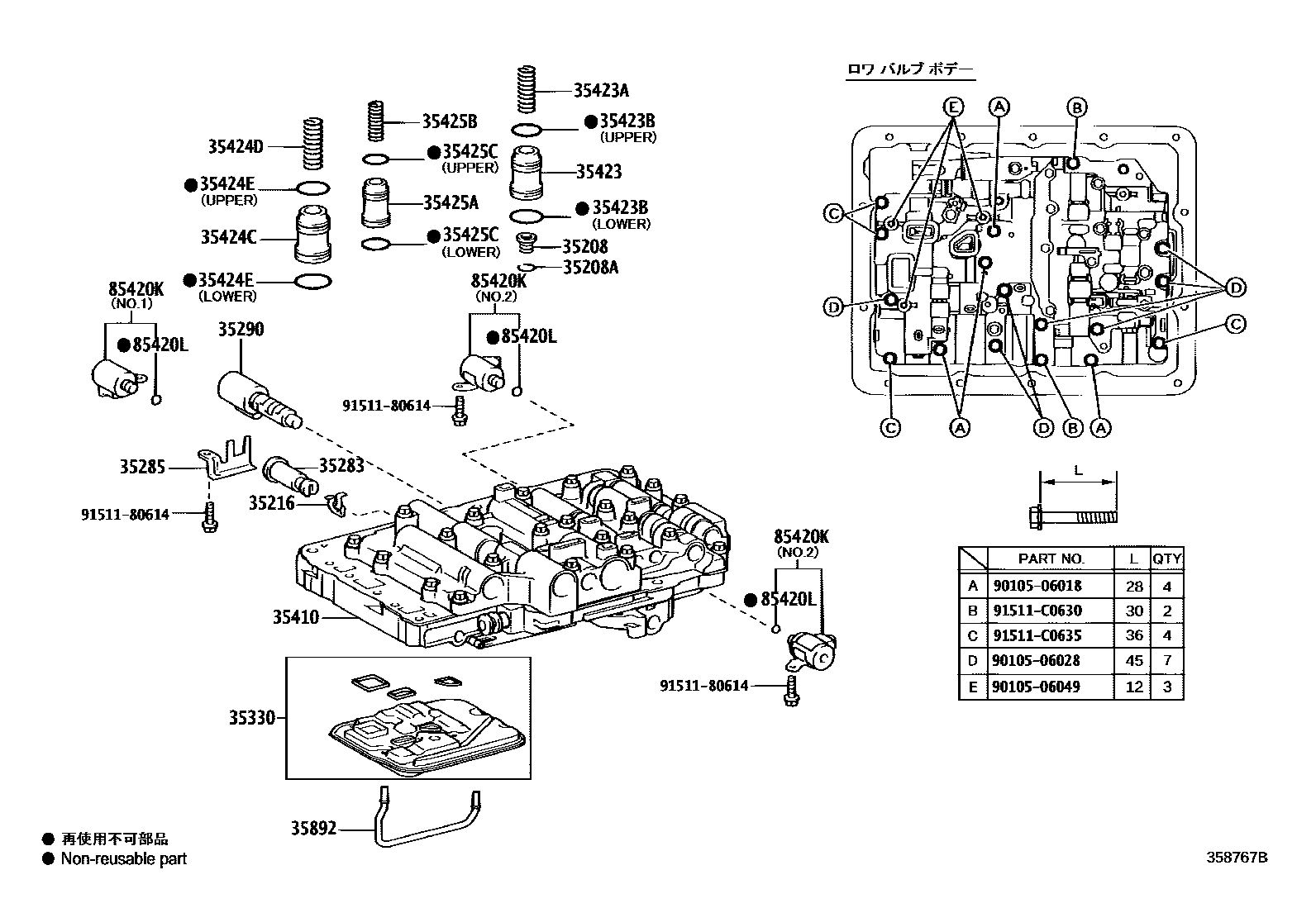

VALVE BODY & OIL STRAINER (ATM)

0001 1A45DE 0002 1A340E,A343E 0003 1AC60E 0004 1A45DE 0005 1A340E,A343E 0006 1A340E 0007 1AC60E

35208SPRING SUB-ASSY, B-2 ACCUMULATOR

main35208-22010iKDH201,223..(03S,14S)..4FC..STD201312-202301

main35208-28010iTRH200201312-201501

main35208-30010iTRH223..(13S,16S)..4FC201312-202004

main35208-35010iKDH222..GL..GEN201312-201906

35208ARING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING)

main90521-22004iKDH212..4FC201312-202301

35216STOPPER, VALVE SLEEVE

main35216-28010iTRH200201312-201501

35283SLEEVE, LOCK UP CONTROL SOLENOID

main35283-28010iTRH200201312-201501

35285PLATE, SOLENOID LOCK

main35285-24010iKDH223..ARL201612-202301

NO.1

main35285-24020iTRH203..4FC201312-202004

main35285-24020iKDH201..03S..4FC201612-202301

NO.2

main35285-28010iTRH200201312-201501

main35285-71010iGDH201,223,TRH201,22#..6FC201501-202507

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-25010iTRH200201312-201501

main35290-71010iKDH212..4FC201312-202301

35330STRAINER ASSY, VALVE BODY OIL

main35330-26010iGDH201,223,TRH201,22#..6FC201501-202507

main35330-30060iKDH213..TH201312-202301

main35330-53010iTRH200201312-201501

35410BODY ASSY, TRANSMISSION VALVE

main35410-26750iKDH223..ARL201612-202301

main35410-71010iTRH223..4FC..GL;TRH223..4FC..ARL;TRH201,213,221..4FC201312-202004

main35410-71030iKDH223..4FC..ARL201312-202004

main35410-71050iKDH212,222..4FC201312-201906

main35410-71070iTRH200201312-201501

main35410-71100iTRH200,201,22#..6FC201501-201504

sub35410-71101

main35410-71101iTRH200,201,22#..6FC201505-201506

sub35410-71102

main35410-71102iTRH200..03S..6FC;GDH201,223,TRH201,22#..6FC201507-202310

sub35410-71103

main35410-71103iTRH200..03S..6FC202311-202507

35423PISTON, B-2 ACCUMULATOR

main35421-26010iTRH200201312-201501

main35423-30030iTRH223..10S;TRH213..4FC..GCC;KDH201..SP..06S..4FC201312-202301

35423ASPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON)

main90501-24015iTRH223..(13S,16S)..4FC201312-202004

main90501-25028iKDH201,223..(03S,14S)..4FC..STD201312-202301

main90501-25037iTRH200201312-201501

main90501-27019iKDH212..4FC201312-201906

35423BRING, O (FOR B-2 ACCUMULATOR PISTON)

main90301-23010iKDH201..SG..4FC201312-202301

UPPER

main90301-29011iTRH200201312-201501

LOWER

main90301-31010iKDH223..4FC..TH201312-202301

LOWER

35424CPISTON, C-1 ACCUMULATOR

main35421-22030iTRH200201312-201501

35424DSPRING, COMPRESSION (FOR C-1 ACCUMULATOR PISTON)

main90501-20162iTRH200201312-201501

35424ERING, O (FOR C-1 ACCUMULATOR PISTON)

main90301-21012iTRH200201312-201501

UPPER

main90301-26012iTRH200201312-201501

LOWER

35425APISTON, C-2 ACCUMULATOR

main35425-30020iKDH212..4FC201312-202301

main35441-30010iTRH200201312-201501

35425BSPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON)

main90501-22015iKDH213,223,TRH213..4FC..GL201312-202301

OUTER

main90501-23135iKDH222..GL..GEN201312-201906

OUTER

main90501-25027iKDH223..4FC..TH201312-202301

INNER

main90501-25061iTRH200201312-201501

35425CRING, O (FOR C-2 ACCUMULATOR PISTON)

main90301-18010iTRH200201312-201501

UPPER

main90301-25010iKDH223..4FC..TH201312-202301

UPPER

main90301-26012iTRH200201312-201501

LOWER

main90301-31010iKDH223..4FC..TH201312-202301

LOWER

35892TUBE, OVERDRIVE BRAKE

main35892-22010iTRH200201312-201501

85420KSOLENOID ASSY, TRANSMISSION

main35250-28030iTRH200201312-201501

NO.1

main35250-30030iTRH200201312-201501

NO.2

main35250-30050iTRH201,22#..RHD..4FC201312-202301

NO.1

main35250-30070iTRH223..10S;TRH213..4FC..GCC;KDH201..SP..06S..4FC201312-202301

NO.2

main35250-50030iTRH223..10S;TRH213..4FC..GCC;KDH201..SP..06S..4FC201312-202004

NO.3

85420LRING, O(FOR TRANSMISSION SOLENOID)

main90301-06004iTRH200,201,22#..RHD..4FC201312-202301

9010506018

main90105-06018

9010506028

main90105-06028

9010506049

main90105-06049

9151180614

main91511-80614

91511C0630

main91511-C0630

91511C0635

main91511-C0635

26 parts on this diagram · 7 diagrams in section
