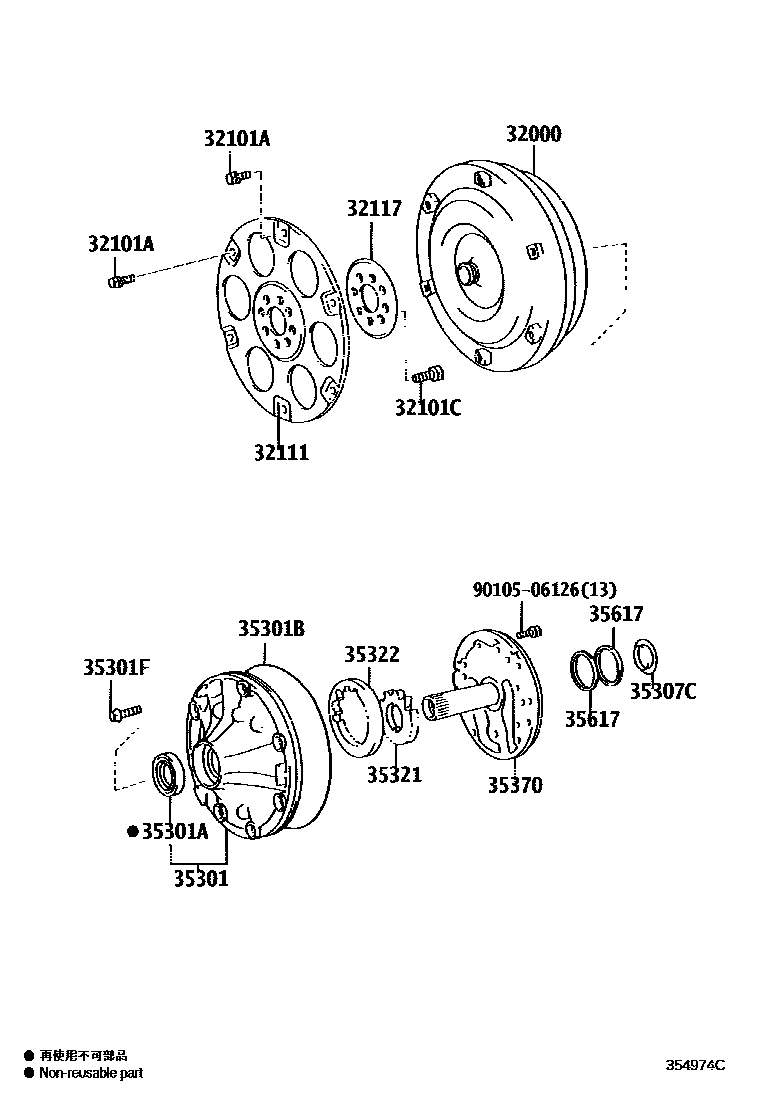

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

0001 1A340E 0002 1A343E 0003 1A45DE 0004 1AC60E 0005 1AC60E

32000CONVERTER ASSY, TORQUE

main32000-26090iTRH200¥89,500201312-201501

main32000-26100iGDH201,223¥90,200201701

main32000-35240iKDH213¥93,400201312-202004

main32000-60220iKDH223..ARL¥93,600201612-202301

main32000-60240iTRH223..4FC..GL;TRH223..4FC..ARL;TRH201,213,221..4FC¥93,400201312-202004

main32000-71010iKDH212,222..4FC¥113,000201312-201906

main32000-71050iTRH201,22#..6FC¥81,300201501-201902

main32000-71080iTRH200..03S..6FC¥81,300201501-202507

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-26010iTRH203..4FC¥12,900201312-202507

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90105-10413iGDH201¥80201312-202104

*10-1.5PX11-8,(J),SILVER WHITE

main90105-10413iKDH201,223..4FC¥80201806-202301

*10-1.5PX11-8,SILVER WHITE

main90105-10546iKDH213¥100201312-202301

*10-1.5PX11-8,BLACK

main90105-T0237iKDH201,213,221,223..4FC201409-201906

*10-1.5PX11-8,(L),SILVER WHITE

main90119-09009iTRH223..4FC¥160201312-202507

*9-1.25PX12.8-8.8

main90119-09010iTRH203..4FC¥160201312-202507

*9-1.25PX12.8-9

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10276iTRH203..4FC¥570201312-202507

*10-1.25PX30-17.5

main90105-13010iKDH213¥240201312-202104

*13-1.5PX43.5-23.5,(J)

main90105-13010iKDH212,222..4FC¥240201312-202301

*13-1.5PX43.5-23.5

main90105-13015iGDH201,223¥190201806

*13-1.5PX43.5-23.5

main90105-T0113iKDH201,213,221,223..4FC201312-201906

*13-1.5PX43.5-23.5,(L)

32111PLATE, PUMP IMPELLER DRIVE

main32111-0K030iGDH201201505-201906

(L)

main32111-60050iKDH212,222..4FC¥3,910201312-201906

main32111-60080iKDH201,213,221,223..4FC¥4,020201312-201504

sub32111-71010¥2,530

main32111-71010iKDH213..TH¥2,530201505-202104

(J)

main32111-71010iKDH201,223..4FC¥2,530201806-202301

32117SPACER, DRIVE PLATE, REAR

main32117-26010iTRH223..4FC¥880201312-202507

main32117-60050iKDH223..4FC..(GEN,TH);KDH201..(02S,05S,06S)..4FC;GDH201,223,KDH21#,221,222..(4FC,6FC)..(ARL,GEN)¥950201312-202301

35301BODY SUB-ASSY, FRONT OIL PUMP

main35301-22021iTRH200¥15,300201312-201501

main35301-50020iKDH213¥18,700201312-202301

main35301-71010iTRH200..03S..6FC¥18,200201501-202507

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38064iTRH200¥290201312-201501

main90311-38087iTRH203..4FC¥400201312-202301

main90311-38101iGDH201,223,TRH201,22#..6FC¥400201501-202507

35301BRING, O (FOR FRONT OIL PUMP BODY)

main35697-60010iTRH200..03S..6FC¥280201501-202507

main90301-99010iTRH200¥590201312-201501

main90301-99033iKDH213¥240201312-202301

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08091iTRH203,223..4FC¥140201312-202507

*8-1.25PX35-35

main90105-08137iTRH200¥210201312-201501

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-30340iKDH201,TRH203..4FC..(ARL,GCC)¥450201312-202301

T=3.7

35321GEAR, FRONT OIL PUMP DRIVE

main35321-22020iTRH200¥2,670201312-201501

T=17.244-17.235

main35321-22030iTRH200¥2,670201312-201501

T=17.254-17.245

main35321-22040iTRH200¥2,670201312-201501

T=17.265-17.255

main35321-22050iTRH200¥2,670201312-201501

T=17.275-17.266

main35321-22060iTRH200¥2,670201312-201501

T=17.285-17.276

main35321-30030iTRH203..4FC¥2,570201312-202301

T=11.690-11.699

main35321-30040iTRH203..4FC¥2,570201312-202301

T=11.700-11.709

main35321-30050iTRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC¥2,570201312-202301

T=11.710-11.720

main35321-30060iKDH213..TH¥2,570201312-202301

T=11.721-11.730

main35321-30070iKDH213¥2,570201312-202301

T=11.731-11.740

main35321-71010iTRH200..03S..6FC¥3,030201501-202507

T=9.977-9.983

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-22020iTRH200¥4,030201312-201501

T=17.244-17.235

main35322-22030iTRH200¥4,030201312-201501

T=17.254-17.245

main35322-22040iTRH200¥4,030201312-201501

T=17.265-17.255

main35322-22050iTRH200¥4,030201312-201501

T=17.275-17.266

main35322-22060iTRH200¥4,030201312-201501

T=17.285-17.276

main35322-30020iTRH203,223..4FC¥2,760201312-202301

T=11.690-11.699

main35322-30030iTRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC¥2,760201312-202301

T=11.700-11.709

main35322-30040iKDH213..TH¥2,760201312-202301

T=11.710-11.720

main35322-30050iTRH203,223..4FC¥2,760201312-202301

T=11.721-11.730

main35322-30060iKDH213¥2,760201312-202301

T=11.731-11.740

main35322-71010iTRH200¥3,030201501-202507

T=9.977-9.983

35370SHAFT ASSY, STATOR

main35370-22060iTRH200¥16,500201312-201501

main35370-30060iTRH203..4FC¥16,500201312-202301

main35370-71010iGDH201,223,TRH201,22#..6FC¥14,900201501-202507

35617RING, CLUTCH DRUM OIL SEAL

main35617-30020iTRH223..4FC..ARL;KDH213,TRH223..COM..4FC..GL;KDH201,212,221,222,223,TRH201,213,221..4FC¥1,690201312-202301

main35617-32010iTRH200¥1,400201312-201501

main35617-50030iTRH200¥280201501-202507

9010506126

main90105-06126¥80

16 parts on this diagram · 5 diagrams in section
