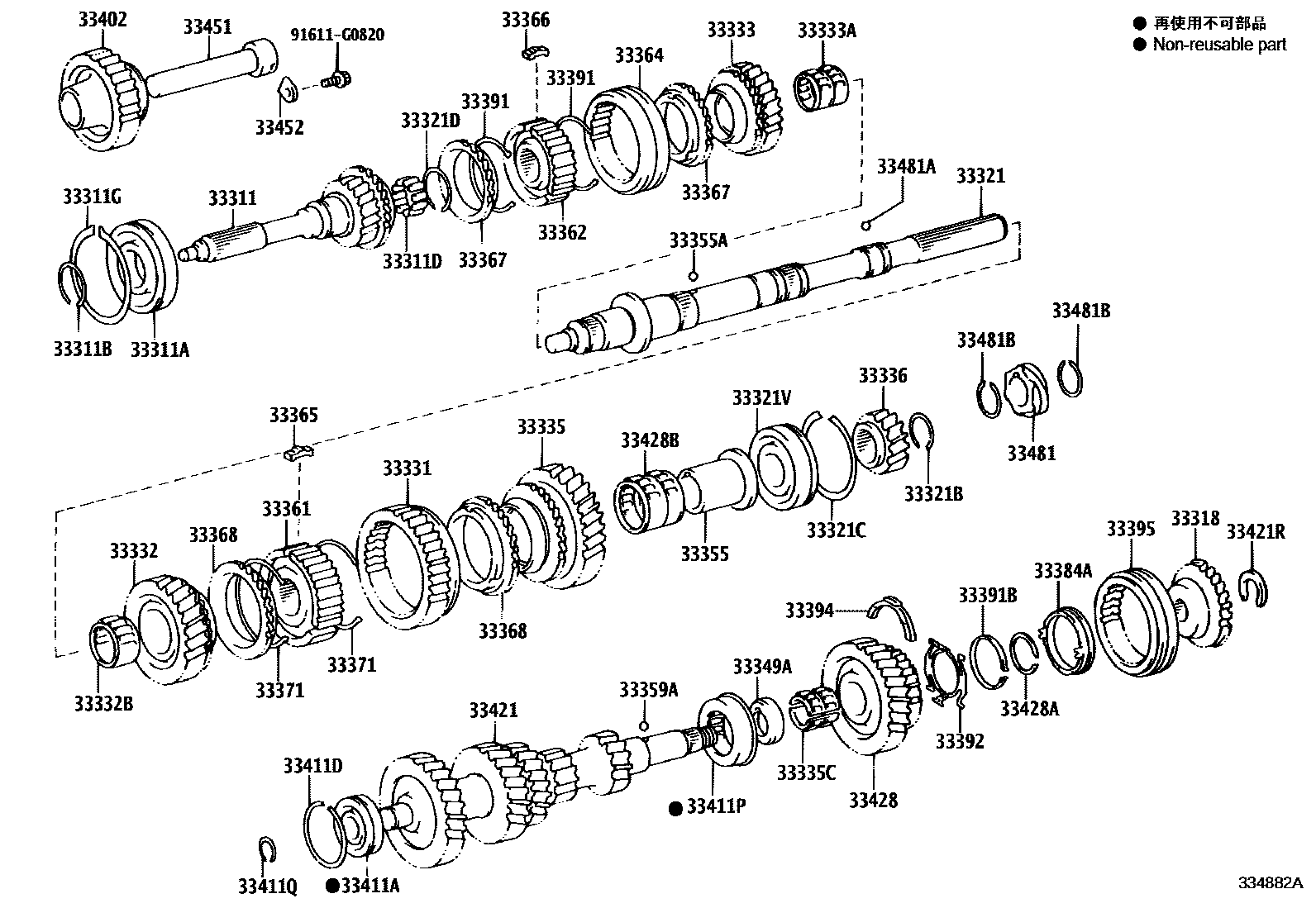

TRANSMISSION GEAR (MTM)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.05,MARK 0
T=2.10,MARK 1
T=2.15,MARK 2
T=2.20,MARK 3
T=2.25,MARK 4
T=2.30,MARK 5
T=2.10,MARK A
T=2.15,MARK B
T=2.20,MARK C
main90520-38011iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA);KDH222,TRH223..5F..STD..GCC201312-202506
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.40,MARK G
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33318PIECE, GEAR SPLINE, NO.5
sub33318-71010
main33318-60030iTRH221..GCC;TRH223..LHD..STD..GEN;KDH212,TRH213..LHD..5F;KDH200,201,220..LHD..5D;TRH223..5F..GL..(GCC,RUS);TRH223..5F..STD..(ARL,SA,TH);KDH201,202,203,213..4D..(03S201312-202506
33321SHAFT, OUTPUT
sub33321-26050
main33321-35191iTRH221..GCC;TRH223..LHD..STD..GEN;KDH212,TRH213..LHD..5F;KDH200,201,220..LHD..5D;TRH223..5F..GL..(GCC,RUS);TRH223..5F..STD..(ARL,SA,TH);KDH201,202,203,213..4D..(03S201312-202506
33321BRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=2.67-2.72,MARK A
T=2.73-2.78,MARK B
T=2.79-2.84,MARK C
T=2.85-2.90,MARK D
T=2.91-2.96,MARK E
T=2.97-3.02,MARK F
T=3.03-3.08,MARK G
T=3.09-3.14,MARK H
T=3.15-3.20,MARK J
T=3.21-3.26,MARK K
T=3.27-3.32,MARK L
T=2.65,MARK A
T=2.70,MARK B
T=2.75,MARK C
T=2.80,MARK D
T=2.85,MARK E
T=2.90,MARK F
T=2.95,MARK G
T=3.00,MARK H
main90520-28043iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA);KDH222,TRH223..5F..STD..GCC201312-202506
T=3.05,MARK J
T=3.10,MARK K
T=3.15,MARK L
main90520-28047iTRH221..GCC;TRH223..LHD..STD..GEN;KDH212,TRH213..LHD..5F;KDH200,201,220..LHD..5D;TRH223..5F..GL..(GCC,RUS);TRH223..5F..STD..(ARL,SA,TH);KDH201,202,203,213..4D..(03S201312-202506
T=3.20,MARK M
T=3.25,MARK N
T=3.30,MARK P
T=3.35,MARK Q
T=3.40,MARK R
T=3.45,MARK S
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.65,ID=71.1
T=1.65,ID=81.4
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.85-1.90,MARK D-1
T=1.95-2.00,MARK E-1
T=1.75-1.80,MARK C-1
T=2.05-2.10,MARK F-1
T=1.80-1.85,MARK D
T=1.90-1.95,MARK E
T=2.00-2.05,MARK F
T=1.80,MARK A
T=1.85,MARK B
T=1.90,MARK C
main90520-30017iKDH223..TH;KDH200..LHD..4D;TRH221..SP..GEN;TRH223..GL..GEN;KDH200,TRH223..RHD..GEN201312-202506
T=1.95,MARK D
T=2.00,MARK E
T=2.05,MARK F
T=2.10,MARK G
33335GEAR, 1ST
sub33032-26030
main33032-60111iKDH212..LHD..5F;KDH200,201..LHD..5D;KDH220,221,223..5F..(ARL,GEN,KEN,RUS,VN);KDH201,202,203,213..4D..(03S,10S,12S,15S)..5F;KDH201,220,222..(02S,05S,06S,16S)..5F..(A201312-202312
33349WASHER, 5TH GEAR THRUST
33349AWASHER, 4TH GEAR
T=8.0
OD=43
33355AKEY OR BALL, 1ST GEAR BEARING INNER RACE LOCK
33359ABALL, 5TH GEAR BEARING INNER RACE LOCK
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
main33367-35080iTRH223..RHD..GEN;TRH223..5F..STD..GCC;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA)201312-202506
33368RING, SYNCHRONIZER, NO.2
main33368-35080iTRH221..GCC;TRH223..LHD..STD..GEN;KDH212,TRH213..LHD..5F;KDH200,201,220..LHD..5D;TRH223..5F..GL..(GCC,RUS);TRH223..5F..STD..(ARL,SA,TH);KDH201,202,203,213..4D..(03S201509-202506
NO.1
NO.2
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33391BSPRING, SYNCHROMESH SHIFTING KEY, NO.4
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
NO.2
33394KEY, SYNCHROMESH SHIFTING, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
sub33402-71010
main33402-35060iTRH221..GCC;TRH223..LHD..STD..GEN;KDH212,TRH213..LHD..5F;KDH200,201,220..LHD..5D;TRH223..5F..GL..(GCC,RUS);TRH223..5F..STD..(ARL,SA,TH);KDH201,202,203,213..4D..(03S201312-202506
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=55.6
T=1.07,OD=62
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.10,MARK A
T=2.15,MARK B
main90520-23059iKDH223..TH;KDH200..LHD..4D;TRH221..SP..GEN;TRH223..GL..GEN;KDH200,TRH223..RHD..GEN201312-202506
T=2.20,MARK C
T=2.25,MARK D
T=2.30,MARK E
T=2.35,MARK F
T=2.10-2.15
T=2.20-2.25
T=2.05-2.10
T=2.15-2.20
T=2.25-2.30
T=2.30-2.35
33421RRING, SHAFT SNAP(FOR COUNTER GEAR REAR)
T=2.85
T=2.90
T=2.95
T=3.00
T=3.05
T=3.10
T=3.15
T=2.85,MARK A
T=2.90,MARK B
T=2.95,MARK C
T=3.00,MARK D
main90520-22020iTRH221..GCC;TRH223..LHD..STD..GEN;KDH212,TRH213..LHD..5F;KDH200,201,220..LHD..5D;TRH223..5F..GL..(GCC,RUS);TRH223..5F..STD..(ARL,SA,TH);KDH201,202,203,213..4D..(03S201312-202506
T=3.05,MARK E
T=3.10,MARK F
main90520-22022iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA);KDH222,TRH223..5F..STD..GCC201312-202506
T=3.15,MARK G
T=1.00
33428ARING, SHAFT SNAP (FOR COUNTER 5TH GEAR)
33452STOPPER, REVERSE IDLER GEAR SHAFT
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=6,MARK 6X18-20
N=10,MARK 10X31-33
N=11,MARK 11X31-33
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
33481BRING OR SPACER (FOR MTM SPEEDOMETER DRIVE GEAR)
T=1.50,OD=31.3
main90520-28030iTRH221..GCC;TRH223..LHD..STD..GEN;KDH212,TRH213..LHD..5F;KDH200,201,220..LHD..5D;TRH223..5F..GL..(GCC,RUS);TRH223..5F..STD..(ARL,SA,TH);KDH201,202,203,213..4D..(03S201312-202506
T=1.5
91611G0820
main91611-G0820
54 parts on this diagram · 3 diagrams in section
