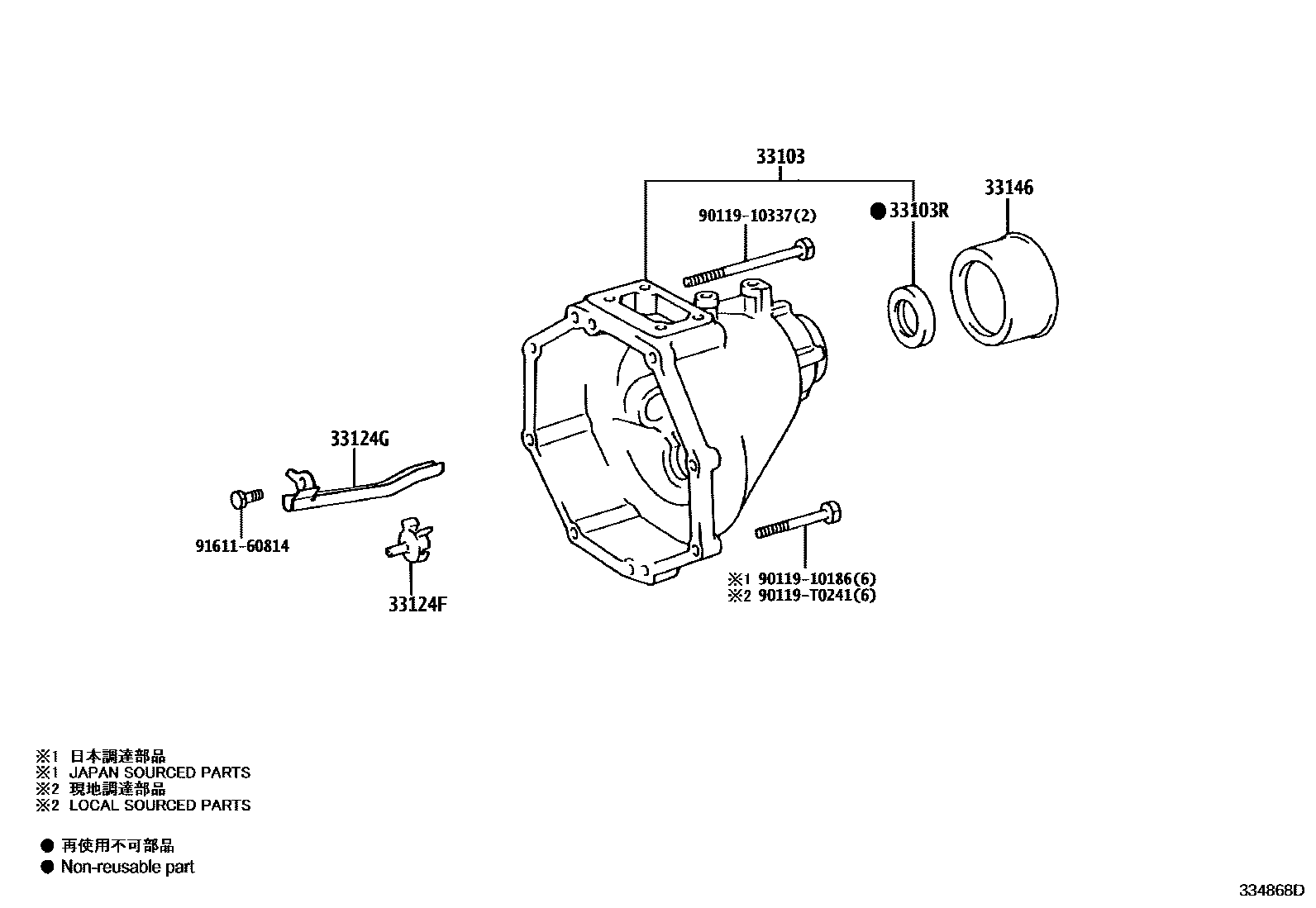

EXTENSION HOUSING (MTM)

0001 1G55 0002 1R351

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-0L010iLH20#,212,222201312-201508

main33103-26070iKDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202506

main33103-26100iTRH200..5F;LH20#,212,222..4D201508-202506

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38094iLH200..5D201508-202506

main90311-40035iKDH20#,21#,22#,TRH201,203,213,22#..5F201312-201707

sub90311-40048

main90311-40048iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA);KDH222,TRH223..5F..STD..GCC201707-202506

main90311-T0050iLH20#,212,222201312-201508

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33124-35100iKDH222,TRH223..5F..STD..GCC;KDH222,TRH221..SG..(03S,14S)..(GEN,SA)201312-202506

main33124-36010iLH200..5D201312-202506

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-0L010iLH20#,212,222201312-201508

sub33124-28011

main33124-28011iTRH200..5F;LH20#,212,222..4D201508-202506

main33124-35090iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);TRH223..5F..GL..(GEN,SA);KDH222,TRH223..5F..STD..GCC201312-202506

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30010iTRH221..SA201312-202506

AISIN AI

sub33146-30020

main33146-30020iKDH222,223,TRH223..5F..STD..(GCC,TH);KDH222,TRH221..SG..(03S,14S)..(GEN,SA)201312-202506

KOJIMA

9011910186

main90119-10186

9011910337

main90119-10337

90119T0241

main90119-T0241

9161160814

main91611-60814

9 parts on this diagram · 2 diagrams in section
