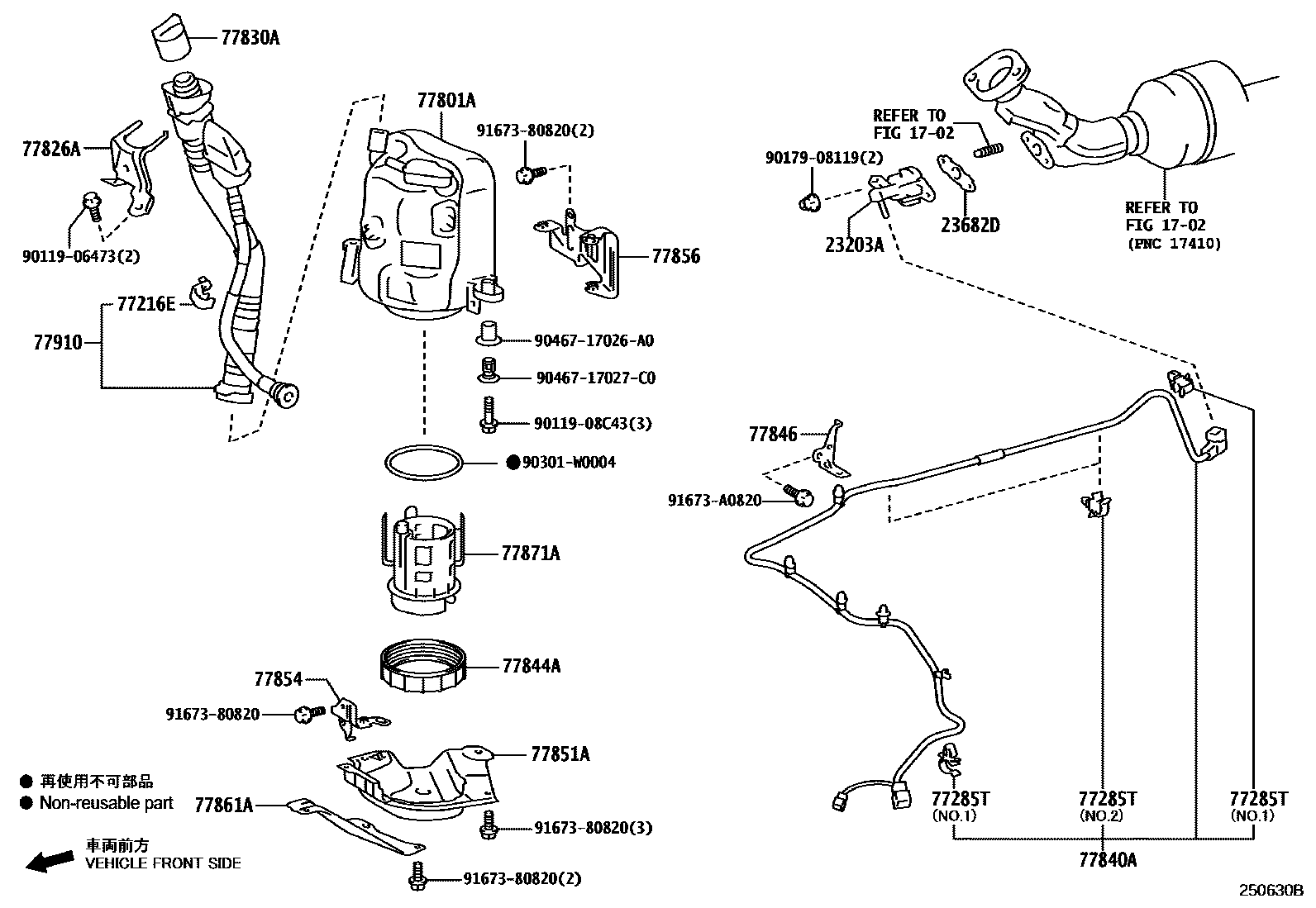

UREA TANK & TUBE

0001 1 0002 1

1702

23203AINJECTOR SET, UREA

main23203-11020i1GDFTV..GDH201201701-201708

main23203-11021i1GDFTV..GDH201,223201709

23682DGASKET, NOZZLE HOLDER

main23682-11010i1GDFTV..GDH201,223201701

77216ESUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-26080iGDH201,223201701

77285TCLAMP, UREA TUBE, NO.1

main77285-26140×2iGDH201201701-201901

NO.1

main77285-26150×2iGDH201,223201701

NO.2

77801ATANK SUB-ASSY, UREA

main77801-26030iGDH201201701-201901

main77801-V3010iGDH201,223202302

77826ASUPPORT, UREA TANK FILLER PIPE, NO.1

main77916-26010iGDH201,223201701

77830ACAP ASSY, UREA TANK

main77830-26010iGDH201,223202302

TYPE B:REFER ILLUST.

main77830-60010iGDH201201701-201901

TYPE A:REFER ILLUST.

77840ATUBE ASSY, UREA W/HEATER

main77840-26020iGDH201201701-201901

sub77840-V3010

main77840-V3031iGDH201202302

main77840-V3041iGDH223202302

77844ARETAINER, UREA PUMP GAGE

main77844-60010iGDH201201701-201901

77846BRACKET, UREA TUBE, NO.1

main77846-26010iGDH201,223201701

77851APROTECTOR, UREA TANK

main77851-26020iGDH201201701-201803

main77851-26030iGDH201201804-201901

main77851-V3020iGDH201202302

main77851-V3030iGDH223202302

77854BRACKET, UREA TANK PROTECTOR, FRONT NO.1

main77854-26010iGDH201,223201701

77856BRACKET, UREA TANK PROTECTOR, REAR NO.1

main77856-26010iGDH201201701-201901

main77856-V3010iGDH201,223202302

77861ABRACKET, UREA TANK, NO.1

main77861-26010iGDH201201804-201901

77871APUMP, UREA

main77870-0K011iGDH201,223202401

main77870-60010iGDH201,223202302-202312

main77871-26010iGDH201201701-201901

77910PIPE ASSY, UREA TANK FILLER

main77910-26020iGDH201201701-201901

PNC 77830A=TYPE A

sub77910-26021

main77910-V3010iGDH201,223202302

9011906473

main90119-06473

9011908C43

main90119-08C43

9017908119

main90179-08119

90301W0004

main90301-W0004

9046717026A0

main90467-17026A0

9046717027C0

main90467-17027C0

9167380820

main91673-80820

91673A0820

main91673-A0820

25 parts on this diagram · 2 diagrams in section
