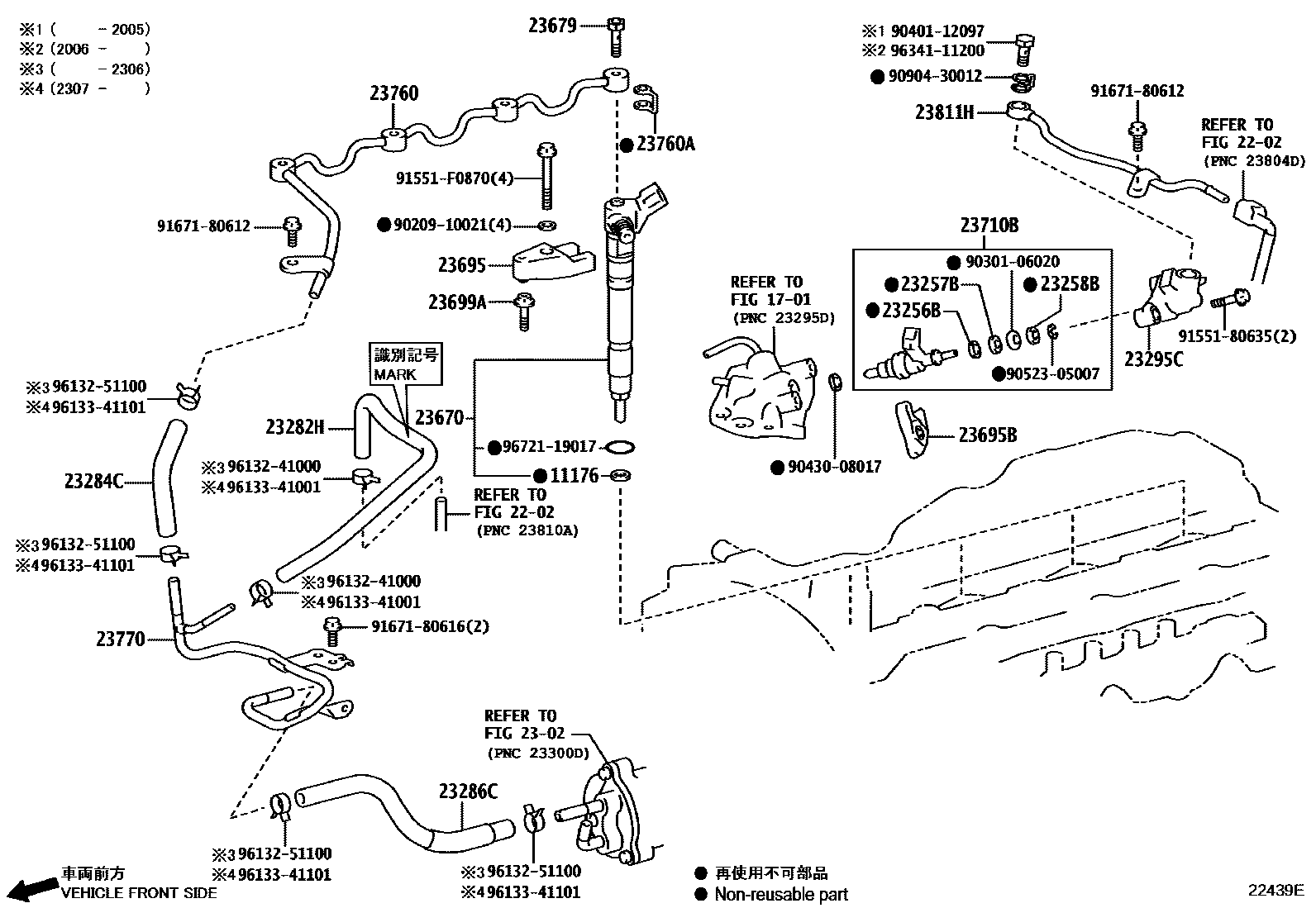

INJECTION NOZZLE

0001 1 0002 1EXCEPT EURO 5 REGULATION 0009 1EURO 5 REGULATION 0013 1SINGAPOLE SPEC 0014 1 0015 1

11176SEAT, INJECTION NOZZLE

main11176-0L011i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main11176-0L011i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main11176-0L011i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main11176-30011i1KDFTV..KDH223..TH;2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN¥240201312-202301

main11176-33010i1GDFTV..GDH201,223¥300201701

main11176-64010i5LE..LH200..5D¥250201312-202506

1701

2202

2302

23256BRING, FUEL INJECTOR BACK-UP, NO.1

main23256-74010i1KDFTV..KDH201..SP..06S¥190201312-202301

NO.1:REFER ILLUST.

main23256-74010i1KDFTV..KDH223..RUS¥190201501-201612

AZERBAIJAN SPEC,NO.1:REFER ILLUST.

main23256-74010i1KDFTV..KDH213..5F¥190201312-201906

PERU SPEC,NO.1:REFER ILLUST.

main23256-74010i1GDFTV..GDH201,223¥190201701

main23257-74010i1KDFTV..KDH213..5F¥190201312-202301

NO.2:REFER ILLUST.

main23258-28011i1KDFTV..KDH213..5F¥210201312-202301

NO.3:REFER ILLUST.

23257BRING, FUEL INJECTOR BACK-UP, NO.2

main23257-74010i1GDFTV..GDH201,223¥190201701

23258BRING, FUEL INJECTOR BACK-UP, NO.3

main23258-28011i1GDFTV..GDH201,223¥210201701

23282HHOSE, FUEL, NO.4

main23282-0E010i1GDFTV..GDH201¥970201701-201806

main23282-0E011i1GDFTV..GDH201¥970201806-201810

MARK=WHITE

sub23282-0E012¥800

main23282-0E012i1GDFTV..GDH201,223¥800201810

MARK=PINK

23284CHOSE, FUEL, NO.5

main23284-11010i1GDFTV..GDH201,223¥370201701

23286CHOSE, FUEL, NO.6

main23286-11010i1GDFTV..GDH201¥930201701-201901

main23286-11011i1GDFTV..GDH201,223¥700202302

23295CHOLDER, INJECTOR

main23295-30010i1KDFTV..KDH201..ARL;1KDFTV..KDH201..LHD..03S¥2,930201312-202301

REFER TO PNC 11176A

main23295-30010i1KDFTV..KDH203..GEN;1KDFTV..KDH201..SP..(03S,06S)..GEN¥2,930201312-201906

PERU SPEC,REFER TO PNC 11176A

main23295-30010i1KDFTV..KDH203..GEN;1KDFTV..KDH201..SP..(03S,06S)..GEN¥2,930201312-201411

SINGAPORE SPEC,REFER TO PNC 11176A

main23295-30010i1KDFTV..KDH213..5F¥2,930201709-201906

PHILIPPINE SPEC,REFER TO PNC 11176A

main23296-11020i1GDFTV..GDH201,223¥1,480201701

main23296-30020i1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN)¥3,230201411-201709

REFER TO PNC 11176D

main23296-30020i1KDFTV..KDH201,203,213..LHD..(03S,10S,12S)¥3,230201411-201709

PERU SPEC,REFER TO PNC 11176D

main23296-30020i1KDFTV..KDH223..RUS¥3,230201501-201612

AZERBAIJAN SPEC,REFER TO PNC 11176D

23670INJECTOR ASSY

main23670-09360i2KDFTV..KDH222..KEN¥55,500201312-202312

main23670-09400i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main23670-09400i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main23670-19015i1GDFTV..GDH201¥50,400201701-201901

main23670-19095i1GDFTV..GDH201,223¥50,400202302

main23670-39385i1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN)201312-201906

main23670-39435i1KDFTV..KDH203..12S..GEN¥61,600201312-202301

23679SCREW, INJECTOR FOLLOW

main23679-0L010i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main23679-0L010i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main23679-0L010i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main23679-30021i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202301

main90401-06002i1GDFTV..GDH201,223¥90201701

(J)

main90401-T0007i1GDFTV..GDH201,223201701

(L)

23695CLAMP, NOZZLE HOLDER, NO.1

main23695-0L010i2KDFTV..KDH200,202..MA¥950201401-202312

sub23695-30011¥950

main23695-11010i1GDFTV..GDH201,223¥990201701

main23695-30011i2KDFTV..KDH222..GL..GCC¥950201312-202301

main23695-30020i1KDFTV..KDH213¥1,020201312-202301

23695BCLAMP, NOZZLE HOLDER, NO.2

main23695-28010i1KDFTV..KDH213..5F¥550201312-201906

PERU SPEC

main23695-28010i1KDFTV..KDH201..SP..06S¥550201312-202301

main23695-28010i1KDFTV..KDH223..RUS¥550201501-201612

AZERBAIJAN SPEC

23699ASEAT, NOZZLE HOLDER CLAMP

main23699-11010i1GDFTV..GDH201,223¥200201701

23710BINJECTOR ASSY, EXHAUST FUEL ADDITION

main23710-11010i1GDFTV..GDH201,223¥26,900201701

main23710-30020i1KDFTV..KDH223..RUS¥29,600201501-201612

AZERBAIJAN SPEC

main23710-30020i1KDFTV..KDH203..12S..GEN¥29,600201312-201906

PERU SPEC

main23710-30020i1KDFTV..KDH201..ARL¥29,600201312-202301

23760PIPE ASSY, NOZZLE LEAKAGE

main23760-0E010i1GDFTV..GDH201¥4,110201701-201901

sub23760-0E011¥3,300

main23760-0E011i1GDFTV..GDH201,223¥3,300202302

(L)

main23760-0L010i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main23760-0L010i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main23760-0L010i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main23760-30020i2KDFTV..KDH200..LHD..5D;1KDFTV..KDH201..02S,05S,06S;1KDFTV..KDH201..4D..03S..5F;1KDFTV..KDH223..5F..(ARL,GEN,KEN,RUS);1KDFTV,2KDFTV..KDH221,222..(02S,03S,16S)..(ARL¥3,380201312-202301

main23760-54030i5LE..LH20#,212,222..4D¥2,460201312-202506

23760AGASKET

main90430-06013i1GDFTV..GDH201,223¥60201701

main90430-T0008i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main90430-T0008i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main90430-T0008i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main90904-30013i2KDFTV..KDH222..KEN¥300201312-202301

23770PIPE ASSY, NOZZLE LEAKAGE, NO.2

main23770-0E010i1GDFTV..GDH201¥3,240201701-201901

(L)

sub23770-0E011¥2,460

sub23286-0E011

main23770-0E011i1GDFTV..GDH201,223¥2,460202302

(L)

main23770-30051i2KDFTV..KDH212..16S..GEN¥3,650201312-202312

main23770-30110i1KDFTV..KDH223..5F..TH¥6,700201312-201906

main23770-30130i1KDFTV..KDH223..RUS¥5,500201312-202301

23811HPIPE, FUEL, NO.1

main23811-08010i1GDFTV..GDH201,223¥2,070202302

(L)

main23811-0E010i1GDFTV..GDH201¥2,690201701-201901

(L)

sub23811-08010¥2,070

9020910021

main90209-10021¥90

9030106020

main90301-06020¥170

9040112097

main90401-12097¥310

9043008017

main90430-08017¥90

9052305007

main90523-05007¥0

9090430012

main90904-30012¥360

9155180635

main91551-80635¥80

91551F0870

main91551-F0870¥100

9167180612

main91671-80612¥60

9167180616

main91671-80616¥60

9613241000

main96132-41000¥80

9613251100

main96132-51100¥120

9613341001

main96133-41001¥110

9613341101

main96133-41101¥90

9634111200

main96341-11200¥170

9672119017

main96721-19017¥160

37 parts on this diagram · 6 diagrams in section
