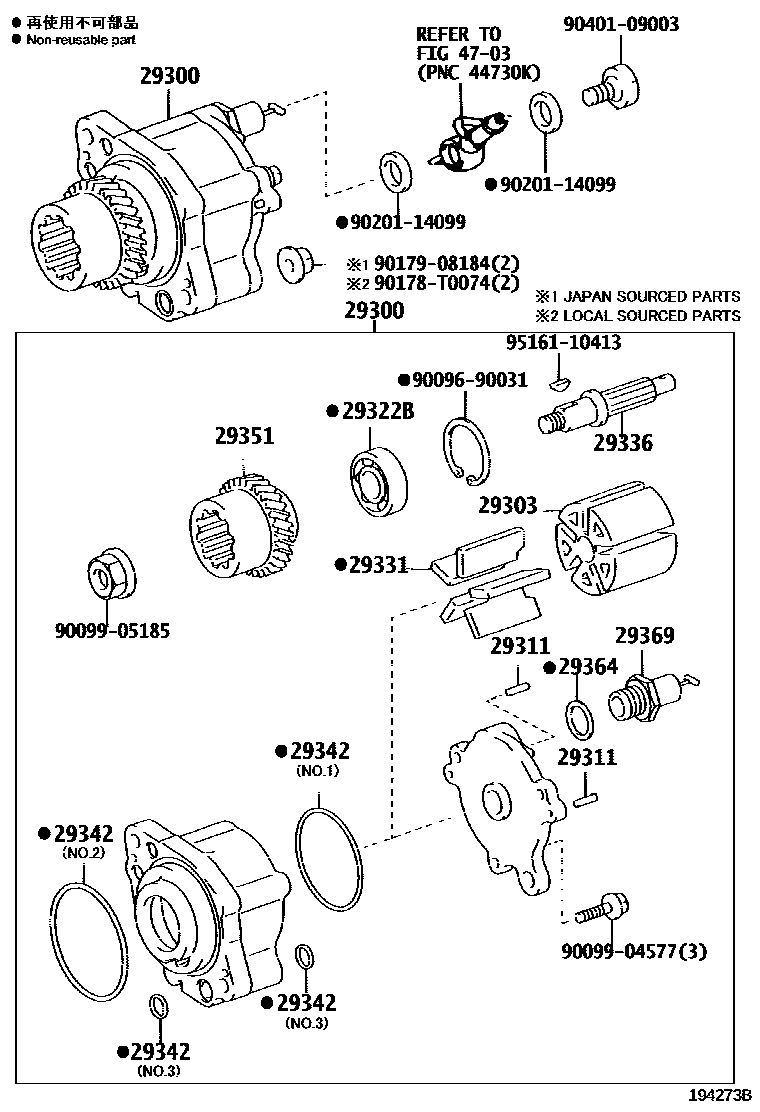

VACUUM PUMP

0001 1 0002 1 0003 1

29300PUMP ASSY, VACUUM

main29300-0L010i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main29300-11020i1GDFTV..GDH201201701-201807

main29300-11021i1GDFTV..GDH201,223201807

(J)

main29300-30020i1KDFTV..KDH213..TH201312-201906

main29300-54220i5LE..LH200..5D201908-202506

main29300-67020i2KDFTV..KDH212..16S..GEN201312-202301

29303ROTOR SUB-ASSY, VACUUM PUMP

main29303-67020i2KDFTV..KDH212..16S..GEN201512-202301

29311PIN, VACUUM PUMP DOWEL, NO.1

main29311-76010×2i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

29322BBEARING, VACUUM PUMP

main90099-10185i2KDFTV..KDH222..5F..GL;2KDFTV..KDH220..03S..SA;2KDFTV..KDH222..STD..GCC201312-201902

main90099-10227i5LE..LH200..5D201908-202506

29331BLADE, VACUUM PUMP, A

main29331-54130×5i5LE..LH200..5D201908-202506

main29331-67020×5i1KDFTV..KDH223..4FC..ARL;1KDFTV,2KDFTV..KDH201,203,212..RHD..(02S,03S,16S)..GEN201312-202301

29336SHAFT, VACUUM PUMP

main29336-58050i2KDFTV..KDH222..KEN201312-202212

main29336-64031i5LE..LH200..5D201312-201901

29342PACKING, VACUUM PUMP

main29342-58010supersedes 29342-68010i2KDFTV..KDH212..16S..GEN201312-202301

NO.1

main29342-58040i1KDFTV..KDH223..4FC..ARL;1KDFTV..KDH201,203..RHD..(02S,03S)..GEN201312-202301

NO.1

main29342-58060×2i1KDFTV..KDH213201911

NO.3

main29342-58070i1KDFTV..KDH213201911

NO.2

main29342-67020i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-201901

NO.2

main29342-68010×2i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN201908

NO.3

29351GEAR, VACUUM PUMP

main29351-67020i2KDFTV..KDH222..KEN201312-202212

29364WASHER, VACUUM PUMP

main29364-66010i2KDFTV..KDH222..GL..GCC201909

29369VALVE SUB-ASSY, CHECK

main29369-64030i1KDFTV..KDH223..TH;2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN201908

4703

9009690031

main90096-90031

9009904577

main90099-04577

9009905185

main90099-05185

90178T0074

main90178-T0074

9017908184

main90179-08184

9020114099

main90201-14099

9040109003

main90401-09003

9516110413

main95161-10413

19 parts on this diagram · 3 diagrams in section
