STARTER

0001 112V 2.2KW 0003 112V 2.7KW 0007 112V 3.0KW 0008 112V 2.0KW 0009 112V 2.2KW 0010 112V 2.2KW 0011 112V 2.7KW 0012 112V 1.0KW 0013 112V 1.4KW 0014 112V 1.6KW 0017 112V 1.6KW 0020 112V 2.0KW 0021 112V 2.0KW

28011CLUTCH SUB-ASSY, STARTER

main28011-0C041i2TRFE..TRH223..STD..SA201402

main28011-0L082i2KDFTV..KDH222..STD..SA201402

main28011-30040i2KDFTV..KDH212..16S..GEN201312-202301

main28011-30050supersedes 28011-30040i1KDFTV..KDH213..TH201312-201906

main28011-54260i5LE..LH20#,212,222..4D201312-202506

main28011-67030i1KDFTV..KDH223..TH201908

main28011-75120i2TRFE..TRH223..RUS201501-201902

main28011-54480supersedes 28011-54260i5LE..LH200..5D201312-201901

COLD AREA SPEC

28100STARTER ASSY

main28100-0C041i2TRFE..TRH223..STD..SA201402

12V 1.4KW

main28100-0L082i2KDFTV..KDH222..STD..SA201402

12V 2.2KW

main28100-11190i1GDFTV..GDH201,223201701

12V 2.0KW

main28100-30040i2KDFTV..KDH212..16S..GEN201312-202301

12V 2.0KW

main28100-30051supersedes 28100-30040i1KDFTV..KDH213..TH201312-201906

12V 2.7KW

main28100-30071i1KDFTV..KDH223..RUS201312-201501

12V 3.0KW

main28100-30120i2KDFTV..KDH222..03S,14S;2KDFTV..KDH200,202,222..GCC,GEN202410

12V 2.0KW

main28100-54262i5LE..LH20#,212,222..4D201312-202506

12V 2.2KW

main28100-67051i1KDFTV..KDH201,223..4D..5F..GEN201312-201408

12V 2.2KW

main28100-67052i1KDFTV..KDH223..TH201908

12V 2.2KW

main28100-75120i2TRFE..TRH223..RUS201501-201902

12V 2.0KW

main28100-75151i1TRFE..TRH200..5F201312-202506

12V 1.0KW

main28100-75191i2TRFE..TRH203,223..MA,TH;2TRFE..TRH201,22#..RHD..4FC201312-201502

12V 1.6KW

main28100-75210i2TRFE..TRH203,223..MA,TH201502

12V 1.6KW

main28100-54481supersedes 28100-54262i5LE..LH200..5D201312-201901

12V 2.7KW,COLD AREA SPEC

28120YOKE ASSY, STARTER

main28120-0C041i2TRFE..TRH223..STD..SA201402

main28120-0L081i2KDFTV..KDH222..STD..SA201402

main28120-0L180i1GDFTV..GDH201,223201701

main28120-28060i2TRFE..TRH213..RHD;2TRFE..TRH201,221..5F;2TRFE..TRH213..LHD..STD;2TRFE..TRH223..4FC..GCC;2TRFE..TRH223..5F..(ARL,GCC,GEN,RUS);2TRFE..TRH203,223..(14S,15S)..(GCC,GEN201312-201501

main28120-40130i1TRFE..TRH200..5F201312-202506

main28120-54260i5LE..LH20#,212,222..4D201312-202506

main28120-54380i2KDFTV..KDH212..16S..GEN201312-202301

main28120-64040i1KDFTV..KDH201,203..RHD..(02S,03S)..5F..GEN201312-202301

main28120-67020supersedes 28120-54380i1KDFTV..KDH213201911-202301

main28120-67090i1KDFTV..KDH223..RUS201312-201501

main28120-75210i2TRFE..TRH203,223..MA,TH201502

main28120-47040supersedes 28120-54260i5LE..LH200..5D201908-202506

COLD AREA SPEC

28140HOLDER ASSY, STARTER BRUSH

main28140-0C041i2TRFE..TRH223..STD..SA201402

main28140-0L070i2KDFTV..KDH222..STD..SA201402

main28140-0L180i1GDFTV..GDH201,223201701

main28140-37050i2TRFE..TRH213..RHD..GEN201908-202312

main28140-54380i2KDFTV..KDH200..MA201312-202312

main28140-64040i1KDFTV..KDH223..5F..TH201312-201904

main28140-67090i1KDFTV..KDH223..RUS201312-201501

main28140-70020i1TRFE..TRH200..4FC;1TRFE..TRH200..03S..6FC201312-202507

main28140-77090supersedes 28140-64040i1KDFTV..KDH223..RUS201501-202301

28150SWITCH ASSY, MAGNET STARTER

main28150-0C041i2TRFE..TRH223..STD..SA201402

main28150-0L071i2KDFTV..KDH222..STD..SA201402

main28150-30040i2KDFTV..KDH212..LHD..5F;2KDFTV..KDH222..STD..GEN;2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH202,220..06S,10S,12S,15S201312

main28150-30050supersedes 28150-30040i1KDFTV..KDH213..TH201312-201906

main28150-30070i1KDFTV..KDH223..RUS201312-201501

main28150-40090i1GDFTV..GDH201,223201701

main28150-40130i2TRFE..TRH203..5F..GCC201501-202506

main28150-54330i5LE..LH20#,212,222..4D201312-202506

main28150-67050i1KDFTV..KDH201..4D..03S..5F;1KDFTV..KDH201..SP..06S..4FC;1KDFTV..KDH201..(02S,05S,06S)..5F;1KDFTV..KDH201,223..LHD..(03S,14S);1KDFTV..KDH221,223..5F..(ARL,GEN,KEN,V201312

main28150-75120i2TRFE..TRH223..RUS201501-201902

main28150-75150i1TRFE..TRH200..4FC;1TRFE..TRH200..03S..6FC201312-202507

main28150-54480supersedes 28150-54330i5LE..LH200..5D201312-201901

COLD AREA SPEC

28160ARMATURE ASSY, STARTER

main28160-0C041i2TRFE..TRH223..STD..SA201402

main28160-0L070i2KDFTV..KDH222..STD..SA201402

main28160-21060i2TRFE..TRH203,223..MA,TH;2TRFE..TRH201,22#..RHD..4FC201312-201502

main28160-37050i2TRFE..TRH221..SA201904-201907

main28160-37100i1GDFTV..GDH201,223201701

main28160-54140supersedes 28160-64041i1KDFTV..KDH213201911-202301

main28160-54380i2KDFTV..KDH222..GL..SA;2KDFTV..KDH222..STD..GCC201911

main28160-64041i5LE..LH20#..4D;5LE..LH222..LHD201312-202506

main28160-67090i1KDFTV..KDH223..RUS201312-201501

main28160-70050i1TRFE..TRH200..6FC201312-202107

main28160-75120i2TRFE..TRH213,223..(10S,13S)..GEN201312-201902

main28160-75210i2TRFE..TRH203..5F..GCC201907-202506

9009964040

main90099-64040

9010512053

main90105-12053

9010512135

main90105-12135

9017908204

main90179-08204

9017912022

main90179-12022

90182T0011

main90182-T0011

9415180800

main94151-80800

9671119006

main96711-19006

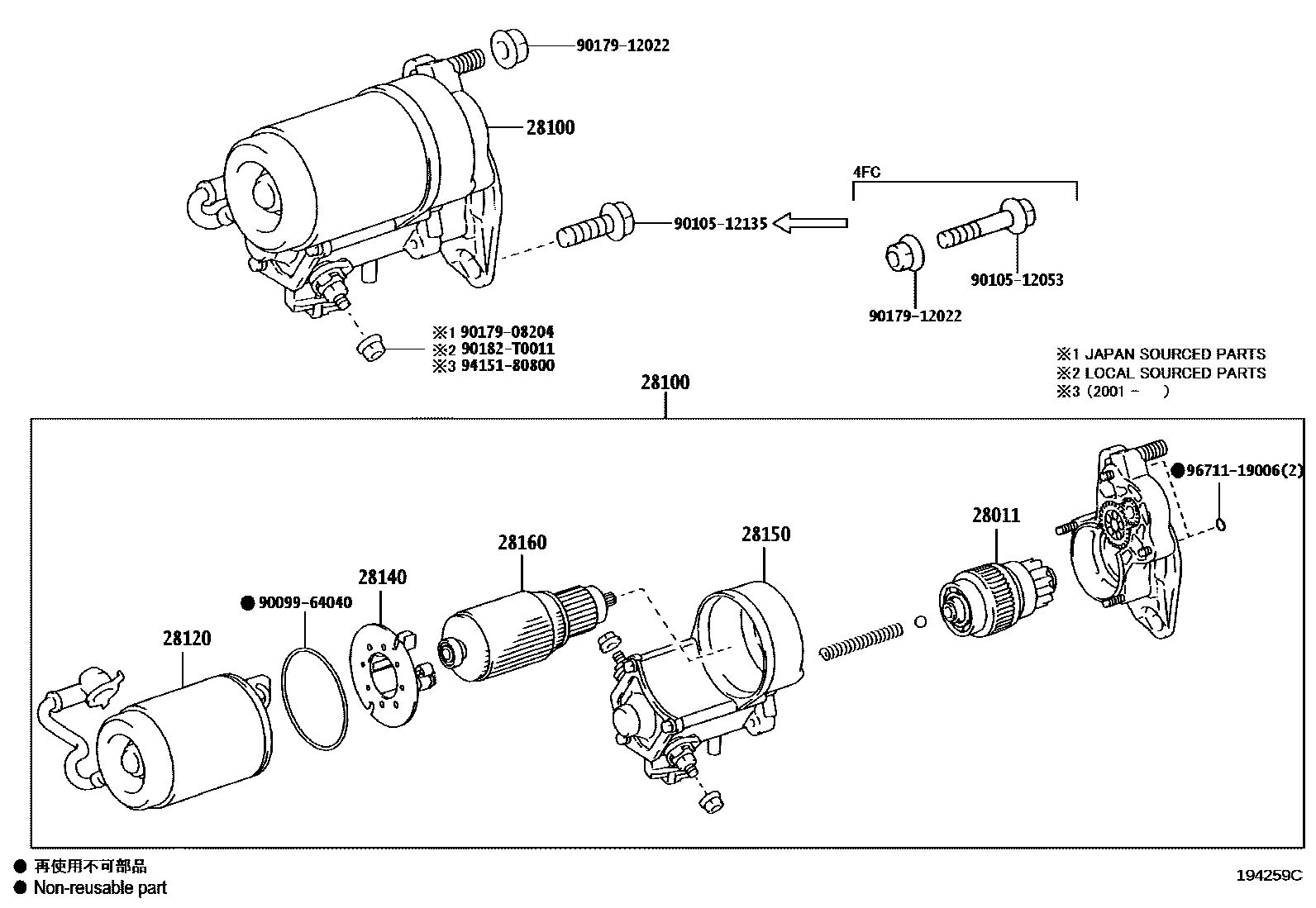

14 parts on this diagram · 13 diagrams in section
