ALTERNATOR

0001 112V 100A, 130A, 150A 0002 112V 120A 0003 112V 130A 0006 112V 130A 0010 112V 130A 0011 112V 130A

1106

1601

27020ALTERNATOR ASSY

main27040-54670i5LE..LH200..5D201312-202506

12V 120A

main27060-11360i1GDFTV..GDH201,223201701

12V 130A,12V 130A

main27060-30190i1KDFTV..KDH201..SP..06S..4FC..STD201312-201612

12V 150A,3ROOM REFRIGERATOR VAN

main27060-30210i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN201312-202312

12V 100A

main27060-30220i2KDFTV..KDH220..03S..SA201312-202301

12V 130A,AIR CONDITIONER-DUAL AIR CONDITIONER

main27060-30220i2KDFTV..KDH222..STD..GCC201312-202301

12V 130A

main27060-30220i1KDFTV..KDH201..LHD..03S;1KDFTV..KDH201..02S,05S,06S;2KDFTV..KDH212,222..GL..GEN;1KDFTV..KDH223..4FC..(GEN,TH);1KDFTV..KDH223..5F..(ARL,GEN,KEN,RUS,VN);1KDFTV..KDH2201312

12V 130A,AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

main27060-75350i2TRFE..TRH203..4FC;2TRFE..TRH221..SP..GEN;2TRFE..TRH223..GL..GEN;2TRFE..TRH223..RHD..GEN201312-202506

12V 130A

main27060-75372i1TRFE,2TRFE..TRH200,223..4FC..GEN201312-201902

12V 130A

main27060-75382i2TRFE..TRH223..4FC..ARL;2TRFE..TRH201,213,221..4FC;2TRFE..TRH223..4FC..GL..GCC201312-201906

12V 130A

main27060-75510i1TRFE..TRH200201501-202507

12V 130A

27020EBOLT(FOR ALTERNATOR)

main90105-10092i1KDFTV,2KDFTV..KDH20#,21#,22#201312-201401

main90105-10092i2KDFTV..KDH222..GL..GCC201401-202312

(J)

main90105-10287i5LE..LH20#,212,222..4D201312-202506

main90105-T0074i1KDFTV,2KDFTV..KDH20#,21#,22#201401-201901

(L)

27039COVER, ALTERNATOR REAR END

main27039-31390i2TRFE..TRH223..RHD..GEN;2TRFE..TRH223..STD..GCC;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA)201312-202506

main27039-31580i1GDFTV..GDH201,223201701

main27039-37220i1TRFE..TRH200201501-202507

main27039-50430i2KDFTV..KDH200..MA201312-202312

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-11300i1GDFTV..GDH201,223201701

main27310-30080i1KDFTV..KDH223..TH;2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN201312-202312

main27310-75270i2TRFE..TRH203..4FC;2TRFE..TRH213..RHD..5F201312-202506

main27310-75470i1TRFE..TRH200201501-202507

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10223i1TRFE..TRH200..5F;2TRFE..TRH203..5F..GCC201312-202507

27312PLATE, RETAINER

main27312-72100i2KDFTV..KDH222..KEN201312-202507

27330ROTOR ASSY, ALTERNATOR

main27330-11120i5LE..LH200..5D201312-202506

main27330-30070i2KDFTV..KDH212..16S..GEN201312-202312

main27330-33090i2KDFTV..KDH212..16S..GEN201312-202301

AIR CONDITIONER-DUAL AIR CONDITIONER

main27330-33090i1KDFTV..KDH223..5F..TH201312-202506

main27330-33090i2KDFTV..KDH202..SRF201312

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

main27330-37220i1TRFE..TRH200201501-202507

main27330-58460i1KDFTV..KDH201..SP..06S..4FC..STD201312-201612

3ROOM REFRIGERATOR VAN

27360COIL ASSY, ALTERNATOR

main27360-11300i1GDFTV..GDH201,223201701

main27360-30200i1KDFTV..KDH201..SP..06S..4FC..STD201312-201612

3ROOM REFRIGERATOR VAN

main27360-30220i2KDFTV..KDH222..STD..GCC201312-202312

main27360-30230i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN201312-202301

AIR CONDITIONER-DUAL AIR CONDITIONER

main27360-30230i1KDFTV..KDH223..5F..TH201312-202212

main27360-30230i1KDFTV..KDH201..LHD..03S;1KDFTV..KDH201..02S,05S,06S;2KDFTV..KDH212,222..GL..GEN;1KDFTV..KDH223..4FC..(GEN,TH);1KDFTV..KDH223..5F..(ARL,GEN,KEN,RUS,VN);1KDFTV..KDH2201312

AIR CONDITIONER-DUAL AIR CONDITIONER(2 OUTLETS)

main27360-75280i1TRFE,2TRFE..TRH200,223..4FC..GEN201312-201902

main27360-75300i2TRFE..TRH203..4FC;2TRFE..TRH213..RHD..5F201312-202506

main27360-75470i1TRFE..TRH200..03S..6FC;2TRFE..TRH201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS)201501-202507

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31220i1GDFTV..GDH201,223201701

main27370-58460i1KDFTV..KDH223..TH;2TRFE..TRH203..4FC;2TRFE..TRH221..SP..GEN;2TRFE..TRH223..GL..GEN;2KDFTV..KDH200..LHD..4D;2KDFTV,2TRFE..KDH200,TRH223..RHD..GEN201312-202507

main27370-75060i5LE..LH200..5D201312-202506

27384WASHER

main27384-50030i2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS)201312-202506

27387INSULATOR, TERMINAL

main27387-20130i2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2KDFTV..KDH200..LHD..5D;2TRFE..TRH213..LHD..GEN;1KDFTV..KDH201..4D..03S..5F;1KDFTV,2TRFE..KDH221,TRH201;2TRFE..TRH223..LHD201312-202507

main27387-31580i1GDFTV..GDH201,223201701

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-0W063i1TRFE..TRH200..4FC;2TRFE..TRH223..4FC..GL;2TRFE..TRH201,213,221..4FC,6FC;1TRFE,2TRFE..TRH200,223..(03S,14S)..(4FC,6FC)201312-202507

main27415-30010i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202312

27416CAP, ALTERNATOR PULLEY

main27416-0W050i1TRFE..TRH200..6FC201312-202507

main27416-30010i1KDFTV,2KDFTV..KDH20#,21#,22#201312-201707

sub27416-30020

main27416-30020i1KDFTV..KDH223..TH;2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN201706-202312

9009900197

main90099-00197

9009900268

main90099-00268

9009904539

main90099-04539

9009905284

main90099-05284

9415080600

main94150-80600

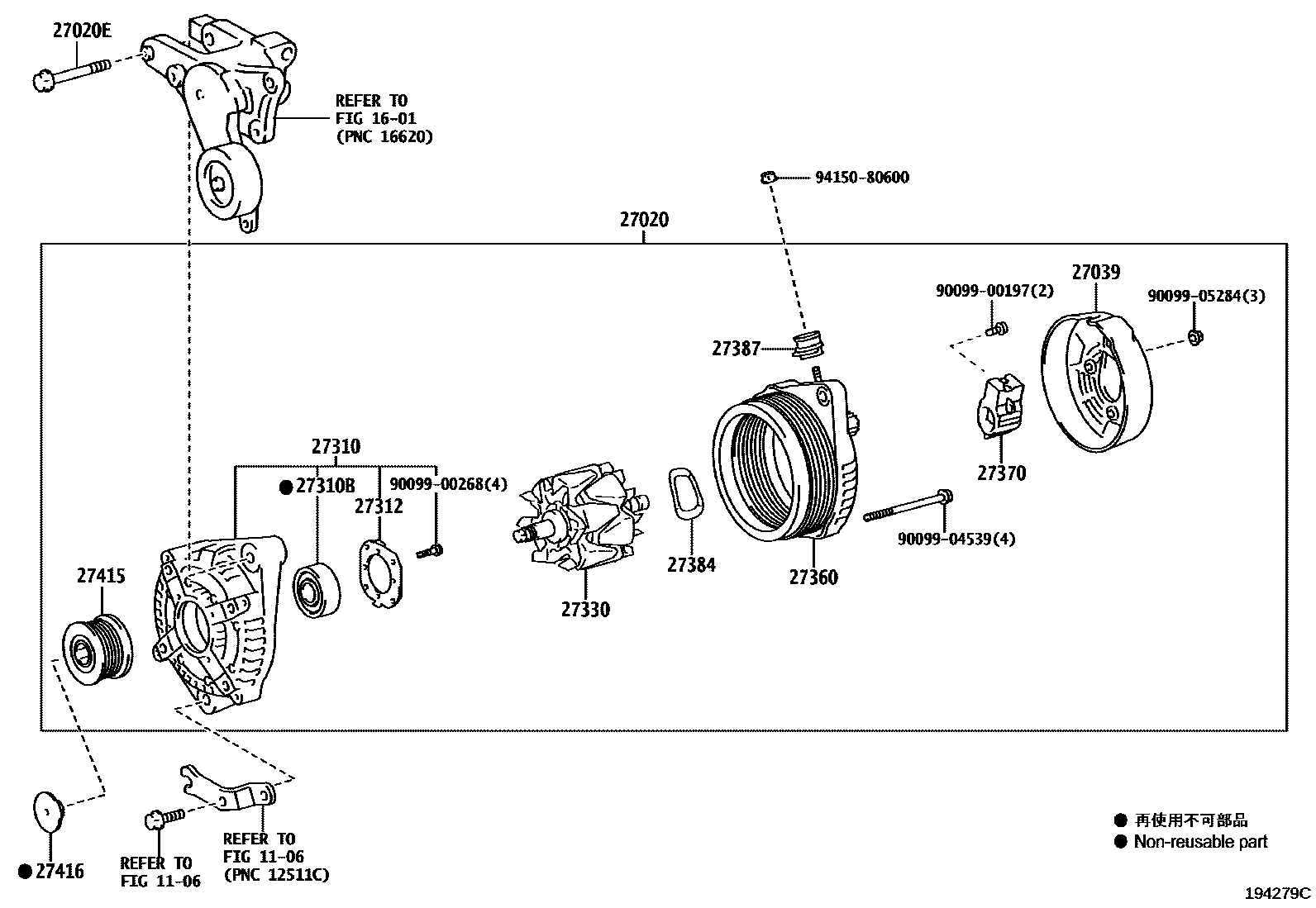

20 parts on this diagram · 6 diagrams in section
