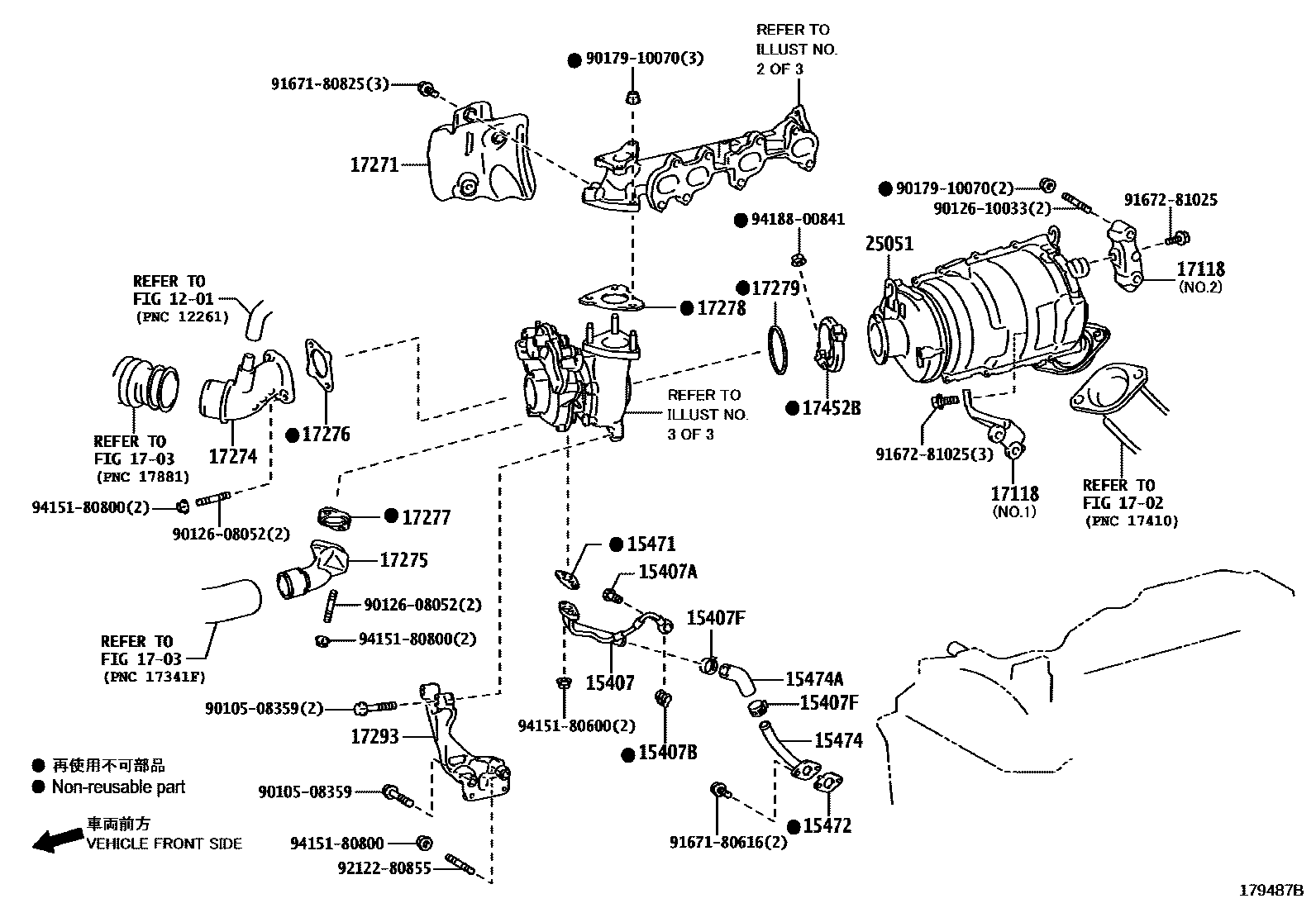

MANIFOLD

0001 1 0002 1 0003 1 0004 1 0005 1EXCEPT EURO 5 REGULATION 0006 1EXCEPT EURO 5 REGULATION 0007 1EURO 5 REGULATION 0010 1EURO 5 REGULATION 0011 1EURO 5 REGULATION 0013 1SINGAPOLE SPEC 0014 1SINGAPOLE SPEC 0015 1SINGAPOLE SPEC 0016 1 0017 1 0018 1 0019 1

1201

15407PIPE SUB-ASSY, TURBO OIL INLET

main15407-0E020i1GDFTV..GDH201,223201701

main15407-30042i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN201312-202312

main15407-30080i1KDFTV..KDH203,223..TH,VN201401-201904

CBU PACKAGE

sub15407-30110

main15407-30080i1KDFTV..KDH203,223..TH,VN201401-201904

FIJI SPEC

sub15407-30110

main15407-30110i1KDFTV..KDH223..TH201312-202301

15407ABOLT, UNION(FOR TURBO OIL INLET PIPE)

main90401-12097i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202301

main90401-T0004i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main90401-T0004i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main90401-T0004i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main96341-11200i1GDFTV..GDH201,223202302

15407BGASKET(FOR TURBO OIL INLET PIPE)

main90430-T0006i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main90430-T0006i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main90430-T0006i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main90904-30004i2KDFTV..KDH200..LHD..5D;1KDFTV..KDH201..02S,05S,06S;1KDFTV..KDH201..4D..03S..5F;1KDFTV..KDH223..5F..(ARL,GEN,KEN,RUS);1KDFTV,2KDFTV..KDH221,222..(02S,03S,16S)..(ARL201312-202301

15407FCLAMP OR CLIP, OIL HOSE

main96137-42501i1GDFTV..GDH201,223201701

15471GASKET, TURBO OIL INLET

main15471-0L011i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main15471-0L011i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main15471-0L011i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main15471-11020i1GDFTV..GDH201,223201701

main15471-30011i1KDFTV..KDH223..TH;2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN201312-202301

15472GASKET, TURBO OIL OUTLET, NO.1

main15472-0L010i2KDFTV..KDH200,202..MA201401-202312

main15472-11010i1GDFTV..GDH201,223201701

main15472-30010i1KDFTV..KDH223..5F..TH201312-202301

15474PIPE, TURBO OIL OUTLET

main15474-0E010i1GDFTV..GDH201,223201701

15474AHOSE, TURBO OIL OUTLET

main15491-11010i1GDFTV..GDH201,223201701

1702

1703

17118STAY, MANIFOLD

main17118-11390i1GDFTV..GDH201,223201701

NO.3

main17118-30040i2KDFTV..KDH222..5F..GL;2KDFTV..KDH220..03S..SA;2KDFTV..KDH222..STD..GCC201312-202312

main17568-11170i1GDFTV..GDH201,223201701

NO.1

main17569-11140i1GDFTV..GDH201,223201701

NO.2

17271INSULATOR, TURBO, NO.1

main17271-0L020i1KDFTV..KDH221;1KDFTV..KDH201..LHD..03S;1KDFTV..KDH201..4D..03S..5F;1KDFTV..KDH201..02S,05S,06S;1KDFTV..KDH223..4FC..(GEN,TH);1KDFTV..KDH223..5F..(ARL,GEN,KEN,RUS,V201312-202301

main17271-11021i1GDFTV..GDH201,223201701

17274ELBOW, COMPRESSOR INLET

main17274-11040i1GDFTV..GDH201201701-201901

main17274-11080i1GDFTV..GDH201,223202302

main17274-30071i1KDFTV..KDH213..TH201312-201906

main17274-30090i1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..(02S,03S,14S)..STD201312-202301

main17274-30120i1KDFTV..KDH223..RUS201312-201612

main17274-30160i1KDFTV..KDH203,223..TH,VN201401-201904

FIJI SPEC

main17274-30160i1KDFTV..KDH203,223..TH,VN201401-201904

CBU PACKAGE

17275ELBOW, COMPRESSOR OUTLET

main17275-11020i1GDFTV..GDH201,223201701

17276GASKET, COMPRESSOR INLET

main17276-0L010i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main17276-0L010i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main17276-67010i1KDFTV..KDH223..TH201312-202301

17277GASKET, COMPRESSOR OUTLET

main17277-11030i1GDFTV..GDH201,223201701

17278GASKET, TURBO TO EXHAUST MANIFOLD

main17278-0L010i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

sub17278-08010

main17278-0L010i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

sub17278-08010

main17278-0L010i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

sub17278-08010

main17278-11041i1GDFTV..GDH201,223201701

main17278-67010i2KDFTV..KDH200..LHD..5D;1KDFTV..KDH201..02S,05S,06S;1KDFTV..KDH201..4D..03S..5F;1KDFTV..KDH223..5F..(ARL,GEN,KEN,RUS);1KDFTV,2KDFTV..KDH221,222..(02S,03S,16S)..(ARL201312-202301

17279GASKET, TURBINE OUTLET ELBOW

main17279-0L021i2KDFTV..KDH200,202..MA201401-202312

main17279-11020i1GDFTV..GDH201,223201701

main17279-30020i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202301

main17279-30030i1KDFTV..KDH203..GEN;1KDFTV..KDH201..SP..(03S,06S)..GEN201312-201411

sub17279-30031

main17279-30031i1KDFTV..KDH221;1KDFTV..KDH201..LHD..03S;1KDFTV..KDH201..4D..03S..5F;1KDFTV..KDH201..02S,05S,06S;1KDFTV..KDH223..4FC..(GEN,TH);1KDFTV..KDH223..5F..(ARL,GEN,KEN,VN);1201411-202301

17293STAY, TURBOCHARGER

main17293-11011i1GDFTV..GDH201201701-201901

sub17293-11020

main17293-11020i1GDFTV..GDH201,223202302

main17293-30030i2KDFTV..KDH200..MA201312-202312

main17293-30100i1KDFTV..KDH223..TH201312-202301

main17293-30110i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main17293-30110i1KDFTV..KDH203,223..TH,VN201401-201904

CBU PACKAGE

17452BCLAMP, EXHAUST PIPE

main17452-11070i1GDFTV..GDH201,223201701

25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD

main25051-11060i1GDFTV..GDH201,223201701

*114=*403

main25051-30070i1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN)201312-201906

9010508359

main90105-08359

9012608052

main90126-08052

9012610033

main90126-10033

9017910070

main90179-10070

9167180616

main91671-80616

9167180825

main91671-80825

9167281025

main91672-81025

9212280855

main92122-80855

9415180600

main94151-80600

9415180800

main94151-80800

9418800841

main94188-00841
