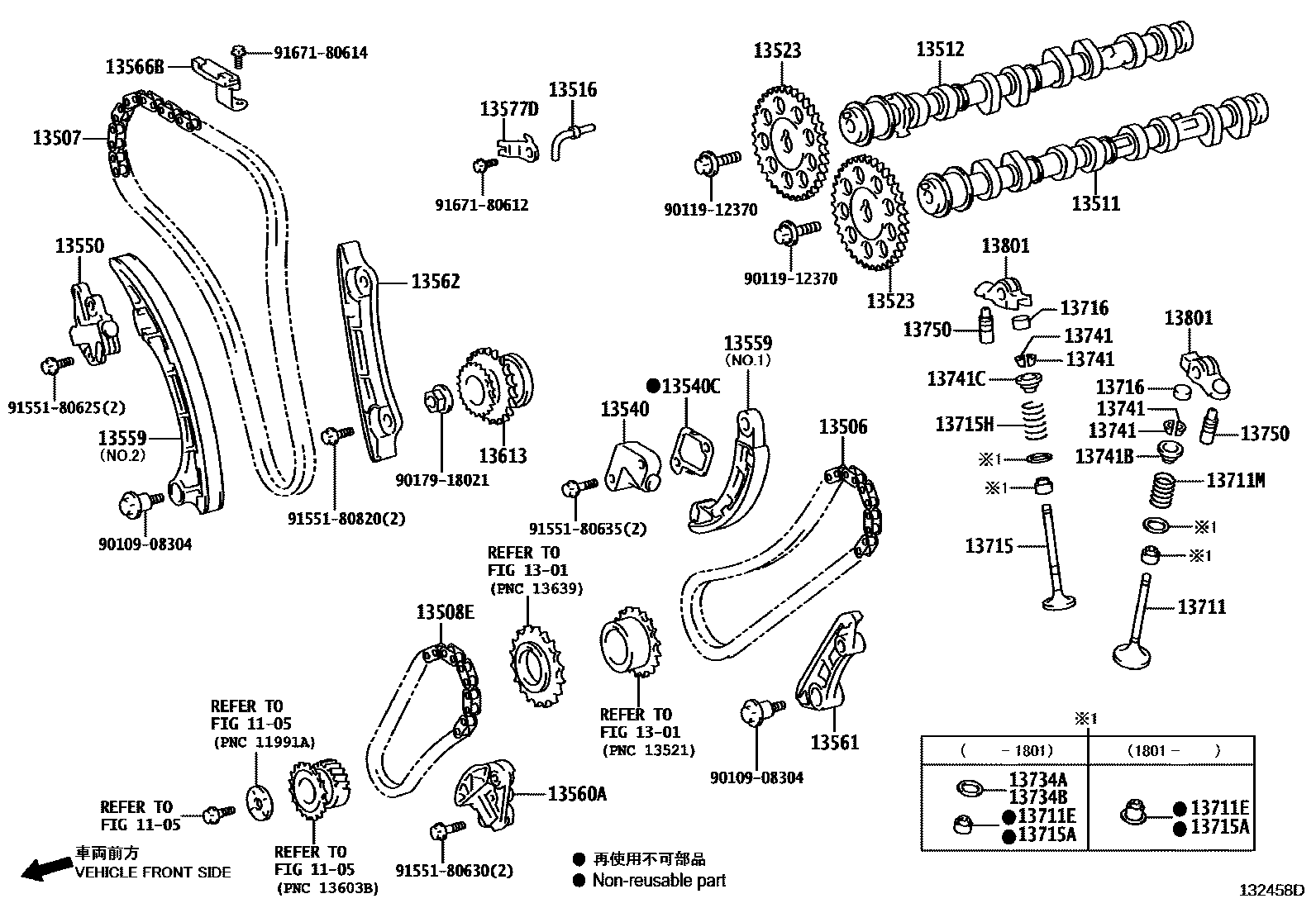

CAMSHAFT & VALVE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1DUAL VVT

1105

1301

13506CHAIN SUB-ASSY

main13506-0C020i2TRFE..TRH203..MA201401-201407

sub13506-75050¥16,000

main13506-0C040i2TRFE..TRH203..MA201407-201611

(L)

main13506-11010i1GDFTV..GDH201¥6,700201701-201806

sub13506-11011¥4,950

main13506-11011i1GDFTV..GDH201,223¥4,950201807

main13506-75040i1TRFE..TRH200¥15,300201312-201405

MARK=ORANGE

main13506-75050i2TRFE..TRH201,203,213,22#..ARL,GCC,GEN,RUS,SA,TH¥16,000201312-201405

sub13506-75070¥9,900

main13506-75060i1TRFE..TRH200..6FC¥9,400201405-202507

MARK=PINK

main13506-75070i2TRFE..TRH213..RHD..GEN¥9,900201405-202506

main13506-75070i2TRFE..TRH203..MA¥9,900201407-201611

(J)

13507CHAIN SUB-ASSY, NO.2

main13507-0C010i2TRFE..TRH203..MA201401-201407

main13507-0C010i2TRFE..TRH203..MA201407-201611

(L)

main13507-11010i1GDFTV..GDH201¥10,400201701-201901

sub13507-11011¥9,400

main13507-11011i1GDFTV..GDH201,223¥9,400202302

main13507-75030i2TRFE..TRH203..MA¥6,700201407-201611

(J)

main13507-75030i2TRFE..TRH203..4FC;2TRFE..TRH213..RHD..5F¥6,700201312-202506

13508ECHAIN SUB-ASSY, NO.3

main13508-11010i1GDFTV..GDH201¥4,750201701-201901

sub13508-11011¥4,310

main13508-11011i1GDFTV..GDH201,223¥4,310202302

13511CAMSHAFT

main13501-0C010i2TRFE..TRH203..MA201401-201404

sub13501-0C011

main13501-0C011i2TRFE..TRH203..MA201404-201611

main13501-0L010i2KDFTV..KDH200,202..MA201508-202312

(L)

sub13501-30040¥33,500

main13501-0L010i2KDFTV..KDH200,202..MA201401-201508

sub13501-30040¥33,500

main13501-0L020i1KDFTV..KDH223..5F..TH201508-201904

(L)

sub13501-30050¥37,400

main13501-0L020i1KDFTV..KDH203,223..TH,VN201508-201904

CBU PACKAGE,(L)

sub13501-30050¥37,400

main13501-0L020i1KDFTV..KDH223..5F..TH201401-201508

CBU PACKAGE

sub13501-30050¥37,400

main13501-0L020i1KDFTV..KDH203,223..TH,VN201508-201904

FIJI SPEC,(L)

sub13501-30050¥37,400

main13501-0L020i1KDFTV..KDH223..5F..TH201401-201508

FIJI SPEC

sub13501-30050¥37,400

main13501-11070i1GDFTV..GDH201,223¥27,000201701

main13501-30020i1KDFTV..KDH223..TH¥28,300201312-201906

main13501-30030i2KDFTV..KDH222..KEN¥25,300202002-202301

main13501-30030i2KDFTV..KDH200..MA¥25,300202002-202312

(J)

main13501-30040i2KDFTV..KDH200,202..MA¥33,500201508-202002

(J)

sub13501-30030¥25,300

main13501-30040i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200,212..RHD..(03S,10S)..(GEN,SA)¥33,500201312-202002

sub13501-30030¥25,300

main13501-30050i1KDFTV..KDH203,223..TH,VN¥37,400201508-201904

(J)

sub13501-30020¥28,300

main13501-30060i1KDFTV..KDH203..12S..GEN¥31,100201312-202301

main13501-54090i5LE..LH200..5D¥28,300201312-202506

main13501-75060i1TRFE..TRH200;2TRFE..TRH223..TH¥42,800201312-201403

W/O(LOT NO. MARK)

sub13501-75061¥35,700

main13501-75060i1TRFE..TRH200;2TRFE..TRH223..TH¥42,800201312-201403

LPG CONVERSION PACKAGE,W/O(LOT NO. MARK)

sub13501-75061¥35,700

main13501-75060i1TRFE..TRH200;2TRFE..TRH223..TH¥42,800201312-201403

W/O(MARK)

sub13501-75061¥35,700

main13501-75061i2TRFE..TRH201,22#..ARL¥35,700201403-201902

LPG CONVERSION PACKAGE,W/O(LOT NO. MARK)

sub13501-75071¥27,000

main13501-75061i2TRFE..TRH221..GEN;2TRFE..TRH223..GCC;2TRFE..TRH213,223..GL¥35,700201403-202002

W/O(MARK)

sub13501-75071¥27,000

main13501-75061i1TRFE..TRH200;2TRFE..TRH223..TH¥35,700201403-202001

W/O(LOT NO. MARK)

sub13501-75071¥27,000

main13501-75070i2TRFE..TRH201,203,213,22#¥42,800201312-201401

LPG CONVERSION PACKAGE,W(LOT NO. MARK)

sub13501-75071¥27,000

main13501-75070i2TRFE..TRH201,22#..ARL¥42,800201312-201401

W(MARK)

sub13501-75071¥27,000

main13501-75070i2TRFE..TRH201,22#..ARL¥42,800201312-201401

W(LOT NO. MARK)

sub13501-75071¥27,000

main13501-75071i2TRFE..TRH213,221..RHD..STD¥27,000201401-202507

W(LOT NO. MARK)

main13501-75071i2TRFE..TRH223..RHD..GEN;2TRFE..TRH223..STD..GCC;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA)¥27,000201401-202005

W(MARK)

13512CAMSHAFT, NO.2

main13502-0C010i2TRFE..TRH203..MA201401-201611

main13502-0L010i2KDFTV..KDH200,202..MA201401-201508

sub13502-30030¥33,500

main13502-0L010i2KDFTV..KDH200,202..MA201508-202312

(L)

sub13502-30030¥33,500

main13502-0L020i1KDFTV..KDH223..5F..TH201508-201904

FIJI SPEC,(L)

sub13502-30040

main13502-0L020i1KDFTV..KDH203,223..TH201401-201508

CBU PACKAGE

sub13502-30040

main13502-0L020i1KDFTV..KDH203,223..TH201401-201508

FIJI SPEC

sub13502-30040

main13502-0L020i1KDFTV..KDH203,223..TH,VN201508-201904

(L)

sub13502-30040

main13502-0L020i1KDFTV..KDH203,223..TH,VN201508-201904

CBU PACKAGE,(L)

sub13502-30040

main13502-11070i1GDFTV..GDH201,223¥27,000201701

main13502-30010i1KDFTV..KDH223..RUS¥28,300201312-201906

main13502-30020i2KDFTV..KDH200,212,220..SA¥25,300202002-202301

main13502-30020i2KDFTV..KDH200..MA¥25,300202002-202312

(J)

main13502-30030i2KDFTV..KDH200,220..LHD..5D;2KDFTV..KDH222..16S..(GEN,SA);2KDFTV..KDH202,212,220..06S,11S,12S,13S,15S,16S¥33,500201312-202002

sub13502-30020¥25,300

main13502-30030i2KDFTV..KDH200,202..MA¥33,500201508-202002

(J)

sub13502-30020¥25,300

main13502-30040i1KDFTV..KDH203,223..TH,VN201508-201904

(J)

sub13502-30010¥28,300

main13502-30050i1KDFTV..KDH203,213..02S,10S;1KDFTV..KDH201..SP..(03S,06S)..GEN¥31,100201312-202301

main13502-75050i2TRFE..TRH223..TH;1TRFE..TRH200..4FC¥35,700201312-201904

W/O(LOT NO. MARK)

sub13502-75060¥27,000

main13502-75050i2TRFE..TRH203..4FC;2TRFE..TRH213..RHD..5F¥35,700201312-202002

W/O(MARK)

sub13502-75060¥27,000

main13502-75050i2TRFE..TRH201,22#..ARL¥35,700201312-201501

LPG CONVERSION PACKAGE,W/O(LOT NO. MARK)

sub13502-75060¥27,000

main13502-75060i2TRFE..TRH203..4FC;2TRFE..TRH213,223..RHD..GEN¥27,000201312-202005

W(MARK)

main13502-75060i2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS)¥27,000201312-201501

LPG CONVERSION PACKAGE,W(LOT NO. MARK)

main13502-75060i2TRFE..TRH213,221..RHD..STD¥27,000201312-202506

W(LOT NO. MARK)

main13502-75070i1TRFE..TRH200¥30,100201501-202001

W(LOT NO. MARK)

sub13502-75080¥27,000

main13502-75080i2TRFE..TRH201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS)¥27,000201501-201902

(J),W(MARK)

main13502-75080i2TRFE..TRH201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS)¥27,000201501-201902

LPG CONVERSION PACKAGE,(J),W(MARK)

main13502-75080i1TRFE..TRH200¥27,000202001-202507

W(LOT NO. MARK)

13516JET, OIL

main13516-11010i1GDFTV..GDH201,223¥360201701

main13516-75040i1TRFE..TRH200..5F¥480201312-202507

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-0C020i2TRFE..TRH203..MA201401-201611

main13523-11030i1GDFTV..GDH201,223¥2,530201701

main13523-75030i2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS)¥2,420201312-202506

13540TENSIONER ASSY, CHAIN, NO.1

main13540-0C010i2TRFE..TRH203..MA201401-201407

sub13540-0C011

main13540-0C011i2TRFE..TRH203..MA201407-201504

(L)

sub13540-0C020

main13540-0C020i2TRFE..TRH203..MA201505-201507

(L)

sub13540-0C021

main13540-0C021i2TRFE..TRH203..MA201508-201611

(L)

main13540-11010i1GDFTV..GDH201,223¥2,460201701

main13540-75030i2TRFE..TRH223..ARL,GCC,GEN,RUS,SA;2TRFE..TRH201,203,213,221..ARL,GCC,GEN,SA,TH¥4,110201312-201411

sub13540-75041¥2,590

main13540-75040i2TRFE..TRH203..MA¥4,110201505-201507

(J)

sub13540-75041¥2,590

main13540-75040i1TRFE..TRH200..6FC;2TRFE..TRH223..ARL,GCC,GEN,RUS,SA;2TRFE..TRH201,203,213,221..ARL,GCC,GEN,SA,TH¥4,110201410-201507

sub13540-75041¥2,590

main13540-75041i2TRFE..TRH203..4FC;2TRFE..TRH213..RHD..5F¥2,590201508-202507

main13540-75041i2TRFE..TRH203..MA¥2,590201508-201611

(J)

13540CGASKET(FOR CHAIN TENSIONER)

main13552-0C010i2TRFE..TRH203..MA201401-201407

sub13552-0C020

main13552-0C010i2TRFE..TRH203..MA201407-201412

(L)

sub13552-0C020

main13552-0C020i2TRFE..TRH203..MA201412-201611

(L)

main13552-11010i1GDFTV..GDH201,223¥270201701

main13552-75020i1TRFE..TRH200¥450201312-201406

sub13552-75030¥270

main13552-75020i2TRFE..TRH203..MA¥450201407-201412

(J)

sub13552-75030¥270

main13552-75030i2TRFE..TRH213,223..GL..SA¥270201406-202507

main13552-75030i2TRFE..TRH203..MA¥270201412-201611

(J)

13550TENSIONER ASSY, CHAIN, NO.2

main13550-0C020i2TRFE..TRH203..MA201407-201611

(L)

main13550-11010i1GDFTV..GDH201,223¥2,590201701

main13550-75010i2TRFE..TRH213,223..GL..SA¥2,590201312-202506

main13550-75010i2TRFE..TRH203..MA¥2,590201407-201611

(J)

13559SLIPPER, CHAIN TENSIONER

main13559-0C020i2TRFE..TRH203..MA201401-201407

sub13559-0C040

main13559-0C040i2TRFE..TRH203..MA201407-201611

(L)

main13559-11010i1GDFTV..GDH201,223¥2,480201701-202501

NO.2

main13559-11020i1GDFTV..GDH201,223¥2,480201701

NO.1

main13559-75030i1TRFE..TRH200¥5,200201312-201404

sub13559-75050¥3,250

main13559-75040i2TRFE..TRH201,203,213,22#..ARL,GCC,GEN,RUS,SA,TH¥5,200201312-201405

sub13559-75060¥3,270

main13559-75050i1TRFE..TRH200..4FC;1TRFE..TRH200..03S..6FC¥3,250201405-202507

main13559-75060i2TRFE..TRH221..SA¥3,270201405-202506

main13559-75060i2TRFE..TRH203..MA¥3,270201407-201611

(J)

13560ATENSIONER ASSY, CHAIN, NO.3

main13560-11010i1GDFTV..GDH201¥8,900201701-201901

sub13560-11011¥6,600

main13560-11011i1GDFTV..GDH201,223¥6,600202302

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-0C020i2TRFE..TRH203..MA201401-201407

sub13561-0C040

main13561-0C040i2TRFE..TRH203..MA201407-201611

(L)

main13561-11010i1GDFTV..GDH201¥1,090201701-201901

sub13561-11011¥820

main13561-11011i1GDFTV..GDH201,223¥820202302-202501

main13561-75030i1TRFE..TRH200¥2,700201312-201404

sub13561-75050¥2,090

main13561-75040i2TRFE..TRH201,203,213,22#..ARL,GCC,GEN,RUS,SA,TH¥2,700201312-201405

sub13561-75060¥1,700

main13561-75050i1TRFE..TRH200..4FC;1TRFE..TRH200..03S..6FC¥2,090201405-202507

main13561-75060i2TRFE..TRH203..4FC;2TRFE..TRH223..RHD..GEN¥1,700201405-202506

main13561-75060i2TRFE..TRH203..MA¥1,700201407-201611

(J)

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-0C010i2TRFE..TRH203..MA201401-201407

main13562-0C010i2TRFE..TRH203..MA201407-201611

(L)

main13562-11010i1GDFTV..GDH201,223¥1,060201701-202502

main13562-75010i2TRFE..TRH223..RHD..GEN;2TRFE..TRH223..STD..GCC;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA)¥1,350201312-202506

main13562-75010i2TRFE..TRH203..MA¥1,350201407-201611

(J)

13566BGUIDE, TIMING CHAIN

main13566-0C010i2TRFE..TRH203..MA201401-201407

sub13566-0C020

main13566-0C020i2TRFE..TRH203..MA201407-201611

(L)

main13566-11030i1GDFTV..GDH201,223¥490201701

main13566-75010i2TRFE..TRH223..ARL,GCC,GEN,RUS,SA;2TRFE..TRH201,203,213,221..ARL,GCC,GEN,SA,TH¥900201312-201405

sub13566-75020¥550

main13566-75020i2TRFE..TRH223..RHD..GEN;2TRFE..TRH223..STD..GCC;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA)¥550201405-202507

main13566-75020i2TRFE..TRH203..MA¥550201407-201611

(J)

13577DPLATE, LOCK

main13577-11010i1GDFTV..GDH201,223¥180201701

13613GEAR, INJECTION PUMP DRIVE

main13616-0E010i1GDFTV..GDH201¥2,960201701-201901

(L)

sub13616-0E011¥2,240

main13616-0E011i1GDFTV..GDH201,223¥2,240202302

(L)

main13616-11020i1GDFTV..GDH201,223¥2,600201701

(J)

13711VALVE, INTAKE

main13711-0C040i2TRFE..TRH203..MA201401-201408

main13711-0C040i2TRFE..TRH203..MA201408-201611

MARK N

main13711-0C060i2TRFE..TRH221..SP..GEN;2TRFE..TRH201,203,213,223..(03S,15S,16S)..GEN201312-201501

main13711-0L010i2KDFTV..KDH200,202..MA¥2,250201401-202312

main13711-0L020i1KDFTV..KDH223..5F..TH¥2,250201401-201904

FIJI SPEC

main13711-0L020i1KDFTV..KDH203,223..TH,VN¥2,250201401-201904

CBU PACKAGE

main13711-11030i1GDFTV..GDH201,223¥1,210201701

main13711-30030i1KDFTV..KDH213..TH¥1,420201312-202301

main13711-30040i2KDFTV..KDH222..5F..GL;2KDFTV..KDH220..03S..SA;2KDFTV..KDH222..STD..GCC¥1,420201312-202301

main13711-54030i5LE..LH200..5D¥1,420201312-202506

main13711-75100i1TRFE..TRH200..5F¥1,420201312-202507

main13711-75110i2TRFE..TRH203..MA¥1,420201408-201611

NO MARK

main13711-75110i2TRFE..TRH201..RHD;2TRFE..TRH213..GCC;2TRFE..TRH213..GL..GEN;2TRFE..TRH22#..(02S,10S)..4FC;2TRFE..TRH223..(4FC,5F)..(ARL,RUS,TH)¥1,420201312-201904

main13711-75130i2TRFE..TRH221..SA¥1,410201902-202506

13711ESEAL, INTAKE VALVE STEM OIL

main90080-31099i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main90080-31099i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main90080-31099i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main90913-02117i5LE..LH200..5D¥270201312-202506

main90913-02121i2KDFTV..KDH222..KEN¥370201312-202301

main90913-02129i1GDFTV..GDH201¥370201701-201801

main90913-02130i1GDFTV..GDH201,223¥300201801

13711MSPRING, COMPRESSION(FOR INTAKE VALVE)

main90501-29063i1GDFTV..GDH201,223¥180201701

13715VALVE, EXHAUST

main13715-0C040i2TRFE..TRH203..MA201408-201611

MARK N

main13715-0C040i2TRFE..TRH203..MA201401-201408

main13715-0C060i2TRFE..TRH221..SP..GEN;2TRFE..TRH201,203,213,223..(03S,15S,16S)..GEN201312-201501

main13715-0L010i2KDFTV..KDH200,202..MA¥3,140201401-202312

main13715-0L020i1KDFTV..KDH223..5F..TH¥3,140201401-201904

CBU PACKAGE

main13715-0L020i1KDFTV..KDH203,223..TH,VN¥3,140201401-201904

FIJI SPEC

main13715-11050i1GDFTV..GDH201,223¥1,730201701

main13715-30030i1KDFTV..KDH223..TH¥1,980201312-202301

main13715-30040i2KDFTV..KDH222..GL..GCC¥1,980201312-202301

main13715-54050i5LE..LH200..5D¥1,980201312-202506

main13715-75090i1TRFE..TRH200..5F¥1,980201312-202507

main13715-75110i2TRFE..TRH223..TH¥2,630201401-201904

main13715-75140i2TRFE..TRH213,223..LHD..STD..GEN;2TRFE..TRH201,203..(03S,15S)..GEN¥1,980201312-202506

main13715-75140i2TRFE..TRH203..MA¥1,980201408-201611

MARK 8

main13715-75140i2TRFE..TRH221..03S..SA;2TRFE..TRH223..STD..GCC;2TRFE..TRH22#..SG..(03S,14S)..(GEN,SA)¥1,980201312-201902

LPG CONVERSION PACKAGE

13715ASEAL, EXHAUST VALVE STEM OIL

main90080-31099i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main90080-31099i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main90080-31099i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main90913-02117i5LE..LH200..5D¥270201312-202506

main90913-02121i2KDFTV..KDH200,212,220..SA¥370201312-202301

main90913-02129i1GDFTV..GDH201¥370201701-201801

main90913-02130i1GDFTV..GDH201,223¥300201801

13715HSPRING, COMPRESSION(FOR EXHAUST VALVE)

main90501-29063i1GDFTV..GDH201,223¥180201701

13716CAP, VALVE STEM

main13716-0C020i2TRFE..TRH203..MA201408-201611

(L)

sub13716-0C030

main13716-33010i1GDFTV..GDH201,223¥70201701

main13716-75020i2TRFE..TRH223..RHD..GEN;2TRFE..TRH223..STD..GCC;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA)¥70201312-202507

main13716-75020i2TRFE..TRH203..MA¥70201408-201611

(J)

13734SEAT, VALVE SPRING

main13734-0C010i2TRFE..TRH203..MA¥90201401-201407

main13734-0C010i2TRFE..TRH203..MA¥90201407-201611

(L)

main13734-62020i2TRFE..TRH203..MA¥60201407-201611

(J)

main13734-62020i2TRFE..TRH203..4FC;2TRFE..TRH213..RHD..5F¥60201312-202507

13734ASEAT, INTAKE VALVE SPRING

main13734-33020i1GDFTV..GDH201¥30201701-201801

13734BSEAT, EXHAUST VALVE SPRING

main13734-33020i1GDFTV..GDH201¥30201701-201801

13741RETAINER, VALVE SPRING

main13741-0C020i2TRFE..TRH203..MA201401-201407

main13741-0C030i2TRFE..TRH203..MA201407-201611

(L)

main13741-0L010i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main13741-0L010i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main13741-0L010i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main13741-15020i2KDFTV..KDH222..KEN¥240201312-202301

main13741-20021i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH¥220201312-201405

main13741-36010i2TRFE..TRH213,223..GL..SA¥160201405-202507

main13741-36010i2TRFE..TRH203..MA¥160201407-201611

(J)

main13741-54020i5LE..LH20#,212,222..4D¥260201312-202506

main90913-03021i1GDFTV..GDH201,223¥180201701

13741BRETAINER, INTAKE VALVE SPRING

main13741-33020i1GDFTV..GDH201,223¥200201701

13741CRETAINER, EXHAUST VALVE SPRING

main13741-33020i1GDFTV..GDH201,223¥200201701

13750ADJUSTER ASSY, VALVE LASH

main13750-0C020i2TRFE..TRH203..MA201401-201408

main13750-0C040i2TRFE..TRH203..MA201408-201611

(L)

main13750-21010i2TRFE..TRH203..4FC;2TRFE..TRH213..RHD..5F¥850201405-202507

PNC 13801=TYPE B

main13750-21010i2TRFE..TRH203..MA¥850201408-201611

(J)

main13750-26010i1GDFTV..GDH201,223¥4,310201701

main13750-75020i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH¥930201312-201405

PNC 13801=TYPE A

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-0C010i2TRFE..TRH203..MA201401-201408

sub13801-0C020

main13801-0C030i2TRFE..TRH203..MA201408-201611

(L)

main13801-11010i1GDFTV..GDH201¥2,770201701-201901

sub13801-11011¥2,770

main13801-11012i1GDFTV..GDH201,223¥2,090202302

main13801-23011i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH¥1,990201312-201405

TYPE A:REFER ILLUST.

main13801-36020i2TRFE..TRH221..GEN;2TRFE..TRH223..GCC;2TRFE..TRH223..GL..GEN¥2,090201405-202507

TYPE B:REFER ILLUST.

main13801-36020i2TRFE..TRH203..MA¥2,090201408-201611

(J)

9010908304

main90109-08304¥120

9011912370

main90119-12370¥240

9017918021

main90179-18021¥260

9155180625

main91551-80625¥60

9155180630

main91551-80630¥60

9155180635

main91551-80635¥80

9155180820

main91551-80820¥80

9167180612

main91671-80612¥60

9167180614

main91671-80614¥60

43 parts on this diagram · 7 diagrams in section
