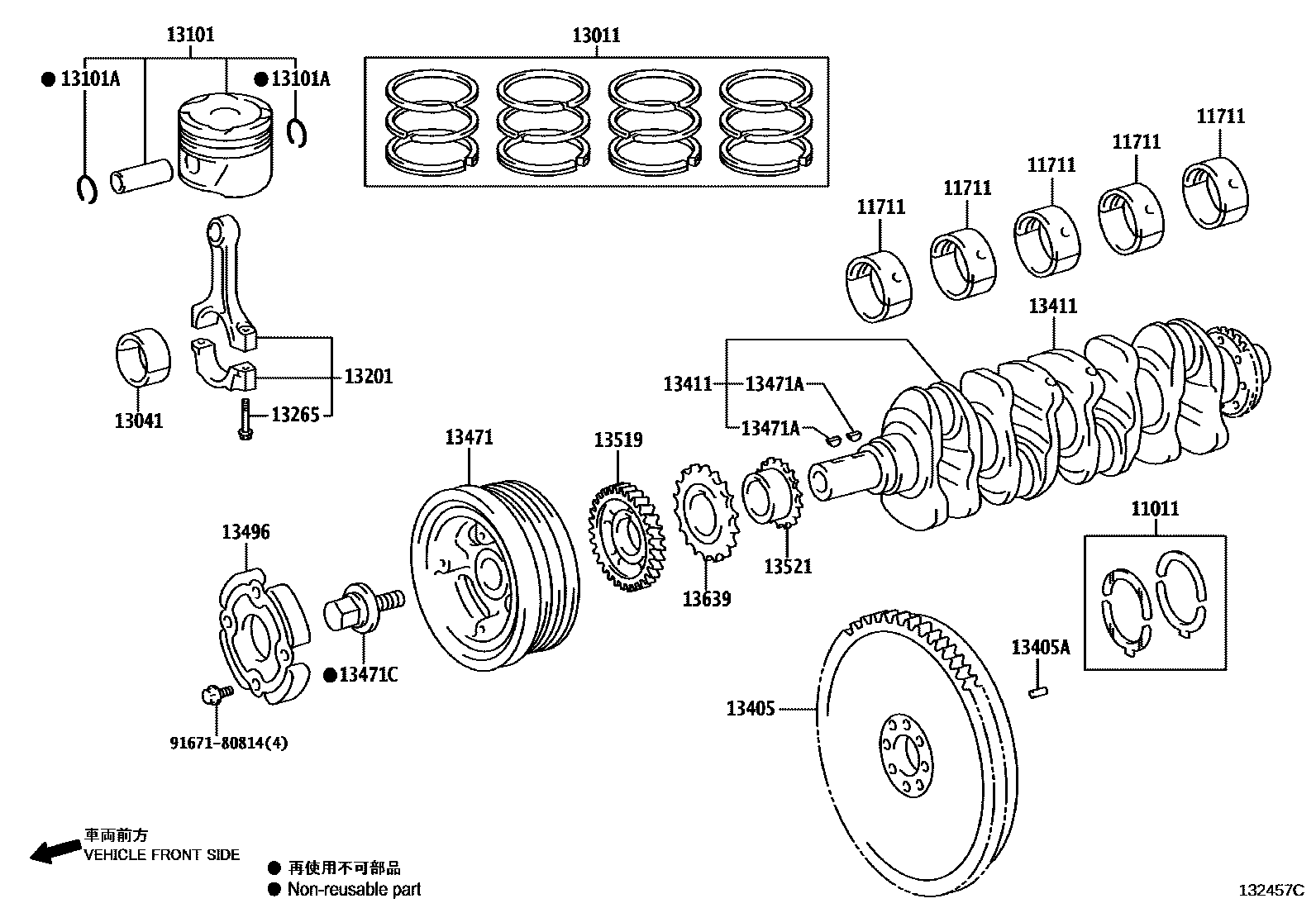

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0009 1

11011WASHER SET, CRANKSHAFT THRUST

main11011-0C010i2TRFE..TRH203..MA201401-201611

STD

main11011-0L020i1KDFTV..KDH223..5F..TH201401-201904

STD,FIJI SPEC

main11011-0L020i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

STD

main11011-0L020i1KDFTV..KDH223..5F..TH201401-201904

STD,CBU PACKAGE

main11011-30010i2KDFTV..KDH200..LHD..5D;1KDFTV..KDH201..02S,05S,06S;1KDFTV..KDH201..4D..03S..5F;1KDFTV..KDH223..5F..(ARL,GEN,KEN,RUS);1KDFTV,2KDFTV..KDH221,222..(02S,03S,16S)..(ARL201312-202301

STD

main11011-54020i5LE..LH200..5D201312-202506

STD

main11011-75020i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201312-202507

STD

main11011-75021i2TRFE..TRH223..TH;2TRFE..TRH213..RHD..5F;1TRFE,2TRFE..TRH200,203..4FC,6FC201501-201902

STD

sub11011-75020

main11012-30010i1KDFTV..KDH223..TH;2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN201312-202312

O/S 0.125

main11012-54020i5LE..LH20#,212,222..4D201312-202506

O/S 0.125

main11013-30010i2KDFTV..KDH200..LHD..5D;1KDFTV..KDH201..4D..03S..5F;1KDFTV..KDH223..4FC..(GEN,TH);1KDFTV,2KDFTV..KDH201,220..02S,05S,06S;1KDFTV..KDH223..5F..(ARL,GEN,KEN,RUS,VN);1K201312-202312

O/S 0.250

main11013-54020i5LE..LH20#,212,222..4D201312-202506

O/S 0.250

11711BEARING, CRANKSHAFT

main11701-0C010-01i2TRFE..TRH203..MA201401-201407

MARK1,REFER REPAIR MANUAL

sub11701-0C011

main11701-0C010-02i2TRFE..TRH203..MA201401-201407

MARK2,REFER REPAIR MANUAL

sub11701-0C011

main11701-0C010-03i2TRFE..TRH203..MA201401-201407

MARK3,REFER REPAIR MANUAL

sub11701-0C011

main11701-0C011-01i2TRFE..TRH203..MA201408-201611

MARK 1,REFER REPAIR MANUAL

main11701-0C011-02i2TRFE..TRH203..MA201408-201611

MARK 2,REFER REPAIR MANUAL

main11701-0C011-03i2TRFE..TRH203..MA201408-201611

MARK 3,REFER REPAIR MANUAL

main11701-0C011-04i2TRFE..TRH203..MA201408-201611

MARK 4,REFER REPAIR MANUAL

main11701-0C011-05i2TRFE..TRH203..MA201408-201611

MARK 5,REFER REPAIR MANUAL

main11701-0L020-02i1KDFTV..KDH223..5F..TH201401-202312

MARK2,REFER REPAIR MANUAL

main11701-0L020-02i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC,MARK2,REFER REPAIR MANUAL

main11701-0L020-02i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE,MARK2,REFER REPAIR MANUAL

main11701-0L020-03i1KDFTV..KDH223..5F..TH201401-202312

MARK3,REFER REPAIR MANUAL

main11701-0L020-03i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC,MARK3,REFER REPAIR MANUAL

main11701-0L020-03i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE,MARK3,REFER REPAIR MANUAL

main11701-0L020-04i1KDFTV..KDH223..5F..TH201401-202312

MARK4,REFER REPAIR MANUAL

main11701-0L020-04i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC,MARK4,REFER REPAIR MANUAL

main11701-0L020-04i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE,MARK4,REFER REPAIR MANUAL

main11701-0L020-05i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE,MARK5,REFER REPAIR MANUAL

main11701-0L020-05i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC,MARK5,REFER REPAIR MANUAL

main11701-0L020-05i1KDFTV..KDH223..5F..TH201401-202312

MARK5,REFER REPAIR MANUAL

main11701-0L020-06i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC,MARK6,REFER REPAIR MANUAL

main11701-0L020-06i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE,MARK6,REFER REPAIR MANUAL

main11701-0L020-06i1KDFTV..KDH223..5F..TH201401-202312

MARK6,REFER REPAIR MANUAL

main11701-11030-02i1GDFTV..GDH201,223201701

MARK 2,REFER REPAIR MANUAL

main11701-11030-03i1GDFTV..GDH201,223201701

MARK 3,REFER REPAIR MANUAL

main11701-11030-04i1GDFTV..GDH201,223201701

MARK 4,REFER REPAIR MANUAL

main11701-11030-05i1GDFTV..GDH201,223201701

MARK 5,REFER REPAIR MANUAL

main11701-11030-06i1GDFTV..GDH201,223201701

MARK 6,REFER REPAIR MANUAL

main11701-30020-02i2KDFTV..KDH212,220..LHD;2KDFTV..KDH200..LHD..5D;1KDFTV..KDH223..RHD..(GEN,KEN);2KDFTV..KDH220,222..(06S,16S)..(GEN,SA);1KDFTV,2KDFTV..KDH201,202..4D..(03S,12S,15S).201312-202301

MARK2,REFER REPAIR MANUAL

sub11701-30020

main11701-30020-03i1KDFTV..KDH213..TH201312-202301

MARK3,REFER REPAIR MANUAL

sub11701-30020

main11701-30020-04i2KDFTV..KDH212,220..LHD;2KDFTV..KDH200..LHD..5D;1KDFTV..KDH223..RHD..(GEN,KEN);2KDFTV..KDH220,222..(06S,16S)..(GEN,SA);1KDFTV,2KDFTV..KDH201,202..4D..(03S,12S,15S).201312-202301

MARK4,REFER REPAIR MANUAL

sub11701-30020

main11701-30020-05i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202301

MARK5,REFER REPAIR MANUAL

sub11701-30020

main11701-30020-06i2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL201312-202301

MARK6,REFER REPAIR MANUAL

sub11701-30020

main11701-30030-02i1KDFTV..KDH203..GEN;1KDFTV..KDH201,213,221,223..02S,03S,05S,06S,10S,11S,12S,13S,14S201312-201707

MARK2,REFER REPAIR MANUAL

main11701-30030-03i1KDFTV..KDH203..GEN;1KDFTV..KDH201,213,221,223..02S,03S,05S,06S,10S,11S,12S,13S,14S201312-201707

MARK3,REFER REPAIR MANUAL

main11701-30030-04i1KDFTV..KDH203..GEN;1KDFTV..KDH201,213,221,223..02S,03S,05S,06S,10S,11S,12S,13S,14S201312-201707

MARK4,REFER REPAIR MANUAL

main11701-30030-05i1KDFTV..KDH203..GEN;1KDFTV..KDH201,213,221,223..02S,03S,05S,06S,10S,11S,12S,13S,14S201312-201707

MARK5,REFER REPAIR MANUAL

main11701-30030-06i1KDFTV..KDH203..GEN;1KDFTV..KDH201,213,221,223..02S,03S,05S,06S,10S,11S,12S,13S,14S201312-201707

MARK6,REFER REPAIR MANUAL

main11701-54081-01i5LE..LH20#,212,222..4D201312-202506

MARK1,REFER REPAIR MANUAL

main11701-54081-02i5LE..LH200..5D201312-202506

MARK2,REFER REPAIR MANUAL

main11701-54081-03i5LE..LH20#,212,222..4D201312-202506

MARK3,REFER REPAIR MANUAL

main11701-75031-01i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201312-201405

MARK1,REFER REPAIR MANUAL

sub11701-75032

main11701-75031-01i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201312-201405

LPG CONVERSION PACKAGE,MARK1,REFER REPAIR MANUAL

sub11701-75032

main11701-75031-02i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201312-201405

LPG CONVERSION PACKAGE,MARK2,REFER REPAIR MANUAL

sub11701-75032

main11701-75031-02i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201312-201405

MARK2,REFER REPAIR MANUAL

sub11701-75032

main11701-75031-03i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201312-201405

MARK3,REFER REPAIR MANUAL

sub11701-75032

main11701-75031-03i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201312-201405

LPG CONVERSION PACKAGE,MARK3,REFER REPAIR MANUAL

sub11701-75032

main11701-75032-01i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201406-201412

LPG CONVERSION PACKAGE,MARK 1,REFER REPAIR MANUAL

sub11701-75033

main11701-75032-01i2TRFE..TRH201,22#..ARL201406-201412

MARK 1,REFER REPAIR MANUAL

sub11701-75033

main11701-75032-02i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201406-201412

MARK 2,REFER REPAIR MANUAL

sub11701-75033

main11701-75032-02i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201406-201412

LPG CONVERSION PACKAGE,MARK 2,REFER REPAIR MANUAL

sub11701-75033

main11701-75032-03i2TRFE..TRH201,22#..ARL201406-201412

LPG CONVERSION PACKAGE,MARK 3,REFER REPAIR MANUAL

sub11701-75033

main11701-75032-03i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201406-201412

MARK 3,REFER REPAIR MANUAL

sub11701-75033

main11701-75032-04i2TRFE..TRH201,22#..ARL201406-201412

MARK 4,REFER REPAIR MANUAL

sub11701-75033

main11701-75032-04i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201406-201412

LPG CONVERSION PACKAGE,MARK 4,REFER REPAIR MANUAL

sub11701-75033

main11701-75032-05i2TRFE..TRH201,22#..ARL201406-201412

MARK 5,REFER REPAIR MANUAL

sub11701-75033

main11701-75032-05i2TRFE..TRH201,22#..ARL201406-201412

LPG CONVERSION PACKAGE,MARK 5,REFER REPAIR MANUAL

sub11701-75033

main11701-75033-01i2TRFE..TRH201,22#..ARL201501-201712

LPG CONVERSION PACKAGE,MARK 1,REFER REPAIR MANUAL

main11701-75033-01i2TRFE..TRH201,22#..ARL201501-201712

MARK 1,REFER REPAIR MANUAL

main11701-75033-02i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201501-201712

LPG CONVERSION PACKAGE,MARK 2,REFER REPAIR MANUAL

main11701-75033-02i2TRFE..TRH201,22#..ARL201501-201712

MARK 2,REFER REPAIR MANUAL

main11701-75033-03i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201501-201712

LPG CONVERSION PACKAGE,MARK 3,REFER REPAIR MANUAL

main11701-75033-03i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201501-201712

MARK 3,REFER REPAIR MANUAL

main11701-75033-04i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201501-201712

MARK 4,REFER REPAIR MANUAL

main11701-75033-04i2TRFE..TRH201,22#..ARL201501-201712

LPG CONVERSION PACKAGE,MARK 4,REFER REPAIR MANUAL

main11701-75033-05i2TRFE..TRH201,22#..ARL201501-201712

MARK 5,REFER REPAIR MANUAL

main11701-75033-05i2TRFE..TRH201,22#..ARL201501-201712

LPG CONVERSION PACKAGE,MARK 5,REFER REPAIR MANUAL

main11701-75034-01i2TRFE..TRH221..GEN;2TRFE..TRH223..GCC;2TRFE..TRH223..GL..GEN201712-202507

MARK 1,REFER REPAIR MANUAL

main11701-75034-01i2TRFE..TRH201,22#..ARL201712-201902

LPG CONVERSION PACKAGE,MARK 1,REFER REPAIR MANUAL

main11701-75034-02i2TRFE..TRH223..RHD..GEN;2TRFE..TRH223..STD..GCC;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA)201712-202507

MARK 2,REFER REPAIR MANUAL

main11701-75034-02i2TRFE..TRH223..RHD..GEN;2TRFE..TRH223..STD..GCC;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA)201712-201902

LPG CONVERSION PACKAGE,MARK 2,REFER REPAIR MANUAL

main11701-75034-03i2TRFE..TRH221..GCC;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH223..STD..(ARL,SA,TH);2TRFE..TRH213,223..LHD..STD..GEN;2TRFE..TRH201,213..02S,03S,05S201712-202507

MARK 3,REFER REPAIR MANUAL

main11701-75034-03i2TRFE..TRH201,22#..ARL201712-201902

LPG CONVERSION PACKAGE,MARK 3,REFER REPAIR MANUAL

main11701-75034-04i2TRFE..TRH221..SA201712-202507

MARK 4,REFER REPAIR MANUAL

main11701-75034-04i2TRFE..TRH223..RHD..GEN;2TRFE..TRH223..STD..GCC;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA)201712-201902

LPG CONVERSION PACKAGE,MARK 4,REFER REPAIR MANUAL

main11701-75034-05i2TRFE..TRH213,223..GL..SA201712-202507

MARK 5,REFER REPAIR MANUAL

main11701-75034-05i2TRFE..TRH201,22#..ARL201712-201902

LPG CONVERSION PACKAGE,MARK 5,REFER REPAIR MANUAL

13011RING SET, PISTON

main13011-0C030i2TRFE..TRH203..MA201401-201611

STD

main13011-0L020i2KDFTV..KDH200,202..MA201401-202011

STD

sub13011-0L021

main13011-0L021i2KDFTV..KDH200..MA202012-202312

STD

main13011-0L060i1KDFTV..KDH203,223..TH,VN201401-201904

STD,FIJI SPEC

main13011-0L060i1KDFTV..KDH223..5F..TH201401-201904

STD,CBU PACKAGE

main13011-0L060i1KDFTV..KDH223..5F..TH201401-201904

STD

main13011-11200i1GDFTV..GDH201201701-201901

STD

sub13011-11201

main13011-11201i1GDFTV..GDH201,223202302

STD

main13011-30060i2KDFTV..KDH222..GL..GCC201312-202006

STD

sub13011-30061

main13011-30060i2KDFTV..KDH222..GL..GCC201909-202006

STD,EGYPT SPEC

sub13011-30061

main13011-30061i2KDFTV..KDH200,222..STD..GCC202007-202301

STD

main13011-30080i2KDFTV..KDH222..RHD..STD..GEN201312-201902

STD,NEPAL SPEC

sub13011-30081

main13011-30080i2KDFTV..KDH200..RHD..4D..GEN201312-202006

STD

sub13011-30081

main13011-30080i2KDFTV..KDH202..12S;2KDFTV..KDH200..LHD..5D..GEN201312-202006

STD,PAKISTAN SPEC

sub13011-30081

main13011-30080i2KDFTV..KDH200..RHD..4D..GEN201312-201902

STD,PERU SPEC

sub13011-30081

main13011-30080i2KDFTV..KDH202..RHD..GEN201312-202006

STD,INDONESIA SPEC

sub13011-30081

main13011-30081i2KDFTV..KDH202,222..RHD..GEN202007

STD,PAKISTAN SPEC

main13011-30081i2KDFTV..KDH202,222..RHD..GEN202007-202401

STD

main13011-30150i1KDFTV..KDH223..RUS201312-201906

STD

main13011-30160i1KDFTV..KDH223..RUS201312-202301

STD

main13011-54130i5LE..LH200..5D201312-202506

STD

main13011-75100i1TRFE..TRH200201312-201501

STD

main13011-75110i2TRFE..TRH203..5F..GCC201312-202506

STD

main13011-75110i2TRFE..TRH201,22#..(02S,06S,12S,14S)..5F..(ARL,GEN,RUS)201312-201501

STD,NIGERIA SPEC

main13011-75110i2TRFE..TRH221..SP..GEN;2TRFE..TRH201,203,213,223..LHD..STD..GEN201312-201501

STD,VIETNAM SPEC

main13011-75110i2TRFE..TRH221..SP..GEN;2TRFE..TRH201,203,213,223..LHD..STD..GEN201312-201501

STD,CENTRAL AMERICA(4COUNTRY) SPEC

main13011-75110i2TRFE..TRH221..SP..GEN;2TRFE..TRH201,203,213,223..LHD..STD..GEN201312-201501

STD,MOROCCO SPEC

main13011-75110i2TRFE..TRH221..SP..GEN;2TRFE..TRH201,203,213,223..LHD..STD..GEN201312-201501

STD,MEXICO SPEC

main13011-75110i2TRFE..TRH221..SP..GEN;2TRFE..TRH201,203,213,223..LHD..STD..GEN201312-201501

STD,PAKISTAN SPEC

main13011-75110i2TRFE..TRH221..SP..GEN;2TRFE..TRH201,203,213,223..LHD..STD..GEN201312-201501

STD,VENEZUERA SPEC

main13011-75110i2TRFE..TRH221..SP..GEN;2TRFE..TRH201,203,213,223..LHD..STD..GEN201312-201501

STD,LPG CONVERSION PACKAGE

main13011-75130i2TRFE..TRH221..SP..GEN;2TRFE..TRH201,203,213,223..(03S,15S,16S)..GEN201312-201501

STD

main13011-75200i2TRFE..TRH201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS)201501-201902

STD

main13011-75200i2TRFE..TRH201,22#..ARL201501-201902

STD,LPG CONVERSION PACKAGE

main13011-75210i1TRFE..TRH200..5F201501-202507

STD

main13013-30030i2KDFTV..KDH200,202..MA201401-202012

O/S 0.50

sub13013-30031

main13013-30060i2KDFTV..KDH200,222..GCC201312-202007

O/S 0.50

main13013-30060i2KDFTV..KDH222..STD..GCC201909-202007

O/S 0.50,EGYPT SPEC

main13013-30061i2KDFTV..KDH212..GEN202007-202301

O/S 0.50

main13013-30080i2KDFTV..KDH202..RHD..GEN201312-202007

O/S 0.50,PAKISTAN SPEC

main13013-30080i2KDFTV..KDH200,212..SA201312-202312

O/S 0.50

main13013-30080i2KDFTV..KDH200,212..SA201312-201902

O/S 0.50,PERU SPEC

main13013-30080i2KDFTV..KDH220,222..(03S,14S)..SA201312-201902

O/S 0.50,NEPAL SPEC

main13013-30080i2KDFTV..KDH222..STD..SA201312-202007

O/S 0.50,INDONESIA SPEC

main13013-30081i2KDFTV..KDH200,212,220..SA202007-202401

O/S 0.50

main13013-30081i2KDFTV..KDH202,222..RHD..GEN202007

O/S 0.50,PAKISTAN SPEC

main13013-30090i1KDFTV..KDH203,223..TH,VN201401-201904

O/S 0.50

sub13013-30150

main13013-30150i1KDFTV..KDH213..TH201312-201906

O/S 0.50

main13013-30160i1KDFTV..KDH203..12S..GEN201312-202301

O/S 0.50

main13013-54130i5LE..LH20#,212,222..4D201312-202506

O/S 0.50

main13013-75100i1TRFE..TRH200201312-201501

O/S 0.50

main13013-75110i2TRFE..TRH203,213,223..RHD..GEN201312-201501

O/S 0.50,PAKISTAN SPEC

main13013-75110i2TRFE..TRH203,213,223..RHD..GEN201312-201501

O/S 0.50,MEXICO SPEC

main13013-75110i2TRFE..TRH203,213,223..RHD..GEN201312-201501

O/S 0.50,MOROCCO SPEC

main13013-75110i2TRFE..TRH203,213,223..RHD..GEN201312-201501

O/S 0.50,CENTRAL AMERICA(4COUNTRY) SPEC

main13013-75110i2TRFE..TRH203,213,223..RHD..GEN201312-201501

O/S 0.50,VIETNAM SPEC

main13013-75110i2TRFE..TRH203,213,223..RHD..GEN201312-201501

O/S 0.50,NIGERIA SPEC

main13013-75110i2TRFE..TRH203,213,223..RHD..GEN201312-202506

O/S 0.50

main13013-75110i2TRFE..TRH201,221..SP..GEN;2TRFE..TRH223..5F..GL..GEN201312-201501

O/S 0.50,LPG CONVERSION PACKAGE

main13013-75110i2TRFE..TRH201,221..SP..GEN;2TRFE..TRH223..5F..GL..GEN201312-201501

O/S 0.50,VENEZUERA SPEC

main13013-75130i2TRFE..TRH221..SP..GEN;2TRFE..TRH201,203,213,223..(03S,15S,16S)..GEN201312-201501

O/S 0.50

main13013-75200i2TRFE..TRH201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS)201501-201902

O/S 0.50,LPG CONVERSION PACKAGE

main13013-75200i2TRFE..TRH201,22#..ARL201501-201902

O/S 0.50

main13013-75210i1TRFE..TRH200..03S..6FC201501-202507

O/S 0.50

main13014-30090i1KDFTV..KDH203,223..TH,VN201401-201904

O/S 0.75

sub13014-30150

main13014-30150i1KDFTV..KDH223..RUS201312-201906

O/S 0.75

main13014-30160i1KDFTV..KDH203..12S..GEN201312-202301

O/S 0.75

main13015-30090i1KDFTV..KDH203,223..TH,VN201401-201904

O/S 1.00

sub13015-30150

main13015-30150i1KDFTV..KDH223..RUS201312-201906

O/S 1.00

main13015-30160i1KDFTV..KDH203,213..02S,10S;1KDFTV..KDH201..SP..(03S,06S)..GEN201312-202301

O/S 1.00

13041BEARING, CONNECTING ROD

main13041-0C050-04i2TRFE..TRH203..MA201401-201501

MARK4,REFER REPAIR MANUAL

sub13041-0C051

main13041-0C050-05i2TRFE..TRH203..MA201401-201501

MARK5,REFER REPAIR MANUAL

sub13041-0C051

main13041-0C050-06i2TRFE..TRH203..MA201401-201501

MARK6,REFER REPAIR MANUAL

sub13041-0C051

main13041-0C052-04i2TRFE..TRH203..MA201501-201602

MARK 4,REFER REPAIR MANUAL

sub13041-0C060

main13041-0C052-05i2TRFE..TRH203..MA201501-201602

MARK 5,REFER REPAIR MANUAL

sub13041-0C060

main13041-0C052-06i2TRFE..TRH203..MA201501-201602

MARK 6,REFER REPAIR MANUAL

sub13041-0C060

main13041-0C060-04i2TRFE..TRH203..MA201603-201611

MARK 4,(L),REFER R/M

main13041-0C060-05i2TRFE..TRH203..MA201603-201611

MARK 5,(L),REFER R/M

main13041-0C060-06i2TRFE..TRH203..MA201603-201611

MARK 6,(L),REFER R/M

main13041-0L020-02i1KDFTV..KDH223..5F..TH201401-202312

MARK2,REFER REPAIR MANUAL

main13041-0L020-02i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE,MARK2,REFER REPAIR MANUAL

main13041-0L020-02i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC,MARK2,REFER REPAIR MANUAL

main13041-0L020-03i1KDFTV..KDH223..5F..TH201401-202312

MARK3,REFER REPAIR MANUAL

main13041-0L020-03i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC,MARK3,REFER REPAIR MANUAL

main13041-0L020-03i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE,MARK3,REFER REPAIR MANUAL

main13041-0L020-04i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

MARK4,REFER REPAIR MANUAL

main13041-0L020-04i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE,MARK4,REFER REPAIR MANUAL

main13041-0L020-04i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC,MARK4,REFER REPAIR MANUAL

main13041-0L020-05i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE,MARK5,REFER REPAIR MANUAL

main13041-0L020-05i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

MARK5,REFER REPAIR MANUAL

main13041-0L020-05i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC,MARK5,REFER REPAIR MANUAL

main13041-0L020-06i1KDFTV..KDH223..5F..TH201401-202312

MARK6,REFER REPAIR MANUAL

main13041-0L020-06i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC,MARK6,REFER REPAIR MANUAL

main13041-0L020-06i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE,MARK6,REFER REPAIR MANUAL

main13041-11060-02i1GDFTV..GDH201201701-201901

MARK 2,REFER REPAIR MANUAL

sub13041-11061

main13041-11060-03i1GDFTV..GDH201201701-201901

MARK 3,REFER REPAIR MANUAL

sub13041-11061

main13041-11060-04i1GDFTV..GDH201201701-201901

MARK 4,REFER REPAIR MANUAL

sub13041-11061

main13041-11060-05i1GDFTV..GDH201201701-201901

MARK 5,REFER REPAIR MANUAL

sub13041-11061

main13041-11060-06i1GDFTV..GDH201201701-201901

MARK 6,REFER REPAIR MANUAL

sub13041-11061

main13041-11061-02i1GDFTV..GDH201,223202302

MARK 2,REFER REPAIR MANUAL

main13041-11061-03i1GDFTV..GDH201,223202302

MARK 3,REFER REPAIR MANUAL

main13041-11061-04i1GDFTV..GDH201,223202302

MARK 4,REFER REPAIR MANUAL

main13041-11061-05i1GDFTV..GDH201,223202302

MARK 5,REFER REPAIR MANUAL

main13041-11061-06i1GDFTV..GDH201,223202302

MARK 6,REFER REPAIR MANUAL

main13041-30020-02i1KDFTV..KDH223..4FC..ARL;1KDFTV..KDH201,203..RHD..(02S,03S)..GEN201312-202301

MARK2,REFER REPAIR MANUAL

sub13041-30020

main13041-30020-03i2KDFTV..KDH222..5F..GL;2KDFTV..KDH220..03S..SA;2KDFTV..KDH222..STD..GCC201312-202301

MARK3,REFER REPAIR MANUAL

sub13041-30020

main13041-30020-04i2KDFTV..KDH222..5F..GL;2KDFTV..KDH220..03S..SA;2KDFTV..KDH222..STD..GCC201312-202301

MARK4,REFER REPAIR MANUAL

sub13041-30020

main13041-30020-05i1KDFTV..KDH223..TH;2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN201312-202301

MARK5,REFER REPAIR MANUAL

sub13041-30020

main13041-30020-06i2KDFTV..KDH200,212,220..SA201312-202301

MARK6,REFER REPAIR MANUAL

sub13041-30020

main13041-30030-02i1KDFTV..KDH203..GEN;1KDFTV..KDH201,213,221,223..02S,03S,05S,06S,10S,11S,12S,13S,14S201312-201711

MARK2,REFER REPAIR MANUAL

main13041-30030-03i1KDFTV..KDH203..GEN;1KDFTV..KDH201,213,221,223..02S,03S,05S,06S,10S,11S,12S,13S,14S201312-201711

MARK3,REFER REPAIR MANUAL

main13041-30030-04i1KDFTV..KDH203..GEN;1KDFTV..KDH201,213,221,223..02S,03S,05S,06S,10S,11S,12S,13S,14S201312-201711

MARK4,REFER REPAIR MANUAL

main13041-30030-05i1KDFTV..KDH203..GEN;1KDFTV..KDH201,213,221,223..02S,03S,05S,06S,10S,11S,12S,13S,14S201312-201711

MARK5,REFER REPAIR MANUAL

main13041-30030-06i1KDFTV..KDH203..GEN;1KDFTV..KDH201,213,221,223..02S,03S,05S,06S,10S,11S,12S,13S,14S201312-201711

MARK6,REFER REPAIR MANUAL

main13041-54042-01i5LE..LH200..5D201312-202506

MARK1,REFER REPAIR MANUAL

main13041-54042-02i5LE..LH20#,212,222..4D201312-202506

MARK2,REFER REPAIR MANUAL

main13041-54042-03i5LE..LH200..5D201312-202506

MARK3,REFER REPAIR MANUAL

main13041-75050-04i2TRFE..TRH201,22#..ARL201312-201501

MARK4,REFER REPAIR MANUAL

sub13041-75052

main13041-75050-04i2TRFE..TRH201,22#..ARL201312-201501

LPG CONVERSION PACKAGE,MARK4,REFER REPAIR MANUAL

sub13041-75052

main13041-75050-05i2TRFE..TRH201,22#..ARL201312-201501

MARK5,REFER REPAIR MANUAL

sub13041-75052

main13041-75050-05i2TRFE..TRH201,22#..ARL201312-201501

LPG CONVERSION PACKAGE,MARK5,REFER REPAIR MANUAL

sub13041-75052

main13041-75050-06i2TRFE..TRH201,22#..ARL201312-201501

LPG CONVERSION PACKAGE,MARK6,REFER REPAIR MANUAL

sub13041-75052

main13041-75050-06i2TRFE..TRH201,22#..ARL201312-201501

MARK6,REFER REPAIR MANUAL

sub13041-75052

main13041-75052-04i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201501-201601

MARK 4,REFER REPAIR MANUAL

sub13041-75070

main13041-75052-04i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201501-201601

LPG CONVERSION PACKAGE,MARK 4,REFER REPAIR MANUAL

sub13041-75070

main13041-75052-05i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201501-201601

MARK 5,REFER REPAIR MANUAL

sub13041-75070

main13041-75052-05i2TRFE..TRH201,22#..ARL201501-201601

LPG CONVERSION PACKAGE,MARK 5,REFER REPAIR MANUAL

sub13041-75070

main13041-75052-06i2TRFE..TRH201,22#..ARL201501-201601

LPG CONVERSION PACKAGE,MARK 6,REFER REPAIR MANUAL

sub13041-75070

main13041-75052-06i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201501-201601

MARK 6,REFER REPAIR MANUAL

sub13041-75070

main13041-75070-04i2TRFE..TRH203..4FC;2TRFE..TRH213..RHD..5F201601-202507

MARK 4,REFER REPAIR MANUAL

main13041-75070-04i2TRFE..TRH203..MA201603-201611

MARK 4,(J),REFER R/M

main13041-75070-04i2TRFE..TRH201,22#..ARL201601-201902

LPG CONVERSION PACKAGE,MARK 4,REFER REPAIR MANUAL

main13041-75070-05i1TRFE..TRH200..5F;2TRFE..TRH203..5F..GCC201601-202507

MARK 5,REFER REPAIR MANUAL

main13041-75070-05i2TRFE..TRH201,22#..ARL201601-201902

LPG CONVERSION PACKAGE,MARK 5,REFER REPAIR MANUAL

main13041-75070-05i2TRFE..TRH203..MA201603-201611

MARK 5,(J),REFER R/M

main13041-75070-06i2TRFE..TRH203..MA201603-201611

MARK 6,(J),REFER R/M

main13041-75070-06i2TRFE..TRH203..4FC;2TRFE..TRH213..RHD..5F201601-202507

MARK 6,REFER REPAIR MANUAL

main13041-75070-06i2TRFE..TRH223..RHD..GEN;2TRFE..TRH223..STD..GCC;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA)201601-201902

LPG CONVERSION PACKAGE,MARK 6,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-0C020i2TRFE..TRH203..MA201401-201611

STD,(L)

main13101-0L051-01i2KDFTV..KDH200,202..MA201401-202312

STD,MARK 1,REFER REPAIR MANUAL

main13101-0L051-02i2KDFTV..KDH200,202..MA201401-202312

STD,MARK 2,REFER REPAIR MANUAL

main13101-0L051-03i2KDFTV..KDH200,202..MA201401-202312

STD,MARK 3,REFER REPAIR MANUAL

main13101-0L100-01i1KDFTV..KDH223..5F..TH201401-201904

STD,CBU PACKAGE,MARK1,REFER REPAIR MANUAL

sub13101-30130

main13101-0L100-01i1KDFTV..KDH223..5F..TH201401-201904

STD,FIJI SPEC,MARK1,REFER REPAIR MANUAL

sub13101-30130

main13101-0L100-01i1KDFTV..KDH223..5F..TH201401-201904

STD,MARK1,REFER REPAIR MANUAL

sub13101-30130

main13101-0L100-02i1KDFTV..KDH223..5F..TH201401-201904

STD,FIJI SPEC,MARK2,REFER REPAIR MANUAL

sub13101-30130

main13101-0L100-02i1KDFTV..KDH223..5F..TH201401-201904

STD,CBU PACKAGE,MARK2,REFER REPAIR MANUAL

sub13101-30130

main13101-0L100-02i1KDFTV..KDH203,223..TH,VN201401-201904

STD,MARK2,REFER REPAIR MANUAL

sub13101-30130

main13101-0L100-03i1KDFTV..KDH203,223..TH,VN201401-201904

STD,CBU PACKAGE,MARK3,REFER REPAIR MANUAL

sub13101-30130

main13101-0L100-03i1KDFTV..KDH203,223..TH,VN201401-201904

STD,MARK3,REFER REPAIR MANUAL

sub13101-30130

main13101-0L100-03i1KDFTV..KDH223..5F..TH201401-201904

STD,FIJI SPEC,MARK3,REFER REPAIR MANUAL

sub13101-30130

main13101-11190-01i1GDFTV..GDH201201701-201901

STD,MARK 1,REFER REPAIR MANUAL

sub13101-11191

main13101-11190-02i1GDFTV..GDH201201701-201901

STD,MARK 2,REFER REPAIR MANUAL

sub13101-11191

main13101-11191-01i1GDFTV..GDH201,223202302

STD,MARK 1,REFER REPAIR MANUAL

main13101-11191-02i1GDFTV..GDH201,223202302

STD,MARK 2,REFER REPAIR MANUAL

main13101-30081-01i2KDFTV..KDH212,220..LHD;2KDFTV..KDH200..LHD..5D;2KDFTV..KDH222..16S..(GEN,SA);2KDFTV..KDH202,220..06S,12S,15S201312-202301

STD,MARK1,REFER REPAIR MANUAL

main13101-30081-02i2KDFTV..KDH200,212,220..SA201312-202301

STD,MARK2,REFER REPAIR MANUAL

main13101-30081-03i2KDFTV..KDH222..5F..GL;2KDFTV..KDH220..03S..SA;2KDFTV..KDH222..STD..GCC201312-202301

STD,MARK3,REFER REPAIR MANUAL

main13101-30130-01i1KDFTV..KDH213..TH201312-201906

STD,MARK1,REFER REPAIR MANUAL

main13101-30130-02i1KDFTV..KDH213201312-201906

STD,MARK2,REFER REPAIR MANUAL

main13101-30130-03i1KDFTV..KDH223..GEN,KEN;1KDFTV..KDH201..4D..5F..(GEN,MA,TH);1KDFTV..KDH203,213..(11S,13S,15S)..GEN201312-201906

STD,MARK3,REFER REPAIR MANUAL

main13101-30172-01i1KDFTV..KDH201..SP..06S201312-202301

STD,MARK 1,REFER REPAIR MANUAL

main13101-30172-02i1KDFTV..KDH203..12S..GEN201312-202301

STD,MARK 2,REFER REPAIR MANUAL

main13101-30172-03i1KDFTV..KDH201..SG;1KDFTV..KDH201..ARL;1KDFTV..KDH221,223..RHD..(ARL,GEN)201312-202301

STD,MARK 3,REFER REPAIR MANUAL

main13101-54120-01i5LE..LH200..5D201312-202506

STD,MARK 1,REFER REPAIR MANUAL

main13101-54120-02i5LE..LH20#,212,222..4D201312-202506

STD,MARK 2,REFER REPAIR MANUAL

main13101-54120-03i5LE..LH20#,212,222..4D201312-202506

STD,MARK 3,REFER REPAIR MANUAL

main13101-75120i1TRFE..TRH200201312-201501

STD

main13101-75130i2TRFE..TRH213,223..GL..SA201312-202506

STD

main13101-75130i2TRFE..TRH203..MA201401-201611

STD,(J)

main13101-75130i2TRFE..TRH201,22#..ARL201312-201501

STD,LPG CONVERSION PACKAGE

main13101-75200i2TRFE..TRH201,22#..ARL201501-201902

STD,LPG CONVERSION PACKAGE

main13101-75200i2TRFE..TRH201,22#..ARL201501-201902

STD

main13101-75210i1TRFE..TRH200..03S..6FC201501-202507

STD

main13103-0L051i2KDFTV..KDH200,202..MA201401-202312

O/S 0.50

main13103-30081i2KDFTV..KDH200,212,220..SA201312-202301

O/S 0.50

main13103-30130i1KDFTV..KDH223..RUS201312-201906

O/S 0.50

main13103-30170i1KDFTV..KDH203,213..GEN;1KDFTV..KDH201..SP..(03S,06S)..GEN201312-201510

O/S 0.50,SINGAPORE SPEC

main13103-30170i1KDFTV..KDH203,213..GEN;1KDFTV..KDH201..SP..(03S,06S)..GEN201312-201510

O/S 0.50

main13103-30172i1KDFTV..KDH203..12S..GEN201510-202301

O/S 0.50

main13103-54120i5LE..LH20#,212,222..4D201312-202506

O/S 0.50

main13103-75120i1TRFE..TRH200201312-201501

O/S 0.50

main13103-75130i2TRFE..TRH213..RHD..GEN201312-202506

O/S 0.50

main13103-75130i2TRFE..TRH201,22#..ARL201312-201501

O/S 0.50,LPG CONVERSION PACKAGE

main13103-75130i2TRFE..TRH203..MA201401-201611

O/S 0.50,(L)

main13103-75200i2TRFE..TRH201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS)201501-201902

O/S 0.50,LPG CONVERSION PACKAGE

main13103-75200i2TRFE..TRH201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS)201501-201902

O/S 0.50

main13103-75210i1TRFE..TRH200..03S..6FC201501-202507

O/S 0.50

main13104-30130i1KDFTV..KDH213201312-201906

O/S 0.75

main13104-30170i1KDFTV..KDH221..ARL;1KDFTV..KDH223..4FC..ARL201312-201510

O/S 0.75

main13104-30170i1KDFTV..KDH221..ARL;1KDFTV..KDH223..4FC..ARL201312-201510

O/S 0.75,SINGAPORE SPEC

main13104-30172i1KDFTV..KDH223..RUS201510-202301

O/S 0.75

main13105-30130i1KDFTV..KDH213201312-201906

O/S 1.00

main13105-30170i1KDFTV..KDH203,213..GEN;1KDFTV..KDH201..SP..(03S,06S)..GEN201312-201510

O/S 1.00

main13105-30170i1KDFTV..KDH221..ARL;1KDFTV..KDH223..4FC..ARL201312-201510

O/S 1.00,SINGAPORE SPEC

main13105-30172i1KDFTV..KDH203,213..02S,10S;1KDFTV..KDH201..SP..(03S,06S)..GEN201510-202301

O/S 1.00

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025i2TRFE..TRH203..4FC;2TRFE..TRH213..RHD..5F201312-202507

main90520-32013i1GDFTV..GDH201,223201701

main90520-37014i2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL201312-202312

main90521-31001i5LE..LH20#,212,222..4D201312-202506

13201ROD SUB-ASSY, CONNECTING

main13201-09671i2TRFE..TRH203..MA201401-201505

sub13201-09672

main13201-09B80i2TRFE..TRH203..MA201505-201602

sub13201-09B81

main13201-09B81i2TRFE..TRH203..MA201603-201611

main13201-0E020-A0i1GDFTV..GDH201,223201801

MARK A,(L),REFER R/M

main13201-0E020-B0i1GDFTV..GDH201,223201801

MARK B,(L),REFER R/M

main13201-0E020-C0i1GDFTV..GDH201,223201801

MARK C,(L),REFER R/M

main13201-0L011i2KDFTV..KDH200,202..MA201401-202312

(L)

sub13201-30041

main13201-0L041i1KDFTV..KDH223..5F..TH201503-201904

CBU PACKAGE,(L)

sub13201-30051

main13201-0L041i1KDFTV..KDH223..5F..TH201503-201904

FIJI SPEC,(L)

sub13201-30051

main13201-0L041i1KDFTV..KDH223..5F..TH201503-201904

(L)

sub13201-30051

main13201-0L041i1KDFTV..KDH223..5F..TH201401-201503

FIJI SPEC

sub13201-30051

main13201-0L041i1KDFTV..KDH203,223..TH201401-201503

CBU PACKAGE

sub13201-30051

main13201-11050-A0i1GDFTV..GDH201201701-201801

MARK A,REFER REPAIR MANUAL

main13201-11050-A0i1GDFTV..GDH201,223201801

MARK A,(J),REFER R/M

main13201-11050-B0i1GDFTV..GDH201,223201801

MARK B,(J),REFER R/M

main13201-11050-B0i1GDFTV..GDH201201701-201801

MARK B,REFER REPAIR MANUAL

main13201-11050-C0i1GDFTV..GDH201,223201801

MARK C,(J),REFER R/M

main13201-11050-C0i1GDFTV..GDH201201701-201801

MARK C,REFER REPAIR MANUAL

main13201-30021i1KDFTV..KDH203,213..GEN;1KDFTV..KDH201,221,223..02S,03S,05S,06S,12S,14S201312-201908

sub13201-30051

main13201-30041i2KDFTV..KDH200,212,220..SA201312-202301

main13201-30041i2KDFTV..KDH200,202..MA201401-202312

(J)

main13201-30051i1KDFTV..KDH203,223..TH,VN201503-201904

(J)

main13201-30051i1KDFTV..KDH201..4D..5F;1KDFTV..KDH201,203,223..SG..(03S,06S,15S,16S)201908-202301

main13201-59216i5LE..LH200..5D201312-202506

main13201-79476i1TRFE..TRH200201312-201501

*271

sub13201-79477

main13201-79477i1TRFE..TRH200201501-201601

*271

sub13201-79478

main13201-79478i1TRFE..TRH200201601-202001

*271

sub13201-79479

main13201-79479i1TRFE..TRH200..03S..6FC202001-202507

*271

main13201-79576i2TRFE..TRH223..TH201401-201501

sub13201-79577

main13201-79577i2TRFE..TRH223..TH201501-201601

LPG CONVERSION PACKAGE

sub13201-79578

main13201-79578i2TRFE..TRH223..TH201601-201904

sub13201-79617

main13201-79615i2TRFE..TRH201,22#..ARL201312-201501

LPG CONVERSION PACKAGE

sub13201-79616

main13201-79616i2TRFE..TRH223..ARL,GCC,GEN,RUS,SA;2TRFE..TRH201,203,213,221..ARL,GCC,GEN,SA,TH201501-201601

LPG CONVERSION PACKAGE

sub13201-79617

main13201-79617i2TRFE..TRH201,22#..ARL201601-201902

LPG CONVERSION PACKAGE

main13201-79617i2TRFE..TRH213..RHD..GEN201601-202506

13265BOLT, CONNECTING ROD

main13265-0C010i2TRFE..TRH221..GEN;2TRFE..TRH223..GCC;2TRFE..TRH213,223..GL201904-202005

(L)

main13265-22031i1GDFTV..GDH201,223201701

main13265-28010i2TRFE..TRH213..GL..GEN;2TRFE..TRH223..(4FC,5F)..(ARL,RUS,TH);2TRFE..TRH203,213..(10S,16S)..(GCC,MA);1TRFE,2TRFE..TRH200,201,22#..(02S,06S,10S)..4FC201312-201904

sub13265-28020

main13265-28020i2TRFE..TRH203..GCC201901-202507

main13265-28020i2TRFE..TRH221..GCC;2TRFE..TRH201,203..5F;2TRFE..TRH223..4FC..GL;2TRFE..TRH223..5F..GL..GCC;2TRFE..TRH223..STD..(ARL,SA);2TRFE..TRH213,221..02S,06S,11S;2TRFE..TRH213201901-202005

(J)

main13265-54021i5LE..LH200..5D201312-202506

main13265-67021i2KDFTV..KDH200,212,220..SA201312-202312

13405FLYWHEEL SUB-ASSY

main13405-0C030i2TRFE..TRH203..MA201401-201611

main13405-0L021i2KDFTV..KDH200,202..MA201401-202312

MARK=0L021

main13405-0L030i1KDFTV..KDH223..4FC..TH201402-201904

main13405-0L110i2KDFTV..KDH200,202..MA201401-202312

MARK=30031

sub13405-0L021

main13405-11090i1GDFTV..GDH201,223201701

main13405-30031i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN201312-202301

main13405-30060i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main13405-30060i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main13405-54080i5LE..LH20#,212,222..4D201312-202506

main13405-67030i1KDFTV..KDH213..TH201312-202301

main13405-67060i1KDFTV..KDH223..TH201312-202301

main13405-75050i1TRFE..TRH200..5F202302-202506

main13405-75060i2TRFE..TRH221..SA201312-202506

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-05121i1KDFTV..KDH213201312-202301

L=15,OD=5

main90250-08054i2TRFE..TRH213..RHD..5F201312-202506

L=23,OD=8

main90250-08054i2TRFE..TRH203..MA201408-201611

L=23,OD=8,(J)

main90250-10192i2KDFTV..KDH222..GL..SA;2KDFTV..KDH222..STD..GCC201312-202301

L=22,OD=10

main90250-T0008i1KDFTV..KDH223..VN;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

L=22,OD=10

main90250-T0008i1KDFTV..KDH223..5F..TH201401-201904

L=22,OD=10,FIJI SPEC

main90250-T0008i1KDFTV..KDH223..5F..TH201401-201904

L=22,OD=10,CBU PACKAGE

main90250-T0010i2TRFE..TRH203..MA201408-201611

L=23,OD=8,(L)

main90250-T0010i2TRFE..TRH203..MA201401-201408

L=23,OD=8

main90250-T0013i1KDFTV..KDH223..4FC..TH201402-201904

L=15,OD=5

13411CRANKSHAFT

main13401-0C021i2TRFE..TRH203..MA201401-201408

(L)

sub13401-0C022

main13401-0C022i2TRFE..TRH203..GEN;2TRFE..TRH223..STD;2TRFE..TRH201,213,221..LHD201408-202506

(L)

main13401-0C030i1TRFE..TRH200..03S..6FC202401-202507

(L)

main13401-0L090i1KDFTV..KDH223..5F..TH201401-201503

CBU PACKAGE

sub13401-30050

main13401-0L090i1KDFTV..KDH203,223..TH201401-201503

FIJI SPEC

sub13401-30050

main13401-0L090i1KDFTV..KDH203,223..TH,VN201503-201904

(L)

sub13401-30050

main13401-0L090i1KDFTV..KDH203,223..TH,VN201503-201904

CBU PACKAGE,(L)

sub13401-30050

main13401-0L090i1KDFTV..KDH203,223..TH,VN201503-201904

FIJI SPEC,(L)

sub13401-30050

main13401-0L100i2KDFTV..KDH222..5F..GL;2KDFTV..KDH220..03S..SA;2KDFTV..KDH222..STD..GCC201312-202312

(L)

sub13401-30060

main13401-11090i1GDFTV..GDH201,223201701

main13401-30010i1KDFTV..KDH203,213..GEN;1KDFTV..KDH201,221,223..02S,03S,05S,06S,12S,14S201312-201908

main13401-30050i1KDFTV..KDH201,203,223..02S,03S,14S201908-202301

main13401-30050i1KDFTV..KDH203,223..TH,VN201503-201904

(J)

main13401-30060i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN201312-202312

(J)

main13401-54100i5LE..LH20#,212,222..4D201312-202506

main13401-75010i1TRFE..TRH200..4FC,5F;1TRFE..TRH200..03S..6FC201312-202401

*271

sub13401-0C030

main13401-75020i2TRFE..TRH203..MA201401-201408

(J)

sub13401-75021

main13401-75021i2TRFE..TRH213,223..GL202005-202401

*525

sub13401-0C022

main13401-75021i2TRFE..TRH223..TH201408-201904

sub13401-0C022

main13401-75040i2TRFE..TRH201,22#..ARL201312-201408

LPG CONVERSION PACKAGE

sub13401-75041

main13401-75041i2TRFE..TRH223..RHD..GEN;2TRFE..TRH223..STD..GCC;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA)201408-202005

*526

sub13401-75021

main13401-75041i2TRFE..TRH223..RHD..GEN;2TRFE..TRH223..STD..GCC;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA)201408-201902

LPG CONVERSION PACKAGE,*526

sub13401-75021

13471PULLEY, CRANKSHAFT

main13408-0C030i2TRFE..TRH203..MA201401-201611

main13408-0L020i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main13408-0L020i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main13408-0L020i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main13408-11060i1GDFTV..GDH201201701-201901

sub13408-11061

main13408-11061i1GDFTV..GDH201,223202302

main13408-30011i1KDFTV..KDH213..TH201312-202301

main13408-30021i1KDFTV..KDH203..12S..GEN201312-202301

main13408-54090i5LE..LH200..5D201312-202506

main13408-75050i2TRFE..TRH203..4FC;2TRFE..TRH213..RHD..5F201312-202507

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-05005i2TRFE..TRH221..SA201312-202005

main90280-05005i2TRFE..TRH203..MA201312-202401

(J)

main90280-T0002i2KDFTV..KDH222..GL..SA;2KDFTV..KDH222..STD..GCC201312-202312

(L)

main90280-T0002i1KDFTV..KDH223..5F..TH201503-201904

CBU PACKAGE,(L)

main90280-T0002i1KDFTV..KDH223..5F..TH201503-201904

FIJI SPEC,(L)

main90280-T0002i1KDFTV..KDH203,223..TH201401-201503

CBU PACKAGE

main90280-T0002i1KDFTV..KDH203,223..TH201401-201503

FIJI SPEC

main90280-T0003i2TRFE..TRH203..MA201401-202507

(L)

main95161-30516i2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN201312-202312

(J)

main95161-30516i1KDFTV..KDH213..TH201312-201906

main95161-30622i5LE..LH200..5D201312-202506

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90105-16041i2TRFE..TRH203..MA201406-201611

(J)

main90105-16041i2TRFE..TRH221..SA201312-202507

main90109-T0038i2TRFE..TRH203..MA201406-201611

(L)

main90109-T0038i2TRFE..TRH203..MA201401-201406

main90119-18003i2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL201312-202301

main90119-T0218i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main90119-T0218i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main90119-T0218i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main90901-19028i5LE..LH20#,212,222..4D201312-202506

13496COVER, CRANKSHAFT PULLY

main13496-11010i1GDFTV..GDH201,223201701

13519GEAR, OIL PUMP DRIVE

main13519-0E010i1GDFTV..GDH201,223202308

(L)

main13519-11010i1GDFTV..GDH201,223201701-202308

main13519-11010i1GDFTV..GDH201,223202308

(J)

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0C010i2TRFE..TRH203..MA201401-201405

sub13521-0C011

main13521-0C011i2TRFE..TRH203..MA201406-201611

(L)

main13521-0L010i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main13521-0L010i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main13521-0L010i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main13521-11050i1GDFTV..GDH201,223201701

main13521-30020i1KDFTV..KDH223..TH;2KDFTV..KDH200,202..GCC,GEN;2KDFTV..KDH222..STD..(GEN,SA)201312-202301

main13521-67020i2KDFTV..KDH222..5F..GL;2KDFTV..KDH220..03S..SA;2KDFTV..KDH222..STD..GCC201312-201907

main13521-75020i1TRFE..TRH200;2TRFE..TRH223..TH201312-201405

sub13521-75021

main13521-75021i2TRFE..TRH213..RHD..GEN201405-202507

main13521-75021i2TRFE..TRH203..MA201406-201611

(J)

13639SPROCKET, BALANCESHAFT TIMING

main13639-11010i1GDFTV..GDH201,223201701

9167180814

main91671-80814

19 parts on this diagram · 8 diagrams in section
