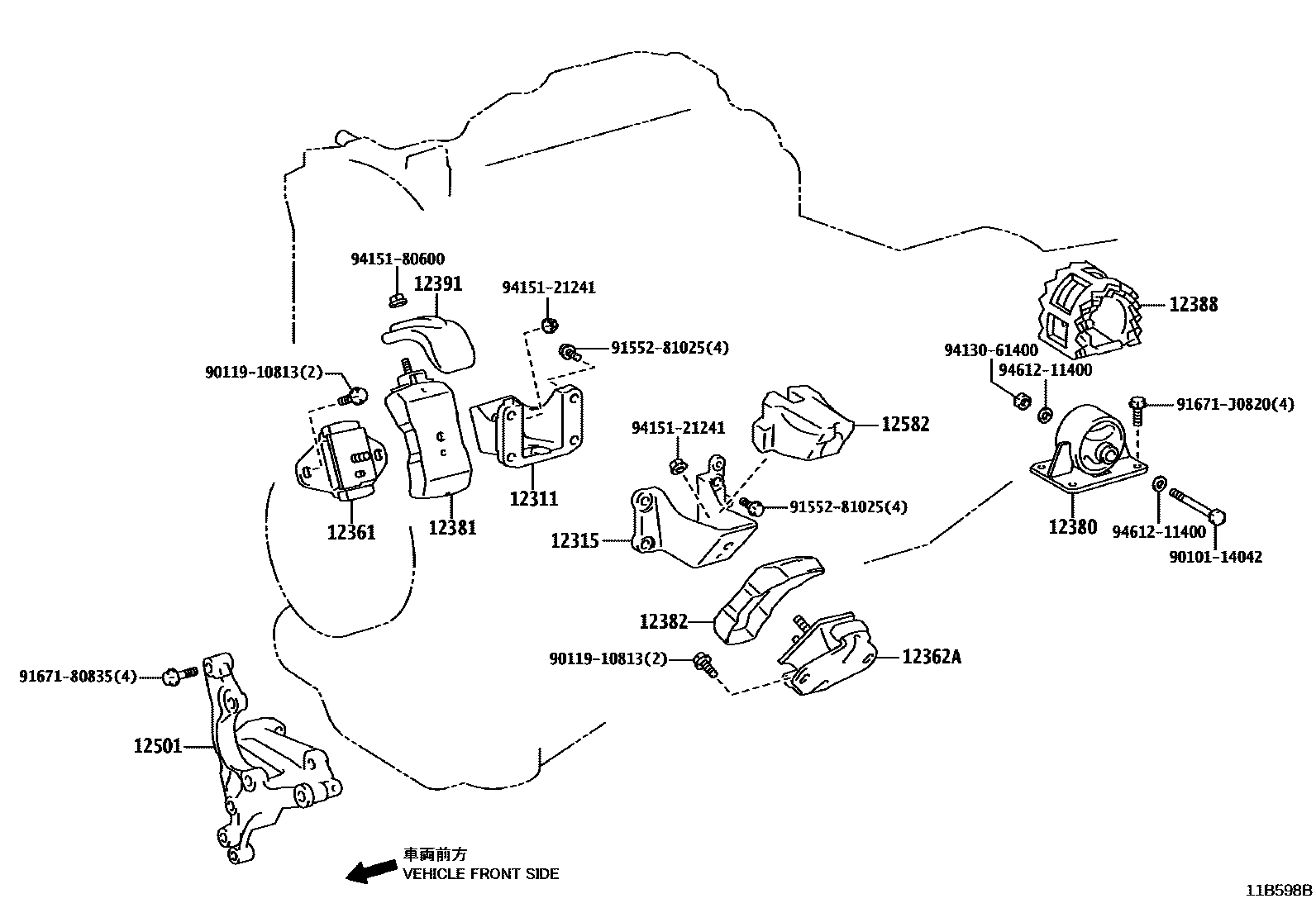

MOUNTING

0001 1 0002 1 0003 1 0004 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-11150i1GDFTV..GDH201201701-201901

main12311-30071i2KDFTV..KDH200,212,220..SA201312-202312

main12311-54280i5LE..LH200..5D201312-202506

main12311-75101i2TRFE..TRH221..GEN;2TRFE..TRH223..GCC;2TRFE..TRH223..GL..GEN201312-202507

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-30061i2KDFTV..KDH200..LHD..5D;1KDFTV..KDH201..4D..03S..5F;1KDFTV..KDH223..4FC..(GEN,TH);1KDFTV,2KDFTV..KDH201,220..02S,05S,06S;1KDFTV..KDH223..5F..(ARL,GEN,KEN,RUS,VN);1K201312-202312

main12315-75110i2TRFE..TRH213..RHD..GEN201312-202507

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-11220i1GDFTV..GDH201201701-201809

sub12361-11221

main12361-11221i1GDFTV..GDH201,223..03S,14S201810-201901

main12361-30090i2KDFTV..KDH222..5F..GL;2KDFTV..KDH220..03S..SA;2KDFTV..KDH222..STD..GCC201312-202312

LH

main12361-30100i1KDFTV..KDH223..TH;2KDFTV..KDH200..LHD..4D;2KDFTV..KDH200..RHD..GEN201312-202312

RH

main12361-54143i5LE..LH200..5D201312-202506

main12361-75080i1TRFE..TRH200..6FC201312-202507

main12361-75100i2TRFE..TRH203..4FC;2TRFE..TRH213..RHD..5F201312-202506

12362AINSULATOR, ENGINE MOUNTING, FRONT LH

main12361-75080i2TRFE..TRH203..4FC;2TRFE..TRH221..SP..GEN;2TRFE..TRH223..GL..GEN;2TRFE..TRH223..RHD..GEN201312-202507

main12362-11320i1GDFTV..GDH201201701-201809

sub12362-11321

main12362-11321i1GDFTV..GDH201201810-201901

12380INSULATOR ASSY, ENGINE MOUNTING, REAR

main12380-30010i2TRFE..TRH223..RHD..GEN;2TRFE..TRH223..STD..GCC;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA)201312-202506

main12380-75020i5LE..LH20#,212,222..4D201312-202506

main12380-75040i1TRFE..TRH200201501-202507

12381STABILIZER, ENGINE MOUNTING

main12381-11040i1GDFTV..GDH201,223..03S,14S201701-201901

main12381-30040i1KDFTV..KDH213..TH201312-202312

RH

main12381-54040i5LE..LH200..5D201312-202506

main12381-67010i1KDFTV..KDH213..TH201312-202312

LH

main12381-75030i1TRFE..TRH200..6FC201312-202507

main12381-75080i2TRFE..TRH213,223..GL..SA201312-202506

12382STABILIZER, ENGINE MOUNTING, LH

main12381-75030i1TRFE..TRH200..4FC;1TRFE..TRH200..03S..6FC201312-202507

main12381-75091i2TRFE..TRH221..SA201312-202506

main12382-11010i1GDFTV..GDH201,223..03S,14S201701-201901

12388STOPPER, ENGINE MOUNTING BRACKET, REAR

main12388-67011i2KDFTV..KDH222..5F..GL;2KDFTV..KDH220..03S..SA;2KDFTV..KDH222..STD..GCC201312-202507

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-11030i1GDFTV..GDH201,223..03S,14S201701-201901

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-11011i1GDFTV..GDH201201701-201811

sub12501-11012

main12501-11012i1GDFTV..GDH201201812-201901

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-11010i1GDFTV..GDH201201701-201901

9010114042

main90101-14042

9011910813

main90119-10813

9155281025

main91552-81025

9167180835

main91671-80835

91671J0820

main91671-J0820

9413061400

main94130-61400

9415121241

main94151-21241

9415180600

main94151-80600

9461211400

main94612-11400

20 parts on this diagram · 4 diagrams in section
