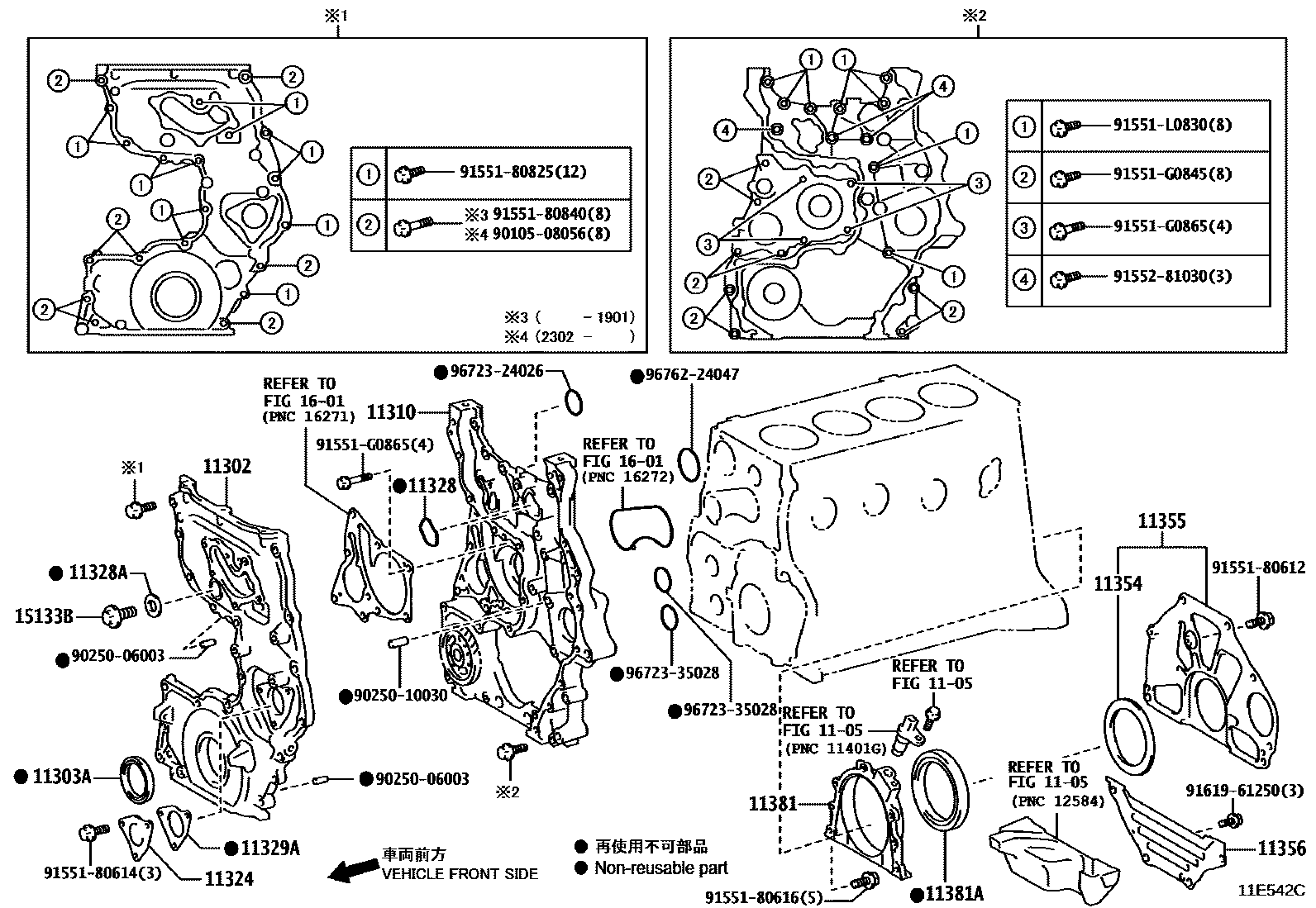

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1EXCEPT EURO 5 REGULATION 0008 1EURO 5 REGULATION 0012 1SINGAPOLE SPEC 0013 1 0014 1 0015 1 0016 1 0017 1 0019 1 0020 1 0021 1 0022 1

1105

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-0C021i2TRFE..TRH203..MA201401-201412

SIAM AISIN

sub11310-0C022

sub90105-T0253

sub90105-T0254

sub90119-T0270

main11310-0C022i2TRFE..TRH203..MA201412-201503

SIAM AISIN

main11310-0C023i2TRFE..TRH203..MA201503-201611

SIAM AISIN

main11310-75065i1TRFE..TRH200201312-201406

sub11310-75066

sub91671-80840

main11310-75066i1TRFE..TRH200201406-201501

main11310-75073i2TRFE..TRH203..MA201401-201406

AISIN

sub11310-75074

sub91671-80840

main11310-75073i2TRFE..TRH201,203,213,22#..ARL,GCC,GEN,RUS,SA,TH201312-201406

sub11310-75074

sub91671-80840

main11310-75074i2TRFE..TRH201..03S;2TRFE..TRH201..06S..GCC;2TRFE..TRH203,213,22#..GCC,GEN,SA,TH201406-201501

PNC 12101=TYPE A

main11310-75080i1TRFE..TRH200201501-202010

main11310-75090i2TRFE..TRH201,22#..(02S,05S,06S,12S,14S)..(ARL,GEN,RUS)201501-201902

*526

main11310-75110i2TRFE..TRH203..5F..GCC201411-202506

PNC 12101=TYPE B

main11310-75130i1TRFE..TRH200202010-202507

main11321-11120i1GDFTV..GDH201,223201701-202306

sub11321-35040

main11321-35040i1GDFTV..GDH201,223202307

main11321-54021i5LE..LH20#,212,222..4D201312-202506

11303ASEAL, OIL(FOR CRANKSHAFT FRONT)

main90311-42031i5LE..LH20#,212,222..4D201312-202506

main90311-48029i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201312-201410

REFER TO ILLUST.

sub90311-48031

main90311-48031i2TRFE..TRH221..SA201411-202507

REFER TO ILLUST.

main90311-50051i1KDFTV..KDH223..5F..TH201712-201904

FIJI SPEC

main90311-50051i2KDFTV..KDH222..STD..GCC;1KDFTV,2KDFTV..KDH213,222..RHD..GL201312-202301

main90311-50051i1KDFTV..KDH223..5F..TH201401-201712

CBU PACKAGE

main90311-T0032i2TRFE..TRH203..MA201401-201501

REFER TO ILLUST.

sub90311-T0061

main90311-T0054i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main90311-T0054i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main90311-T0054i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main90311-T0060i2TRFE..TRH203..MA201502-201611

REFER TO ILLUST.

sub90311-T0099

11310COVER ASSY, TIMING CHAIN

main11310-11041i1GDFTV..GDH201,223201701-202406

sub11310-35120

main11310-35120i1GDFTV..GDH201,223202407-202501

main11310-35121i1GDFTV..GDH201,223202501

11324PLATE, TIMING CHAIN COVER

main11324-11010i1GDFTV..GDH201,223201701

main11324-75010i1TRFE..TRH200201501-202507

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-11070i1GDFTV..GDH201,223201701

main11328-54021i5LE..LH200..5D201312-202506

main11328-75030i1TRFE..TRH200201501-202507

11328AGASKET, TIMING BELT COVER, NO.1

main11328-11080i1GDFTV..GDH201,223202302

main11328-38030i1GDFTV..GDH201201701-201901

11329GASKET, TIMING GEAR REAR COVER

main11329-54021i5LE..LH200..5D201312-202506

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-11020i1GDFTV..GDH201,223201701

11354SEAL, FLYWHEEL HOUSING DUST

main11354-0C010i2TRFE..TRH213,223..GL..SA201312-202506

(L)

main11354-0L020i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main11354-0L020i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main11354-0L020i2KDFTV..KDH200..MA202112-202312

TYPE A:REFER ILLUST.

main11354-0L020i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202112

main11354-30010i1KDFTV..KDH223..TH201312-202312

TYPE B:REFER ILLUST.

main11354-30010i1KDFTV..KDH223..5F..TH201712-201904

FIJI SPEC

main11354-30010i1KDFTV..KDH213..TH201312-201906

main11354-30010i1KDFTV..KDH223..5F..TH201401-201712

CBU PACKAGE

main11354-54010i5LE..LH200..5D201312-202506

main11354-75030i2TRFE..TRH223..RHD..GEN;2TRFE..TRH223..STD..GCC;2TRFE..TRH221..03S..(GEN,SA);2TRFE..TRH223..5F..GL..(GEN,SA)201312-202507

(J)

11355PLATE, REAR END

main11355-0C010i2TRFE..TRH203..MA201401-201611

main11355-0L010i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main11355-0L010i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main11355-0L010i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202112

main11355-0L010i2KDFTV..KDH200..MA202112-202312

TYPE A:REFER ILLUST.

main11355-11040i1GDFTV..GDH201,223201701

main11355-54030i5LE..LH200..5D201312-202506

main11355-67011i1KDFTV..KDH223..5F..TH201712-201904

FIJI SPEC

main11355-67011i1KDFTV..KDH213..TH201312-201906

main11355-67011i1KDFTV..KDH213201312-202312

TYPE B:REFER ILLUST.

main11355-67011i1KDFTV..KDH223..5F..TH201401-201712

CBU PACKAGE

main11355-75021i1TRFE..TRH200..5F;2TRFE..TRH203..5F..GCC201312-202507

11356PLATE, REAR END, NO.2

main11356-30020i1KDFTV,2KDFTV..KDH20#,21#,22#..5F201312-201709

sub11356-30021

main11356-30021i1KDFTV,2KDFTV..KDH201,203,212..RHD..(02S,03S,16S)..5F..GEN201710-202312

main11356-30030i1KDFTV..KDH213..4FC..GEN;1KDFTV,2KDFTV..KDH201,212,221,222,223..4FC201312-202301

main11356-67021i1GDFTV..GDH201,223201701

11381RETAINER, ENGINE REAR OIL SEAL

main11381-0C011i2TRFE..TRH203..MA201401-201407

(L)

sub11381-0C012

main11381-0C012i2TRFE..TRH203..MA201408-201611

(L)

main11381-0K010i1KDFTV..KDH223..5F..TH201712-201904

FIJI SPEC,(L)

main11381-0K010i1KDFTV..KDH213201312-202301

(L)

main11381-0K010i1KDFTV..KDH223..5F..TH201401-201712

CBU PACKAGE,(L)

main11381-0K010i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main11381-11010i1GDFTV..GDH201,223201701

main11381-54030i5LE..LH200..5D201312-202506

main11381-67020i1KDFTV..KDH223..TH201312-202301

(J)

main11381-67020i2KDFTV..KDH222..GL..GCC201312-202212

main11381-67020i1KDFTV..KDH223..5F..TH201712-201904

FIJI SPEC,(J)

main11381-67020i1KDFTV..KDH223..5F..TH201401-201712

CBU PACKAGE,(J)

main11381-75011i1TRFE..TRH200;2TRFE..TRH223..TH201312-201406

sub11381-75012

main11381-75012i2TRFE..TRH203..4FC;2TRFE..TRH223..RHD..GEN201406-202507

main11381-75012i2TRFE..TRH201,22#..ARL201406-201407

LPG CONVERSION PACKAGE

11381ASEAL, ENGINE REAR OIL

main90311-85008i5LE..LH20#,212,222201312-201402

main90311-85011i5LE..LH20#,212,222..4D201402-202506

main90311-88005i1TRFE,2TRFE..TRH20#,213,22#..ARL,GCC,GEN,RUS,SA,TH201312-201410

sub90311-88006

main90311-88006i1TRFE..TRH200..6FC201411-202507

main90311-95015i1KDFTV..KDH213..TH201312-202301

main90311-95015i1KDFTV..KDH223..5F..TH201401-201712

CBU PACKAGE

main90311-95015i1KDFTV..KDH223..5F..TH201712-201904

FIJI SPEC

main90311-T0026i2TRFE..TRH203..MA201401-201501

sub90311-T0059

main90311-T0046i1KDFTV..KDH223..5F..TH201401-201904

FIJI SPEC

main90311-T0046i1KDFTV..KDH223..5F..TH201401-201904

CBU PACKAGE

main90311-T0046i1KDFTV..KDH223..VN;1KDFTV..KDH223..4FC..TH;1KDFTV,2KDFTV..KDH200,202,203..MA,TH201401-202312

main90311-T0058i2TRFE..TRH203..MA201502-201611

15133BPLUG, OIL PUMP RELIEF VALVE

main15133-38071i1GDFTV..GDH201,223201701

1601

9010508056

main90105-08056

9025006003

main90250-06003

9025010030

main90250-10030

9155180612

main91551-80612

9155180614

main91551-80614

9155180616

main91551-80616

9155180825

main91551-80825

9155180840

main91551-80840

91551G0845

main91551-G0845

91551G0865

main91551-G0865

91551L0830

main91551-L0830

9155281030

main91552-81030

9161961250

main91619-61250

9672324026

main96723-24026

9672335028

main96723-35028

9676224047

main96762-24047

32 parts on this diagram · 13 diagrams in section
