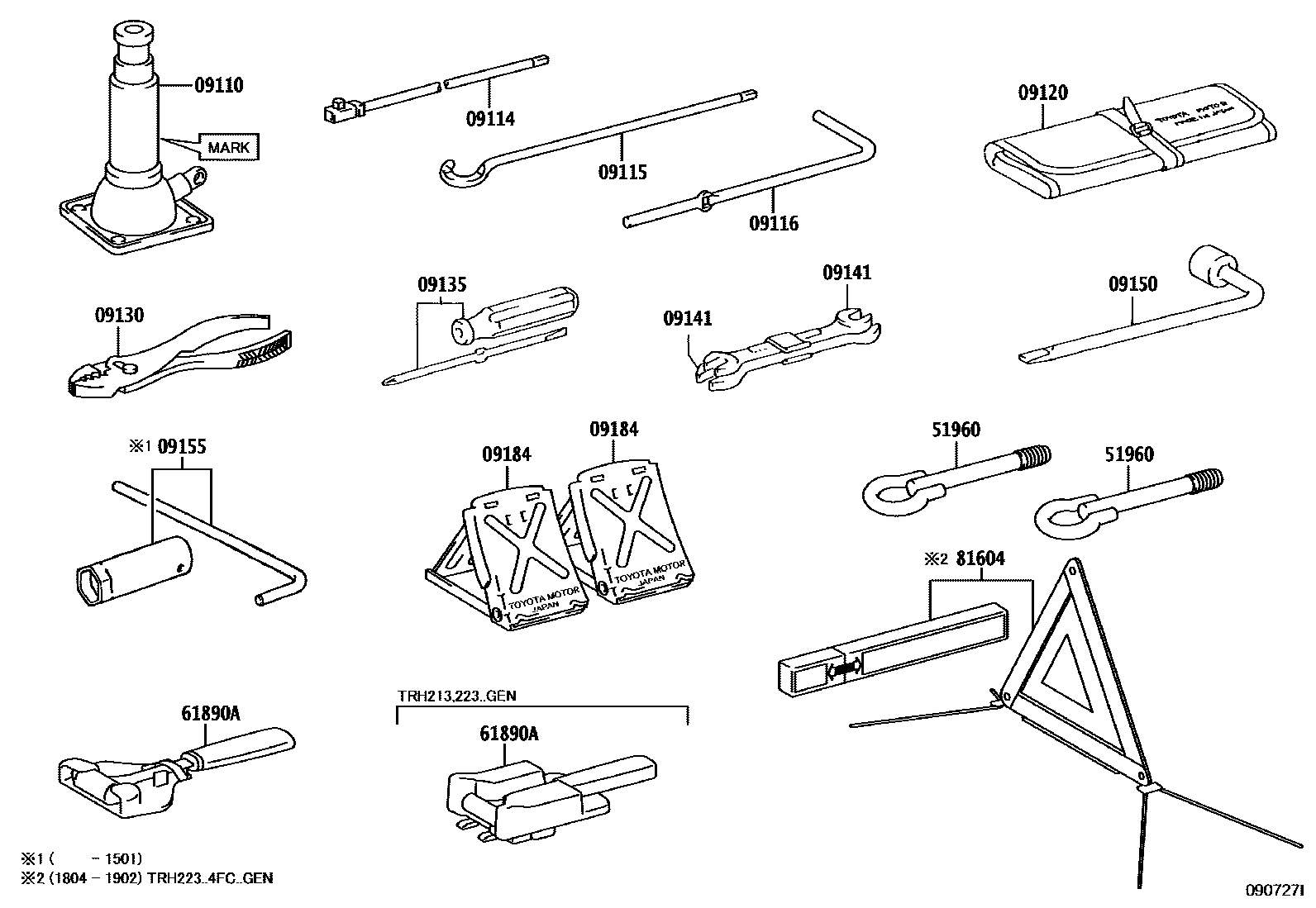

STANDARD TOOL
09110JACK ASSY
sub09111-26190
main09111-26190iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201607-201903
MARK 09111-26190
MARK 09111-26220
09114EXTENSION SUB-ASSY, JACK HANDLE
main09114-28010iKDH223..TH;TRH203,223..4FC;KDH200..LHD..4D;TRH221..SP..GEN;KDH200,TRH223..RHD..GEN201312-202507
09115ROD SUB-ASSY, JACK HANDLE
09116LEVER, JACK HANDLE
main09116-35041iKDH223..TH;TRH203,223..4FC;KDH200..LHD..4D;TRH221..SP..GEN;KDH200,TRH223..RHD..GEN201312-202507
09120BAG, TOOL
09130PLIERS
TOOL(PLANT INSTALL)-*TCT & *SPSD&3ROOM REFRIGERATOR VAN
main99913-11500iKDH201..SP..06S;KDH223..5F..ARL;GDH201,TRH200,223..(06S,14S)..(ARL,GEN)201312-202107
TOOL(PLANT INSTALL)-*TCT & *SPSD
09135DRIVER, SCREW
TOOL(PLANT INSTALL)-*TCT & *SPSD&3ROOM REFRIGERATOR VAN
main99915-10700iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)201312-202107
TOOL(PLANT INSTALL)-*TCT & *SPSD
09141SPANNER
8 X 10
8 X 10,TOOL(PLANT INSTALL)-*TCT & *SPSD&3ROOM REFRIGERATOR VAN
main99914-10810iKDH222..5F..GL;KDH220..03S..SA;TRH223..RHD..GEN;TRH221..03S..(GEN,SA);KDH222,TRH223..STD..GCC;TRH223..5F..GL..(GEN,SA)201312-202107
8 X 10,TOOL(PLANT INSTALL)-*TCT & *SPSD
12 X 14
main99914-11214iKDH201..SP..06S;KDH223..5F..ARL;GDH201,TRH200,223..(06S,14S)..(ARL,GEN)201312-202107
12 X 14,TOOL(PLANT INSTALL)-*TCT & *SPSD
12 X 14,TOOL(PLANT INSTALL)-*TCT & *SPSD&3ROOM REFRIGERATOR VAN
09150WRENCH, HUB NUT BOX
09155WRENCH, SPARK PLUG
CHINA(PRC) SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO5+
NIGERIA SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2
PERU SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO3
VIETNAM SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2
CENTRAL AMERICA(4COUNTRY) SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2
MOROCCO SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO4
MEXICO SPEC&EXHAUST EMISSION CONTROL-GASOLINE TIER1.5
PAKISTAN SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2
PAKISTAN SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO3
VENEZUERA SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO2
09184STOPPER, WHEEL
main09184-00010iLH200..5D;TRH203..4FC;KDH200..LHD..4D;TRH213..RHD..5F;KDH200,212..RHD..(03S,10S)..(GEN,SA)201312-202507
51960HOOK ASSY, FRONT
main51960-26020iTRH223..GL..GEN;KDH222,TRH223..5F..STD..GCC;KDH213,222,TRH221..SG..(03S,11S,14S)..(GEN,SA,TH)201612-202507
sub51960-26020
61890AHAMMER ASSY, BACK WINDOW GLASS
EGYPT SPEC&AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER
FIJI SPEC&CBU PACKAGE
FIJI SPEC&CBU PACKAGE&AIR CONDITIONER-DUAL AIR CONDITIONER
NEW ZEALAND SPEC
INDONESIA SPEC&INDONESIA HI PACKAGE&AIR CONDITIONER-DUAL AIR CONDITIONER
INDIA SPEC
PERU SPEC
AMBURANCE BASE
AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER
VIETNAM SPEC&AIR CONDITIONER-DUAL AIR CONDITIONER
PERU SPEC&AIR CONDITIONER-DUAL AIR CONDITIONER
NEW CALEDONIA SPEC
NEW CALEDONIA SPEC&AIR CONDITIONER-DUAL AIR CONDITIONER
NEW ZEALAND SPEC&REAR SEAT-4-ROW(FOR 10 PERSONS)
INDONESIA SPEC&INDONESIA STD PACKAGE
INDONESIA SPEC&INDONESIA STD PACKAGE&AIR CONDITIONER-DUAL AIR CONDITIONER
EGYPT SPEC
NIGERIA SPEC
IRAN SPEC
EGYPT SPEC&AMBURANCE BASE&AIR CONDITIONER-WITHOUT
EGYPT SPEC&AIR CONDITIONER-WITHOUT
NIGERIA SPEC&AMBURANCE BASE&AIR CONDITIONER-WITHOUT
NIGERIA SPEC&AIR CONDITIONER-WITHOUT
AMBURANCE BASE&AIR CONDITIONER-WITHOUT
AIR CONDITIONER-WITHOUT
IRAN SPEC&AMBURANCE BASE&AIR CONDITIONER-WITHOUT
IRAN SPEC&AIR CONDITIONER-WITHOUT
EGYPT SPEC&AIR CONDITIONER-DUAL AIR CONDITIONER
NIGERIA SPEC&AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER
NIGERIA SPEC&AIR CONDITIONER-DUAL AIR CONDITIONER
AIR CONDITIONER-DUAL AIR CONDITIONER
IRAN SPEC&AMBURANCE BASE&AIR CONDITIONER-DUAL AIR CONDITIONER
IRAN SPEC&AIR CONDITIONER-DUAL AIR CONDITIONER
CAUCASUS(4 COUNTRIES) SPEC
INDONESIA SPEC&INDONESIA S-HI PACKAGE&AIR CONDITIONER-DUAL AIR CONDITIONER
MEXICO SPEC
EMERGENCY KIT-WITH(3 HAMMERS & BUZZER)
VENEZUERA SPEC
LH,RH
81604REFLECTOR SET, TRIANGLE
14 parts on this diagram · 1 diagram in section
