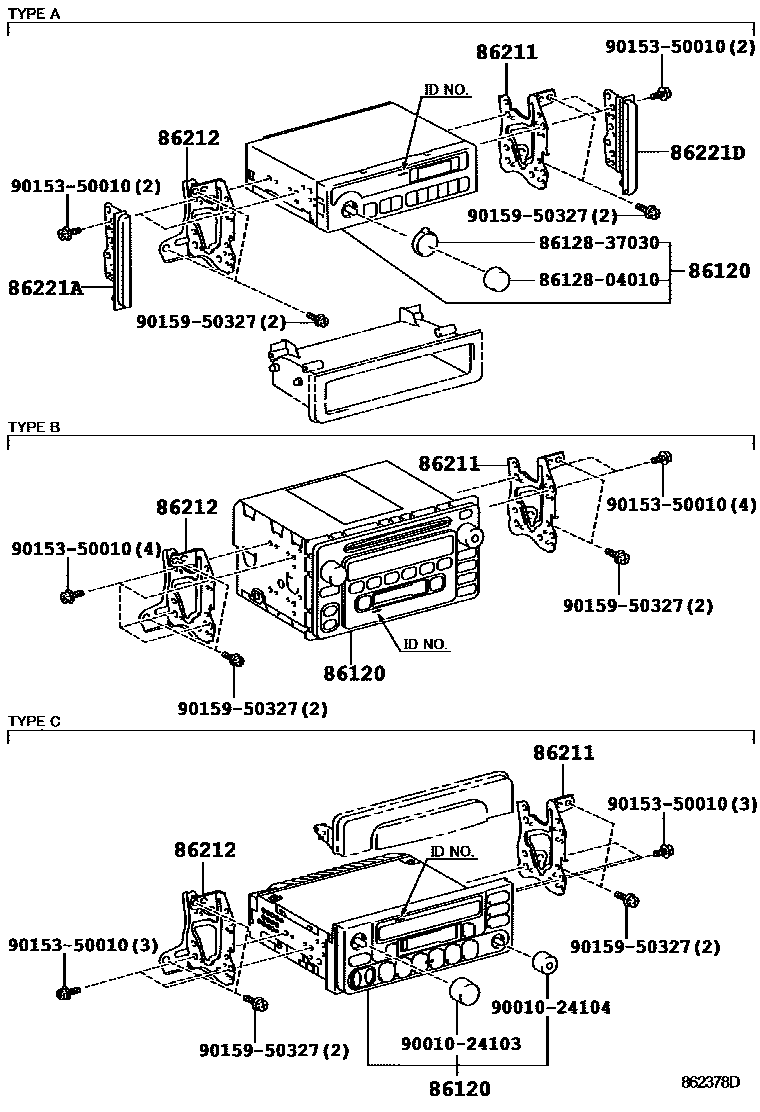

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1 0004 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-10460iKDH222,TRH223..5F..ARL200501-201312

MATSUSHITA, ID=52202,AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM 2SPEAKER

main86120-10460iKDH201,220..LHD;KDH200,202,203,212,222..(03S,12S,15S,16S)..(GEN,SA)201205-201312

MATSUSHITA, ID=52202,AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM 4SPEAKER

main86120-16650iKDH202..15S..GEN;TRH203..SRF..GEN;KDH212,TRH213..RHD..STD..GEN;KDH201,202,203,220,222,TRH221..LHD..(03S,12S,16S)..GEN;KDH200,LH20#,212,222,TRH201,223..(03S,10S,12S,200501-201312

MATSUSHITA, ID=52201,AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM 2SPEAKER

main86120-26150iTRH213..GL..GEN200810-201312

FUJITSU TEN,ID=22835

main86120-26150iTRH213..GL..GEN200810-201312

FUJITSU TEN,ID=22835,AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER

main86120-26150iTRH213..GL..GEN200810-201312

FUJITSU TEN,ID=22835,AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & 6CD MP3 6SPEAKER

main86120-26160iTRH223..5F..GL..GEN201008-201312

PANASONIC,ID=52898,AUDIO (OVERSEAS MARKET)-AM(10KHZ)/FM & CD 2SPEAKER

main86120-26160iTRH223..5F..GL..GEN201008-201312

PANASONIC,ID=52898,AUDIO (OVERSEAS MARKET)-AM(10KHZ)/FM & CD 6SPEAKER

main86120-26160iTRH223..5F..GL..GEN201008-201312

PANASONIC,ID=52898,AUDIO (OVERSEAS MARKET)-AM(10KHZ)/FM & CD 4SPEAKER

main86120-28590iKDH222,223,TRH223..(12S,14S,16S)..GL201008-201312

FUJITSU TEN,ID=22814,AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 4SPEAKER

sub86120-28591

main86120-28590iKDH201..LHD;KDH201..SP..06S;TRH201..06S..GCC;TRH201,221..SP..(GCC,GEN,SA);KDH200,202,203,212,220,LH20#,212,TRH200,203,213..(03S,06S,12S,15S,16S)..(GCC,GEN,SA)201008-201312

FUJITSU TEN,ID=22814,AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 2SPEAKER

sub86120-28591

main86120-28590iKDH201..LHD;KDH201..SP..06S;TRH201..06S..GCC;TRH201,221..SP..(GCC,GEN,SA);KDH200,202,203,212,220,LH20#,212,TRH200,203,213..(03S,06S,12S,15S,16S)..(GCC,GEN,SA)201008-201312

FUJITSU TEN,ID=22814,AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD 6SPEAKER

sub86120-28591

main86120-33450iKDH202..15S..GEN;KDH202..LHD..12S;TRH203..SRF..GEN;KDH212,TRH213..RHD..STD..GEN;KDH200,220,LH200..SP..03S..GEN;LH202,212,TRH201,221..(03S,10S,12S,15S,16S)..GEN200501-201008

FUJITSU TEN,ID=17808,AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 2SPEAKER

main86120-33450iKDH202..15S..GEN;KDH202..LHD..12S;TRH203..SRF..GEN;KDH212,TRH213..RHD..STD..GEN;KDH200,220,LH200..SP..03S..GEN;LH202,212,TRH201,221..(03S,10S,12S,15S,16S)..GEN200501-201008

FUJITSU TEN,ID=17808,AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 4SPEAKER

main86120-33450iKDH202..15S..GEN;KDH202..LHD..12S;TRH203..SRF..GEN;KDH212,TRH213..RHD..STD..GEN;KDH200,220,LH200..SP..03S..GEN;LH202,212,TRH201,221..(03S,10S,12S,15S,16S)..GEN200501-201008

FUJITSU TEN,ID=17808,AUDIO(FOR OVERSEAS MARKET)-AM(10KHZ)/FM & CASSETTE & CD 6SPEAKER

main86120-33460iKDH200,202,212,TRH20#,213,221..5F..GCC200501-201111

MATSUSHITA,ID=57412,AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 2SPEAKER

main86120-33460iKDH200,202,212,TRH20#,213,221..5F..GCC200501-201111

MATSUSHITA,ID=57412,AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 4SPEAKER

main86120-33460iKDH200,202,212,TRH20#,213,221..5F..GCC200501-201111

MATSUSHITA,ID=57412,AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE 6SPEAKER

main86120-33470iKDH202..15S;KDH220..SP..5F;KDH201..SP..06S;LH20#,212,TRH203..SMRF,SRF;KDH212,TRH213..RHD..STD..GEN;KDH200,202,TRH201..LHD..(06S,12S);KDH200,TRH201,221..SP..(GCC,GEN200501-201008

FUJITSU TEN,ID=17809,AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 2SPEAKER

main86120-33470iTRH213,223..(10S,13S)..GEN200501-200810

FUJITSU TEN,ID=17809,AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER

main86120-33470iTRH213,223..(10S,13S)..GEN200501-200810

FUJITSU TEN,ID=17809

main86120-33470iKDH222,TRH223..5F..GL200501-201008

FUJITSU TEN,ID=17809,AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 6SPEAKER

main86120-33470iKDH222,TRH223..5F..GL200501-201008

FUJITSU TEN,ID=17809,AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CASSETTE & CD 4SPEAKER

main86120-44170iKDH222,TRH223..GL..SA200610-201008

MATSUSHITA,ID=58813,AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD & RDS 6SPEAKER

main86120-44170iKDH222,TRH223..GL..SA200610-201008

MATSUSHITA,ID=58813,AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CD & RDS 4SPEAKER

main86120-44170iKDH222,TRH223..5F..ARL200512-200610

MATSUSHITA,ID=58813,SOUTH AFRICA SPEC

main86120-52700iKDH222,TRH223..GL..SA201008-201312

PIONEER,ID=P2823,AUDIO(FOR OVERSEAS MARKET)-AM(9KHZ)/FM & CD & RDS 4SPEAKER

main86120-52700iKDH212,TRH213..SA201008-201312

PIONEER,ID=P2823,AUDIO (OVERSEAS MARKET)-AM(9KHZ)/FM & CD & RDS 6SPEAKER

86211BRACKET, RADIO, NO.1

main86211-26100iKDH222..TH200501-201402

sub86211-26101

86212BRACKET, RADIO, NO.2

main86212-26090iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402

sub86212-26091

86221APANEL, RADIO RECEIVER

main86221-52050iTRH213..10S..GEN200501-201312

AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER

main86221-52050iTRH213..RHD;TRH213..GL..VN;TRH213..LHD..(09S,16S);KDH20#,212,22#,LH20#,212,222,TRH20#,22#..03S,06S,10S,11S,12S,14S,15S,16S200501-201402

86221DPANEL, RADIO RECEIVER

main86221-52060iTRH213..10S..GEN200501-201312

AUDIO(FOR OVERSEAS MARKET)-ANTENNA & WIRE HARNESS 4SPEAKER

main86221-52060iTRH213..RHD;TRH213..GL..VN;TRH213..LHD..(09S,16S);KDH20#,212,22#,LH20#,212,222,TRH20#,22#..03S,06S,10S,11S,12S,14S,15S,16S200501-201402

8612804010KNOB, RADIO RECEIVER

main86128-04010

8612837030KNOB, RADIO RECEIVER

main86128-37030

9001024103

main90010-24103

9001024104

main90010-24104

9015350010

main90153-50010

9015950327

main90159-50327

11 parts on this diagram · 4 diagrams in section
