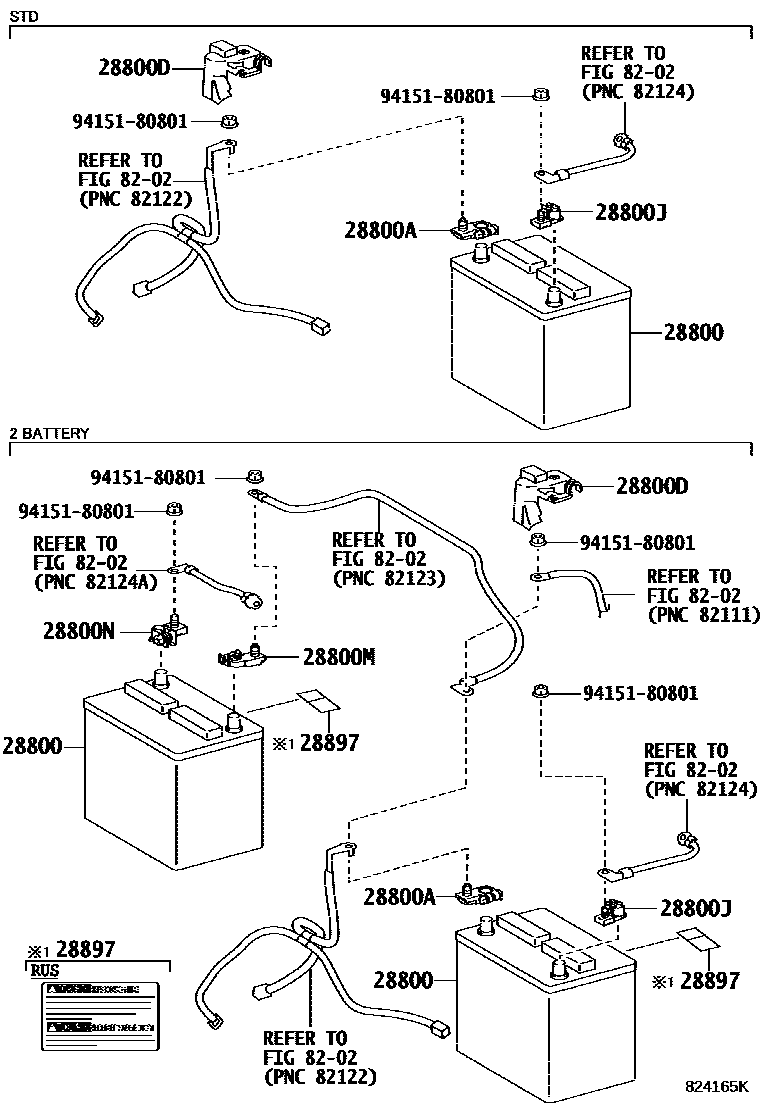

BATTERY & BATTERY CABLE

0001 1 0002 1 0003 1

28800BATTERY

main28800-0C160i2TRFE..TRH223..STD..SA201204-201205

LN2,CKD PACKAGE(SOUTH AFRICA)

sub28800-0C161

main28800-0C160i2TRFE..TRH223..STD..SA201205-201402

LN2

sub28800-0C161

main28800-0L100i2KDFTV..KDH222..TH201209-201309

80D26R

main28800-0L270i2KDFTV..KDH212..LHD..STD..GEN200512-200709

65D26R,VIETNAM SPEC&BATTERY-65D26R X 2(VN),GS

main28800-0L270i2TRFE..TRH213..10S..GEN200610-200709

65D26R,VIETNAM SPEC&WITHOUT(COLD AREA SPEC),GS

main28800-0L270i2KDFTV..KDH212..VN200709-201205

65D26R,GS

main28800-0L270i2TRFE..TRH213..10S200508-200610

65D26R,VIETNAM SPEC,GS

main28800-0L270i2KDFTV..KDH212..LHD..STD..GEN200512-200709

65D26R,VIETNAM SPEC&BATTERY-65D26R(VN),GS

main28800-0L290i2KDFTV..KDH20#..RHD..SRF..4D..(03S,12S)..5F..GEN200501-200610

80D26R,CKD PACKAGE(THAILAND)&BATTERY-80D26R X 2(55AH X 2),GS

main28800-0L290i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200610

80D26R,CKD PACKAGE(MALAYSIA)

main28800-0L290i2KDFTV..KDH200..RHD..4D..5F..GEN200501-201205

80D26R,CKD PACKAGE(THAILAND)

main28800-0L290i2KDFTV..KDH200..RHD..4D..5F..GEN200501-200610

80D26R,CKD PACKAGE(MALAYSIA)&BATTERY-80D26R X 2(55AH X 2),GS

main28800-0L290i2KDFTV..KDH200..MA200602-201401

80D26R,BATTERY-80D26R X 2(55AH X 2),GS

main28800-0L290i2KDFTV..KDH200..MA200602-201401

80D26R

main28800-0L330i2KDFTV..KDH222..STD..SA201204-201205

LN3,CKD PACKAGE(SOUTH AFRICA)&BATTERY-LN3,65AH(SA)

sub28800-0L331

main28800-0L330i2KDFTV..KDH222..STD..SA201205-201402

LN3

sub28800-0L331

main28800-0L410i2TRFE..TRH223..TH201208-201401

55D23R

sub28800-0L450

main28800-0L420i1KDFTV..KDH223..TH201212-201401

105D31R

main28800-15021i2TRFE..TRH213..GL..GEN200709-201312

55D23R,BATTERY-55D23R(48AH),FURUKAWA

sub28800-15012

main28800-15021i2TRFE..TRH203..SRF;2TRFE..TRH223..GL..SA;2TRFE..TRH213..RHD..5F;1TRFE,2TRFE..TRH200,201,221;2TRFE..TRH223..(14S,16S)..(ARL,GCC,GEN);2TRFE..TRH213..LHD..(09S,16S)..(200501-201312

55D23R,FURUKAWA

sub28800-15012

main28800-15021i2TRFE..TRH223..TH201208-201309

55D23R,WITHOUT(CKD PACKAGE),FURUKAWA

sub28800-15012

main28800-15022i2TRFE..TRH203..SRF;2TRFE..TRH213..RHD..5F;2TRFE..TRH213..LHD..(09S,16S);2TRFE..TRH201,22#..03S,06S,14S,15S,16S200501-200709

55D23R,YUASA

sub28800-15021

main28800-17111i2KDFTV..KDH202..SRF..5F..(GCC,GEN);2TRFE..TRH213,223..(10S,11S,12S,13S)..(CIS,GEN,TH);2KDFTV..KDH200,212,220,222..5F..(ARL,GCC,GEN,SA,TH)200501-201201

80D26R,FURUKAWA

sub28800-38100

main28800-17111i2KDFTV..KDH202..SRF..5F..(GCC,GEN);2TRFE..TRH213,223..(10S,11S,12S,13S)..(CIS,GEN,TH);2KDFTV..KDH200,212,220,222..5F..(ARL,GCC,GEN,SA,TH)200501-201201

80D26R,BATTERY-80D26R(55AH),FURUKAWA

sub28800-38100

main28800-17111i2KDFTV..KDH202..SRF..5F..(GCC,GEN);2TRFE..TRH213,223..(10S,11S,12S,13S)..(CIS,GEN,TH);2KDFTV..KDH200,212,220,222..5F..(ARL,GCC,GEN,SA,TH)200501-201201

80D26R,BATTERY-80D26R X 2(55AH X 2),FURUKAWA

sub28800-38100

main28800-17111i2KDFTV..KDH202..TH200709-201201

80D26R,WITHOUT(CKD PACKAGE),FURUKAWA

sub28800-38100

main28800-17111i2TRFE..TRH201,221..5F..ARL;2TRFE..TRH201,223..RHD..SG..(06S,14S)..5F200501-200610

80D26R,COLD AREA SPEC,FURUKAWA

sub28800-38100

main28800-17131i1KDFTV..KDH201..SG;1KDFTV,5LE..KDH201,203,221,223,LH20#,212,222..03S,10S,12S,14S,15S,16S200501-201205

105D31R,FURUKAWA

sub28800-67123

main28800-38100i2TRFE..TRH223..16S;2TRFE..TRH223..GL..SA;2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(GCC,GEN,SA);2TRFE..TRH201,213..LHD..(06S,16S)..(GCC,GEN);2TRFE..TRH201,203..SRF.201201-201312

80D26R,BATTERY-80D26R(55AH),FURUKAWA

sub28800-38101

main28800-38100i2KDFTV..KDH202..TH201201-201309

80D26R,WITHOUT(CKD PACKAGE),FURUKAWA

sub28800-38101

main28800-38100i2KDFTV..KDH222..STD..SA201201-201312

80D26R,FURUKAWA

sub28800-38101

main28800-38100i2KDFTV..KDH222..STD..SA201201-201312

80D26R,BATTERY-80D26R X 2(55AH X 2),FURUKAWA

sub28800-38101

main28800-54231i1KDFTV..KDH201..SP..06S..4FC..STD201111-201204

80D26R,3ROOM REFRIGERATOR VAN

sub28800-67131

main28800-54231i2KDFTV..KDH200,202,212,220,222..4FC200501-200709

80D26R

sub28800-67131

main28800-54231i2KDFTV..KDH200..4FC;5LE..LH20#,212,222..03S,12S,15S,16S200709-201204

80D26R,BATTERY-85D26R X 2(55AH X 2)

sub28800-67131

main28800-54232i2KDFTV..KDH200,202..(03S,15S)..GCC200501-200709

80D26R,BATTERY-85D26R X 2(55AH X 2)

sub28800-54231

main28800-54232i2KDFTV..KDH222..GL..SA;2KDFTV..KDH222..5F..(ARL,GCC,GEN);2KDFTV..KDH202..SRF..5F..(GCC,GEN);2KDFTV..KDH200,212,220..5F..(ARL,GCC,GEN,SA,TH);2TRFE..TRH213,223..(10S,200501-201312

80D26R,BATTERY-80D26R X 2(55AH X 2),YUASA

sub28800-54231

main28800-54232i2TRFE..TRH223..16S;2TRFE..TRH223..GL..SA;2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(GCC,GEN,SA);2TRFE..TRH201,213..LHD..(06S,16S)..(GCC,GEN);2TRFE..TRH201,203..SRF.200501-201312

80D26R,YUASA

sub28800-54231

main28800-54232i2TRFE..TRH223..16S;2TRFE..TRH223..GL..SA;2TRFE..TRH213..RHD..5F;2TRFE..TRH221..SP..(GCC,GEN,SA);2TRFE..TRH201,213..LHD..(06S,16S)..(GCC,GEN);2TRFE..TRH201,203..SRF.200501-201312

80D26R,BATTERY-80D26R(55AH),YUASA

sub28800-54231

main28800-54232i2KDFTV..KDH222..TH200709-201309

80D26R,WITHOUT(CKD PACKAGE),YUASA

sub28800-54231

main28800-54232i2TRFE..TRH201..SG..4FC200501-200610

80D26R,COLD AREA SPEC,YUASA

sub28800-54231

main28800-67123i1KDFTV..KDH201..RHD..03S;1KDFTV,5LE..KDH201,LH202..SG;1KDFTV,5LE..KDH203,221,223,LH200,212,222..(03S,14S,16S)..(ARL,GEN)201205-201312

105D31R,FURUKAWA

sub28800-67124

main28800-67123i1KDFTV..KDH221..4D;1KDFTV,5LE..KDH201,LH212..4D..(03S,10S)..5F..(GEN,TH)200501-201312

105D31R,YUASA

sub28800-67124

main28800-67131i1KDFTV..KDH223..RUS201205-201312

85D26R,BATTERY-85D26R X 2(55AH X 2)

sub28800-67132

main28800-67131i1KDFTV..KDH201..SP..06S..4FC..STD201205-201312

85D26R,3ROOM REFRIGERATOR VAN

sub28800-67132

main28800-67131i1KDFTV..KDH201..SP..06S..4FC..STD201205-201312

85D26R

sub28800-67132

28800ATERMINAL, BATTERY POSITIVE

main90982-05064i2KDFTV..KDH222..TH200501-201401

main90982-05066i2KDFTV,2TRFE..KDH222,TRH223..STD..SA201205-201402

main90982-05066i2KDFTV,2TRFE..KDH222,TRH223..STD..SA201204-201205

CKD PACKAGE(SOUTH AFRICA)

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-26150i2KDFTV..KDH222..TH200501-201401

main82821-26160i2TRFE..TRH223..STD..SA200501-201401

main82821-26310i2TRFE..TRH223..STD..SA201008-201205

main82821-26330i2TRFE..TRH223..STD..SA201204-201205

CKD PACKAGE(SOUTH AFRICA)

main82821-26330i2TRFE..TRH223..STD..SA201205-201402

main82821-26340i2KDFTV..KDH222..STD..SA201205-201402

main82821-26340i2KDFTV..KDH222..STD..SA201204-201205

CKD PACKAGE(SOUTH AFRICA)

28800JTERMINAL, BATTERY NEGATIVE

main90982-06022i2KDFTV,2TRFE..KDH222,TRH223..STD..SA201204-201205

CKD PACKAGE(SOUTH AFRICA)

main90982-06022i2KDFTV,2TRFE..KDH222,TRH223..STD..SA201205-201402

main90982-06056i2KDFTV..KDH222..ARL,GCC,GEN;2TRFE..TRH223..ARL,CIS,GCC,GEN,TH;2KDFTV,2TRFE..KDH222,TRH223..GL..SA;1KDFTV,2KDFTV,5LE,1TRFE,2TRFE..KDH20#,212,220,221,223,LH20#,212,22200501-201401

28800MTERMINAL, BATTERY POSITIVE

main90982-05064i2KDFTV..KDH212..STD200508-201312

main90982-05064i2KDFTV..KDH200,202..(03S,15S)..GCC200501-201401

BATTERY-80D26R X 2(55AH X 2)

main90982-05064i2KDFTV..KDH212..LHD..STD..GEN200512-200709

BATTERY-65D26R X 2(VN)

main90982-05064i2TRFE..TRH223..STD..SA201008-201205

CKD PACKAGE(SOUTH AFRICA)

main90982-05064i2KDFTV..KDH200..SG..4FC;5LE..LH20#,212,222..03S,12S,15S,16S;2KDFTV..KDH200,202,220..4D..4FC..GEN200501-201312

BATTERY-85D26R X 2(55AH X 2)

main90982-05064i1KDFTV..KDH201..SP..06S..4FC..STD201111-201312

3ROOM REFRIGERATOR VAN

28800NTERMINAL, BATTERY NEGATIVE

main90982-06056i2KDFTV..KDH222..STD..SA200501-201401

BATTERY-80D26R X 2(55AH X 2)

main90982-06056i2KDFTV..KDH212..STD200508-201312

main90982-06056i2KDFTV..KDH212..LHD..STD..GEN200512-200709

BATTERY-65D26R X 2(VN)

main90982-06056i2TRFE..TRH223..STD..SA201008-201205

CKD PACKAGE(SOUTH AFRICA)

main90982-06056i2KDFTV..KDH200..SG..4FC;5LE..LH20#,212,222..03S,12S,15S,16S;2KDFTV..KDH200,202,220..4D..4FC..GEN200501-201312

BATTERY-85D26R X 2(55AH X 2)

main90982-06056i1KDFTV..KDH201..SP..06S..4FC..STD201111-201312

3ROOM REFRIGERATOR VAN

28897PLATE, BATTERY CAUTION

main28897-31040i2TRFE..TRH223..CIS201205-201312

main28897-50030i2TRFE..TRH213..10S..GEN200501-201312

VIETNAM SPEC

sub28897-38060

main28897-50030i2TRFE..TRH213..10S..GEN200501-201312

MEXICO SPEC

sub28897-38060

main28897-50030i2TRFE..TRH213..10S..GEN200501-201312

VENEZUERA SPEC

sub28897-38060

main28897-50030i2TRFE..TRH223..5F..GL..GEN201205-201312

CHINA(PRC) SPEC&BATTERY-80D26R(55AH)

sub28897-38060

main28897-50030i2TRFE..TRH223..5F..GL..GEN200501-201205

CHINA(PRC) SPEC

sub28897-38060

8202

9415180801

main94151-80801

9 parts on this diagram · 3 diagrams in section
