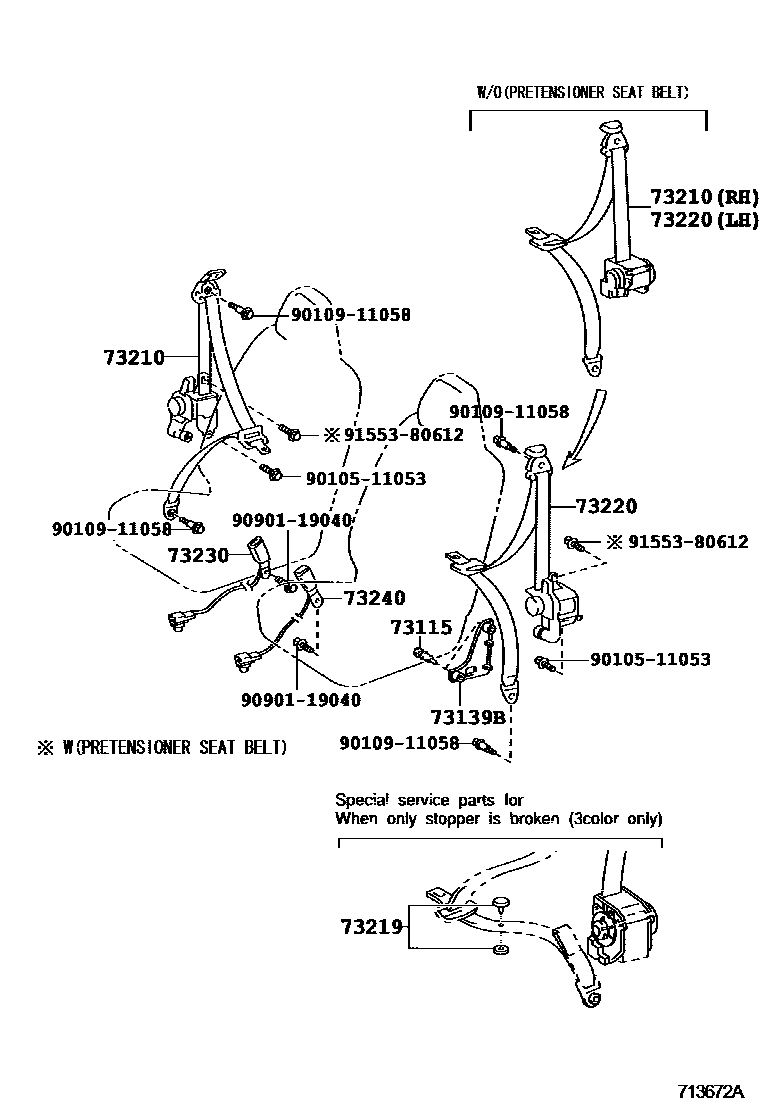

SEAT BELT
73115CLIP, BELT COMFORT NO.1
AMBURANCE BASE
MEXICO SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)&FRONT SEAT BELT-PRETENSIONER:W(*DRP)&REAR SEAT BELT-2 POINT TYPE X 10(FOR 10 PERSONS)&SRS AIR BAG-WITH(
DK.GRAY,TRIM1#
73139BCOVER, SEAT BELT ANCHOR
MEXICO SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)&FRONT SEAT BELT-PRETENSIONER:W(*DRP)&REAR SEAT BELT-2 POINT TYPE X 10(FOR 10 PERSONS)&SRS AIR BAG-WITH(
DK.GRAY,TRIM1#
73210BELT ASSY, FRONT SEAT OUTER, RH
GRAY,TRIM1#
CKD PACKAGE(THAILAND),BLACK,TRIM1#
BLACK,TRIM1#
main73210-26690-B0iTRH213..09S,16S;KDH20#,212,222,LH20#,212,222,TRH20#,22#..LHD..(03S,06S,10S,11S,12S,15S,16S)200501-200512
VIETNAM SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
GRAY,TRIM1#
MEXICO SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)&REAR SEAT BELT-2 POINT TYPE X 10(FOR 10 PERSONS)&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#
SAUDI ARABIA SPEC&AMBURANCE BASE&REAR SEAT BELT-WITHOUT,BLACK,TRIM1#
main73210-26693-C0iKDH201..LHD;TRH201..5D..SP;TRH201..LHD..SG;KDH212,222,TRH223..4D..(11S,16S)..(GCC,GEN);KDH200,202,203,220,LH20#,212,222,TRH203,213,221..(03S,12S,15S,16S)..STD..(GCC201211-201312
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#
GRAY,TRIM1#
NEW ZEALAND SPEC&REAR SEAT-4-ROW(FOR 10 PERSONS)&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#
NEW ZEALAND SPEC&REAR SEAT-4-ROW(FOR 10 PERSONS)&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#
SAUDI ARABIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#
main73210-26731-B0supersedes 73210-26691-B0iTRH213..RHD..GL;KDH200,201,212,222,223,TRH201,223..(03S,10S,14S)..(ARL,SA)200512-201008
SAUDI ARABIA SPEC&AMBURANCE BASE&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#
REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#
REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#
REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#
main73210-26734-C0supersedes 73210-26693-C0iKDH212..4FC;KDH201..RHD..SP..(ARL,GEN);KDH200,212,22#,TRH201,22#..ARL,CIS,RUS,SA;KDH203,TRH200,213..RHD..(06S,10S,11S,12S,14S)201305-201402
BLACK,TRIM1#
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA)&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA)&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#
sub73210-26712
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA)&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#
sub73210-26722
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
WITHOUT(CKD PACKAGE)&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
73219STOPPER, TONGUE PLATE
BLACK
GRAY
main73219-33030iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402
BEIGE
73220BELT ASSY, FRONT SEAT OUTER, LH
GRAY,TRIM1#
BLACK,TRIM1#
GRAY,TRIM1#
main73210-26691-B0iKDH222,TRH213,223..ARL,CIS,GCC,SA,VN;KDH203,212,223..4D..(10S,11S,14S,15S);KDH222,TRH213,223..LHD..(09S,16S)..GEN;KDH200,202,212,220,LH20#,212,222,TRH20#,221..LHD..200512-201008
GRAY,TRIM1#
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITHOUT,BLACK,TRIM1#
SAUDI ARABIA SPEC&AMBURANCE BASE&REAR SEAT BELT-WITHOUT,BLACK,TRIM1#
BLACK,TRIM1#
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA)&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#
sub73210-26712
VIETNAM SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
SAUDI ARABIA SPEC&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#
REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#
REAR SEAT BELT-3 POINT TYPE X 13(FOR 13 PERSONS)&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#
main73210-26734-C0supersedes 73210-26693-C0iKDH212..4FC;KDH212,222,223,TRH213,223..(10S,11S,12S,14S)..(CIS,RUS,SA,TH)201305-201402
BLACK,TRIM1#
BLACK,TRIM1#
GRAY,TRIM1#
SRS AIR BAG-WITHOUT,BLACK,TRIM1#
main73220-26571-C0iKDH221,222,TRH221..RHD..(03S,16S)..(GEN,SA);KDH200,201,202,212,220,223,LH20#,212,222,TRH20#,213,223..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)201205-201210
WITHOUT(CKD PACKAGE),BLACK,TRIM1#
main73220-26572-C0iKDH201,222,TRH201,223..RHD..(03S,06S,16S)..(ARL,GEN,SA);KDH200,202,212,220,221,LH20#,212,222,TRH200,203,213,221..RHD..STD..(GEN,SA,TH)201211-201312
BLACK,TRIM1#
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY)
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER & PASSENGER SEATSIDE),GRAY,TRIM1#
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER & PASSENGER SEATSIDE),BLACK,TRIM1#
FRONT SEAT SLIDE-*DRS:225MM & *PAS:120MM&SRS AIR BAG-WITH(DRIVER & PASSENGER SEATSIDE),BLACK,TRIM1#
CHINA(PRC) SPEC&REAR SEAT-4-ROW(FOR 11 PERSONS)&REAR SEAT BELT-3 POINT TYPE X 11(FOR 11PERSONS & CHINA)&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),GRAY,TRIM1#
sub73210-26712
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
WITHOUT(CKD PACKAGE)&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
main73220-26560-B0iKDH222,TRH223..RHD..(GEN,TH);KDH200,201,220,221,LH200,TRH201,221..RHD..SP;KDH202,212,LH202,212,222,TRH203,213..RHD..5F..(GEN,MA)200512-201008
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#
main73220-26560-C0supersedes 73210-0L010-C0iKDH201,TRH201..RHD..SP;KDH200,202,212,220,222,LH20#,212,222,TRH203,213,22#..RHD..(03S,12S,15S,16S)..STD..(GEN,MA,SA,TH)201008-201204
WITHOUT(CKD PACKAGE)&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#
WITHOUT(CKD PACKAGE)&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE)
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),GRAY,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#
73230BELT ASSY, FRONT SEAT INNER, RH
GRAY,TRIM1#
BLACK,TRIM1#
GRAY,TRIM1#
main73230-26240-C0supersedes 73230-26250-C0iTRH201..SG..06S..GEN;KDH201..RHD..(ARL,GEN);KDH200,212,220,222,223,TRH201,22#..ARL,SA;KDH203,221,TRH200,213..RHD..(03S,06S,10S,11S,12S,14S)201008-201402
BLACK,TRIM1#
MEXICO SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)&FRONT SEAT BELT-PRETENSIONER:W(*DRP)&REAR SEAT BELT-2 POINT TYPE X 10(FOR 10 PERSONS)&SRS AIR BAG-WITH(
BLACK,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
GRAY,TRIM1#
BLACK,TRIM1#
main73230-26250-B0iTRH213..09S,10S,15S;TRH223..LHD..5F..GEN;KDH203,212,222,223,TRH223..(10S,11S,12S,13S,14S,15S)..(ARL,CIS,GEN,SA);KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,221.200501-201008
MEXICO SPEC&REAR SEAT-FOR 10 PERSONS(BACK-ROW:SPACE UP SEAT)&FRONT SEAT BELT-PRETENSIONER:W(*DRP)&REAR SEAT BELT-2 POINT TYPE X 10(FOR 10 PERSONS)&SRS AIR BAG-WITH(
main73230-26250-C0iKDH221,222..ARL,SA;KDH203,223,TRH221..ARL,GEN,RUS;KDH212,TRH213,223..(10S,11S,12S,13S,14S)..(ARL,CIS,GEN,SA,VN);KDH200,201,202,212,220,222,LH20#,212,222,TRH201,203,201008-201402
BLACK,TRIM1#
GRAY,TRIM1#
BLACK,TRIM1#
BLACK,TRIM1#
main73240-26180-B0iKDH202,212,TRH213..RHD..(SMRF,SRF)..5F..GEN;KDH200,201,220,221,222,LH20#,212,222,TRH20#,22#..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)200501-201008
GRAY,TRIM1#
main73240-26180-C0iKDH221,TRH221..RHD..(GEN,SA);KDH200,201,202,212,220,222,LH20#,212,222,TRH20#,213,223..RHD..(03S,06S,15S,16S)..(ARL,GEN,SA,TH)201008-201204
WITHOUT(CKD PACKAGE)&SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#
SRS AIR BAG-WITH(DRIVER SEAT SIDE ONLY),BLACK,TRIM1#
GRAY,TRIM1#
BLACK,TRIM1#
SRS AIR BAG-WITH(DRIVER & PASSENGER SEAT SIDE),BLACK,TRIM1#
9010511053
main90105-11053
9010911058
main90109-11058
9090119040
main90901-19040
9155380612
main91553-80612
11 parts on this diagram · 15 diagrams in section
