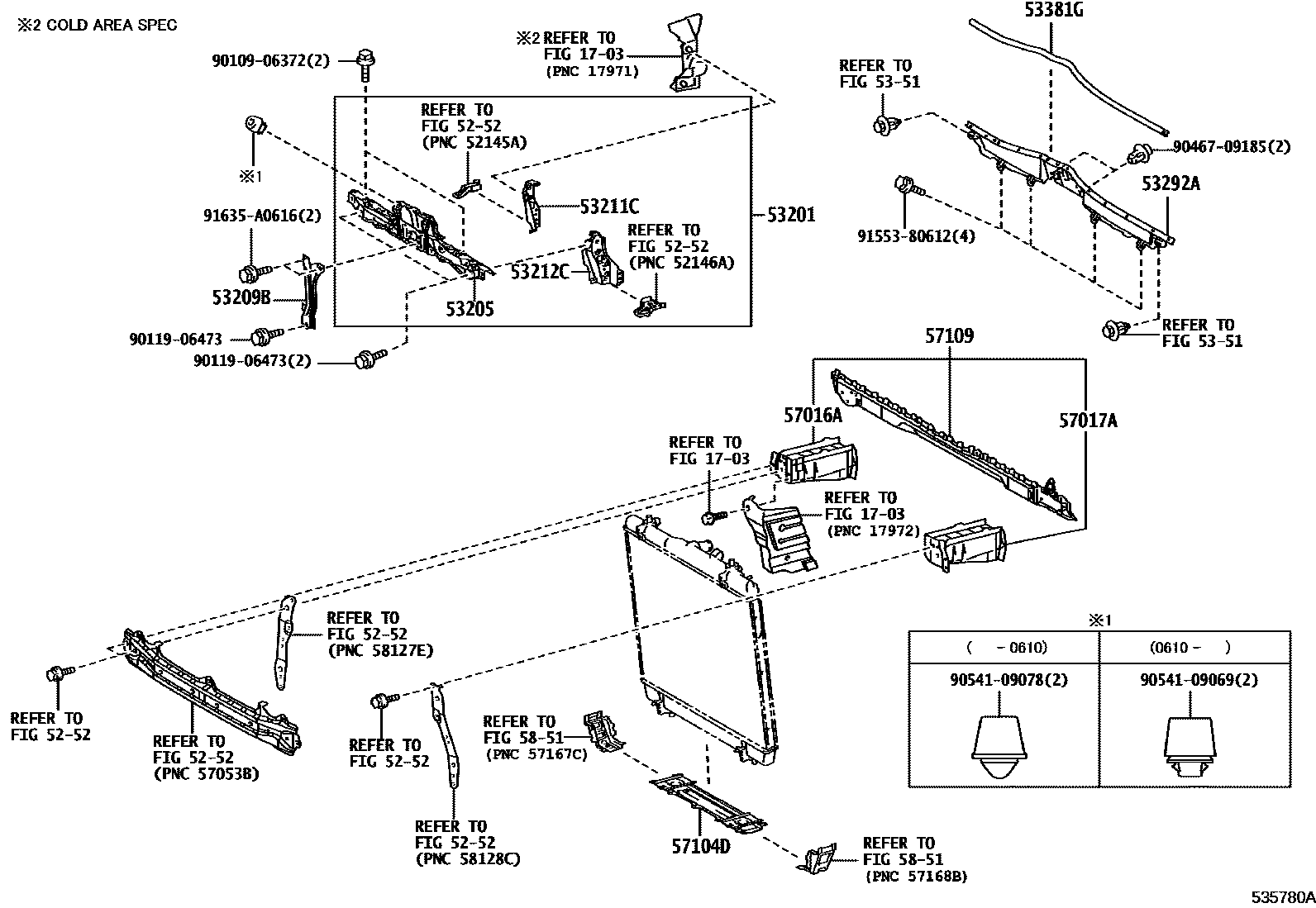

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1 0004 1

1703

5252

53201SUPPORT SUB-ASSY, RADIATOR

main53201-26080iKDH20#,LH20#,TRH20#200501-200610

sub90541-09069

main53201-26081iKDH20#,LH20#,TRH20#200610-201008

main53201-26082iKDH20#,LH20#,TRH20#201008-201401

main53201-26090iKDH212,22#,LH212,222,TRH213,22#200501-200610

sub90541-09069

main53201-26091iKDH212,22#,LH212,222,TRH213,22#200610-201008

main53201-26092iKDH222..TH201008-201205

sub53201-26100

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-26010iKDH20#,LH20#,TRH20#200501-200610

sub90541-09069

main53205-26011iKDH20#,LH20#,TRH20#200610-201007

main53205-26012iKDH20#,LH20#,TRH20#201008-201401

main53205-26020iKDH212,22#,LH212,222,TRH213,22#200501-200610

sub90541-09069

main53205-26021iKDH212,22#,LH212,222,TRH213,22#200610-201008

main53205-26022iKDH222..TH201212-201402

sub53205-26040

53209BBRACE SUB-ASSY, HOOD LOCK SUPPORT

main53209-26100iKDH20#,LH20#,TRH20#200501-201401

sub53209-26130

main53209-26110iKDH222..TH200501-201205

53211CSUPPORT, RADIATOR, RH

main53211-26080iKDH222..TH201212-201402

53212CSUPPORT, RADIATOR, LH

main53212-26080iKDH222..TH200501-201205

53292ASEAL, RADIATOR SUPPORT, UPPER

main53292-26070iKDH200,202,LH20#,TRH20#200501-201401

main53292-26080iKDH222..RHD..GEN200709-201402

53381GSEAL, HOOD TO RADIATOR SUPPORT, NO.1

main53381-26110iKDH200,202,LH20#,TRH20#200501-201401

main53381-26120iKDH222..GCC,SA;KDH222..LHD..GEN;KDH220..SP..(GEN,SA);KDH212,LH212,222,TRH213,22#200501-201402

5351

57016AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-26010iKDH20#,LH20#,TRH20#200501-201401

main57016-26020iKDH222..TH200501-201205

57017AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-26010iKDH20#,LH20#,TRH20#200501-201401

main57017-26020iKDH222..TH200501-201205

57104DMEMBER SUB-ASSY, FRONT CROSS

main57104-26190iKDH20#,LH20#,TRH20#200501-201302

main57104-26191iKDH20#,LH20#,TRH20#201303-201401

main57104-26200iKDH222..TH200501-201205

main57104-26201iKDH212,22#,LH212,222,TRH213,22#201303-201402

57109REINFORCEMENT SUB-ASSY, DASH PANEL CROSSMEMBER

main57109-26010iKDH20#,LH20#200501-201008

main57109-26020iTRH20#;KDH201,203..LHD200501-201104

main57109-26021iKDH20#,LH20#,TRH20#201105-201401

main57109-26030iKDH212,22#,LH212,222200501-201008

sub57109-26031

main57109-26040iKDH221..ARL;KDH222..16S;KDH222..GL..SA;KDH212,220,223,LH212,222201008-201105

main57109-26041iKDH222..TH201106-201205

5851

9010906372

main90109-06372

9011906473

main90119-06473

9046709185

main90467-09185

9054109069

main90541-09069

9054109078

main90541-09078

9155380612

main91553-80612

91635A0616

main91635-A0616

22 parts on this diagram · 4 diagrams in section
