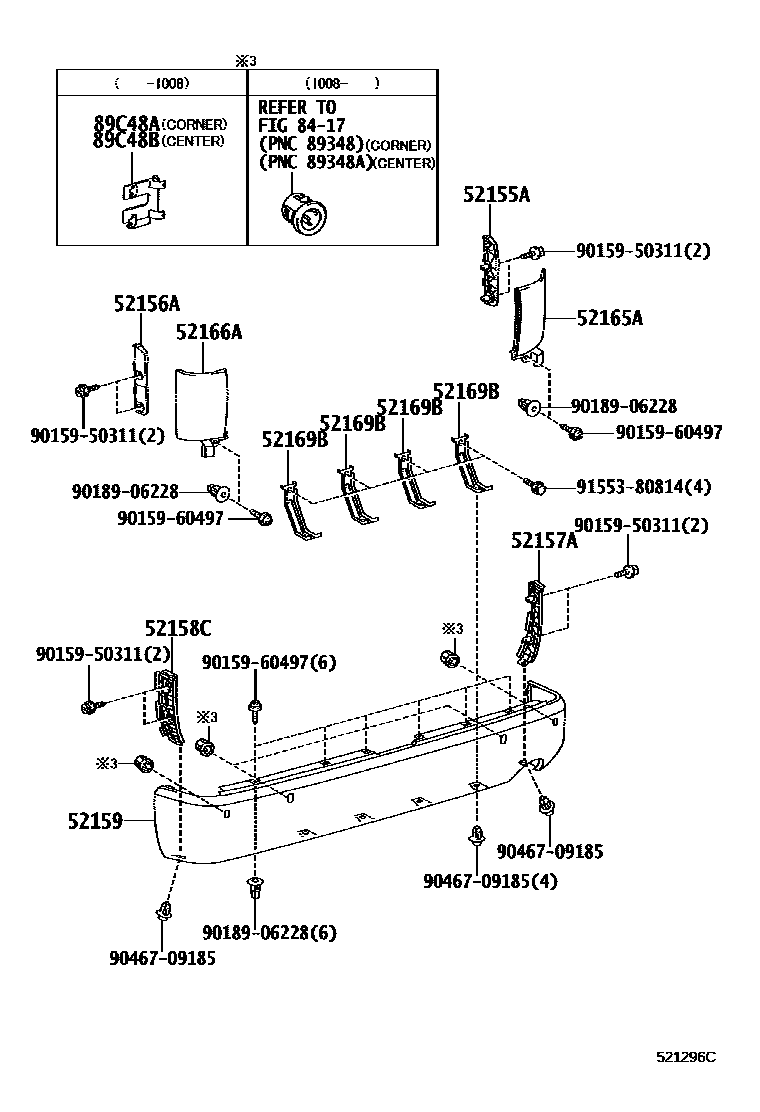

REAR BUMPER & BUMPER STAY
52155ASUPPORT, REAR BUMPER SIDE, RH
main52155-26150iKDH222..ARL,GCC,GEN,SA;KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,22#200501-201402
52156ASUPPORT, REAR BUMPER SIDE, LH
52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
CLEARANCE & BACK SONER-WITH(6SENSOR)
sub52159-26650
INDONESIA STD PACKAGE&ROUGH ROAD AREA SPEC-FOR SEVERE CONDITION&CLEARANCE & BACK SONER-WITH(6SENSOR)
52165ACOVER, REAR BUMPER, UPR RH
WHITE PM.,2JM
main52165-26020-A1iKDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S200501-201008
WHITE,058
WHITE PEARL CS.,070 ,2JZ
DARK GRAY M.M.,1E2
SILVER M.M.,1E7
BLACK MC.,209
main52165-26020-F0iKDH222,TRH223..STD..(ARL,GCC,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221..STD200501-201008
LT.YELLOW,599
GOLD ME.,2JM ,593
main52165-26020-G0iKDH222,TRH223..STD..(ARL,GCC,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221..STD200501-201008
DK.GREEN M.M.,6S3
main52165-26020-J0iKDH202..STD;KDH200,201,203,212,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S200501-201008
DK.BLUE M.M.,8P4
main52165-26030-B0iKDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,10S,12S,13S,14S,15S,16S201212-201402
SILVER M.M.,1E7
sub52165-26904
sub52562-26010
main52165-26030-F1iKDH222,223,TRH223..STD..(ARL,GCC,GEN,SA);KDH20#,212,220,221,LH20#,212,222,TRH20#,213,221..STD201212-201402
LT.YELLOW,599
sub52165-26904
sub52562-26010
main52165-26030-G0iKDH222,223,TRH223..STD..(ARL,GCC,GEN,SA);KDH20#,212,220,221,LH20#,212,222,TRH20#,213,221..STD201212-201402
DK.GREEN M.M.,6S3
sub52165-26904
sub52562-26010
main52165-26030-J0iKDH202,222..GCC,GEN,MA,SA;KDH200,201,203,212,220,221,223,LH20#,212,222,TRH20#,213,22#..03S,06S,10S,12S,13S,14S,15S,16S201008-201212
DK.BLUE M.M.,8P4
sub52165-26904
sub52562-26010
main52165-26040-A0iKDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,10S,12S,13S,14S,15S,16S201212-201402
WHITE,058
RED(NEW ZEALAND),BLACK,3L5
52166ACOVER, REAR BUMPER, UPR LH
WHITE PM.,2JM
main52166-26020-A1iKDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S200501-201008
WHITE,058
WHITE PEARL CS.,070 ,2JZ
DARK GRAY M.M.,1E2
SILVER M.M.,1E7
BLACK MC.,209
main52166-26020-F0iKDH222,TRH223..STD..(ARL,GCC,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221..STD200501-201008
LT.YELLOW,599
GOLD ME.,2JM ,593
main52166-26020-G0iKDH222,TRH223..STD..(ARL,GCC,GEN,SA);KDH20#,212,220,221,223,LH20#,212,222,TRH20#,213,221..STD200501-201008
DK.GREEN M.M.,6S3
main52166-26020-J0iKDH202..STD;KDH200,201,203,212,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,09S,10S,12S,13S,14S,15S,16S200501-201008
DK.BLUE M.M.,8P4
main52166-26030-A0iKDH212,222..5F..(GCC,GEN,SA,VN);KDH20#,220,221,223,LH20#,212,222,TRH20#,213,22#..03S,06S,10S,12S,13S,14S,15S,16S201008-201212
WHITE,058
sub52166-26904
sub52562-26010
main52166-26030-B0iKDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,10S,12S,13S,14S,15S,16S201212-201402
SILVER M.M.,1E7
sub52166-26904
sub52562-26010
main52166-26030-F1iKDH222,223,TRH223..STD..(ARL,GCC,GEN,SA);KDH20#,212,220,221,LH20#,212,222,TRH20#,213,221..STD201212-201402
LT.YELLOW,599
sub52166-26904
sub52562-26010
main52166-26030-G0iKDH222,223,TRH223..STD..(ARL,GCC,GEN,SA);KDH20#,212,220,221,LH20#,212,222,TRH20#,213,221..STD201008-201212
DK.GREEN M.M.,6S3
sub52166-26904
sub52562-26010
main52166-26030-J0iKDH202,203..STD;KDH200,201,212,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,10S,12S,13S,14S,15S,16S201212-201402
DK.BLUE M.M.,8P4
sub52166-26904
sub52562-26010
main52166-26040-A0iKDH212..5F;KDH20#,22#,LH20#,212,222,TRH20#,213,22#..03S,06S,10S,12S,13S,14S,15S,16S201212-201402
WHITE,058
RED(GUATEMALA),BLACK,3L5
52169BBRACKET, REAR BUMPER, CENTER
8417
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
AIR CONDITIONER-DUAL AIR CONDITIONER&CLEARANCE & BACK SONER-WITH(6SENSOR)
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
AIR CONDITIONER-DUAL AIR CONDITIONER&CLEARANCE & BACK SONER-WITH(6SENSOR)
9015950311
main90159-50311
9015960497
main90159-60497
9018906228
main90189-06228
9046709185
main90467-09185
9155380814
main91553-80814
16 parts on this diagram · 2 diagrams in section
