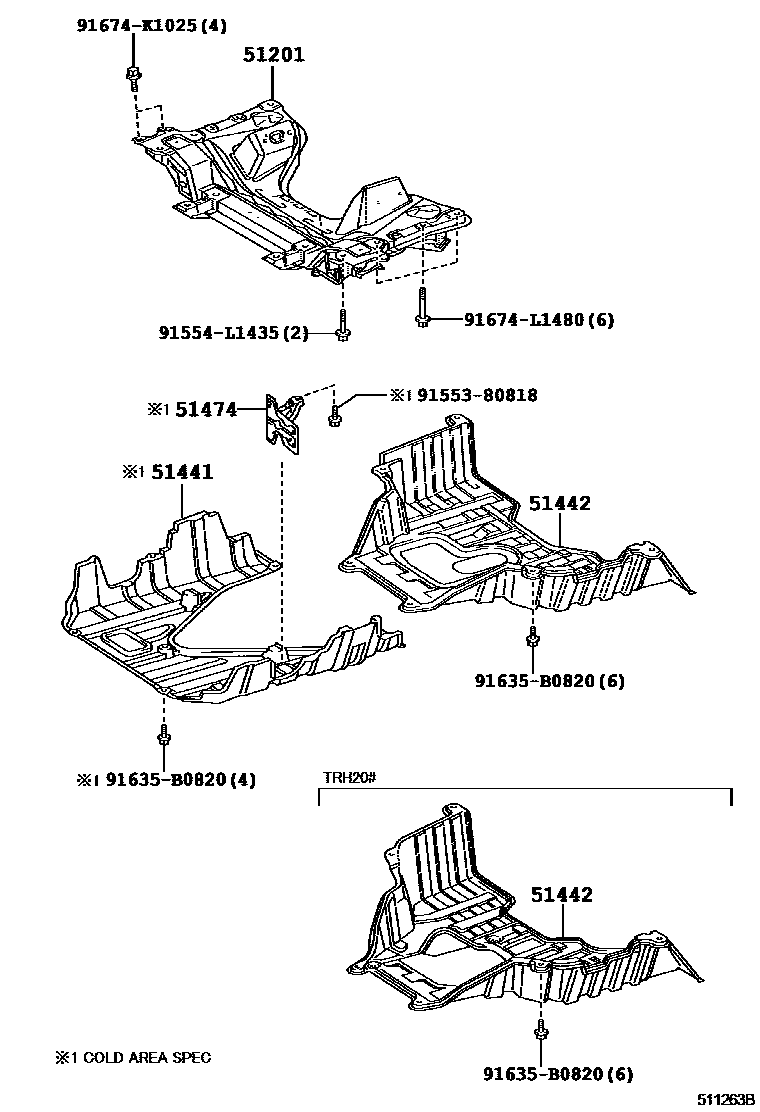

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-26210iKDH20#,TRH20#..RHD200501-201401

sub51201-26320

sub32907-26052

main51201-26220iKDH20#,TRH201,203..LHD200501-201312

sub51201-26330

sub32907-26052

main51201-26230iLH20#..RHD200501-201312

sub51201-26340

sub32907-26052

main51201-26240iLH20#..LHD200501-201312

sub51201-26350

sub32907-26052

main51201-26250iKDH222..RHD..(ARL,GEN,SA);KDH212,220,221,223,TRH213,22#..RHD200501-201402

sub51201-26360

sub32907-26052

main51201-26260iKDH212,220,222,223,TRH213,22#..LHD200501-201312

sub51201-26370

sub32907-26052

main51201-26270iLH212,222..RHD200501-201312

sub51201-26380

sub32907-26052

main51201-26280iLH212,222..LHD200501-201312

sub51201-26390

sub32907-26052

51441COVER, ENGINE UNDER, NO.1

main51441-26180iKDH222..ARL;TRH221..SP..GEN;TRH223..5F..GEN;KDH220..4FC..GEN;KDH220,TRH213..RHD..5F..(ARL,GEN)200501-201312

VIETNAM SPEC

main51441-26160iTRH201..5F..ARL;TRH201..SG..06S..GEN200501-200610

COLD AREA SPEC

51442COVER, ENGINE UNDER, NO.2

main51406-26170iTRH201..5F..ARL;TRH201..SP..06S..5F200501-200911

main51442-26150iKDH223..RUS201205-201312

main51442-26180iTRH221..SP..GEN;TRH223..5F..GEN;TRH213..RHD..STD..GEN200501-201312

VIETNAM SPEC

main51406-26130iKDH200..SG..GEN;KDH200..5F..ARL;KDH202..LHD..12S;KDH200,202..(03S,15S)..GEN200501-200709

COLD AREA SPEC

main51406-26180iKDH200,202..GEN200709-201007

COLD AREA SPEC

main51406-26200iTRH201,203..LHD..SRF..GEN201008-201312

COLD AREA SPEC

sub51406-26220

main51406-26210iKDH201..LHD;KDH200,202,203..(03S,12S,15S)..GEN201008-201312

COLD AREA SPEC

sub51406-26230

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51074-26010iKDH223..RUS201205-201312

9155380818

main91553-80818

91554L1435

main91554-L1435

91635B0820

main91635-B0820

91674K1025

main91674-K1025

91674L1480

main91674-L1480

9 parts on this diagram · 2 diagrams in section
