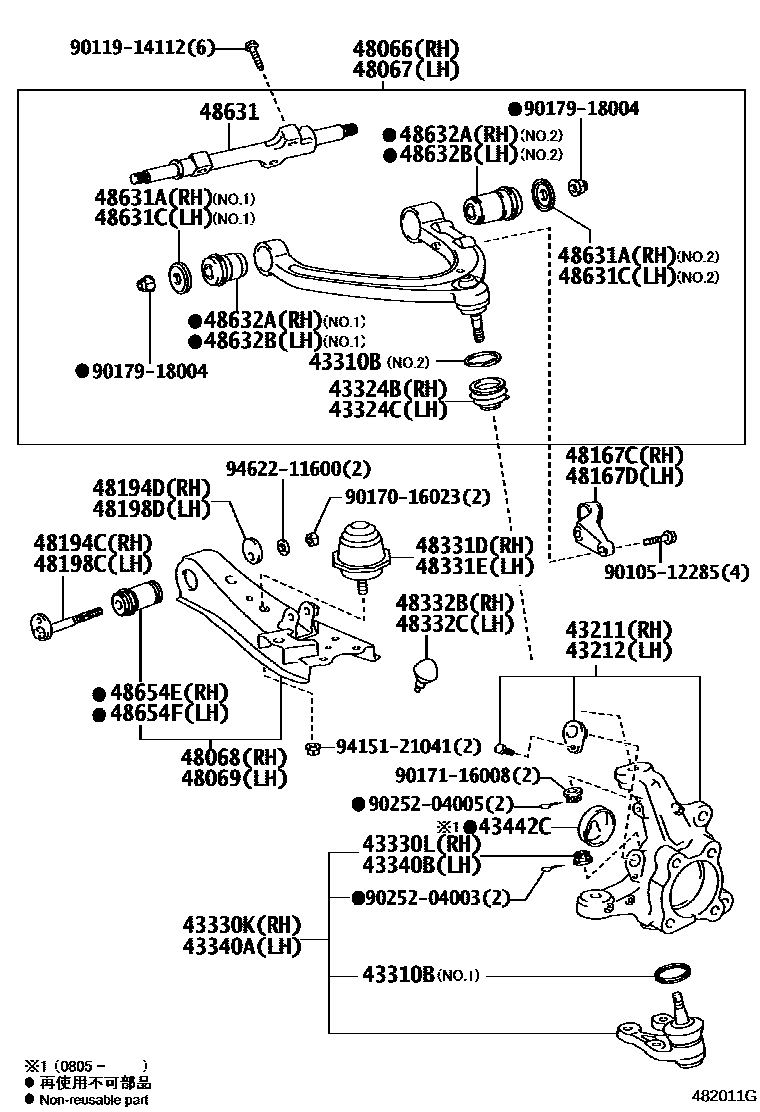

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43211-29026iKDH222..STD..SA;KDH212,TRH200,213..5D;KDH223,TRH223..(12S,16S)..(CIS,RUS,TH)200501-201402

main43211-29055iTRH213..GL..VN;KDH221..4FC..GEN;TRH213..09S,15S,16S;TRH201..SP..4FC..GEN;TRH201..SP..03S..(GCC,GEN);KDH201,222,TRH201..SG..(ARL,GCC,GEN);KDH212,221..4D..(03S,11S,15200501-201401

43212KNUCKLE, STEERING, LH

main43212-29026iKDH221..5F..GEN200501-201402

main43212-29055iTRH213..GL..VN;KDH221..4FC..GEN;TRH213..09S,15S,16S;TRH201..SP..4FC..GEN;TRH201..SP..03S..(GCC,GEN);KDH201,222,TRH201..SG..(ARL,GCC,GEN);KDH212,221..4D..(03S,11S,15200501-201401

43310BRING, SET (FOR DUST COVER)

main90522-50001iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

NO.2

main90580-10001iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-200601

NO.1

43324BCOVER, FRONT UPPER BALL JOINT DUST, RH

main43324-26050iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

43324CCOVER, FRONT UPPER BALL JOINT DUST, LH

main43324-26050iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-29565iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

43330LNUT, CASTLE (FOR FRONT LOWER BALL JOINT RH)

main90171-16008iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43330-29565iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

43340BNUT, CASTLE (FOR FRONT LOWER BALL JOINT LH)

main90171-16008iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

43442CCAP, KNUCKLE GREASE RETAINER

main43442-26050iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200805-201402

48066ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH

main48066-29215iKDH201..SP..06S;KDH201,221,223,TRH22#..ARL;TRH201..RHD..SP..(ARL,GEN)200501-201402

main48066-29225iKDH201..SP..06S;TRH201..SP..06S..5F;KDH201,221,223,TRH201,22#..ARL200501-201401

48067ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH

main48067-29215iKDH222..STD..SA;KDH212,TRH200,213..5D;KDH223,TRH223..(12S,16S)..(CIS,RUS,TH)200501-201402

main48067-29225iKDH222..SA,TH;TRH213,223..(10S,13S,14S)..(GEN,SA);KDH200,212,220,TRH201,221..(03S,10S)..SA200501-201401

48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH

main48068-26160iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH

main48069-26160iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48167CARM, FRONT SUSPENSION TORQUE, RH

main48106-26040iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48167DARM, FRONT SUSPENSION TORQUE, LH

main48106-26040iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH

main48190-25010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH

main48198-25010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH

main48190-25010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH

main48198-25010iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48331DBUMPER, FRONT SPRING, NO.1 RH

main48331-26140iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48331EBUMPER, FRONT SPRING, NO.1 LH

main48331-26140iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48332BBUMPER, FRONT SPRING, NO.2 RH

main48332-35020iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48332CBUMPER, FRONT SPRING, NO.2 LH

main48332-35020iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48631SHAFT, FRONT SUSPENSION UPPER ARM

main48631-26040iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48631ARETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM RH)

main90948-02142iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

NO.1

main90948-02143iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

NO.2

48631CRETAINER, CUSHION(FOR FRONT SUSPENSION UPPER ARM LH)

main90948-02142iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

NO.1

main90948-02143iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

NO.2

48632ABUSH, FRONT SUSPENSION UPPER ARM, RH

main48632-26090iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

NO.1

main48635-26080iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

NO.2

48632BBUSH, FRONT SUSPENSION UPPER ARM, LH

main48632-26090iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

NO.1

main48635-26080iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

NO.2

48654EBUSH, FRONT LOWER ARM, NO.1 RH

main48061-26050iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

48654FBUSH, FRONT LOWER ARM, NO.1 LH

main48061-26050iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

9010512285

main90105-12285

9011914112

main90119-14112

9017016023

main90170-16023

9017116008

main90171-16008

9017918004

main90179-18004

9025204003

main90252-04003

9025204005

main90252-04005

9415121041

main94151-21041

9462211600

main94622-11600

40 parts on this diagram · 1 diagram in section
