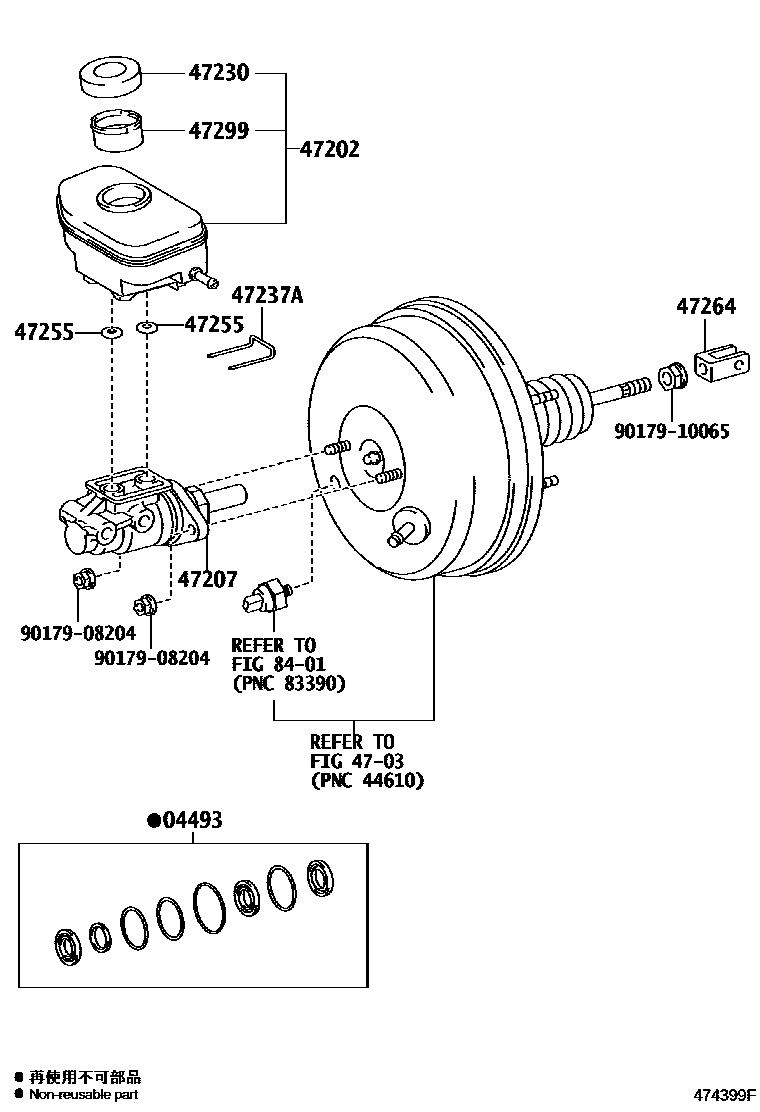

BRAKE MASTER CYLINDER

04493CYLINDER KIT, BRAKE MASTER

main04493-26220iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402

4703

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-26280iKDH20#,212,22#,LH20#,212,222,TRH20#,213,22#..5F200501-200807

sub47220-26281

main47220-26281iKDH222,TRH223..STD..SA200808-201402

main47220-26290iKDH200..4FC..ARL;KDH200..06S..4FC;KDH202,220,222,TRH201,213,22#..(03S,06S,11S,12S,14S)..4FC..(ARL,GEN)200501-200808

sub47220-26291

main47220-26291iTRH201,22#..RHD..4FC200808-201312

main47220-26291iTRH201,22#..4FC..STD200808-200809

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

47207CYLINDER SUB-ASSY, BRAKE MASTER LESS RESERVOIR TANK

main47207-26010iKDH222,TRH223..STD..SA200501-201402

main47207-26020iKDH20#,212,220,222,223,LH20#,212,222,TRH201,203,213,22#..LHD200501-201312

main47207-26030iKDH222,TRH223..STD..SA201109-201205

CKD PACKAGE(SOUTH AFRICA)

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-33071iTRH201,22#..RHD..4FC200808-201402

sub47230-33072

main47230-33071iTRH201,22#..4FC..STD200808-201008

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

sub47230-33072

main47230-52030iKDH200..ARL;KDH220..RHD..(ARL,GEN);KDH202,TRH201,22#..4FC..STD;KDH202..RHD..SRF..12S..(GEN,MA);KDH200,TRH213..(06S,09S,11S,15S)..(GCC,GEN,SA);KDH202,212,222,TRH203.200501-200809

sub47230-33071

47237ASTOPPER, BREKE MASTER CYLINDER RESERVOIR TANK

main47237-20020iKDH222,TRH223..STD..SA200501-201402

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-52010iKDH222,TRH223..STD..SA200501-201402

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-60020iKDH222,TRH223..STD..SA200501-201402

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-52110iTRH223..4FC..GEN200501-201402

main47299-52110iTRH223..4FC..GEN200808-201008

ABS(ANTI-LOCK BRAKE SYSTEM)-WITH

8401

9017908204

main90179-08204

9017910065

main90179-10065

12 parts on this diagram · 1 diagram in section
