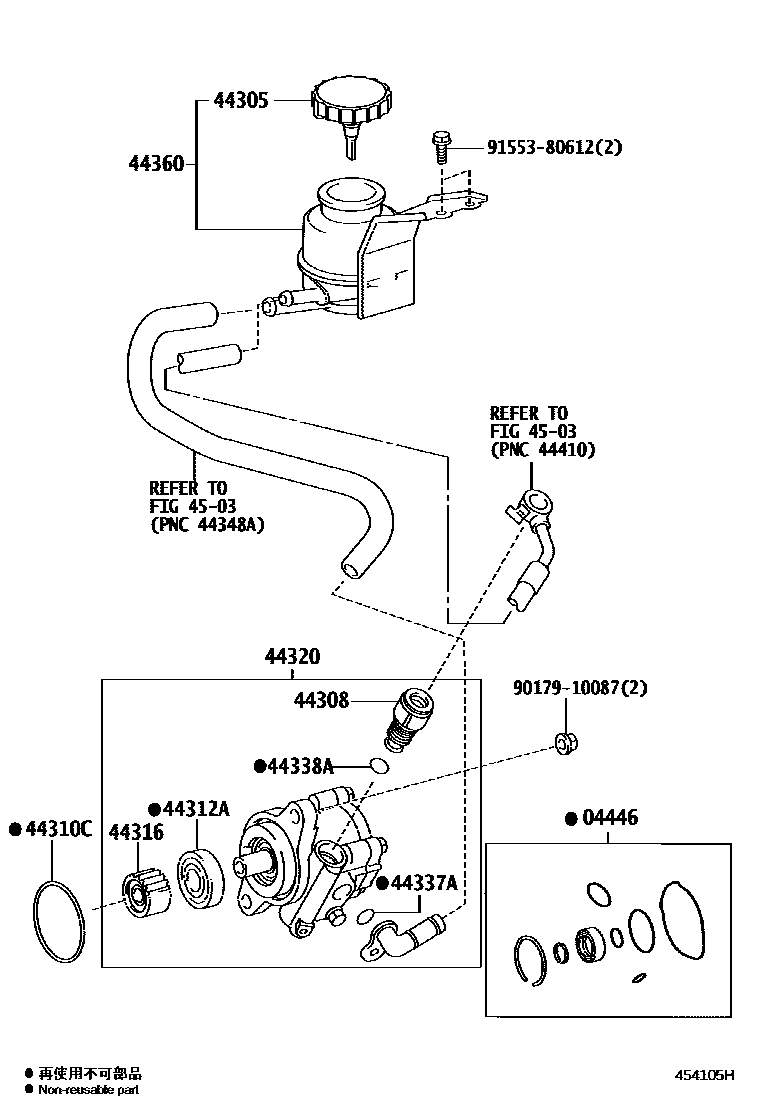

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1 0003 1

04446GASKET KIT, POWER STEERING PUMP

main04446-32050iTRH20#,213,22#200501-201402

main04446-35070iKDH20#,212,22#200501-201402

main04446-53030iLH20#,212,222200501-201312

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22040iTRH20#,213,22#200501-200801

main44305-22060iTRH20#,213,22#200802-201204

main44305-22061iTRH20#,213,22#201205-201402

main44305-28020iKDH20#,212,22#,LH20#,212,222200501-200802

main44305-28050iKDH20#,212,22#,LH20#,212,222200803-201204

main44305-28051iKDH20#,212,22#,LH20#,212,222201205-201402

44308UNION SUB-ASSY, PRESSURE PORT

main44308-26120iKDH20#,212,22#200501-201402

main44308-42010iTRH20#,213,22#200501-201402

main44308-44020iLH20#,212,222200501-201312

44310CRING, O(FOR VANE PUMP)

main90301-60002iKDH20#,212,22#200501

44312ABEARING(FOR VANE PUMP SHAFT)

main90363-17016iKDH20#,212,22#200501

44316GEAR, VANE PUMP

main44316-60030iKDH20#,212,22#200501

44320PUMP ASSY, VANE

main44310-26370iTRH20#,213,22#200501-201204

main44310-26371iTRH20#,213,22#201205-201402

main44310-26380iKDH20#,212,22#200501-201402

main44320-26290iLH20#,212,222200501-201312

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-11020iKDH20#,212,22#,TRH20#,213,22#200501-201402

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-18009iKDH20#,212,22#,TRH20#,213,22#200501-201402

OD=22,ID=18.6

44360RESERVOIR ASSY, VANE PUMP OIL

main44306-25060iTRH20#,213,22#200501-201402

main44360-26140iKDH20#,212,22#,LH20#,212,222200501-201204

main44360-26141iKDH20#,212,22#,LH20#,212,222201205-201402

4503

9017910087

main90179-10087

9155380612

main91553-80612

13 parts on this diagram · 3 diagrams in section
