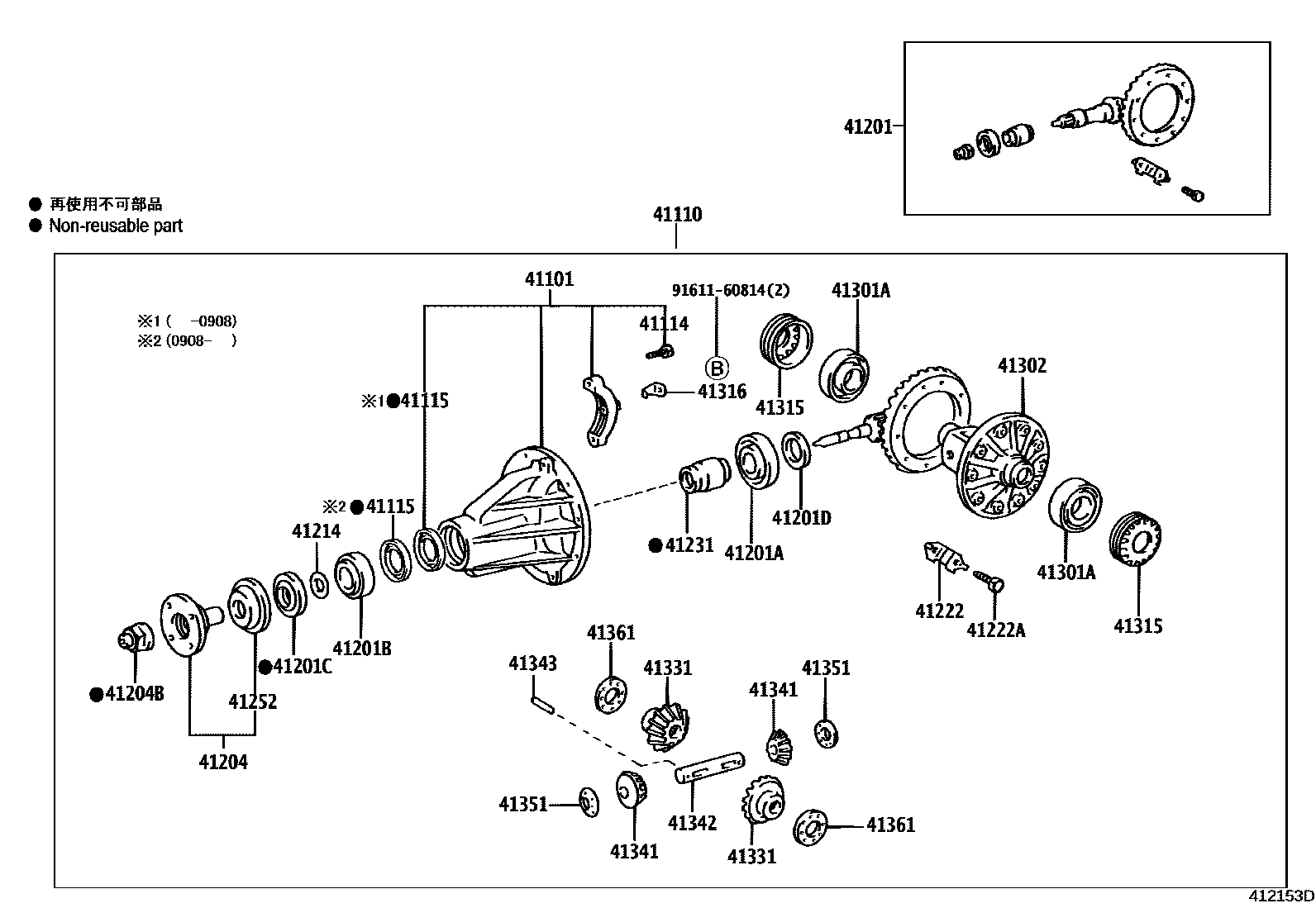

REAR AXLE HOUSING & DIFFERENTIAL
41110CARRIER ASSY, DIFFERENTIAL, REAR
*FGR=41:10=4.100
*FGR=41:10=4.100
sub41110-26432
*FGR=43:10=4.300
*FGR=41:9=4.555
41114BOLT, REAR DIFFERENTIAL BEARING CAP
41115RING, DIFFERENTIAL OIL STORAGE
41201FINAL GEAR KIT, DIFFERENTIAL, REAR
*FGR=41:10=4.100
*FGR=43:10=4.300
*FGR=41:9=4.556
*FGR=41:8=5.125
*FGR=41:11=3.727
*FGR=41:10=4.100
*FGR=41:9=4.555
*FGR=43:10=4.300
41201ABEARING (FOR REAR DRIVE PINION REAR)
41201BBEARING (FOR REAR DRIVE PINION FRONT)
main90366-30067iTRH201..5D..5F;TRH203..15S..GEN;TRH201,213..SG..(03S,10S,16S);TRH20#..4D..5F..(ARL,GCC,MA,SA);LH20#,212,222,TRH22#..(03S,12S,14S,15S,16S)..5F200501-201104
41201CSEAL, OIL (FOR REAR DIFFERENTIAL CARRIER)
41201DWASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION)
OD=47,T=1.70
OD=47,T=1.73
OD=47,T=1.76
OD=47,T=1.79
OD=47,T=1.82
OD=47,T=1.85
OD=47,T=1.88
OD=47,T=1.91
OD=47,T=1.94
OD=47,T=1.97
OD=47,T=2.00
OD=47,T=2.03
OD=47,T=2.06
OD=47,T=2.09
OD=47,T=2.12
OD=47,T=2.15
OD=47,T=2.18
OD=47,T=2.21
OD=47,T=2.24,MARK 01
OD=47,T=2.27,MARK 02
OD=47,T=2.30,MARK 03
OD=47,T=2.33,MARK 04
41204FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR
41204BNUT (FOR REAR DRIVE PINION)
OD=39.5
41214SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
41222PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK
main41222-35020×5iKDH202..STD..TH;KDH202..GCC,GEN,MA;KDH200,201,203,212,22#,LH20#,212,222,TRH20#,213,22#200501-201402
41222ABOLT (FOR REAR DIFFERENTIAL RING GEAR SET)
41231SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING
41252DEFLECTOR, DUST (FOR REAR DIFFERENTIAL)
41301ABEARING(FOR REAR DIFFERENTIAL CASE)
41302CASE SUB-ASSY, REAR DIFFERENTIAL
sub41302-26010
41315NUT, REAR DIFFERENTIAL BEARING ADJUSTING
41316LOCK, REAR DIFFERENTIAL BEARING ADJUSTING NUT
41331GEAR, REAR DIFFERENTIAL SIDE
main41331-35011×2iKDH201,221,223..4FC;KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,22#200501-201402
41341PINION, REAR DIFFERENTIAL
main41341-35020×2iKDH201,221,223..4FC;KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,22#200501-201402
41342SHAFT, REAR DIFFERENTIAL PINION
41343PIN, REAR DIFFERENTIAL PINION SHAFT
41351WASHER, REAR DIFFERENTIAL PINION THRUST
41361WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1
T=0.9
T=1.0
T=1.1
T=1.2
T=1.3
main41361-40021×2iKDH201,221,223..4FC;KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,22#200501-201402
T=1.6
main41362-40021×2iKDH201,221,223..4FC;KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,22#200501-201402
T=1.7
main41363-40021×2iKDH201,221,223..4FC;KDH200,202,212,220,222,LH20#,212,222,TRH20#,213,22#200501-201402
T=1.8
9161160814
main91611-60814
27 parts on this diagram · 3 diagrams in section
