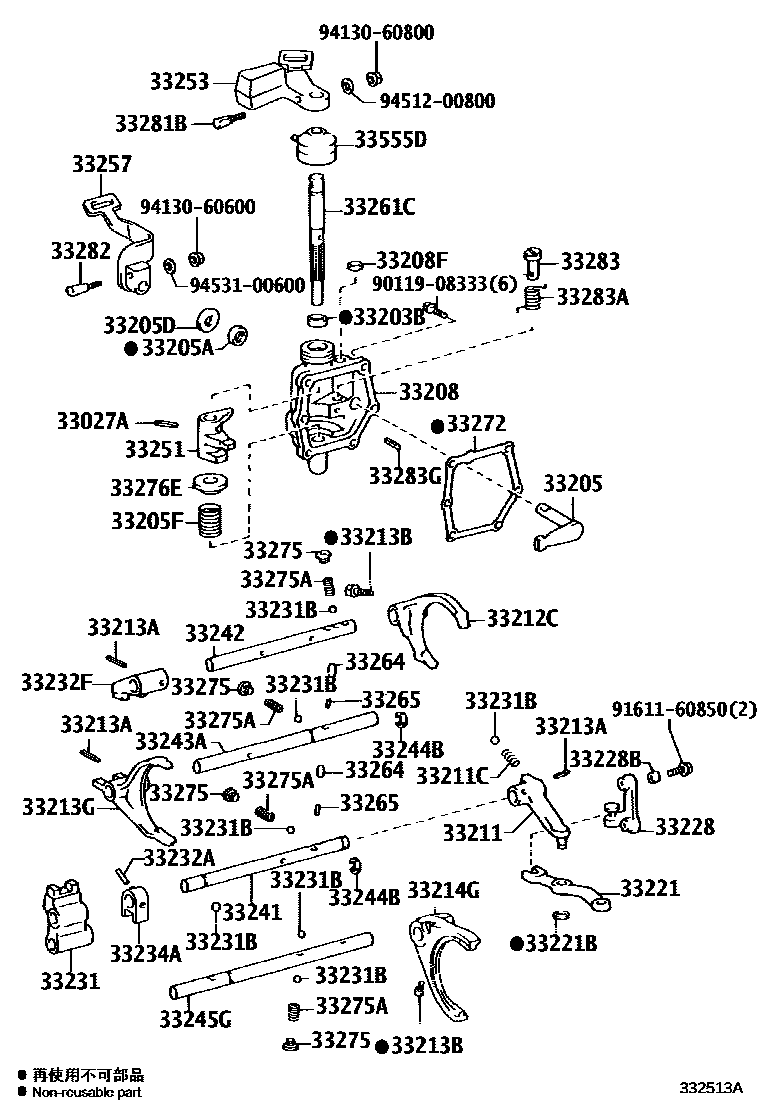

GEAR SHIFT FORK & LEVER SHAFT (MTM)

0001 1G55 0002 1R351 0003 1R351

33027APIN, SLOTTED SPRING(FOR SHIFT LEVER SHAFT SET)

main90254-05001iLH20#,212,222200501-201312

main90254-05016iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

33203BSEAL, OIL(FOR SHIFT LEVER SHAFT)

main90311-18002iLH20#,212,222200501-201312

main90311-20006iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

33205SHAFT SUB-ASSY, SELECT LEVER

main33262-25040iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

main33262-28020iLH20#,212,222200501-201312

33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)

main90313-13001iTRH203..SRF;KDH202..LHD..12S..5F;KDH220..SP..(GEN,SA);KDH200,202,222..(03S,14S,15S,16S)..5F..(GCC,GEN,MA,SA);KDH201,203,212,221,223,TRH201,213,22#..(03S,06S,10S,11S200501-201312

main90313-13002iKDH20#,212,22#,TRH201,203,213,22#..5F200709-201402

33205DWASHER(FOR OUTER LEVER OIL SETTING)

main90201-13029iLH20#,212,222..03S,12S,15S,16S200501-200810

OD=28

33205FSPRING, COMPRESSION(FOR SELECT RETURN)

main90501-17038iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

main90501-17039iLH20#,212,222200501-201312

33208HOUSING SUB-ASSY, SHIFT LEVER SHAFT

main33207-25010iKDH20#,212,22#,TRH20#,213,22#..5F200501-200709

main33207-25020iKDH20#,212,22#,TRH201,203,213,22#..5F200709-201402

main33271-28010iLH20#,212,222200501-201312

33208FPLUG, TIGHT(FOR SHIFT LEVER SHAFT HOUSING)

main96411-41200iLH20#,212,222200501

33211FORK, REVERSE SHIFT

main33211-0K020iLH20#,212,222200501-201312

sub33211-71010

main33211-35050iKDH202..15S;TRH201..5D..5F;KDH202..HRF..MA;TRH203..15S..GEN;TRH201,22#..HRF..5F;KDH202..LHD..12S..5F;TRH201,203..4D..5F..(ARL,GCC,MA,SA);KDH212,TRH213..(10S,11S,16S200501-201310

main33211-35060iKDH202,212,TRH201,203,213,22#..5F201309-201402

33211CSPRING, COMPRESSION(FOR REVERSE SHIFT FORK RETURN)

main90501-12166iKDH202..15S;TRH201..5D..5F;KDH202..HRF..MA;TRH203..15S..GEN;TRH201,22#..HRF..5F;KDH202..LHD..12S..5F;TRH201,203..4D..5F..(ARL,GCC,MA,SA);KDH212,TRH213..(10S,11S,16S200501-201312

33212CFORK, GEAR SHIFT, NO.1

main33212-26030iLH212..10S200501-200810

33213APIN, SLOTTED SPRING(FOR SHIFT FORK SET)

main90254-05001iLH20#,212,222200501-201312

main90254-05016iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

33213BBOLT(FOR SHIFT FORK SET)

main90105-06077iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

main90105-06143iLH20#,212,222200501-201312

33213GFORK, GEAR SHIFT, NO.2

main33213-25020iKDH20#,212,22#,TRH20#,213,22#..5F200501-201305

sub33213-25021

main33213-25021iKDH200,201,203,22#..5F201305-201402

main33220-26010iLH20#,212,222200501-201312

33214GFORK, GEAR SHIFT, NO.3

main33214-26040iLH20#,212,222200501-201312

main33230-26010iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

sub33230-26011

33221ARM, REVERSE SHIFT

main33221-0K020iLH20#,212,222200501-201312

sub33221-71010

main33221-35050iTRH213..VN;TRH203..12S..GEN;KDH212..STD..(SA,VN);KDH200,201,203,22#..5F;KDH202,TRH201..RHD..SRF..(03S,12S)..(GEN,MA,TH);KDH202,TRH213..(HRF,SMRF)..(09S,12S,15S)..(G200501-201310

main33221-35060iKDH202,212,TRH201,203,213,22#..5F201309-201402

33221BRING, E(FOR REVERSE SHIFT ARM)

main96160-01000iLH20#,212,222..03S,12S,15S,16S200501-200810

33228BRACKET, REVERSE SHIFT ARM

main33228-0K020iLH20#,212,222200501-201312

sub33228-71010

main33228-0K030iKDH202..TH;KDH200,201,203,22#..5F201305-201310

(L)

main33228-35030iKDH20#,212,22#,TRH20#,213,22#..5F200501-201305

main33228-35030iTRH223..5F;KDH202,212,TRH201,203,213,221..5F..(ARL,GCC,GEN,MA,SA)201305-201310

(J)

main33228-35050iKDH202,212,TRH201,203,213,22#..5F201309-201402

33228BPIN, RING(FOR REVERSE SHIFT ARM BRACKET)

main90253-11001iLH20#,212,222..03S,12S,15S,16S200501-200810

33231HEAD, REVERSE SHIFT

main33231-26030iLH212..10S200501-200810

33231BBALL, REVERSE SHIFT RESTRICT

main90360-10003iLH212..10S200501-200810

33232APIN, SLOTTED SPRING (FOR SHIFT HEAD SET)

main90254-05001iKDH202..15S;TRH201..5D..5F;KDH202..HRF..MA;TRH203..15S..GEN;TRH201,22#..HRF..5F;KDH202..LHD..12S..5F;TRH201,203..4D..5F..(ARL,GCC,MA,SA);KDH212,TRH213..(10S,11S,16S200501-201402

33232FHEAD, GEAR SHIFT, NO.1

main33232-26020iKDH203..12S200501-201310

main33232-28020iLH20#,212,222200501-201312

33234AHEAD, GEAR SHIFT, NO.3

main33234-0K010iLH20#,212,222..03S,12S,15S,16S200501-200810

sub33234-71010

33241SHAFT, REVERSE SHIFT FORK

main33244-0L010iLH20#,212,222200501-201312

main33244-26050iKDH221..5D..5F;KDH201,203,223..5F200501-201108

sub33244-26051

main33244-26051iKDH200,220,222;KDH202,212,TRH213..5F..(TH,VN)201102-201310

sub33244-26070

main33244-26080iKDH200,201,203,22#..5F201309-201402

33242SHAFT, GEAR SHIFT FORK, NO.1

main33242-0L010iLH20#,212,222200501-201312

main33242-26050iKDH202..15S;TRH201..5D..5F;KDH202..HRF..MA;TRH203..15S..GEN;TRH201,22#..HRF..5F;KDH202..LHD..12S..5F;TRH201,203..4D..5F..(ARL,GCC,MA,SA);KDH212,TRH213..(10S,11S,16S200501-201310

sub33242-26070

main33242-26070iKDH202,212,TRH201,203,213,22#..5F201309-201402

33243ASHAFT, GEAR SHIFT FORK, NO.2

main33243-0L010iLH20#,212,222200501-201312

sub33243-71010

main33243-26040iKDH202..15S;TRH201..5D..5F;KDH202..HRF..MA;TRH203..15S..GEN;TRH201,22#..HRF..5F;KDH202..LHD..12S..5F;TRH201,203..4D..5F..(ARL,GCC,MA,SA);KDH212,TRH213..(10S,11S,16S200501-201310

main33243-26070iKDH202,212,TRH201,203,213,22#..5F201309-201402

33244BRING, SHAFT SNAP (FOR SHIFT FORK SHAFT)

main90520-12003iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

main90520-12006iLH20#,212,222200501-201312

33245GSHAFT, GEAR SHIFT FORK, NO.4

main33245-0L010iLH20#,212,222200501-201312

main33245-25050iKDH200,220,222;KDH202,212,TRH213..5F..(TH,VN)201102-201310

main33245-35090iKDH221..4D..5F;KDH200,202,212,220,222,TRH20#,213,22#..5F200501-201108

33251LEVER, SHIFT & SELECT

main33251-26050iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

main33251-26060iLH20#,212,222200501-201312

33253LEVER, SHIFT OUTER, NO.1

main33253-26080iLH20#,212,222200501-201312

main33253-26091iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

33257LEVER, SELECT OUTER

main33257-26110iLH20#,212,222200501-201312

main33257-26120iKDH20#,212,22#,TRH20#,213,22#..5F200501-200709

sub33257-26130

main33257-26130iKDH201..LHD200709-201402

main33257-26141iKDH203..12S..GEN201110-201312

33261CSHAFT, SHIFT & SELECT LEVER

main33261-28030iLH20#,212,222200501-201312

main33261-35110iKDH20#,212,22#,TRH20#,213,22#..5F200501-201008

sub33261-35111

main33261-35111iKDH20#,212,22#,TRH201,203,213,22#..5F201008-201402

33264PIN, OR BALL, SHIFT INTERLOCK, NO.1

main90360-10003iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

OD=9.52,STEEL

main90361-10002iLH20#,212,222200501-201312

L=21.6,PIN

main90361-10003iLH20#,212,222200501-201402

L=13.6,OD=9.5

33265PIN, SHIFT INTERLOCK, NO.2

main90250-05020iLH20#,212,222200501-201312

L=11.1,OD=4.8

main90250-05029iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

L=11.5,OD=4.8

33272GASKET, SHIFT LEVER SHAFT HOUSING

main33272-28010iLH212..10S200501-200810

33275SEAT, SHIFT DETENT BALL SPRING, NO.1

main90341-12008iKDH202..GL..TH;KDH221..5D..5F;KDH202..HRF..MA;TRH203..15S..GEN;KDH202..LHD..12S..5F;TRH201,223..4D..SG..5F;TRH20#..4D..5F..(ARL,GCC,MA,SA);KDH220,TRH201..5D..5F..(G200501-201402

OD=18

33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)

main90501-14123iLH20#,212,222200501-201312

L=20.2

main90501-14182iKDH202..STD..TH;KDH200,222..5F..ARL;KDH202,220..RHD..HRF..5F..(ARL,GEN);KDH200,212,TRH213..(06S,09S,15S)..5F;KDH221,TRH203..4D..(03S,12S)..5F..GEN;KDH202,TRH201..RH200501-201402

L=36.3

main90501-14183iLH20#,212,222200501-201312

L=33.5

main90501-16143iTRH223..5F;KDH202,212,TRH201,203,213,221..5F..(ARL,GCC,GEN,MA,SA)201102-201310

L=33.8

33276ESEAT, SELECT SPRING, NO.1

main33276-25021iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

main33276-28011iLH20#,212,222200501-201312

33281BPIN, LEVER LOCK (FOR SHIFT OUTER LEVER)

main33281-16020iLH20#,212,222..03S,12S,15S,16S200501-200810

33282PIN, LEVER LOCK, NO.2

main33282-35010iLH20#,212,222200501-201312

main33282-57010iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

33283PIN, REVERSE RESTRICT, NO.1

main33283-26010iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

main33283-27010iLH20#,212,222200501-201312

33283ASPRING, COMPRESSION (FOR REVERSE RESTRICT PIN)

main90504-10008iLH20#,212,222200501-201312

main90504-10009iKDH20#,212,22#,TRH201,203,213,22#..5F200501-201402

33283GPIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)

main90254-04015iKDH20#,212,22#,LH20#,212,222,TRH201,203,213,22#..5F200501-201402

33555DBOOT, SHIFT LEVER

main33555-25020iKDH20#,212,22#,TRH20#,213,22#..5F200501-201008

main33555-26070iKDH20#,212,22#,TRH201,203,213,22#..5F201008-201402

main33555-28010iLH20#,212,222200501-201312

9011908333

main90119-08333

9161160850

main91611-60850

9413060600

main94130-60600

9413060800

main94130-60800

9451200800

main94512-00800

9453100600

main94531-00600

51 parts on this diagram · 3 diagrams in section
