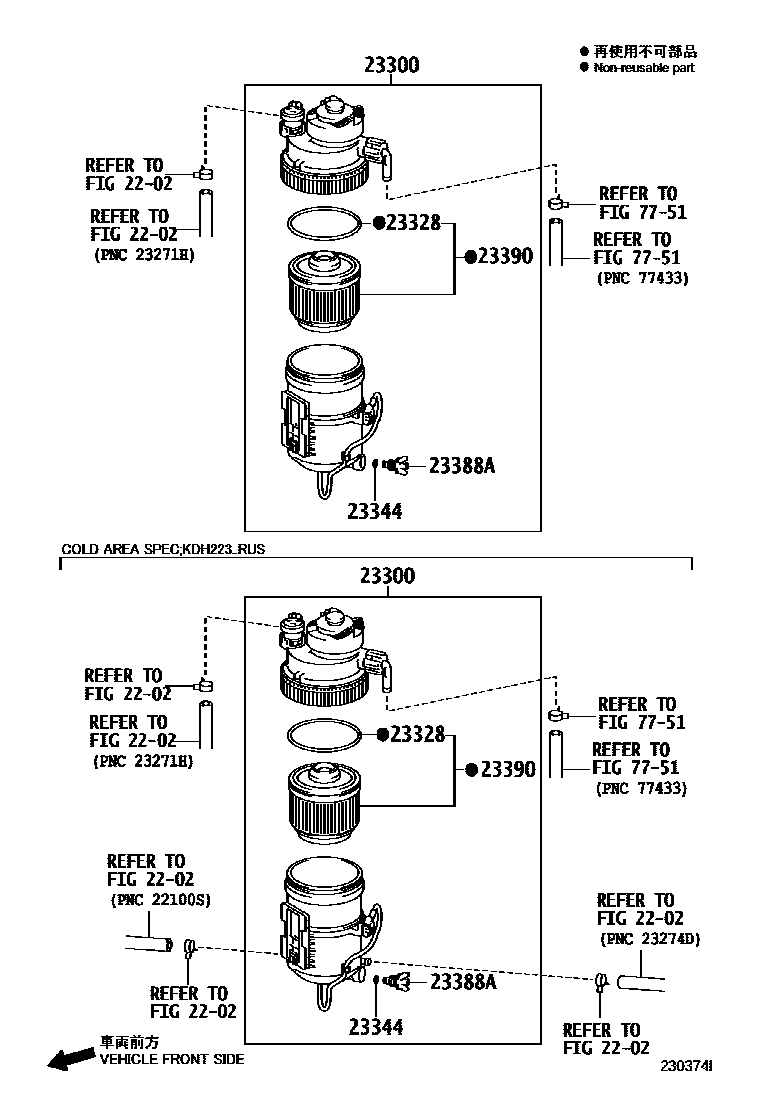

FUEL FILTER

0001 1 0002 1

2202

23300FILTER ASSY, FUEL

main23300-30200i5LE..LH20#,212,222200501-200502

main23300-30201i5LE..LH20#,212,222200503-201004

main23300-30202i5LE..LH20#,212,222201005-201107

main23300-30203i5LE..LH20#,212,222201108-201310

main23300-30204i5LE..LH20#,212,222201310-201312

sub23300-30205

main23300-30215i1KDFTV..KDH223..RUS201205-201210

main23300-30216i1KDFTV..KDH201..LHD;1KDFTV,2KDFTV..KDH200,202,203..(03S,12S,15S)..GEN201211-201310

COLD AREA SPEC

main23300-30217i1KDFTV..KDH201..LHD;1KDFTV,2KDFTV..KDH200,202,203..(03S,12S,15S)..GEN201310-201312

COLD AREA SPEC

sub23300-30218

main23300-30210i2KDFTV..KDH220..5F;2KDFTV..KDH200..5F..ARL;2KDFTV..KDH220..4FC..GEN;2KDFTV..KDH20#..(03S,15S)..GEN;2KDFTV..KDH200,222..RHD..SG..(06S,14S);2KDFTV..KDH202,222..LHD..(200501-200502

COLD AREA SPEC

main23300-30211i5LE..LH212,222..16S200503-200610

COLD AREA SPEC

main23300-30212i2KDFTV..KDH200,202..GEN200709-200901

COLD AREA SPEC

main23300-30213i2KDFTV..KDH200,202..GEN200902-201004

COLD AREA SPEC

main23300-30214i1KDFTV..KDH201..LHD;1KDFTV,2KDFTV..KDH200,202,203..(03S,12S,15S)..GEN201005-201107

COLD AREA SPEC

23328GASKET(FOR FUEL FILTER)

main23344-0L010i5LE..LH20#,212,222200501-201312

23344GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-0L041i5LE..LH20#,212,222200501-201312

23388APLUG, FUEL FILTER DRAIN

main23388-0L041i5LE..LH20#,212,222200501-201312

23390ELEMENT ASSY, FUEL FILTER

main23390-0L010i5LE..LH20#,212,222200501-201005

main23390-0L041i5LE..LH20#,212,222201005-201312

main23390-0L030i2KDFTV..KDH200,202..GEN200902-201005

COLD AREA SPEC

7751

7 parts on this diagram · 2 diagrams in section
