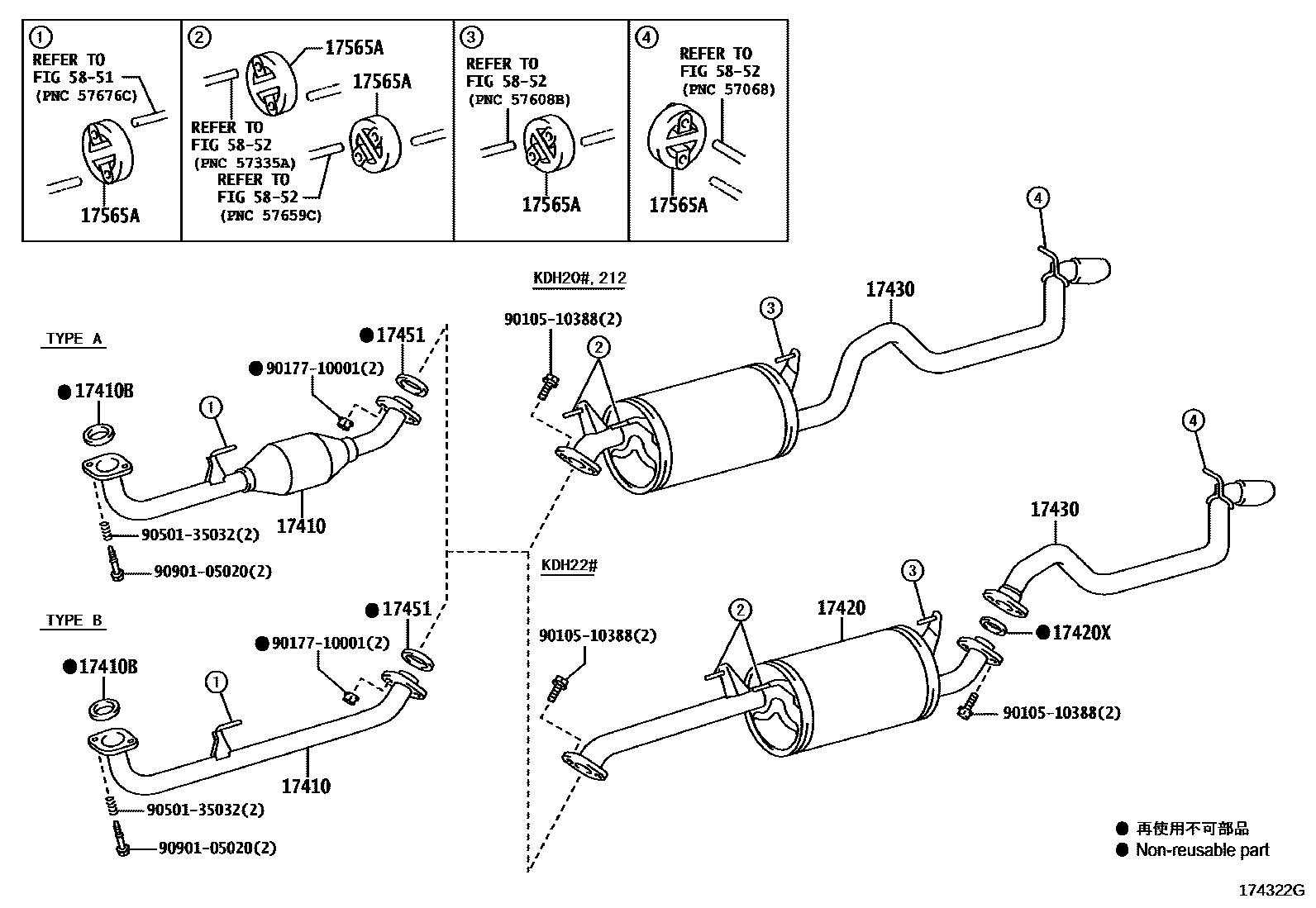

EXHAUST PIPE

0001 1 0002 1 0003 1 0004 1 0007 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-0C170i2TRFE..TRH203..MA201208-201401

(L),TYPE A:REF ILL.

main17410-0L050i2KDFTV..KDH200,202..MA201208-201401

(L),TYPE B:REF ILL.

main17410-0L060i2KDFTV..KDH202..TH201208-201309

(L),TYPE A:REF ILL.

main17410-0L070i1KDFTV..KDH203..TH201309-201401

(L)

main17410-30070i2KDFTV..KDH200..SP..06S;2KDFTV..KDH222..RHD..GEN;2KDFTV..KDH202..RHD..SRF..12S200501-200609

SINGAPORE SPEC,TYPE A:REFER ILLUST.

main17410-30080i2KDFTV..KDH200..SG;2KDFTV..KDH202..HRF;2KDFTV..KDH222..ARL,GCC;2KDFTV..KDH20#,212,220..03S,11S,15S,16S;2KDFTV..KDH202,222..LHD..(12S,16S)..GEN200501-200609

TYPE B:REFER ILLUST.

main17410-30150i1KDFTV..KDH201,203,221,223200610-201008

main17410-30290i1KDFTV..KDH201,203..LHD201008-201212

main17410-30330i1KDFTV..KDH201,203..LHD201212-201312

main17410-75450i2TRFE..TRH201,22#..ARL;2TRFE..TRH201..06S..GEN200501-200609

TYPE A:REFER ILLUST.

main17410-75460i2TRFE..TRH213..LHD..STD..GEN200610-200709

EL SALVADOR SPEC,TYPE A:REFER ILLUST.

main17410-75470i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..5F..GEN;2TRFE..TRH20#,213..(SMRF,SRF)..(03S,12S,15S,16S)..GEN200501-200609

TYPE B:REFER ILLUST.

main17410-75490i1TRFE..TRH200201308-201312

main17410-75550i2TRFE..TRH201,22#..ARL;2TRFE..TRH201..SG..06S..GEN;2TRFE..TRH201..SP..4FC..GEN200610-201401

TYPE A:REFER ILLUST.

main17410-75560i2TRFE..TRH213,223..(10S,13S)..GEN201205-201312

CHINA(PRC) SPEC&EXHAUST EMISSION CONTROL-GASOLINE EURO5

17410BGASKET, EXHAUST PIPE

main17451-22070i1KDFTV..KDH201,203..LHD200501-201212

main17451-67020i1KDFTV..KDH221..ARL;1KDFTV..KDH201,203,223200501-201008

main90917-06066i5LE..LH20#,212,222200501-201312

17420PIPE ASSY, EXHAUST, CENTER

main17420-30080i2KDFTV,5LE..KDH220,222,LH222200501-201110

main17420-30081i2KDFTV,5LE..KDH220,222,LH222201111-201402

main17420-30110i1KDFTV..KDH221,223200610-201110

main17420-30111i1KDFTV..KDH221,223..STD201111-201401

main17420-30230i1KDFTV..KDH201,203..LHD201212-201312

main17420-30280i1KDFTV..KDH223..RUS201205-201312

main17420-75420i2TRFE..TRH22#200501-201402

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06073i1KDFTV,2KDFTV,5LE,2TRFE..KDH22#,LH222,TRH22#200501-201402

17430PIPE ASSY, EXHAUST, TAIL

main17430-0C120i2TRFE..TRH203..MA201208-201401

(L)

main17430-0L040i2KDFTV..KDH200..MA;2KDFTV..KDH202..RHD..12S201208-201401

(L)

main17430-0L140i1KDFTV..KDH203..TH201309-201401

(L)

main17430-30060i2KDFTV,5LE..KDH200,202,LH20#200501-201110

main17430-30061×2i2KDFTV..KDH202..TH201205-201208

main17430-30070i2KDFTV,5LE..KDH212,LH212200501-201111

main17430-30071i2KDFTV,5LE..KDH212,LH212201112-201312

main17430-30100i1KDFTV..KDH201,203200610-201110

main17430-30101i1KDFTV..KDH201,203..LHD201111-201212

main17430-30170i1KDFTV..KDH201,203..LHD201212-201312

main17430-30180i1KDFTV,2TRFE..KDH221,223,TRH22#201008-201402

main17430-75710i1TRFE..TRH200201308-201312

main17430-75720i2TRFE..TRH201,203..ARL,GCC,GEN,SA200501-201312

main17430-75750i2TRFE..TRH213200501-201312

main17430-75760i2KDFTV,5LE..KDH220,222,LH222200501-201402

main17430-75770i1KDFTV,2TRFE..KDH221,223,TRH22#200501-200709

main17430-75771i1KDFTV,2TRFE..KDH221,223,TRH22#200710-201008

17451GASKET, EXHAUST PIPE

main17451-74040i1KDFTV,1TRFE..KDH201,TRH200..SP..06S201111-201312

main90917-06054i2TRFE..TRH201,203,213,22#200501-201402

main90917-06073i1KDFTV..KDH201..SP..06S200501-201111

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010×6i1KDFTV..KDH201..SP..06S201111-201312

5851

5852

9010510388

main90105-10388

9017710001

main90177-10001

9050135032

main90501-35032

9090105020

main90901-05020

13 parts on this diagram · 5 diagrams in section
