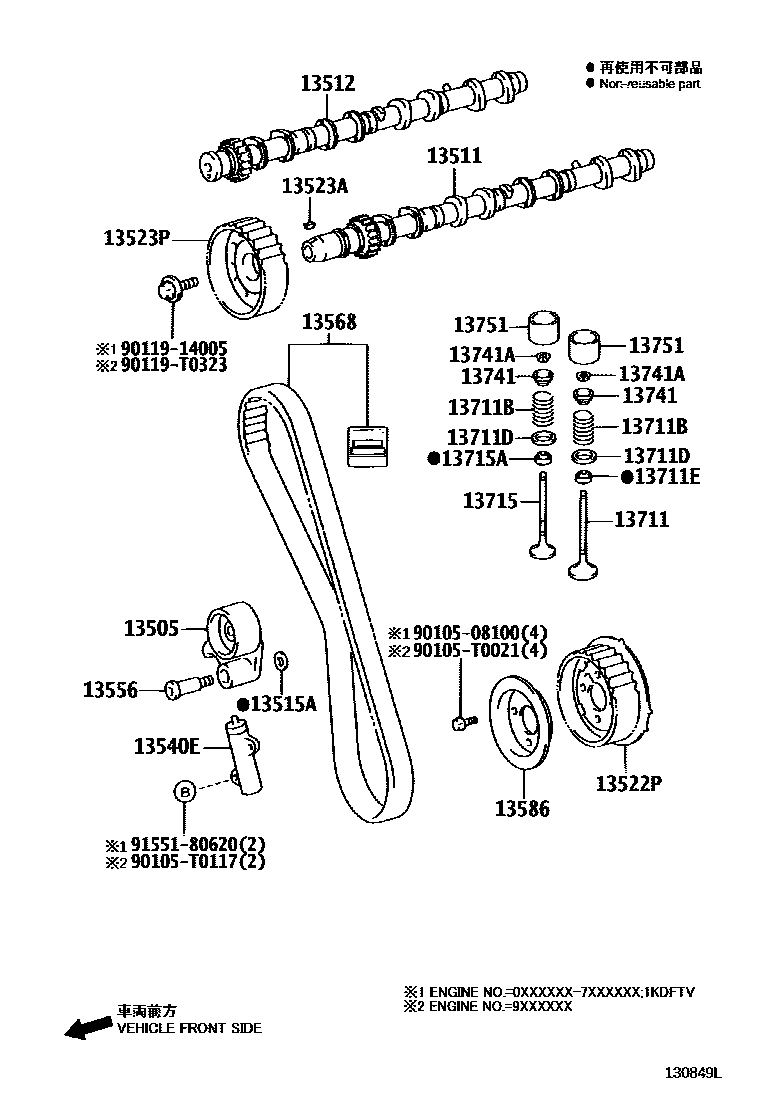

CAMSHAFT & VALVE

0001 1 0002 1 0003 1 0004 1

13505IDLER SUB-ASSY, TIMING BELT, NO.1

main13505-0L010i2KDFTV..KDH212..STD200508-201401

main13505-54021i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

main13505-67041i1KDFTV..KDH223..TH200501-201402

sub13505-67042

13511CAMSHAFT

main13501-0C010i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200608-201401

(L)

sub13501-0C011

main13501-0C010i2TRFE..TRH203..HRF200602-200608

sub13501-0C011

main13501-0L010i2KDFTV..KDH212..STD200508-201401

sub13501-30040

main13501-0L020i1KDFTV..KDH223..TH201309-201401

sub13501-30050

main13501-30020i1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)200610-201312

main13501-30030i2KDFTV..KDH212..LHD..STD..GEN200512-200910

VIETNAM SPEC

main13501-30030i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-200910

MALAYSIA SPEC

main13501-30030i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-200910

CKD PACKAGE(MALAYSIA)

main13501-30030i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-200910

CKD PACKAGE(THAILAND)

main13501-30040i2KDFTV..KDH202,222..GCC,GEN,SA;2KDFTV..KDH200,212,220..GCC,GEN,SA,TH200910-201402

CKD PACKAGE(SOUTH AFRICA)

sub13501-30030

main13501-30040i2KDFTV..KDH222..TH200910-201205

sub13501-30030

main13501-30060i1KDFTV..KDH201..SP..06S201110-201312

main13501-54090i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

main13501-75060i2TRFE..TRH213..LHD..STD..GEN200501-201402

W/O(LOT NO. MARK)

sub13501-75061

main13501-75060i2TRFE..TRH213..LHD..STD..GEN200501-200709

VIETNAM SPEC,W/O(LOT NO. MARK)

sub13501-75061

main13501-75070i2TRFE..TRH223..TH200709-201401

W(LOT NO. MARK)

sub13501-75071

main13501-75070i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200608-201401

(J)

sub13501-75071

main13501-75071i2TRFE..TRH223201401-201402

W(LOT NO. MARK)

13512CAMSHAFT, NO.2

main13502-0C010i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200602-201401

(L)

main13502-0L010i2KDFTV..KDH212..STD200508-201401

sub13502-30030

main13502-0L020i1KDFTV..KDH203..TH201309-201401

sub13502-30040

main13502-30010i1KDFTV..KDH223..TH200610-201312

main13502-30020i2KDFTV..KDH212..LHD..STD..GEN200512-200910

VIETNAM SPEC

main13502-30020i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-200910

MALAYSIA SPEC

main13502-30020i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-200910

CKD PACKAGE(MALAYSIA)

main13502-30020i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH200,220,222..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-200910

CKD PACKAGE(THAILAND)

main13502-30030i2KDFTV..KDH220,222..STD..SA200910-201402

CKD PACKAGE(SOUTH AFRICA)

sub13502-30020

main13502-30030i2KDFTV..KDH222..TH200910-201205

sub13502-30020

main13502-30050i1KDFTV..KDH201,203..LHD201110-201312

main13502-75050i2TRFE..TRH213..10S..GEN200501-201402

W/O(LOT NO. MARK)

sub13502-75060

main13502-75050i2TRFE..TRH201..5F;2TRFE..TRH213..GCC;2TRFE..TRH201..SG..4FC;2TRFE..TRH201..4FC..ARL;2TRFE..TRH213..RHD..(10S,16S);2TRFE..TRH22#..ARL,CIS,GCC,GEN,SA;2TRFE..TRH203,21200501-200709

VIETNAM SPEC,W/O(LOT NO. MARK)

sub13502-75060

main13502-75060i1TRFE,2TRFE..TRH20#,22#..ARL,CIS,GCC,GEN,SA;2TRFE..TRH213..(10S,11S,16S)..(GCC,GEN,SA,TH)200709-201402

W(LOT NO. MARK)

main13502-75060i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200608-201401

(J)

13515AWASHER, PLATE(FOR DISTRIBUTOR DRIVE GEAR)

main90201-10124i2KDFTV..KDH212..LHD..STD..GEN200501-201402

main90560-T0007i1KDFTV..KDH223..TH200508-201401

13522PPULLEY, PUMP DRIVE SHAFT

main13524-0L010i2KDFTV..KDH200..MA;1KDFTV,2KDFTV..KDH202,203..RHD..12S201307-201401

(L)

main13524-0L010i2KDFTV..KDH212..STD200508-201307

main13524-30010i2KDFTV..KDH222..TH200501-201402

main13524-30010i2KDFTV..KDH200..MA;1KDFTV,2KDFTV..KDH202,203..RHD..12S201307-201401

(J)

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13523-0C020i2TRFE..TRH203,213..MA,VN200809-201401

main13523-75030i2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;2TRFE..TRH213..5F..GL..GEN;1TRFE,2TRFE..TRH20#,22#..ARL,CIS,GCC,GEN,SA,TH200501-201402

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05004i1KDFTV..KDH223..TH200501-201402

main90280-T0001i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-201401

13523PPULLEY, CAMSHAFT TIMING

main13523-05010i5LE..LH212..10S200501-200810

(L)

main13523-0L010i1KDFTV..KDH223..TH200508-201401

(L)

main13523-17010i1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..K200501-201402

main13523-17010i2KDFTV..KDH212..STD200508-201401

(J)

main13523-54040i5LE..LH212..10S200501-200810

(J)

13540TENSIONER ASSY, CHAIN, NO.1

main13540-0C010i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200508-201401

sub13540-0C011

main13540-75030i2TRFE..TRH213..RHD;2TRFE..TRH213..GCC;1TRFE,2TRFE..TRH200,201,22#;2TRFE..TRH203,213..(SMRF,SRF)..(09S,10S,12S,15S)..(GCC,GEN)200501-201402

sub13540-75041

13540ETENSIONER ASSY, TIMING BELT

main13540-0L010i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-201401

main13540-30010i1KDFTV..KDH201..SP..06S201110-201312

main13540-67020i1KDFTV..KDH201..SP..06S200501-201402

13556SHAFT, TIMING BELT IDLER

main13556-0L010i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-201401

main13556-67010i2KDFTV..KDH222..TH200501-201402

13568BELT, TIMING

main13568-09130i2KDFTV..KDH212..STD200508-201009

sub13568-09131

main13568-09131i1KDFTV..KDH223..TH201009-201401

main13568-39015i2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;1KDFTV,2KDFTV..KDH200,201,203,22#..ARL,GCC,GEN,SA,TH;2KDFTV..KDH202,212..(SMRF,SRF)..(10S,11S,12S,15S)..(GCC,GEN,SA)200501-201003

sub13568-39016

main13568-39016i1KDFTV..KDH201..SP..06S201003-201402

main13568-39016i1KDFTV,2KDFTV..KDH201,202,212,222,223..SG..(ARL,GCC,GEN,RUS,SA);1KDFTV,2KDFTV..KDH200,201,203,220,221..(03S,12S,14S)..STD..(ARL,GCC,GEN,SA,TH)201003-201402

CKD PACKAGE(SOUTH AFRICA)

main13568-59106i5LE..LH20#,212,222200501-201310

sub13568-59175

main13568-59175i5LE..LH20#,212,222201310-201312

13586FLANGE, CAMSHAFT TIMING PULLEY, NO.2

main13586-0L010i2KDFTV..KDH212..STD200508-201401

sub13586-17020

main13586-17020i1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..K200501-201402

13711VALVE, INTAKE

main13711-0C040i2TRFE..TRH213..STD200508-201401

main13711-0C060i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..5F..GEN;2TRFE..TRH213..RHD..STD..GEN;2TRFE..TRH201,203..SRF..(03S,12S,15S)..GEN200501-201312

main13711-0L010i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200508-201401

main13711-0L020i1KDFTV..KDH223..TH201309-201401

main13711-30030i1KDFTV..KDH201..SP..06S200610-201312

main13711-30040i2KDFTV..KDH222..TH200501-201402

main13711-54030i5LE..LH212..10S200501-200810

main13711-75100i1TRFE..TRH200201308-201312

main13711-75110i2TRFE..TRH213..GCC;2TRFE..TRH201,22#..SG..(03S,13S);2TRFE..TRH201,213..(06S,09S,10S,11S,15S)..(GCC,GEN,SA,TH);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS200501-201402

13711BSPRING, COMPRESSION(FOR INNER)

main90080-50404i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-201401

main90501-28040i1KDFTV..KDH201,203..LHD201110-201312

main90501-32055i2TRFE..TRH223..12S,13S,14S,16S;2TRFE..TRH201,203,213,221..ARL,GCC,GEN,SA,TH201003-201402

NO PAINT

main90501-32055i2TRFE..TRH201..5D..5F;2TRFE..TRH201..ARL,SA;2TRFE..TRH213..GCC,TH;2TRFE..TRH201..SG..4FC;2TRFE..TRH213..10S..GEN;2TRFE..TRH203,221..03S,15S;2TRFE..TRH213..RHD..(10S200501-201003

VIETNAM SPEC

main90501-32055i2TRFE..TRH201..SP..4FC..GEN;1TRFE,2TRFE..TRH200,223..06S,15S;2TRFE..TRH213..(09S,11S,15S)..(GEN,SA);2TRFE..TRH201,203..SRF..4D..(03S,12S)..GEN200501-201401

main90501-T0016i2TRFE..TRH213..STD200508-201401

main90504-49001i5LE..LH212..10S200501-200810

main90905-01077i2KDFTV..KDH212..LHD..STD..GEN200501-201402

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-16023i1KDFTV..KDH201..03S;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..SRF..(GCC,GEN);1KDFTV,2KDFTV..KDH201,203,222..SG..(ARL,GCC,GEN,SA);1KDFTV,2KDFTV..K200501-201402

main90201-23003i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

main90560-T0008i2KDFTV..KDH212..STD200508-201401

13711ESEAL, INTAKE VALVE STEM OIL

main90080-31099i2KDFTV..KDH212..STD200508-201401

main90913-02117i5LE..LH20#,212,222200501

main90913-02121i2KDFTV..KDH222..TH200501-201402

13715VALVE, EXHAUST

main13715-0C040i2TRFE..TRH213..STD200508-201401

main13715-0C060i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..5F..GEN;2TRFE..TRH213..RHD..STD..GEN;2TRFE..TRH201,203..SRF..(03S,12S,15S)..GEN200501-201312

main13715-0L010i2KDFTV..KDH202..MA,TH;2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN200508-201401

main13715-0L020i1KDFTV..KDH203..TH201309-201401

main13715-30030i1KDFTV..KDH201..SG;1KDFTV..KDH201..03S;1KDFTV..KDH203,221,223..ARL,GEN,RUS200610-201312

main13715-30040i2KDFTV..KDH212..LHD..STD..GEN200501-201402

main13715-54050i5LE..LH212..10S200501-200810

main13715-75090i1TRFE..TRH200201308-201312

main13715-75100i2TRFE..TRH223..5F..GL..GEN;2TRFE..TRH201,221..5D..03S..GEN200501-201304

LPG CONVERSION PACKAGE

sub13715-75140

main13715-75100i2TRFE..TRH223..5F..GL..GEN;2TRFE..TRH201,221..5D..03S..GEN200501-201304

MEXICO SPEC

sub13715-75140

main13715-75100i2TRFE..TRH20#..LHD..SRF..GEN;2TRFE..TRH223..LHD..STD..GEN200501-201304

CENTRAL AMERICA(4COUNTRY) SPEC

sub13715-75140

main13715-75100i2TRFE..TRH213..GCC;2TRFE..TRH201,22#..SG..(03S,13S);2TRFE..TRH201,213..(06S,09S,10S,11S,15S)..(GCC,GEN,SA,TH);2TRFE..TRH20#,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC200501-201304

CHINA(PRC) SPEC

sub13715-75140

main13715-75110i2TRFE..TRH223..TH200610-201401

main13715-75140i2TRFE..TRH201..RHD;2TRFE..TRH201,203,213..GCC;2TRFE..TRH22#..ARL,CIS,GCC,SA;2TRFE..TRH201,213,22#..SG..(03S,10S,11S,13S)201304-201402

13715ASEAL, EXHAUST VALVE STEM OIL

main90080-31099i2KDFTV..KDH202..HRF..GEN;2KDFTV..KDH200,212..MA,VN;1KDFTV,2KDFTV..KDH202,203..MA,TH200508-201401

main90913-02117i5LE..LH20#,212,222200501

main90913-02121i1KDFTV..KDH201..SP..06S200501-201402

13741RETAINER, VALVE SPRING

main13741-0C020i2TRFE..TRH203,213..MA,VN200710-201401

main13741-0L010i1KDFTV..KDH223..TH200508-201401

main13741-15020i1KDFTV..KDH223..TH200501-201402

main13741-20020i2TRFE..TRH20#,213,22#200501-200508

VIETNAM SPEC

sub13741-20021

main13741-20021i2TRFE..TRH203,213..MA,VN200508-201402

main13741-54020i5LE..LH212..10S200501-200810

13741ALOCK, VALVE SPRING RETAINER

main90913-03014i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

main90913-03021i2KDFTV..KDH222..TH200501-201402

main90913-03028i1TRFE,2TRFE..TRH20#,213,22#200501-201402

13751LIFTER, VALVE

main13751-46030i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.06,REFER REPAIR MANUAL

main13751-46040i2KDFTV..KDH222..TH200501-201402

T=5.08,REFER REPAIR MANUAL

main13751-46050i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.10,REFER REPAIR MANUAL

main13751-46060i2KDFTV..KDH222..TH200501-201402

T=5.12,REFER REPAIR MANUAL

main13751-46070i2KDFTV..KDH222..TH200501-201402

T=5.14,REFER REPAIR MANUAL

main13751-46080i2KDFTV..KDH222..TH200501-201402

T=5.16,REFER REPAIR MANUAL

main13751-46090i2KDFTV..KDH222..TH200501-201402

T=5.18,REFER REPAIR MANUAL

main13751-46100i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.20,REFER REPAIR MANUAL

main13751-46110i2KDFTV..KDH222..TH200501-201402

T=5.22,REFER REPAIR MANUAL

main13751-46120i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.24,REFER REPAIR MANUAL

main13751-46130i2KDFTV..KDH222..TH200501-201402

T=5.26,REFER REPAIR MANUAL

main13751-46140i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.28,REFER REPAIR MANUAL

main13751-46150i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.30,REFER REPAIR MANUAL

main13751-46160i2KDFTV..KDH222..TH200501-201402

T=5.32,REFER REPAIR MANUAL

main13751-46170i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.34,REFER REPAIR MANUAL

main13751-46180i2KDFTV..KDH222..TH200501-201402

T=5.36,REFER REPAIR MANUAL

main13751-46190i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.38,REFER REPAIR MANUAL

main13751-46200i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.40,REFER REPAIR MANUAL

main13751-46210i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.42,REFER REPAIR MANUAL

main13751-46220i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.44,REFER REPAIR MANUAL

main13751-46230i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.46,REFER REPAIR MANUAL

main13751-46240i2KDFTV..KDH222..TH200501-201402

T=5.48,REFER REPAIR MANUAL

main13751-46250i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.50,REFER REPAIR MANUAL

main13751-46260i2KDFTV..KDH222..TH200501-201402

T=5.52,REFER REPAIR MANUAL

main13751-46270i2KDFTV..KDH222..TH200501-201402

T=5.54,REFER REPAIR MANUAL

main13751-46280i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.56,REFER REPAIR MANUAL

main13751-46290i2KDFTV..KDH222..TH200501-201402

T=5.58,REFER REPAIR MANUAL

main13751-46300i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.60,REFER REPAIR MANUAL

main13751-46310i2KDFTV..KDH222..TH200501-201402

T=5.62,REFER REPAIR MANUAL

main13751-46320i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.64,REFER REPAIR MANUAL

main13751-46330i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.66,REFER REPAIR MANUAL

main13751-46340i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.68,REFER REPAIR MANUAL

main13751-46350i2KDFTV..KDH222..ARL,GCC,GEN,SA;1KDFTV,2KDFTV..KDH20#,212,220,221,223200501-201402

T=5.70,REFER REPAIR MANUAL

main13751-46360i2KDFTV..KDH222..TH200501-201402

T=5.72,REFER REPAIR MANUAL

main13751-46370i2KDFTV..KDH222..TH200501-201402

T=5.74,REFER REPAIR MANUAL

main13751-54010i5LE..LH20#,212,222..03S,12S,15S,16S200501-200810

9010508100

main90105-08100

90105T0021

main90105-T0021

90105T0117

main90105-T0117

9011914005

main90119-14005

90119T0323

main90119-T0323

9155180620

main91551-80620

28 parts on this diagram · 4 diagrams in section
