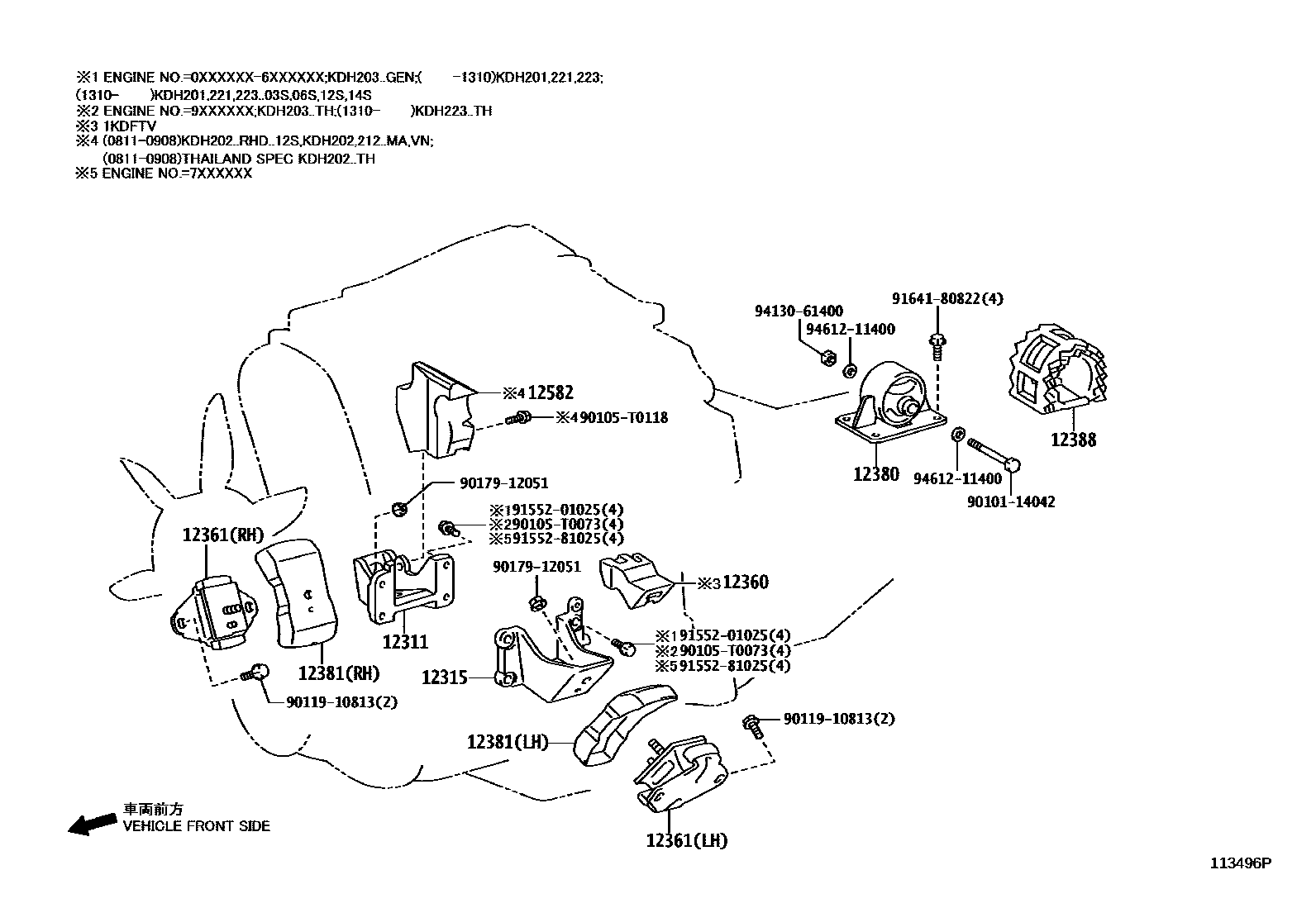

MOUNTING

0001 1 0002 1 0003 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-0L020i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN200811-200908

CKD PACKAGE(THAILAND)

main12311-30070i2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN200501-200708

CKD PACKAGE(THAILAND)

main12311-30071i2KDFTV..KDH202..SRF..(GCC,GEN,MA);2KDFTV..KDH202,222..HRF..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,201,203,212,220,221,223..ARL,GCC,GEN,RUS,SA,TH200708-201402

main12311-54280i5LE..LH20#,212,222200501-201312

main12311-75101i1TRFE,2TRFE..TRH20#,213,22#200501-201402

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-0L020i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN200811-200908

CKD PACKAGE(THAILAND)

main12315-30060i2KDFTV..KDH200,202..RHD..SRF..4D..(03S,12S)..5F..GEN200501-200708

CKD PACKAGE(THAILAND)

main12315-30061i2KDFTV..KDH202..SRF..(GCC,GEN,MA);2KDFTV..KDH202,222..HRF..(GCC,GEN,SA);1KDFTV,2KDFTV..KDH200,201,203,212,220,221,223..ARL,GCC,GEN,RUS,SA,TH200708-201402

main12315-75110i1TRFE,2TRFE..TRH20#,213,22#200501-201402

12360INSULATOR ASSY, ENGINE MOUNTING, FRONT

main12361-30070i1KDFTV..KDH223..TH200610-201310

main12361-30110i1KDFTV..KDH203..TH201309-201401

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-30060×2i2KDFTV..KDH20#,212,22#200501-200605

RH & LH

main12361-30090i2KDFTV..KDH200..06S..GCC;2KDFTV..KDH220..SP..(GEN,SA);1KDFTV,2KDFTV..KDH201,202,203,212,221,223;2KDFTV..KDH200,222..(03S,14S,16S)..(GCC,GEN,MA,SA)200605-200708

RH

main12361-30100i2KDFTV..KDH202..GL200709-201205

RH

main12361-54143×2i5LE..LH20#,212,222200501-201312

main12361-75080i1TRFE..TRH200201308-201312

main12361-75100i2TRFE..TRH201,203,213,22#200501-201402

12380INSULATOR ASSY, ENGINE MOUNTING, REAR

main12380-30010i2KDFTV..KDH202..GL..TH200501-201205

main12380-75020i5LE..LH20#,212,222..03S,12S,15S,16S200501

12381STABILIZER, ENGINE MOUNTING

main12381-30030i1KDFTV,2KDFTV..KDH20#,212,22#200604-200708

RH

main12381-30040i2KDFTV..KDH202..TH201211-201402

RH

main12381-54040×2i5LE..LH20#,212,222200501-201312

main12381-67010×2i2KDFTV..KDH20#,212,22#200501-200604

RH & LH

main12381-75030i1TRFE..TRH200201308-201312

main12381-75080i2TRFE..TRH201,203,213,22#200501-201402

12388STOPPER, ENGINE MOUNTING BRACKET, REAR

main12388-67011i5LE..LH20#,212,222..03S,12S,15S,16S200501

12582INSULATOR, CYLINDER BLOCK, NO.2

main12582-0L010i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN200811-200908

CKD PACKAGE(THAILAND)

9010114042

main90101-14042

90105T0073

main90105-T0073

90105T0118

main90105-T0118

9011910813

main90119-10813

9017912051

main90179-12051

9155201025

main91552-01025

9155281025

main91552-81025

9164180822

main91641-80822

9413061400

main94130-61400

9461211400

main94612-11400

18 parts on this diagram · 3 diagrams in section
