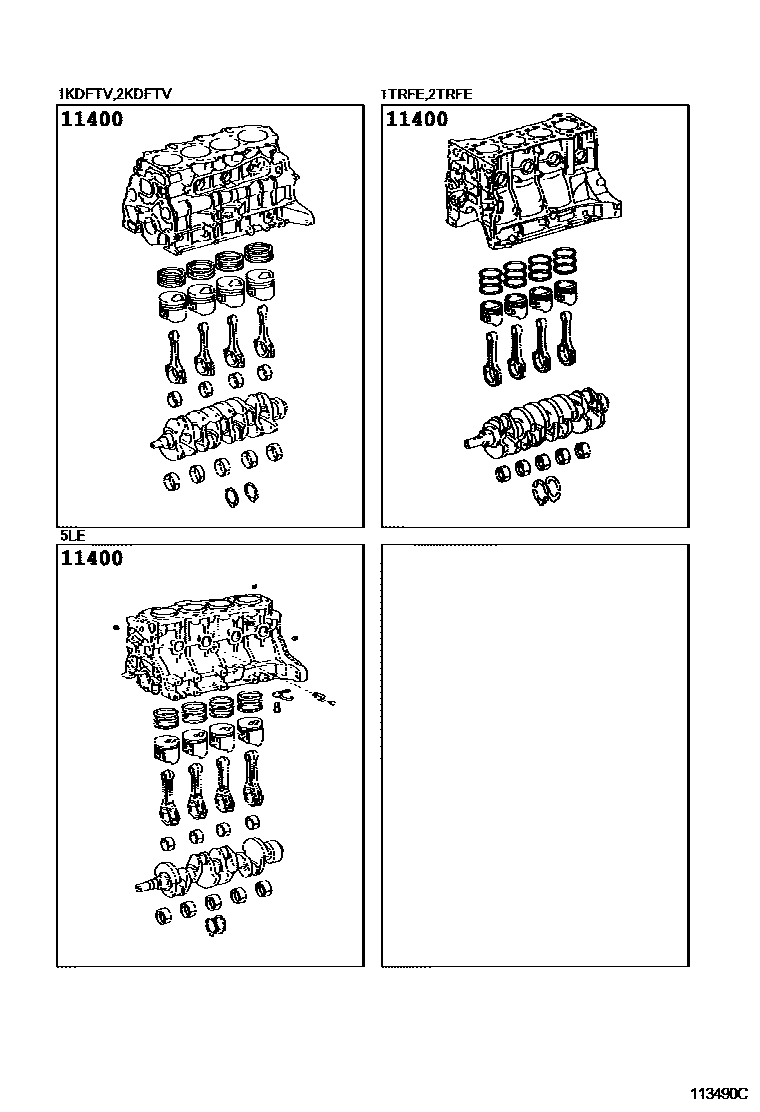

SHORT BLOCK ASSEMBLY

11400BLOCK ASSY, SHORT

main11400-0C090i2TRFE..TRH213..VN;2TRFE..TRH203..HRF200508-201401

main11400-0L050i2KDFTV..KDH212..STD200508-200812

sub11400-0L090

main11400-0L090i2KDFTV..KDH202..RHD..12S;2KDFTV..KDH200,212..MA,VN200812-201401

sub11400-30240

main11400-0L220i1KDFTV..KDH223..TH201309-201401

sub11400-30450

main11400-30070i2KDFTV..KDH202..GCC,GEN;2KDFTV..KDH200,212,220,222..GCC,GEN,SA,TH200904-200910

WITHOUT(CKD PACKAGE)

sub11400-30250

main11400-30070i2KDFTV..KDH212..GL;2KDFTV..KDH212..GCC;2KDFTV..KDH212..RHD..GEN;2KDFTV..KDH202..LHD..12S..5F;2KDFTV..KDH220..SP..(GEN,SA);2KDFTV..KDH200,202,222..(03S,14S,15S,16S).200501-200910

sub11400-30250

main11400-30240i2KDFTV..KDH212..GL;2KDFTV..KDH200..4FC;2KDFTV..KDH200,220,222..SA,TH200910-201402

main11400-30250i2KDFTV..KDH200..RHD..4D..5F..GEN200910-201312

ALGERIA SPEC

main11400-30280i1KDFTV..KDH201,203,221,223200610-201008

sub11400-30480

sub11400-30490

main11400-30330i1KDFTV..KDH201,223..SG..(ARL,GEN,RUS);1KDFTV..KDH201,203,221..RHD..(03S,14S)201008-201312

sub11400-30500

sub11400-30510

main11400-30370i1KDFTV..KDH201..SP..06S201111-201312

sub11400-30440

sub11400-30520

main11400-54190i5LE..LH20#,212,222200501-201312

main11400-75140i1TRFE..TRH200201308-201312

main11400-75380i2TRFE..TRH20#..LHD..SRF..GEN;2TRFE..TRH223..LHD..STD..GEN200501-200709

PERU SPEC

sub11400-75381

main11400-75380i2TRFE..TRH223..TH;2TRFE..TRH213..4FC..GEN;2TRFE..TRH201..SP..4FC..GEN200501-201110

sub11400-75381

main11400-75381i2TRFE..TRH223..TH201110-201401

main11400-75410i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..5F..GEN;2TRFE..TRH213..RHD..STD..GEN;2TRFE..TRH20#..SRF..(03S,12S,15S)..GEN200501-200709

sub11400-75411

main11400-75550i2TRFE..TRH213..GCC;2TRFE..TRH201,22#..SG..(03S,13S);2TRFE..TRH201,213..(06S,10S,11S,15S)..(GCC,GEN,SA,TH);2TRFE..TRH201,203,22#..(03S,12S,14S,15S,16S)..(ARL,CIS,GCC200709-201402

sub11400-75551

main11400-75560i2TRFE..TRH221..SP..GEN;2TRFE..TRH223..5F..GEN;2TRFE..TRH201,203,213..(SMRF,SRF)..(03S,12S,15S,16S)..GEN200709-201312

sub11400-75561

1 parts on this diagram · 1 diagram in section
