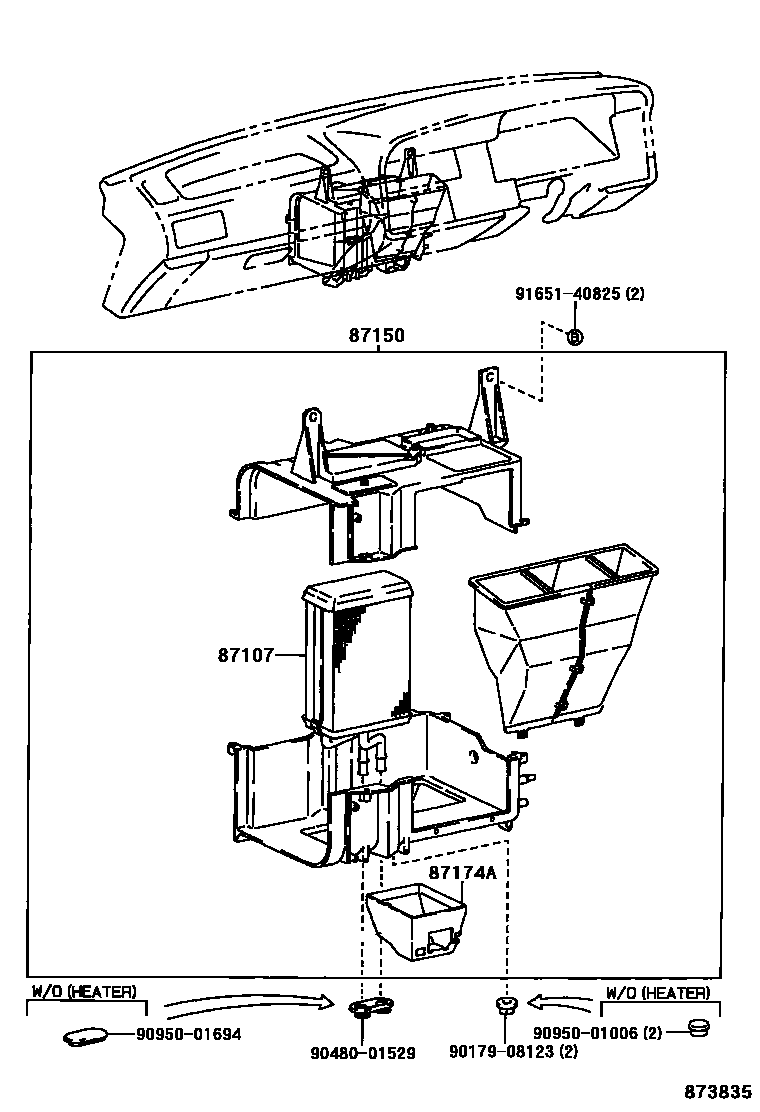

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1FRONT HEATER RADIATOR 0002 1FRONT HEATER RADIATOR 0003 1BOOST VENTILATOR 0004 1BOOST VENTILATOR 0005 1FRONT HEATER BLOWER 0006 1FRONT HEATER BLOWER 0007 1REAR HEATER 0008 1REAR HEATER

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-26080iRZH103..03S..GEN199808-200108

main87107-26120iLH174..LHD..STD;LH102,104,105,11#,164,166,172,176,RZH10#,11#,155..LHD199808-200508

main87107-95J11iLH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD198908-199808

main87107-95J20iLH102,104,105,11#,RZH10#,11#..LHD198908-199808

87150RADIATOR ASSY, HEATER

main87150-26100iLH102,104,105,11#,RZH10#,11#..LHD..(GCC,GEN)199308-199608

main87150-26120iLH104,112,114,RZH104,112,114..CIS199308-199608

main87150-26190iLH104,RZH104,114..CIS199608-199808

main87150-26200iLH102,104,11#,RZH10#,11#..LHD..(GCC,GEN)199608-199808

main87150-26280iRZH103..03S..GEN199808-200602

main87150-26320iLH174..LHD..STD..(GCC,GEN);LH102,104,11#,172,RZH10#,11#..LHD..(GCC,GEN)199808-200508

main87150-26330iLH105,113,115,166,176,RZH105,115..CIS199808-200501

main87150-95J11iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

main87150-95J12iLH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD198908-199808

87174AGUIDE, AIR HEATER

main87174-95J04iLH104,105,11#,166,176,RZH104,105,112,114,115..CIS199308-200501

main87174-95J05iRZH113..LHD;LH102,104,105,11#,RZH10#,112,114,115..LHD..(GCC,GEN)..(CBR,DSL)198908-200508

main87174-95J06iRZH103..03S..GEN198908-200108

9017908123

main90179-08123

9048001529

main90480-01529

9095001006

main90950-01006

9095001694

main90950-01694

9165140825

main91651-40825

8 parts on this diagram · 8 diagrams in section
