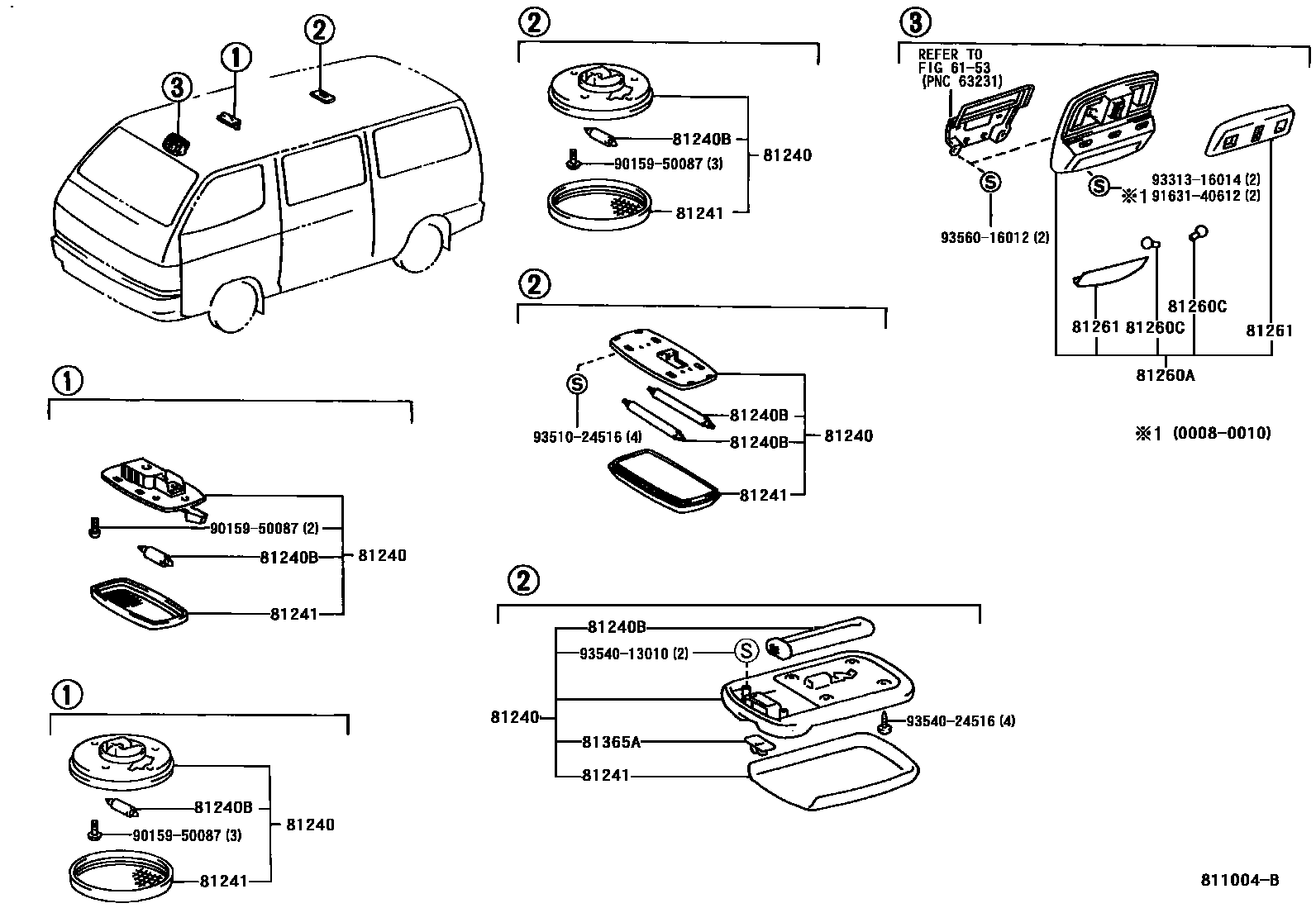

INTERIOR LAMP

0001 1 0002 1

6153

81240LAMP ASSY, ROOM, NO.1

main81240-26040-B1iRZH153199611-199808

LT.BLUISH GRAY,TRIM1#

sub81240-26040

main81240-26110-B1iRZH135199808-200507

LT.BLUISH GRAY,TRIM1#

main81240-26110-E0iLH154,RZH153..03S,10S199907-200501

ORCHID,TRIM4#

main81240-26130-B0iRZH113..LHD..06S..GEN199803-200507

LT.BLUISH GRAY,TRIM1#

sub81240-26130

main81240-26130-B0iLH172..5D..06S;LH103,113,162,RZH103,113..RHD..06S199803-200501

NEW ZEALAND SPEC,LT.BLUISH GRAY,TRIM1#

sub81240-26130

main81240-26140-B0iLH102,RZH102,103..DX,GL,SGL199803-199907

LT.BLUISH GRAY,TRIM1#

sub81240-26140

main81240-26150iLH125,184,RZH125199803-200501

main81240-95J03-03iRZH103..GL198908-199108

LIGHT GRAY,TRIM1#

main81240-95J11-08iLH102,103,112,113,RZH102,103,112,113..STD198908-199308

IVORY,TRIM1#

sub81240-26130

main81240-95J11-B0iLH102,103,112,113,RZH102,103,112,113..SRF..STD..(ARL,CIS,GEN)199308-199608

LI. GRAY,TRIM1#

sub81240-26130

main81240-95J11-B1iLH102,103,112,113,RZH102,103,112,113..(03S,06S)..(GL,STD)..(GCC,GEN)199608-199803

LT.BLUISH GRAY,TRIM1#

sub81240-26130

main81240-95J11-B1iLH103,113,RZH103,113..06S..GEN..(CBR,DSL)199608-199803

NEW ZEALAND SPEC,LT.BLUISH GRAY,TRIM1#

sub81240-26130

main81240-95J12-B0iLH112,RZH102,103,113..09S199405-199608

LI. GRAY,TRIM1#

sub81240-26140

main81240-95J12-B1iLH102,RZH102,103..SG..(03S,09S)199608-199803

LT.BLUISH GRAY,TRIM1#

sub81240-26140

main81240-95J13-08iLH125,RZH125..ARL198908-199803

IVORY,TRIM1#

81240BBULB, ROOM LAMP, NO.1

main90981-11004iLH125,RZH125..ARL198908-199803

12V 10W

main90981-11033iRZH103,153..RHD..GL198908-199808

100V 6W(MARK FL-6W)

main90981-11046iRZH135199808-200507

12V 13W

main99132-12100iLH103,113,RZH103,113..06S..GEN..(CBR,DSL)199803-200501

12V 10W,NEW ZEALAND SPEC

main99132-12100iLH125,184;LH103,113,RZH103,113,125..ARL199803-200507

12V 10W

81241LENS, ROOM LAMP, NO.1

main81241-26110iRZH135199808-200507

main81241-95J04-13iRZH103..GL198908-199108

LIGHT GRAY,TRIM1#

sub81241-95J04

sub81240-95J04

main81241-95J04-B1iRZH153199611-199808

LT.BLUISH GRAY,TRIM1#

sub81241-95J04

sub81240-95J04

main81241-95J11iLH103,113,RZH103,113..06S..GEN199808-200501

NEW ZEALAND SPEC

main81241-95J11iLH102,103,112,113,RZH102,103,112,113..STD198908-200507

main81241-95J12iLH104,105,112,114,115,RZH104,105,113,114,115..09S,12S,15S198908-200507

81260LAMP ASSY, GLOVE BOX

main81260-32071iRZH103..GL198908-199108

81260ALAMP ASSY, MAP

main81240-95J08iRZH103..4FC..GL198908-199108

main81240-95J08-03iRZH103..4FC..GL198908-199108

LIGHT GRAY,TRIM1#

sub81240-95J08

main81240-95J08-B4iLH154,RZH155..11S,12S200008-200408

LT.BLUISH GRAY,TRIM1#

sub81240-95J08

main81240-95J08-E2iLH154..10S200008-200408

ORCHID,TRIM4#

sub81240-95J08

81260CBULB(FOR MAP LAMP)

main90981-12020iLH154,RZH155198908-200408

12V 8W

81261LENS AND COVER, MAP LAMP

main81241-95J08iRZH103..4FC..GL198908-200408

LENS

main81245-95J07-03iRZH103..4FC..GL198908-199108

LIGHT GRAY,TRIM1#,COVER

sub81245-95J07

main81245-95J07-B0iLH154,RZH155..11S,12S200008-200408

LT. BLUISH GRAY,TRIM1#,COVER

sub81245-95J07

main81245-95J07-E1iLH154..10S200008-200408

ORCHID,TRIM4#,COVER

sub81245-95J07

81365AKNOB, ROOM LAMP SWITCH

main81365-26020-B1iLH174,RZH114,115,153..03S,10S,12S199808-200507

LT.BLUISH GRAY,TRIM1#

sub81365-26020

main81365-26020-E0iLH154,RZH153..03S,10S199907-200501

ORCHID,TRIM4#

sub81365-26020

9015950087

main90159-50087

9163140612

main91631-40612

9331316014

main93313-16014

9351024516

main93510-24516

9354013010

main93540-13010

9354024516

main93540-24516

9356016012

main93560-16012

16 parts on this diagram · 2 diagrams in section
