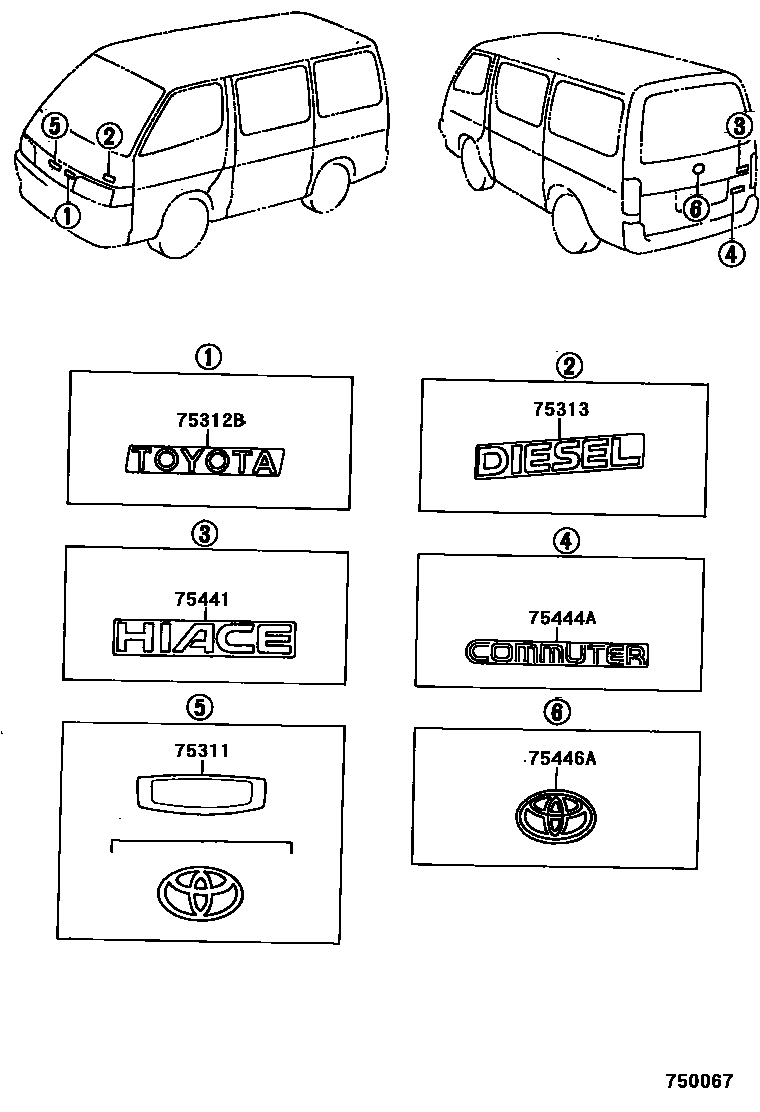

EMBLEM & NAME PLATE

0001 1 0002 1 0003 1

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-26010iRZH103..03S..GEN199308-200208

main75311-26020iLH10#,11#,125,RZH10#,11#,125..DX,STD199308-199808

sub75311-26010

main75311-95J04iLH104,114,RZH104,114..LHD..5F198908-199308

75312BEMBLEM, RADIATOR GRILLE, NO.2

main75312-95J07iLH112..RHD..SRF..03S198908-199308

75313PLATE, FRONT NAME, NO.3

main75313-95J02iLH10#,11#,125198908-200501

75441PLATE, REAR NAME, NO.1

main75441-26090iLH174,RZH115..10S,12S199808-199907

HIACE

main75441-26220iLH172..STD..DEFI200112-200501

HIACE,HONG KONG SPEC

main75441-26220iLH174,RZH115..10S199907-200008

HIACE

main75441-26220iLH154,RZH115,155..(10S,11S,12S)..GL199907-200501

HIACE,TYPE B:REFER TO ILLUSTRATION

main75441-95J14iRZH103..03S..GEN198908-200208

HIACE

main75441-95J14iRZH103..03S..GEN200108-200208

HIACE,TYPE A:REFER TO ILLUSTRATION

75444APLATE, BACK DOOR NAME, NO.4

main75444-95J04iLH104,105,114,115,125,RZH104,114,125198908-199308

COMMUTER

75446APLATE, BACK DOOR NAME, NO.6

main75431-26010iLH10#,11#,125,RZH10#,11#,125199308-199608

6 parts on this diagram · 3 diagrams in section
