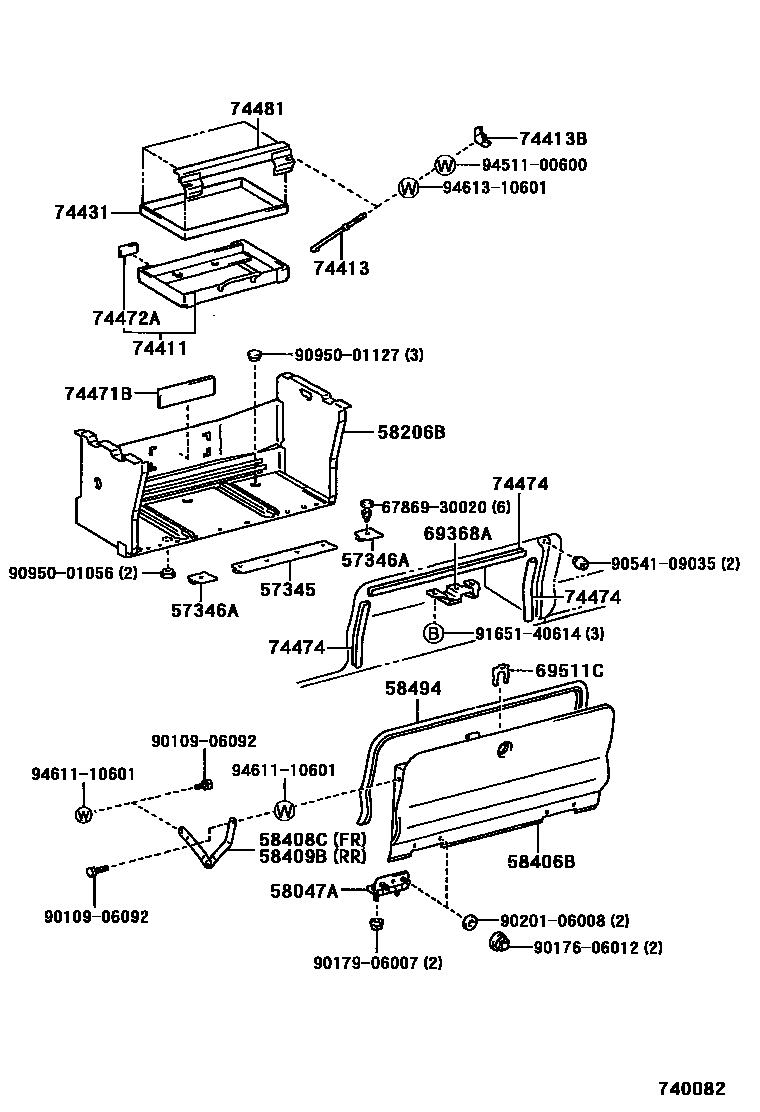

BATTERY CARRIER

0001 1TELECOM SPEC 0002 1

57345PACKING, BATTERY BOX, A

main57345-95J01iLH103,113,RZH103,113..03S..ARL198908-199010

57346APACKING, BATTERY BOX, B

main57346-95J01×2iLH103,113,RZH103,113..03S..ARL198908-199010

58047AHINGE SUB-ASSY, BATTERY BOX LID

main58047-95J01×2iLH103,113,RZH103,113..03S..ARL198908-199005

58206BBOX SUB-ASSY, BATTERY

main58206-95J02iLH103,113,RZH103,113..03S..ARL198908-199010

58406BLID SUB-ASSY, BATTERY BOX

main58406-95J02iLH103,113,RZH103,113..03S..ARL198908-199005

58408CSTAY SUB-ASSY, BATTERY SERVICE OPENING LID, FRONT

main58408-95J01iLH103,113,RZH103,113..03S..ARL198908-199005

58409BSTAY SUB-ASSY, BATTERY SERVICE OPENING LID, REAR

main58409-95J02iLH103,113,RZH103,113..03S..ARL198908-199005

58494PACKING, BATTERY BOX LID

main58494-95J01iLH103,113,RZH103,113..03S..ARL198908-199005

69368ASTRIKER, BATTERY SERVICE OPENING LID LOCK, REAR

main69368-95J01iLH103,113,RZH103,113..03S..ARL198908-199005

69511CRETAINER, BATTERY BOX LID

main69511-32010iLH103,113,RZH103,113..03S..ARL198908-199005

74411CARRIER, BATTERY

main74410-95J04iLH103,113,RZH103,113..03S..ARL198908-199010

AUSTRALIA SPEC(FOR TELECOM)

main74411-95J02iLH174..GL;LH172..RHD;LH10#,11#,125,166,176,184..CIS,GCC,GEN199508-200008

W(2 BATTERY)

main74411-95J03iRZH104,112,114;RZH103..RHD..EFI;RZH105,115..STD..CIS;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;L199411-200208

74413BOLT, BATTERY CLAMP

main74451-95J02iRZH103..03S..GEN200208

main74451-95J03iLH174..GL;LH172..RHD;LH10#,11#,125,166,176,184..CIS,GCC,GEN199508-200008

W(2 BATTERY)

main74451-95J04×2iLH103,113,RZH103,113..03S..ARL198908-199010

AUSTRALIA SPEC(FOR TELECOM)

74413BNUT, WING (FOR BATTERY CLAMP BOLT)

main94271-00600×2iLH103,113,RZH103,113..03S..ARL198908-199010

74431TRAY, BATTERY

main74431-95J01iLH103,113,RZH103,113..03S..ARL198908-199010

74471BPAD, BATTERY BOX

main74471-95J00iLH103,113,RZH103,113..03S..ARL198908-199010

74472APAD, BATTERY CARRIER

main74472-95J00×2iLH103,113,RZH103,113..03S..ARL198908-199010

74474PAD, BATTERY

main74475-95J00iLH103,113,RZH103,113..03S..ARL198908-199010

AUSTRALIA SPEC(FOR TELECOM),UPPER

main74475-95J01×2iLH103,113,RZH103,113..03S..ARL198908-199010

AUSTRALIA SPEC(FOR TELECOM),SIDE

74481CLAMP, BATTERY HOLD DOWN

main74404-26060iRZH112..4D..06S199907-200208

W(BATTERY=50D20R OR 55D23R)

main74404-95J03iLH103,113,RZH103,113..03S..ARL198908-199010

AUSTRALIA SPEC(FOR TELECOM)

main74404-95J07iLH174..GL;LH172..RHD;LH10#,11#,125,166,176,184..CIS,GCC,GEN199508-200008

W(2 BATTERY)

main74404-95J08iRZH102..4D;RZH104,112,114;RZH102..5D..03S;RZH102..LHD..06S198908-199308

W(BATTERY=34B19R OR 46B24R)

sub74404-26050

main74404-95J09iRZH104,105,112,114,115;LH10#,11#,125,172,174,184,RZH102,103,113,125,135,153..ARL,GCC,GEN199411-199906

W(BATTERY=50D20R OR 55D23R)

6786930020PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-30020

9010906092

main90109-06092

9017606012

main90176-06012

9017906007

main90179-06007

9020106008

main90201-06008

9054109035

main90541-09035

9095001056

main90950-01056

9095001127

main90950-01127

9165140614

main91651-40614

9451100600

main94511-00600

9461110601

main94611-10601

9461310601

main94613-10601

30 parts on this diagram · 2 diagrams in section
