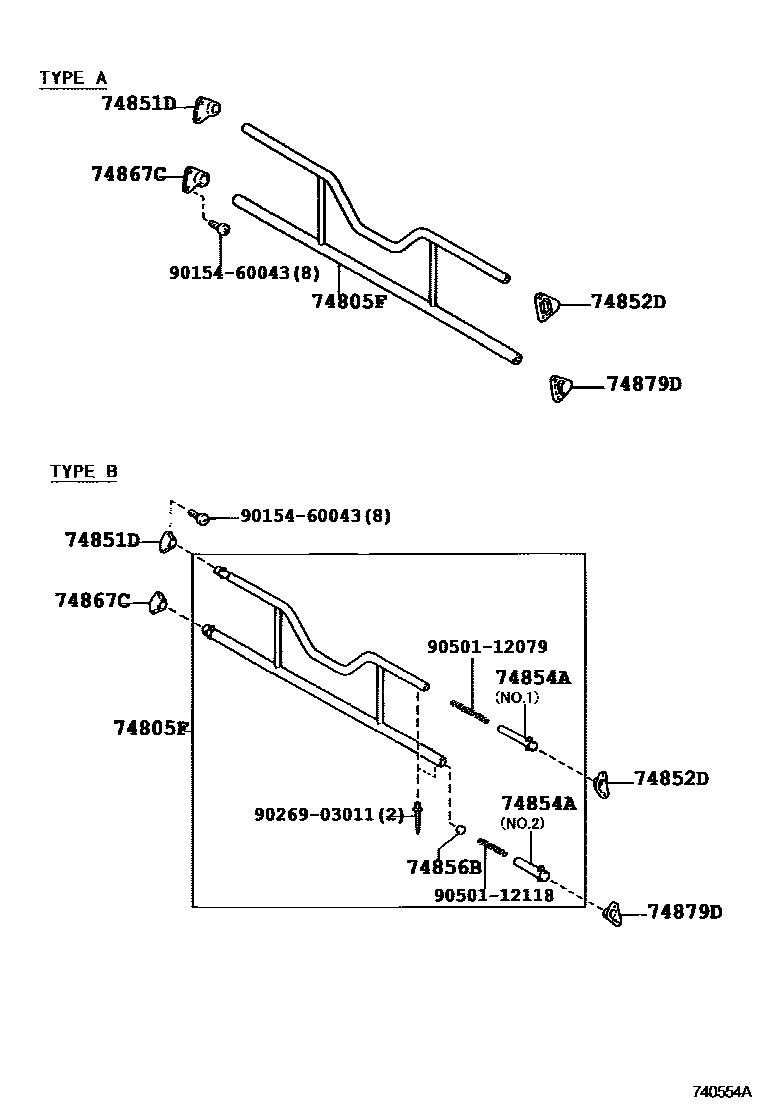

SEPARATOR & SEPARATOR CURTAIN
74805FBAR SUB-ASSY, SEPARATOR, A
TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1#
sub74805-95J18
main74805-95J18-B0iLH172..03S..GL;RZH113..4D..STD..GEN..EFI;LH113,RZH113..(GCC,GEN)..(CBR,DSL);LH172..RHD..SRF..4D..STD..GEN..DSL;LH102,103,112,RZH102,103,112..(03S,06S)..(GL,STD)..(C199308-200208
TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub74805-95J18
TYPE B:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub74810-95J05
74851DBRACKET, SEPARATOR BAR, UPPER RH
main74851-95J05-B0iLH102,103,112,113,RZH102,103,112,113..(03S,06S)..(GL,STD)..(CIS,GCC,GEN)199308-200602
BLUISH GRAY,TRIM1#
sub74851-95J05
74852DBRACKET, SEPARATOR BAR, UPPER LH
74854ASTOP, SEPARATOR
main74854-95J06-B0iLH172..06S..GL;LH113,172,RZH113..GCC;LH172,RZH113..4D..06S..STD..(DEFI,EFI)199907-200501
BLUISH GRAY,TRIM1#,NO.1
main74854-95J07-B0iLH172..06S..GL;LH113,172,RZH113..GCC;LH172,RZH113..4D..06S..STD..(DEFI,EFI)199907-200501
BLUISH GRAY,TRIM1#,NO.2
74856BPLATE, SPRING SET
74867CBRACKET, SEPARATOR BAR, LOWER
main74867-95J03-B0iLH102,103,112,113,RZH102,103,112,113..(03S,06S)..(GL,STD)..(CIS,GCC,GEN)199308-200602
BLUISH GRAY,TRIM1#
sub74867-95J03
74879DBRACKET, SEPARATOR BAR, LOWER LH
main74879-95J02-B0iLH113..03S..(GCC,GEN);LH102,103,112,172,RZH102,103,112,113..(03S,06S)..(GL,STD)..(GCC,GEN)199308-200602
BLUISH GRAY,TRIM1#
sub74879-95J02
9015460043
main90154-60043
9026903011
main90269-03011
9050112079
main90501-12079
9050112118
main90501-12118
11 parts on this diagram · 2 diagrams in section
