SEAT BELT

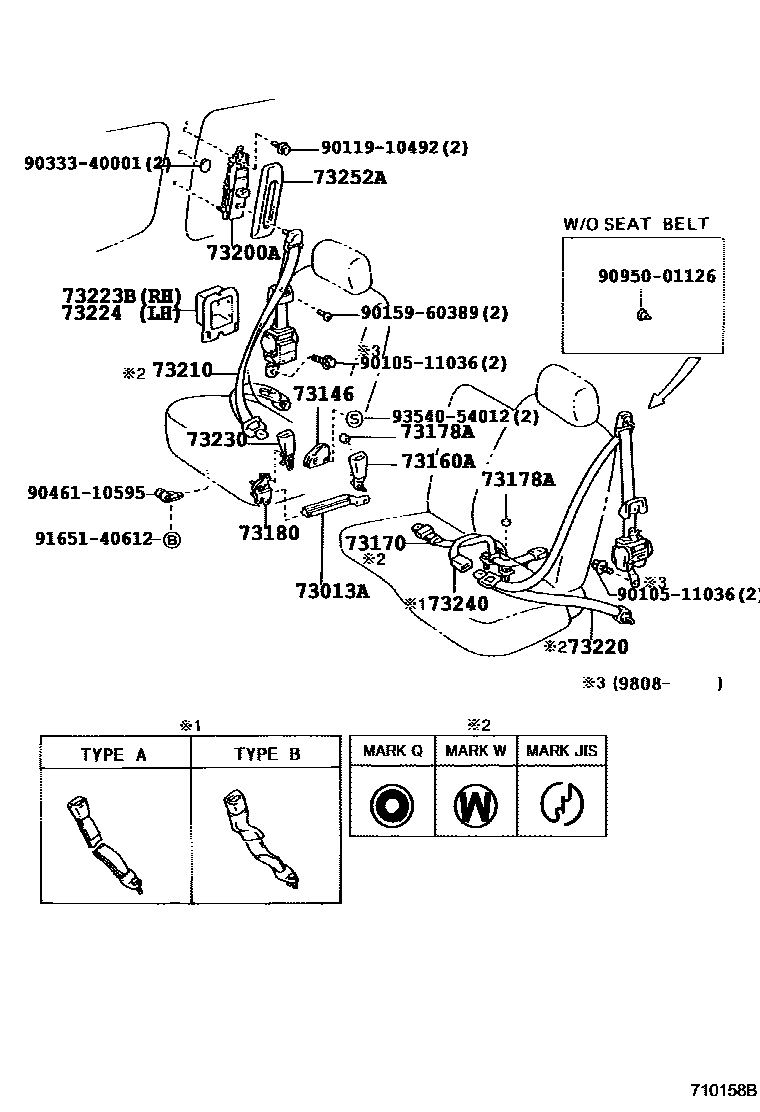

Parts diagram
73013APLATE SUB-ASSY, FRONT SEAT BELT INNER ANCHOR, RH
main73013-26020i199611-200501
main73013-26040i199808-200501
main73013-26040i200108-200501
W/O(PRETENSIONER SEAT BELT)
main73013-95J00-03i198908-199308
W(CENTER SEAT BELT),GRAY,TRIM1#
sub73013-95J00
main73013-95J00-C0i199308-200501
W(CENTER SEAT BELT),BLACK,TRIM1#
sub73013-95J00
main73013-95J01i200211
main73013-95J01-03i198908-199308
GRAY,TRIM1#
sub73013-95J01
main73013-95J01-C0i199308-200501
BLACK,TRIM1#
sub73013-95J01
main73013-95J01-C0i199801-199807
W(FRONT SEPARATE SEAT),BLACK,TRIM1#
sub73013-95J01
main73013-95J01-C0i200008-200501
BLACK,TRIM4#
sub73013-95J01
main73013-95J03-C0i199308-200501
BLACK,TRIM1#
sub73013-95J03
73146COVER, FRONT SEAT BELT INNER ANCHOR BRACKET, RH
main73146-95J00-03i198908-199308
GRAY,TRIM1#
sub73146-95J00
main73146-95J00-B0i199308-199907
BLUISH GRAY,TRIM1#
sub73146-95J00
main73146-95J00-B1i199907-200501
SHADOW GRAY,TRIM1#
sub73146-95J00
main73146-95J00-E1i199907-200501
ORCHID BROWN,TRIM4#
sub73146-95J00
73160ASEAT BELT ASSY, FRONT CENTER, RH
main73130-26030-B0i199808-199907
BLUISH GRAY,TRIM1#
sub73130-26030
main73130-26030-B1i199907-200501
SHADOW GRAY,TRIM1#
sub73130-26030
main73130-26040-B0i199808-199907
BLUISH GRAY,TRIM1#
sub73130-26040
main73130-26040-B1i199907-200501
SHADOW GRAY,TRIM1#
sub73130-26040
main73160-26020-B0i199308-199808
BLUISH GRAY,TRIM1#
main73160-26030-B0i199308-199808
BLUISH GRAY,TRIM1#
main73160-26050-B0i199611-199808
BLUISH GRAY,TRIM1#
main73160-26100-B0i199808-199907
BLUISH GRAY,TRIM1#
main73160-26100-B1i199907-200508
SHADOW GRAY,TRIM1#
main73160-95J11-03i198908-199308
GRAY,TRIM1#
main73160-95J13-03i198908-199308
GRAY,TRIM1#
sub73160-95J13
73170BELT ASSY, FRONT CENTER, LH
main73170-26050-B0i199308-199608
MARK JIS:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub73170-26051
main73170-26051-B0i199608-199808
BLUISH GRAY,TRIM1#
main73170-26070-B0i199308-199808
MARK W:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
main73170-26080-B0i199308-199808
BLUISH GRAY,TRIM1#
main73170-26090-B0i199308-199605
BLUISH GRAY,TRIM1#
sub73170-26091
main73170-26090-B0i199308-199605
NEW ZEALAND SPEC,BLUISH GRAY,TRIM1#
sub73170-26091
main73170-26091-B0i199605-199808
BLUISH GRAY,TRIM1#
main73170-26091-B0i199605-199808
NEW ZEALAND SPEC,BLUISH GRAY,TRIM1#
main73170-26110-B0i199808-199907
BLUISH GRAY,TRIM1#
sub73170-26110
main73170-26110-B1i199907-200501
BLUISH GRAY,TRIM1#
sub73170-26110
main73170-26120-B0i199808-199907
BLUISH GRAY,TRIM1#
sub73170-26121
main73170-26120-B1i199907-200304
BLUISH GRAY,TRIM1#
sub73170-26121
main73170-26121-B1i200304-200411
BLUISH GRAY,TRIM1#
sub73170-26122
main73170-26122-B1i200411-200508
BLUISH GRAY,TRIM1#
main73170-26130-B0i199808-199907
MARK JIS:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub73170-26130
main73170-26130-B1i199907-200501
MARK JIS:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub73170-26130
main73170-26140-B0i199808-199907
MARK W:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
main73170-26140-B1i199907-200501
MARK W:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
main73170-95J14-03i198908-199308
KENYA SPEC OR THAILAND SPEC,GRAY,TRIM1#
sub73170-95J16
main73170-95J15-03i198908-199308
GRAY,TRIM1#
main73170-95J16-03i198908-199308
GRAY,TRIM1#
main73170-95J17-03i198908-199308
GRAY,TRIM1#
main73170-95J18-03i198908-199308
GRAY,TRIM1#
sub73170-95J17
73178ACAP, SEAT BELT ANCHOR COVER
main73178-95J00i198908-200501
main73178-95J00i199808-200508
W(CENTER SEAT BELT)
73180BRACKET ASSY, SEAT BELT INNER ANCHOR, RH
main73011-12040i198908-200501
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-95J00-03i198908-199108
LIGHT GRAY,TRIM1#
sub73200-95J00
main73200-95J00-08i198908-199808
IVORY,TRIM1#
sub73200-95J00
main73200-95J00-13i198908-199308
GRAY,TRIM1#
sub73200-95J00
main73200-95J00-B1i199308-199907
BLUISH GRAY,TRIM1#
sub73200-95J00
main73200-95J00-B2i199308-199508
LT.GRAY,TRIM1#
sub73200-95J00
main73200-95J00-B5i199611-200501
LT.BLUISH GRAY,TRIM1#
sub73200-95J00
main73200-95J00-B5i199808-199907
LT.BLUISH GRAY,TRIM15
sub73200-95J00
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-26010-B0i199205-199308
W(*ELR),GRAY,TRIM1#
sub73210-26060
main73210-26022-B1i199611-199808
BLUISH GRAY,TRIM1#
sub73210-26022
main73210-26052-B0i199611-199808
BLUISH GRAY,TRIM1#
main73210-26060-B0i199308-199608
W(*ELR),BLUISH GRAY,TRIM1#
sub73210-26061
main73210-26061-B0i199608-199808
BLUISH GRAY,TRIM1#
main73210-26070-B0i199308-199311
W(CENTER SEAT BELT),BLUISH GRAY,TRIM1#
sub73210-26071
main73210-26071-B0i199311-199711
W(CENTER SEAT BELT),BLUISH GRAY,TRIM1#
sub73210-26072
main73210-26072-B0i199711-199808
W(*ELR),BLUISH GRAY,TRIM1#
main73210-26072-B0i199711-199808
BLUISH GRAY,TRIM1#
main73210-26100-B0i199402-199605
NEW ZEALAND SPEC,BLUISH GRAY,TRIM1#
sub73210-26101
main73210-26100-B0i199402-199605
BLUISH GRAY,TRIM1#
sub73210-26101
main73210-26101-B0i199605-199711
BLUISH GRAY,TRIM1#
sub73210-26102
main73210-26101-B0i199605-199711
NEW ZEALAND SPEC,BLUISH GRAY,TRIM1#
sub73210-26102
main73210-26102-B0i199711-199808
BLUISH GRAY,TRIM1#
main73210-26102-B0i199711-199808
NEW ZEALAND SPEC,BLUISH GRAY,TRIM1#
main73210-26110-B0i199402-199605
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
sub73210-26111
main73210-26111-B0i199605-199711
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
sub73210-26112
main73210-26112-B0i199711-199808
W(ADJUSTABLE SEAT BELT),BLUISH GRAY,TRIM1#
main73210-26200-B0i199508-199711
BLUISH GRAY,TRIM1#
sub73210-26201
main73210-26201-B0i199711-199808
BLUISH GRAY,TRIM1#
main73210-26250-B0i199808-199907
MARK Q:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub73210-26250
main73210-26250-B0i199808-199907
NEW ZEALAND SPEC;MARK Q:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub73210-26250
main73210-26250-B1i199907-200501
NEW ZEALAND SPEC;MARK Q:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub73210-26250
main73210-26250-B1i199907-200501
MARK Q:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub73210-26250
main73210-26330-B0i199808-199907
MARK W:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub73210-26330
main73210-26330-B1i199907-200508
MARK W:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub73210-26330
main73210-26330-B1i200208-200508
BLUISH GRAY,TRIM1#
sub73210-26330
main73210-26340-B0i199808-199907
MARK JIS:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub73210-26250
main73210-26340-B1i199907-200602
MARK JIS:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub73210-26250
main73210-26340-B1i200211-200602
BLUISH GRAY,TRIM1#
sub73210-26250
main73210-26370-B0i200008-200304
BLUISH GRAY,TRIM1#
sub73210-26371
main73210-26370-E0i200008-200304
DK. ROSE,TRIM4#
sub73210-26371
main73210-26371-B0i200304-200411
BLUISH GRAY,TRIM1#
sub73210-26372
main73210-26371-E0i200304-200411
DK. ROSE,TRIM4#
sub73210-26372
main73210-26372-B0i200411-200501
BLUISH GRAY,TRIM1#
sub73210-26372
main73210-26372-E0i200411-200501
DK. ROSE,TRIM4#
sub73210-26372
main73210-26390-B0i199808-199907
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
main73210-26400-B0i199808-199907
BLUISH GRAY,TRIM1#
main73210-26400-B1i199907-200508
BLUISH GRAY,TRIM1#
main73210-26420-B0i199808-199907
BLUISH GRAY,TRIM1#
sub73210-26420
main73210-26420-B1i199907-200501
BLUISH GRAY,TRIM1#
sub73210-26420
main73210-26430-B0i199808-199907
BLUISH GRAY,TRIM1#
main73210-26430-B1i199907-200008
BLUISH GRAY,TRIM1#
main73210-26430-E0i199907-200501
DK.ROSE,TRIM4#
main73210-26520-B0i200108-200501
BLUISH GRAY,TRIM1#
main73210-95J27-03i198908-199108
GRAY,TRIM1#
main73210-95J29-03i198908-199205
W(*ELR),GRAY,TRIM1#
sub73210-95J29
sub73210-26102
main73210-95J31-03i198908-199308
W(CENTER SEAT BELT),GRAY,TRIM1#
sub73210-26070
main73210-95J32-03i198908-199308
W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1#
sub73210-95J32
sub73210-26110
main73210-95J32-B0i199308-199402
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
sub73210-95J32
sub73210-26110
main73210-95J33-03i198908-199308
GRAY,TRIM1#
sub73210-95J33
sub73210-26100
main73210-95J33-B0i199308-199402
NEW ZEALAND SPEC,BLUISH GRAY,TRIM1#
sub73210-95J33
sub73210-26100
main73210-95J33-B0i199308-199402
BLUISH GRAY,TRIM1#
sub73210-95J33
sub73210-26100
73220BELT ASSY, FRONT SEAT OUTER, LH
main73210-26010-B0i199205-199308
W(*ELR),GRAY,TRIM1#
sub73210-26060
main73210-26022-B1i199611-199808
BLUISH GRAY,TRIM1#
sub73210-26022
main73210-26052-B0i199611-199808
BLUISH GRAY,TRIM1#
main73210-26060-B0i199308-199608
W(*ELR),BLUISH GRAY,TRIM1#
sub73210-26061
main73210-26061-B0i199608-199808
BLUISH GRAY,TRIM1#
main73210-26070-B0i199308-199311
W(CENTER SEAT BELT),BLUISH GRAY,TRIM1#
sub73210-26071
main73210-26071-B0i199311-199711
W(CENTER SEAT BELT),BLUISH GRAY,TRIM1#
sub73210-26072
main73210-26072-B0i199711-199808
W(*ELR),BLUISH GRAY,TRIM1#
main73210-26072-B0i199711-199808
BLUISH GRAY,TRIM1#
main73210-26100-B0i199402-199605
BLUISH GRAY,TRIM1#
sub73210-26101
main73210-26101-B0i199605-199708
NEW ZEALAND SPEC,BLUISH GRAY,TRIM1#
sub73210-26102
main73210-26101-B0i199605-199608
BLUISH GRAY,TRIM1#
sub73210-26102
main73210-26102-B0i199708-199808
NEW ZEALAND SPEC,BLUISH GRAY,TRIM1#
main73210-26102-B0i199708-199808
BLUISH GRAY,TRIM1#
main73210-26110-B0i199402-199605
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
sub73210-26111
main73210-26111-B0i199605-199711
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
sub73210-26112
main73210-26112-B0i199708-199808
W(ADJUSTABLE SEAT BELT),BLUISH GRAY,TRIM1#
main73210-26200-B0i199508-199708
BLUISH GRAY,TRIM1#
sub73210-26201
main73210-26201-B0i199708-199808
BLUISH GRAY,TRIM1#
main73210-95J27-03i198908-199108
GRAY,TRIM1#
main73210-95J29-03i198908-199205
W(*ELR),GRAY,TRIM1#
sub73210-95J29
sub73210-26102
main73210-95J31-03i198908-199301
GRAY,TRIM1#
sub73210-26070
main73210-95J31-03i199301-199308
W(CENTER SEAT BELT),GRAY,TRIM1#
sub73210-26070
main73210-95J32-03i198908-199308
W(ADJUSTABLE SEAT BELT ANCHOR),GRAY,TRIM1#
sub73210-95J32
sub73210-26110
main73210-95J32-B0i199308-199402
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
sub73210-95J32
sub73210-26110
main73210-95J33-03i198908-199308
GRAY,TRIM1#
sub73210-95J33
sub73210-26100
main73210-95J33-B0i199308-199402
BLUISH GRAY,TRIM1#
sub73210-95J33
sub73210-26100
main73210-95J33-B0i199308-199402
NEW ZEALAND SPEC,BLUISH GRAY,TRIM1#
sub73210-95J33
sub73210-26100
main73220-26180-B0i199808-199907
BLUISH GRAY,TRIM1#
sub73220-26180
main73220-26180-B0i199808-199907
NEW ZEALAND SPEC,BLUISH GRAY,TRIM1#
sub73220-26180
main73220-26180-B1i199907-200501
BLUISH GRAY,TRIM1#
sub73220-26180
main73220-26180-B1i199907-200501
NEW ZEALAND SPEC,BLUISH GRAY,TRIM1#
sub73220-26180
main73220-26290-B0i199808-199907
W(ADJUSTABLE SEAT BELT ANCHOR),BLUISH GRAY,TRIM1#
main73220-26300-B0i199808-199907
MARK W:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub73220-26300
main73220-26300-B1i199907-200508
MARK W:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub73220-26300
main73220-26300-B1i200208-200508
BLUISH GRAY,TRIM1#
sub73220-26300
main73220-26330-B0i199808-199907
BLUISH GRAY,TRIM1#
sub73220-26290
main73220-26330-B1i199907-200501
BLUISH GRAY,TRIM1#
sub73220-26290
main73220-26340-B0i199808-199907
MARK JIS:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub73220-26340
main73220-26340-B1i199907-200602
MARK JIS:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub73220-26340
main73220-26340-E0i199907-200501
MARK JIS:REFER TO ILLUSTRATION,DK.ROSE,TRIM4#
sub73220-26340
main73220-26360-B0i200008-200304
BLUISH GRAY,TRIM1#
sub73220-26361
main73220-26360-E0i200008-200304
DK. ROSE,TRIM4#
sub73220-26361
main73220-26361-B0i200304-200411
BLUISH GRAY,TRIM1#
sub73220-26362
main73220-26361-E0i200304-200411
DK. ROSE,TRIM4#
sub73220-26362
main73220-26362-B0i200411-200501
BLUISH GRAY,TRIM1#
sub73220-26362
main73220-26362-E0i200411-200501
DK. ROSE,TRIM4#
sub73220-26362
73223BCOVER, FRONT SEAT BELT RETRACTOR, RH
main73223-95J01i198908-199808
73224COVER, FRONT SEAT BELT RETRACTOR, LH
main73224-95J00i198908-199808
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-26040-B0i199308-199808
TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
main73230-26040-B0i199611-199808
BLUISH GRAY,TRIM1#
main73230-26050-B0i199308-199808
TYPE B:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
main73230-26130-B0i199808-199907
W(PASSENGER SEAT=ADJUSTER TYPE),BLUISH GRAY,TRIM1#
sub73230-26130
main73230-26130-B1i199907-200602
W(PASSENGER SEAT=ADJUSTER TYPE),SHADOW GRAY,TRIM1#
sub73230-26130
main73230-26130-B1i200108-200602
SHADOW GRAY,TRIM1#
sub73230-26130
main73230-26130-E0i199907-200501
W(PASSENGER SEAT=ADJUSTER TYPE),ORCHID BROWN,TRIM4#
sub73230-26130
main73230-26130-E0i200008-200501
ORCHID BROWN,TRIM4#
sub73230-26130
main73230-26170-B1i199808-199907
BLUISH GRAY,TRIM1#
main73230-26170-B2i199907-200508
SHADOW GRAY,TRIM1#
main73230-95J16-03i198908-199308
GRAY,TRIM1#
sub73230-95J16
main73230-95J17-03i198908-199308
GRAY,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-26012-B0i199611-199808
BLUISH GRAY,TRIM1#
main73240-26020-03i199010-199108
GRAY,TRIM1#
sub73240-26020
sub73240-26021
main73240-26040-B0i199808-199907
TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub73240-26040
main73240-26040-B1i199907-200602
TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub73240-26040
main73240-26050-B0i199308-199808
BLUISH GRAY,TRIM1#
main73240-26070-B0i199308-199808
BLUISH GRAY,TRIM1#
main73240-26090-B0i199611-199808
W(CENTER SEAT BELT),BLUISH GRAY,TRIM1#
main73240-26090-B0i199308-199808
TYPE B:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
main73240-26100-B0i199308-199808
TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
sub73240-26100
main73240-26101-B0i199608-199808
BLUISH GRAY,TRIM1#
sub73240-26100
main73240-26110-B0i199808-199907
W(CENTER SEAT BELT),BLUISH GRAY,TRIM1#
sub73240-26110
main73240-26110-B1i199907-200501
W(CENTER SEAT BELT),BLUISH GRAY,TRIM1#
sub73240-26110
main73240-26110-B1i200108-200501
BLUISH GRAY,TRIM1#
sub73240-26110
main73240-26120-B0i199808-199907
BLUISH GRAY,TRIM1#
sub73240-26120
main73240-26120-B3i199907-200501
SHADOW GRAY,TRIM1#
sub73240-26120
main73240-26120-E1i199907-200501
ORCHID BROWN,TRIM4#
sub73240-26120
main73240-26130-B0i199808-199907
BLUISH GRAY,TRIM1#
sub73240-26130
main73240-26130-B1i199907-200501
SHADOW GRAY,TRIM1#
sub73240-26130
main73240-26140-B0i199808-199907
BLUISH GRAY,TRIM1#
sub73240-26140
main73240-26140-B1i199907-200508
SHADOW GRAY,TRIM1#
sub73240-26140
main73240-26140-E0i200008-200501
ORCHID BROWN,TRIM4#
sub73240-26140
main73240-26150-B0i199808-199907
TYPE B:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
main73240-26150-B1i199907-200501
TYPE B:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#
main73240-95J26-03i198908-199308
GRAY,TRIM1#
main73240-95J27-03i198908-199308
W(BACLE SWITCH),GRAY,TRIM1#
main73240-95J28-03i198908-199308
TYPE A:REFER TO ILLUSTRATION,GRAY,TRIM1#
sub73240-95J28
main73240-95J29-03i198908-199010
GRAY,TRIM1#
sub73240-95J29
main73240-95J31-03i198908-199308
TYPE B:REFER TO ILLUSTRATION,GRAY,TRIM1#
73252ACOVER, SHOULDER BELT ANCHOR ADJUST
main73252-95J00-03i198908-199108
LIGHT GRAY,TRIM1#
sub73252-95J00
main73252-95J00-08i198908-199808
IVORY,TRIM1#
sub73252-95J00
main73252-95J00-13i198908-199308
GRAY,TRIM1#
sub73252-95J00
main73252-95J00-B1i199308-199907
BLUISH GRAY,TRIM1#
sub73252-95J00
main73252-95J00-B2i199308-199508
LT.GRAY,TRIM1#
sub73252-95J00
main73252-95J00-B4i199808-199907
LT.BLUISH GRAY,TRIM15
sub73252-95J00
main73252-95J00-B4i199611-200501
LT.BLUISH GRAY,TRIM1#
sub73252-95J00
9010511036
main90105-11036
9011910492
main90119-10492
9015960389
main90159-60389
9033340001
main90333-40001
9046110595
main90461-10595
9095001126
main90950-01126
9165140612
main91651-40612
9354054012
main93540-54012

22 parts on this diagram · 15 diagrams in section

SEAT BELT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
