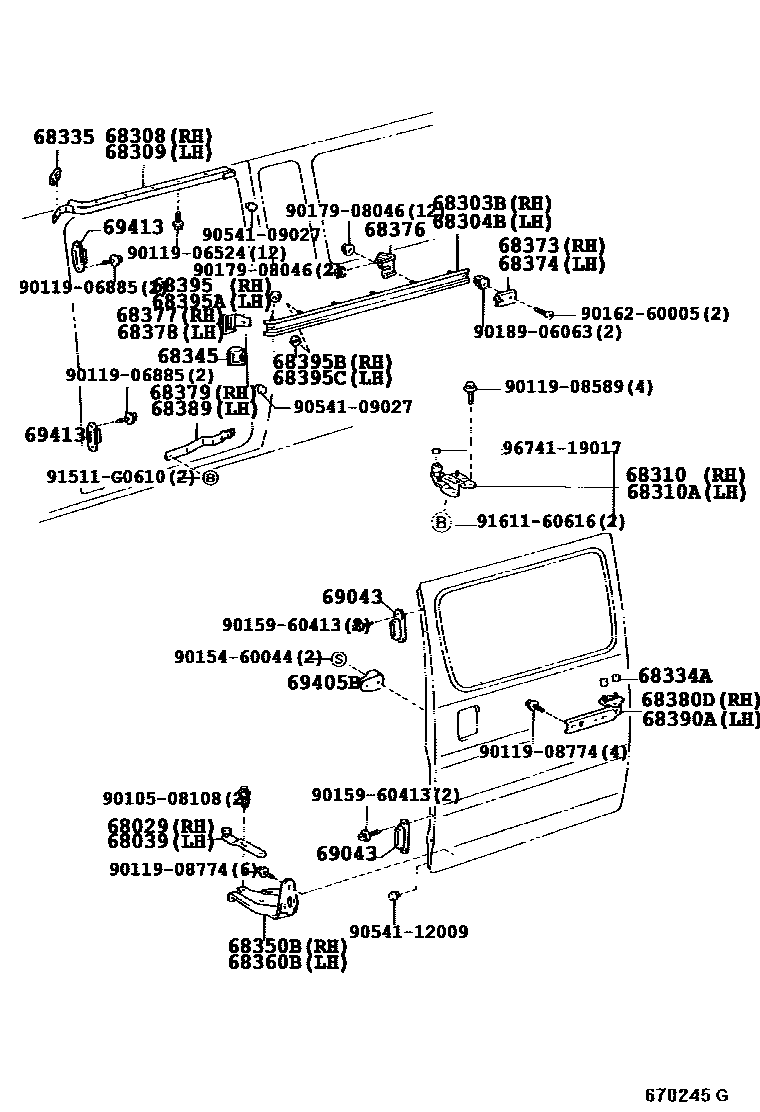

SLIDE ROLLER & RAIL

0001 1 0002 1

68029BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER

main68029-26010iRZH103..GEN;RZH102..4D..06S;LH103,RZH102..5D;LH102,104,105,11#,RZH104,105,11#..LHD199205-199608

sub68029-26040

main68029-26040iRZH103..5D..EFI;LH103,RZH102..5D;RZH115..STD..CIS;RZH105,113..LHD..STD..(CIS,GEN)..EFI;LH174,RZH102,103..(06S,09S,10S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH104,1199608-200202

sub68029-26050

main68029-26050iRZH103..03S..GEN200202-200508

main68029-95J00iLH103,RZH102,103..5D;LH102,104,112,114,RZH104,112,114..LHD198908-199205

68039BASE SUB-ASSY, SLIDE DOOR LOWER ROLLER, LH

main68029-26010iRZH112..06S;RZH102..5D..06S;RZH102..03S,09S;RZH112..5D..03S;RZH112..RHD..03S;LH112,113,RZH113..5D;LH102,103,104,11#,125,RZH103,104,113,114,115,125..RHD199205-199608

sub68029-26040

main68029-26040iRZH112..06S;LH172..03S..GL;RZH112..RHD..03S;RZH113..RHD..4D..STD;LH184,RZH102..03S,09S,15S;LH112,113,RZH113..5D..(CBR,DSL);LH172..RHD..SRF..4D..STD..GEN..DSL;LH103,199608-200202

sub68029-26050

main68029-26050iRZH103..03S..GEN200202-200208

main68029-95J00iRZH102;RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH10#,11#,125,RZH103,104,113,114,125..RHD198908-199205

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-26050-A0iLH154..10S200008-200501

WHITE PM.,2GC

main68303-26050-A1iLH154..10S200008-200501

SUPER WHITE 2,2BZ

main68303-26050-B0iLH154..10S200008-200501

WARM GRAY PEARL ME.,2BY

main68303-26070iRZH103..5D..EFI;LH103,RZH102..5D;RZH115..STD..CIS;RZH105,113..LHD..4D..STD..(CIS,GEN)..EFI;LH174,RZH102,103..(06S,09S,10S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH1199806-200508

main68303-95J02iRZH103..5D..EFI;RZH103..GEN..CBR;LH103,RZH102..5D;RZH102..4D..06S..5F;LH102,104,105,11#,RZH104,105,11#..LHD198908-199806

sub68303-26070

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-26031-A0iRZH153199808-200501

SUPER WHITE 2,2BZ

main68304-26031-A1iRZH153199907-200008

IVORY,2GW

main68304-26031-A2iRZH153199907-200501

WHITE PM.,2GC

main68304-26031-B0iRZH153199907-200501

WARM GRAY PEARL ME.,2BY

main68304-26031-G0iRZH153199808-199907

LT GREEN M,2AY

main68304-26080iRZH113..5D;RZH113..RHD..4D;RZH112..RHD..03S;LH112,172,RZH102,112..LHD..5D;LH112,114,115,172,174,RZH104,114..RHD;LH103,113,162,RZH103,105..STD..(ARL,GCC,GEN)..(DSL,E199806-200208

main68304-26090iLH125,184,RZH125,135199806-200501

main68304-95J03iRZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH112,113,RZH102,113..LHD..5D;LH10#,11#,RZH102,103,104,113,114,115,153..RHD198908-199806

sub68304-26080

main68304-95J04iLH125,RZH125,135198908-199806

sub68304-26090

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-26010iRZH102,103..03S..GEN199911-200508

main68308-95J00iRZH103..5D..EFI;RZH103..GEN..CBR;LH103,RZH102..5D;RZH115..LHD..CBR;RZH105,115..STD..CIS;LH102,104,105,11#,166,176,RZH104,112,113,114..LHD;LH174,RZH102,105..4D..(06S198908-199911

68309RAIL SUB-ASSY, SLIDE DOOR, UPPER LH

main68309-26010iRZH113..5D;RZH113..RHD..4D;RZH112..RHD..03S;LH112,172,RZH102,112..LHD..5D;LH112,114,115,172,174,RZH104,105,114..RHD;LH103,113,125,162,184,RZH103,125,135,153..(03S,0199911-200208

main68309-95J00iRZH112..06S;RZH112..RHD..03S;LH112,172,RZH102,113..5D;LH112,114,115,172,174,RZH104,105,113,114..RHD;LH103,113,125,162,184,RZH103,125,135,153..(03S,06S,12S,14S,15S).198908-199911

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-26030iRZH103..GEN;LH172..LHD..4D;RZH113..RHD..5D;LH103,162,172..5D;LH102,104,105,11#,154,164,166,174,176,RZH102,104,105,11#,155..LHD199508-200508

main68310-95J03iLH103,RZH102,103..5D;LH102,104,112,114,RZH104,112,114..LHD198908-199201

sub68310-95J04

main68310-95J04iLH10#,11#,125,RZH10#,11#,125199201-199508

sub68310-26030

68310AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68310-26030iRZH112..4D..06S199508-200208

main68310-95J03iRZH102;RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH10#,11#,125,RZH103,104,113,114,125..RHD198908-199201

sub68310-95J04

main68310-95J04iRZH112..06S;LH113,RZH102;RZH112..5D..03S;RZH112..RHD..03S;LH112,RZH113..5D;LH102,103,104,112,114,115,125,RZH103,104,113,114,125..RHD199201-199508

sub68310-26030

68334AROLLER, FRONT SLIDE DOOR CENTER GUIDE

main68334-95700iRZH112..4D..06S199907-200602

LH

main68334-95700iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908

main68334-95700iRZH103..GEN;LH172..LHD..4D;RZH113..RHD..5D;LH103,162,172..5D;LH102,104,105,11#,154,164,166,174,176,RZH102,104,105,11#,155..LHD199907-200508

RH

68335PAD, SLIDE DOOR UPPER RAIL

main68335-95702iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#198908-200208

68345COVER, SLIDE DOOR CENTER RAIL

main68345-95J01-03iLH10#,11#,125,RZH10#,11#,125..4D..STD198908-199308

GRAY,TRIM1#

sub68345-95J01

main68345-95J01-B0iLH10#,11#,125,RZH10#,11#,125..4D199308-199508

BLUISH GRAY,TRIM1#

sub68345-95J01

main68345-95J01-C0iRZH102..4D;LH10#,11#,125,RZH103,104,105,11#,125,153..4D..(03S,06S,12S,14S,15S)199508-200508

BLACK,TRIM1#

sub68345-95J01

68350BROLLER ASSY, SLIDE DOOR, LOWER RH

main68350-26020iRZH103..03S..GEN199205-200202

sub68350-26060

main68350-26030iRZH114..15S..GL;RZH115..STD..GEN;RZH103,104,105..GL199511-200202

CHINA SPEC

sub68350-26070

main68350-26030iLH104,112,114,RZH104,112,114..SG..CIS199308-199511

sub68350-26070

main68350-26060iRZH103..03S..GEN200202-200508

main68350-26060iRZH115..12S200208-200508

VIETNAM SPEC

main68350-26070iRZH105..GL;RZH115..STD..GEN200202-200508

CHINA SPEC

main68350-95J04iLH103,RZH102,103..5D;LH102,104,112,114,RZH104,112,114..LHD198908-199205

sub68350-26020

sub68029-26010

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-26030iRZH102..03S,09S;RZH102..5D..06S;RZH112..5D..03S;RZH112..RHD..03S;RZH112..06S..GEN;RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;L199205-200202

sub68360-26050

main68360-26050iRZH112..4D..06S200202-200208

main68360-26060iRZH112..GL199511-199808

CHINA SPEC

main68360-26060iLH112,RZH112..06S..CIS199308-199508

main68360-95J06iRZH102;RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH10#,11#,125,RZH103,104,113,114,125..RHD198908-199205

sub68360-26030

sub68029-26010

68373MOULDING, SLIDE RAIL END, RH

main68373-26040-A0iLH154..10S200008-200501

WHITE PM.,2GC

main68373-26040-A1iLH154..10S200008-200501

SUPER WHITE 2,2BZ

main68373-26040-B0iLH154..10S200008-200501

WARM GRAY PEARL ME.,2BY

main68373-26060iRZH103..5D..EFI;LH103,RZH102..5D;RZH115..STD..CIS;RZH105,113..LHD..4D..STD..(CIS,GEN)..EFI;LH174,RZH102,103..(06S,09S,10S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH1199806-200508

main68373-95J02iRZH103..5D..EFI;RZH103..GEN..CBR;LH103,RZH102..5D;RZH102..4D..06S..5F;LH102,104,105,11#,RZH104,105,11#..LHD198908-199806

68374MOULDING, SLIDE RAIL END, LH

main68374-26031-A0iRZH153199808-200501

SUPER WHITE 2,2BZ

sub68374-26060

main68374-26031-A1iRZH153199907-200008

IVORY,2GW

sub68374-26060

main68374-26031-A2iRZH153199907-200501

WHITE PM.,2GC

sub68374-26060

main68374-26031-B0iRZH153199907-200501

WARM GRAY PEARL ME.,2BY

sub68374-26060

main68374-26031-G0iRZH153199808-199907

LT GREEN M,2AY

sub68374-26060

main68374-26060iRZH102..03S;RZH112..06S;RZH112..RHD..03S;LH112,113,RZH113..5D;LH103,11#,125,172,184,RZH103,104,113,114,115,125,135,153..RHD199806-200208

main68374-95J01iRZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH112,113,RZH102,113..LHD..5D;LH10#,11#,125,RZH102,103,104,113,114,115,125,135,153..RHD198908-199806

68376BRACKET, SLIDE DOOR CENTER RAIL

main68376-95J00iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

68377PAD, SLIDE DOOR CENTER RAIL, FRONT

main68377-95J02iRZH103..5D..EFI;RZH103..GEN..CBR;LH103,RZH102..5D;RZH115..STD..CIS;LH174,RZH102..4D..(06S,10S)..5F;RZH105,113..LHD..4D..(DX,STD)..(CIS,GEN)..EFI;LH102,104,105,11#,1198908-200508

68378PAD, SLIDE DOOR RAIL

main68378-95J02iRZH112..4D..06S198908-200208

68379SPRING, SLIDE DOOR CATCH, RH

main68379-95J01iRZH103..GEN;LH172..LHD..4D;RZH113..RHD..5D;LH103,162,172..5D;LH102,104,105,11#,154,164,166,174,176,RZH102,104,105,11#,155..LHD198908-200508

68380DHINGE ASSY, SLIDE DOOR, CENTER RH

main68380-26020iRZH103..5D..EFI;LH103,RZH102..5D;RZH115..STD..CIS;RZH105,113..LHD..4D..STD..(CIS,GEN)..EFI;LH174,RZH102,103..(06S,09S,10S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH1199608-200508

main68380-95J04iRZH103..GEN;LH103,RZH102..5D;RZH102..4D..06S..5F;LH102,104,105,11#,RZH104,105,11#..LHD198908-199608

sub68380-26020

68389SPRING, SLIDE DOOR CATCH, LH

main68389-95J01iRZH112..4D..06S198908-200208

68390AHINGE ASSY, SLIDE DOOR, CENTER LH

main68390-26030iRZH112..06S;LH172..03S..GL;RZH112..RHD..SP;RZH113..RHD..4D..STD;LH184,RZH102..03S,09S,15S;LH112,113,RZH113..5D..(CBR,DSL);LH172..RHD..SRF..4D..STD..GEN..DSL;LH103,1199608-200208

main68390-95J02iRZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH112,113,RZH102,113..LHD..5D;LH10#,11#,125,RZH102,103,104,113,114,115,125..RHD198908-199608

sub68390-26030

68395PACKING, SLIDE DOOR CENTER RAIL

main68395-26010iRZH103..5D..EFI;RZH103..GEN..CBR;LH103,RZH102..5D;RZH115..STD..CIS;LH174,RZH102..4D..(06S,10S)..5F;RZH105,113..LHD..4D..(DX,STD)..(CIS,GEN)..EFI;LH102,104,105,11#,1198908-200508

68395APACKING, SLIDE DOOR CENTER RAIL

main68395-26010iRZH112..06S;RZH112..RHD..SP;RZH112..5D..03S;RZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH112,113,RZH102,113..LHD..5D..(CBR,DSL198908-200208

68395BPACKING, SLIDE DOOR CENTER RAIL

main68395-95J00iRZH103..5D..EFI;RZH103..GEN..CBR;LH103,RZH102..5D;RZH115..STD..CIS;LH174,RZH102..4D..(06S,10S)..5F;RZH105,113..LHD..4D..(DX,STD)..(CIS,GEN)..EFI;LH102,104,105,11#,1198908-200508

68395CPACKING, SLIDE DOOR CENTER RAIL

main68395-95J00iLH125,184,RZH125,135198908-200501

69043STOPPER SUB-ASSY, SLIDE DOOR DOWN FEMALE

main69043-95J00iLH103,112,113,162,172,RZH102,103,112,113..5D198908-200508

W(POWER DOOR LOCK)

main69043-95J00iLH10#,11#,125,RZH10#,11#,125..DX,STD199308-199608

69405BSTOP SUB-ASSY, SLIDE DOOR OPEN

main69405-95J05iRZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..4D..(DSL,EFI);LH174,RZH103,105..(03S,05S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,11198908-200508

69413STOP, SLIDE DOOR DOWN MALE

main69416-26010iRZH114..15S;LH172..4D..03S..STD;RZH104,105,112..03S,12S;LH10#,11#,125,16#,174,176,184,RZH102,103,113,115,125..4D..STD199608-200508

W(POWER DOOR LOCK)

main69416-26010iRZH113..5D..CBR;LH103,112,113,RZH102,103,112..5D199608

main69416-95J01iLH10#,11#,125,RZH10#,11#,125..4D198908-199608

W(POWER DOOR LOCK)

main69416-95J01iLH125..ARL;LH10#,11#,RZH10#,11#,125..4D..(DX,STD)198908-199608

9010508108

main90105-08108

9011906524

main90119-06524

9011906885

main90119-06885

9011908589

main90119-08589

9011908774

main90119-08774

9015460044

main90154-60044

9015960413

main90159-60413

9016260005

main90162-60005

9017908046

main90179-08046

9018906063

main90189-06063

9054109027

main90541-09027

9054112009

main90541-12009

91511G0610

main91511-G0610

9161160616

main91611-60616

9674119017

main96741-19017

44 parts on this diagram · 2 diagrams in section
