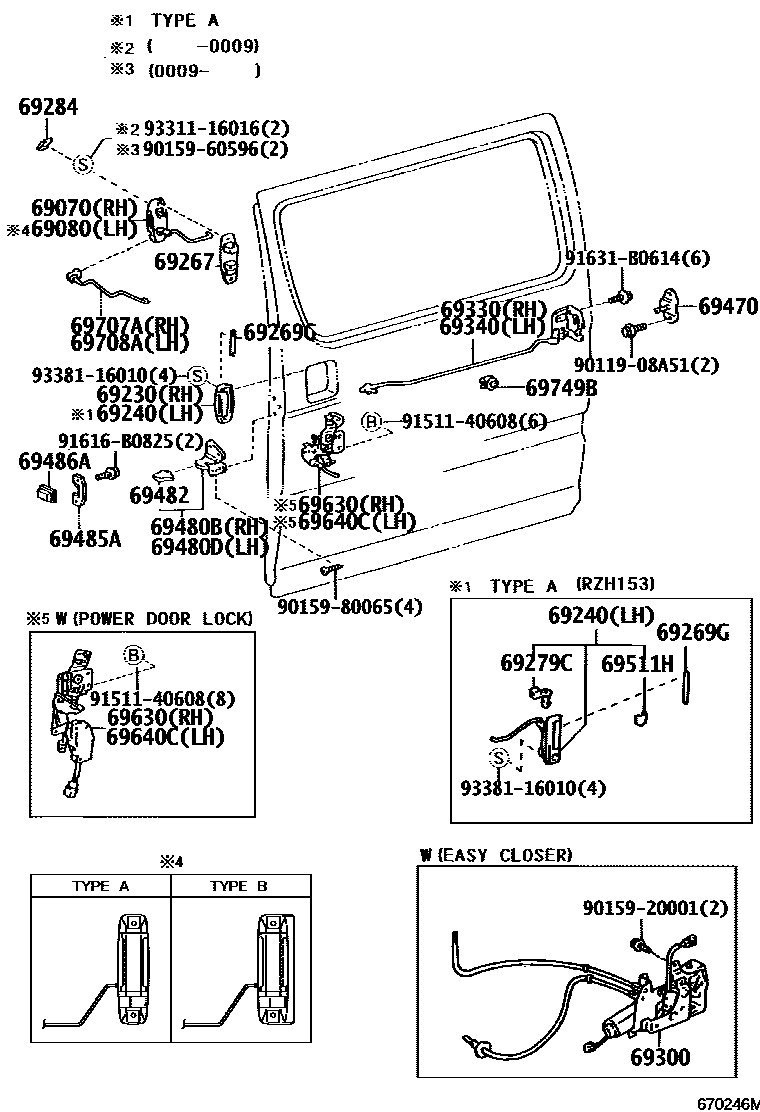

REAR DOOR LOCK & HANDLE

69070HANDLE ASSY, SLIDE DOOR, INSIDE, RH

main69070-26030-B0iLH103,RZH102,103..5D;RZH102,114,115..LHD..(06S,15S);LH102,104,105,11#,166,176,RZH104,105,112,113..LHD..(03S,06S,12S,15S)199608-199907

BLUISH GRAY,TRIM1#

sub69070-26030

main69070-26030-B2iRZH102,103..03S..GEN199907-200508

SHADOW GRAY,TRIM1#

sub69070-26030

main69070-26040-B0iLH102,174,RZH102,103,114,115..LHD..(09S,10S,12S)199608-199907

BLUISH GRAY,TRIM1#

sub69070-26040

main69070-26040-B1iLH174,RZH102,115..SRF..(10S,12S);LH154,RZH103,114,155..09S,11S,12S199907-200508

SHADOW GRAY,TRIM1#

sub69070-26040

main69070-26040-E0iLH154..10S200008-200501

ORCHID BROWN,TRIM4#

sub69070-26040

main69070-95J03-03iLH103,RZH102,103..5D;LH102,104,112,114,RZH104,112,114..LHD198908-199308

GRAY,TRIM1#

sub69070-95J03

main69070-95J03-B0iRZH102..06S;LH103,RZH102,103..5D;LH102,104,105,11#,RZH104,105,11#..LHD199308-199608

BLUISH GRAY,TRIM1#

sub69070-95J03

main69070-95J05-B0iRZH103..SGL199508-199608

BLUISH GRAY,TRIM1#

sub69070-95J05

69080HANDLE ASSY, SLIDE DOOR, INSIDE, LH

main69080-26030-B0iRZH112..06S;RZH102..03S,09S;RZH112..RHD..03S;LH112,113,RZH113..5D;LH103,11#,125,RZH103,104,113,114,115,125..RHD199608-199907

TYPE A:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#

sub69080-26030

main69080-26030-B2iRZH112..4D..06S199907-200208

TYPE A:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1#

sub69080-26030

main69080-26040-B0iRZH135,153199611-199907

TYPE B:REFER TO ILLUSTRATION,BLUISH GRAY,TRIM1#

sub69080-26040

main69080-26040-B1iRZH135199907-200501

TYPE B:REFER TO ILLUSTRATION,SHADOW GRAY,TRIM1#

sub69080-26040

main69080-26040-E1iRZH153199907-200501

TYPE B:REFER TO ILLUSTRATION,ORCHID BROWN,TRIM4#

sub69080-26040

main69080-95J03-03iRZH102;RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH10#,11#,125,RZH103,104,113,114,125..RHD..STD198908-199308

GRAY,TRIM1#

sub69080-95J03

main69080-95J03-B0iRZH112..06S;RZH102..03S,09S;RZH112..RHD..03S;RZH112..03S..CIS;LH112,113,RZH113..5D;LH102,103,11#,125,RZH103,104,113,114,115,125..RHD199308-199608

BLUISH GRAY,TRIM1#

sub69080-95J03

main69080-95J05-03iRZH103..GL198908-199108

GRAY,TRIM1#

sub69080-95J05

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-26020iRZH103..03S..GEN199608-200202

NO PAINT REQ.

main69230-26040-A0iLH154..10S200008-200202

WHITE PM.,2GC

main69230-26040-B0iLH154..10S200008-200202

WARM GRAY PEARL ME.,2BY

main69230-26050iRZH103..03S..GEN200202-200508

NO PAINT REQ.

main69230-26060-A0iLH154..10S200202-200501

WHITE PM.,2GC

main69230-26060-A1iLH154..10S200202-200501

SUPER WHITE 2,2BZ

main69230-26060-B0iLH154..10S200202-200501

WARM GRAY PEARL ME.,2BY

main69230-95J01iRZH103..GEN;LH103,RZH102..5D;RZH102..4D..06S..5F;LH102,104,105,11#,RZH104,105,11#..LHD198908-199608

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-26040iRZH112..06S;RZH102..03S,09S;RZH112..RHD..03S;LH112,113,RZH113..5D;LH103,11#,125,172,184,RZH103,104,113,114,115,125,135,153..RHD199608-200202

BLACK, NO PAINT REQ.

main69240-26050-A0iRZH153199808-199907

TYPE A:REFER TO ILLUSTRATION,SUPER WHITE 2,2BZ

main69240-26050-A1iRZH153199907-200008

TYPE A:REFER TO ILLUSTRATION,IVORY,2GW

main69240-26050-A2iRZH153200008-200202

TYPE A:REFER TO ILLUSTRATION,WHITE PM.,2GC

main69240-26050-G0iRZH153199808-199907

TYPE A:REFER TO ILLUSTRATION,LT GREEN M,2AY

main69240-26060iRZH112..4D..06S200202-200208

BLACK, NO PAINT REQ.

main69240-26070-A0iRZH153200202-200501

WHITE PM.,2GC

sub69240-26100

main69240-26070-A2iRZH153200202-200501

SUPER WHITE 2,2BZ

sub69240-26100

main69240-26070-B0iRZH153200202-200501

WARM GRAY PEARL ME.,2BY

sub69240-26100

main69240-95J01iRZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH112,113,RZH102,113..LHD..5D;LH10#,11#,125,RZH102,103,104,113,114,115,125..RHD198908-199608

69267SEAL, SLIDE DOOR INSIDE HANDLE, NO.1

main69267-26010iLH172..LHD..4D;RZH113..RHD..5D;LH103,162,172,RZH103..5D;LH174,RZH102,114,115..LHD..(03S,06S,15S);LH102,104,105,11#,154,164,166,176,RZH104,105,112,113..LHD..(03S,06S199308-200508

RH

main69267-95J01iLH103,RZH102,103..5D;LH102,104,112,114,RZH104,112,114..LHD198908-199308

RH

sub69267-26010

main69268-95J00iRZH102;RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH10#,11#,125,RZH103,104,113,114,125..RHD198908-199308

LH

sub69268-95J01

main69268-95J01iRZH135,153199308-200501

LH

main69268-95J01iRZH112..4D..06S199907-200208

69269GSEAL, DOOR INSIDE HANDLE

main69268-95J01iRZH103,135,153..RHD..GL198910-199808

main69269-95J01iRZH103..GL198908-198910

sub69268-95J01

69279CSNAP, SLIDE DOOR INSIDE HANDLE LINK, RH

main69279-10010iRZH153199808-200501

69284PLUG, SLIDE DOOR INSIDE HANDLE

main69284-95J00-03iLH10#,11#,125,RZH10#,11#,125..STD198908-199308

GRAY,TRIM1#

sub69284-95J00

main69284-95J00-B0iLH10#,11#,125,166,17#,184,RZH10#,11#,125,135,153199308-199907

BLUISH GRAY,TRIM1#

sub69284-95J00

main69284-95J00-B3iLH103..4D..GEN;RZH102,103..03S..GEN199907-200208

SHADOW GRAY,TRIM1#

sub69284-95J00

main69284-95J00-E3iLH154,RZH153..03S,10S199907-200501

ORCHID BROWN,TRIM4#

sub69284-95J00

69300LOCK ASSY, POWER SLIDE DOOR, LH

main69300-26110iRZH153200208-200501

69330LOCK ASSY, REAR DOOR, RH

main69330-95J00iRZH115..12S198908-200508

main69330-95J01iRZH103,104,105,112,114..GL;RZH114..LHD..SRF..STD..GEN199308-200508

CHINA SPEC

69340LOCK ASSY, REAR DOOR, LH

main69340-95J01iRZH112..4D..06S198908-200208

main69340-95J02iRZH112..5D199511-199808

CHINA SPEC

main69340-95J02iLH112,RZH112..06S..CIS199308-199508

69470PLATE ASSY, SLIDE DOOR LOCK STRIKER

main69470-26010iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0199506-200208

main69470-95D00iLH10#,11#,125,RZH10#,11#,125198908-199506

sub69470-46010

main69470-95J02iRZH153200208-200501

69480BHOOK ASSY, SLIDE DOOR FRONT LOCK

main69480-26010iLH112..RHD..SRF;LH102,104,113,114,115,125,RZH10#,11#,125..SG199205-199210

sub69480-26020

main69480-26020iRZH112,113..06S;LH104,RZH104,114,125..ARL,CIS;LH114,115,RZH103,104,114,115..RHD..SG;LH103,112,113,125,RZH102,135..SG..(DSL,EFI)199210-200208

sub69481-25010

main69480-95701iLH125,RZH103,113,125..SG..ARL198908-199205

69480DHOOK ASSY, SLIDE DOOR FRONT LOCK

main69480-26020iRZH112..4D..06S199907-200602

sub69481-25010

69482COVER, SLIDE DOOR FRONT LOCK HOOK

main69482-26010iLH10#,11#,125,RZH10#,11#,125..SG199210-200208

69485ABRACKET, SLIDE DOOR FRONT LOCK STRIKER

main69485-26010iRZH112,113..06S;LH104,RZH104,114,125..ARL,CIS;LH114,115,RZH103,104,114,115..RHD..SG;LH103,112,113,125,RZH102,135..SG..(DSL,EFI)199205-200208

main69485-95701iLH125,RZH103,113,125..SG..ARL198908-199205

69486ACOVER, SLIDE DOOR FRONT LOCK STRIKER

main69486-95701iLH112..DX,GL;LH103,104,105,11#,125,RZH103,104,105,11#,125..SG198908-200208

69511HRETAINER, FRONT DOOR LOCK CYLINDER

main69511-16010iRZH153199808-200501

69630CONTROL ASSY, SLIDE DOOR LOCK REMOTE

main69630-26070iRZH113..5D..GEN;RZH114..LHD..15S;LH103,162,172,RZH103..5D;LH172,RZH104,105..LHD..4D;LH102,104,105,11#,164,166,174,176,RZH102,112,113,115..LHD..STD199608-200202

main69630-26080iRZH103..03S..GEN199608-200202

W(POWER DOOR LOCK)

main69630-26080iRZH103,115..09S,10S199907-200008

main69630-26130iRZH113..RHD..5D;LH162,172,RZH103..5D;LH172,RZH114,115..LHD..4D..STD..(GCC,GEN);LH10#,11#,174,RZH104,105,112,113..LHD..(GCC,GEN)200202-200508

main69630-26140iLH172..LHD..4D;RZH113..RHD..5D;LH162,172,RZH103..5D;LH10#,11#,154,164,166,174,176,RZH102,104,105,11#,155..LHD200202-200508

W(POWER DOOR LOCK)

main69630-95J03iRZH102..4D..06S..5F;LH103,RZH102,103..5D;LH102,104,105,11#,RZH104,105,11#..LHD198908-199608

main69630-95J04iRZH103..GEN;LH103,RZH102..5D;RZH102..4D..06S..5F;LH102,104,105,11#,RZH104,105,11#..LHD198908-199608

W(POWER DOOR LOCK)

69640CCONTROL ASSY, SLIDE DOOR LOCK REMOTE, LH

main69640-26150iRZH112..06S;RZH102..03S,09S;RZH113..RHD..4D..STD;LH112,113,RZH113..5D..(CBR,DSL);LH172,RZH112..RHD..SRF..4D..03S..STD..GEN;LH103,11#,125,RZH103,104,114,115,125..RHD199608-200202

main69640-26160iRZH112..06S;LH172..03S..GL;RZH112..RHD..03S;RZH113..RHD..4D..STD;LH184,RZH102..03S,09S,15S;LH112,113,RZH113..5D..(CBR,DSL);LH172..RHD..SRF..4D..STD..GEN..DSL;LH103,199608-200202

W(POWER DOOR LOCK)

main69640-26240iRZH113..5D;LH172..LHD..5D;RZH113..RHD..4D..STD;LH172,RZH112..5D..06S;LH172,RZH112..RHD..03S..STD;LH11#,162,174,184,RZH103,105,114,125..RHD..STD200202-200309

main69640-26250iRZH103..03S..GEN200202-200501

W(POWER DOOR LOCK)

main69640-26290iRZH153200208-200501

main69640-95J05iRZH112..06S;RZH112..RHD..03S;RZH112..03S..CIS;LH112,113,RZH113..5D;LH125,RZH102..03S,09S,14S;LH102,103,11#,RZH103,104,113,114,115,125..RHD..STD198908-199608

main69640-95J06iRZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH112,113,RZH102,113..LHD..5D;LH10#,11#,125,RZH102,103,104,113,114,115,125..RHD198908-199608

W(POWER DOOR LOCK)

69707AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, RH

main69707-95J01-03iLH103,RZH102,103..5D;LH102,104,112,114,RZH104,112,114..LHD198908-199308

GRAY,TRIM1#

sub69707-95J01

main69707-95J01-B0iRZH103..5D..03S;LH103,RZH102..5D;RZH102,103..SG..(GL,SGL,STD);LH102,104,105,11#,166,174,176,RZH104,105,11#..LHD199308-199907

BLUISH GRAY,TRIM1#

sub69707-95J01

main69707-95J01-B2iLH172..LHD..4D;RZH113..RHD..5D;LH103,162,172..5D;LH154,RZH103..(03S,06S,09S,11S)..GEN;LH102,104,105,11#,164,166,174,176,RZH102,104,105,11#,155..LHD199907-200508

SHADOW GRAY,TRIM1#

sub69707-95J01

main69707-95J01-E1iLH154..10S200008-200501

ORCHID BROWN,TRIM4#

sub69707-95J01

69708AROD SUB-ASSY, SLIDE DOOR LOCKING CONTROL PUSH, LH

main69708-95J01-03iRZH102;RZH112..06S;RZH112..5D..03S;RZH112..RHD..03S;LH10#,11#,125,RZH103,104,113,114,125..RHD198908-199308

GRAY,TRIM1#

sub69708-95J01

main69708-95J01-B0iRZH112..06S;RZH102..03S,09S;RZH112..RHD..03S;RZH112..03S..CIS;LH112,113,RZH113..5D;LH102,103,11#,125,172,184,RZH103,104,113,114,115,125,135,153..RHD199308-199907

BLUISH GRAY,TRIM1#

sub69708-95J01

main69708-95J01-B2iRZH153199907-200208

SHADOW GRAY,TRIM1#

sub69708-95J01

main69708-95J01-E1iRZH153199907-200501

ORCHID BROWN,TRIM4#

sub69708-95J01

69749BCLAMP, REAR DOOR LOCK LINK

main69749-20010iRZH103,104,112,114..LHD..SG..GEN199308-200508

CHINA SPEC

main69749-95J00iRZH105..GL198908-200309

9011908A51

main90119-08A51

9015920001

main90159-20001

9015960596

main90159-60596

9015980065

main90159-80065

9151140608

main91511-40608

91616B0825

main91616-B0825

91631B0614

main91631-B0614

9331116016

main93311-16016

9338116010

main93381-16010

32 parts on this diagram · 1 diagram in section
