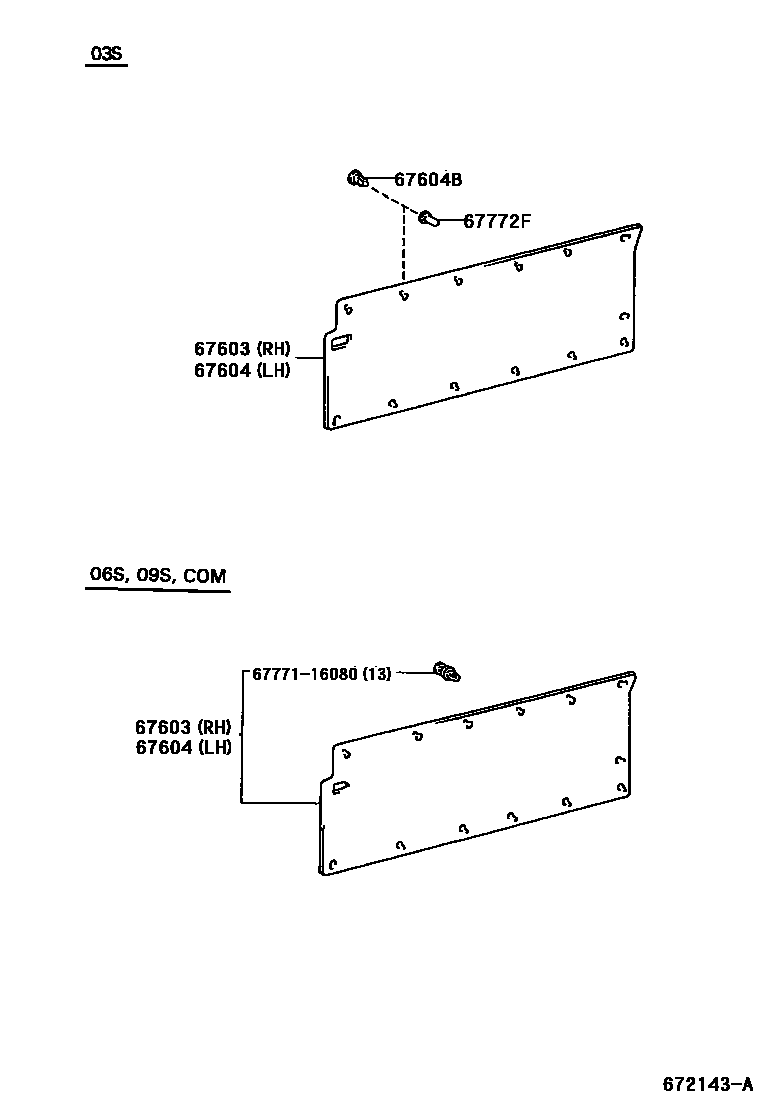

REAR DOOR PANEL & GLASS

0001 1 0002 1LH104..GEN(PHILIPPINES SPEC) 0003 1 0005 1

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67613-95J03iLH102,113..LHD..STD;RZH112,113..LHD..03S;LH103,RZH102,103..5D..03S;LH112,RZH102..LHD..4D..STD198908-200501

main67630-26080-B0iRZH102,103,114..SRF..GL199608-200508

BLUISH GRAY,TRIM1#

main67630-26120-B0iLH174,RZH114,115..10S,12S199808-199907

BLUISH GRAY,TRIM1#

main67630-26121-B1iLH174,RZH115..SRF..(10S,12S)199907-200501

BL. GRAY,TRIM1#

main67630-26200-E0iLH154..10S200008-200501

ANTELOPE,TRIM4#

main67630-95J04-03iRZH102,103..5D..06S;LH104,114,RZH104,112,114..LHD..SG198908-199308

GRAY,TRIM1#

sub67630-95J04

main67630-95J04-B0iRZH114,115..LHD..15S;LH112,114,115,RZH104,112,113..LHD..SG;LH10#,166,176,RZH102,103,105..06S,12S,15S199308-200508

BLUISH GRAY,TRIM1#

sub67630-95J04

main67630-95J05-B2iRZH103..SGL199508-199608

BLUISH GRAY,TRIM1#

main67630-95J05-B3iLH104..GEN199509-199607

PHILIPPINES SPEC,BLUISH GRAY,TRIM1#

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67614-95J05iLH172..LHD..5D;RZH113..5D..03S;RZH113..RHD..4D..03S;LH112,172,RZH112..RHD..03S;LH103,113,162,184,RZH102,103..(03S,15S)..(ARL,GCC,GEN)198908-199411

sub67614-25010

main67640-26200-B0iRZH135199611-199907

BL. GRAY,TRIM1#

main67640-26201-B0iRZH135199907-200501

BL. GRAY,TRIM1#

main67640-95J19-03iRZH102,112..06S;LH10#,11#,125,RZH103,104,113,114,125..RHD..SG..STD198908-199308

GRAY,TRIM1#

sub67640-95J19

sub67640-25030

main67640-95J19-B0iRZH112,113..06S;LH114,115,RZH103,104,114,115,125..RHD..SG;LH103,112,113,125,172,RZH102..SG..(06S,09S,14S)..(DSL,EFI)199308-200208

BLUISH GRAY,TRIM1#

sub67640-95J19

sub67640-25030

main67640-95J21-03iRZH103..GL198908-199108

GRAY,TRIM1#

67604BCLIP(FOR SLIDE DOOR TRIM BOARD)

main67771-26090-E0iLH102,112,162,172,184,RZH103,112,113..4D..(03S,15S)200201-200501

CREAM YELLOW,TRIM1#

main90467-08040-23iLH102,103,112,113,RZH102,103,112,113..4D..03S198908-199308

GRAY,TRIM1#

sub90467-08040

main90467-08040-N8iLH162,172..ARL;LH172..LHD..4D;RZH113..4D..GCC..EFI;LH113,172,184..(HRF,SMRF)..(CIS,GEN)199308-200201

CREAM YELLOW,TRIM1#

sub90467-08040

main90467-08040-N8iLH162,172..ARL;LH172..LHD..4D;RZH113..4D..GCC..EFI;LH113,172,184..(HRF,SMRF)..(CIS,GEN)199308-200201

W(DOUBLE SWING BACK DOOR),CREAM YELLOW,TRIM1#

sub90467-08040

67772FCAP, REAR DOOR TRIM RETAINER

main67772-20021iRZH113..LHD..03S..GEN199608-200501

W(DOUBLE SWING BACK DOOR)

main67772-20021iLH172..RHD..03S;LH102,103,112,113,184,RZH103,112,113..4D..(03S,15S)..(GL,STD)198908-200008

main67772-26010iLH174,RZH114,115..SRF..(10S,12S)199907-200508

TYPE A:REFER ILLUST.

main67772-26010iRZH155199003-200501

TYPE A:REFER TO ILLUSTRATION

main67772-95J02iRZH135199003-200208

TYPE B:REFER TO ILLUSTRATION

main67772-95J02iRZH103..GL198908-199003

main67772-95J02iLH104..GEN199509-199607

PHILIPPINES SPEC

main67772-95J02iRZH102..GL199907-200508

TYPE B:REFER ILLUST.

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080

5 parts on this diagram · 4 diagrams in section
