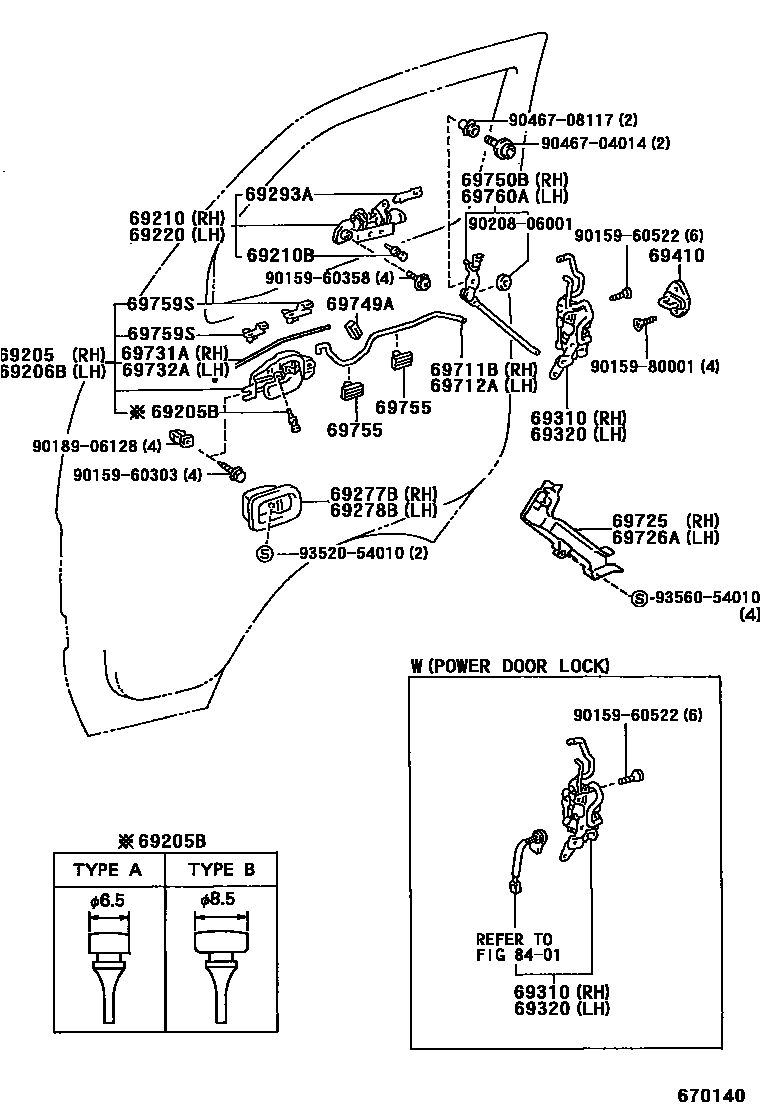

FRONT DOOR LOCK & HANDLE
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLUISH GRAY,TRIM1#
ORCHID BROWN,TRIM4#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main90541-04014×4iRZH112..4D..4F;RZH112..5D..06S;RZH102..06S..5F;RZH102,104,114..4F;RZH112..5D..03S..4F;RZH104,114..LHD..SRF..5F;LH10#,11#,125,RZH103,113,125..4D199010-199308
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-26010-B0iRZH112..5D;LH154,RZH112..03S,11S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125,135,155199907
BLUISH GRAY,TRIM1#
ORCHID BROWN,TRIM4#
GRAY,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SUPER WHITE 2,2BZ
IVORY,2GW
WHITE PM.,2GC
WARM GRAY PEARL ME.,2BY
LT GREEN M,2AY
NO PAINT REQ.
69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)
main90541-04014×4iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SUPER WHITE 2,2BZ
IVORY,2GW
WHITE PM.,2GC
WARM GRAY PEARL ME.,2BY
LT GREEN M,2AY
NO PAINT REQ.
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
GRAY,TRIM1#
main69277-95J00-B0iRZH115..CBR;RZH105,115..STD..CIS;LH172,RZH103..RHD..(DSL,EFI);LH174,RZH103,105..(03S,06S,09S,10S,12S)..(CBR,DSL);LH10#,11#,125,166,176,184,RZH102,104,112,113,114,12199408-200008
BLUISH GRAY,TRIM1#
ORCHID BROWN,TRIM4#
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
GRAY,TRIM1#
main69278-95J00-B0iRZH112..5D;LH154,RZH112..03S,11S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125,135,155199907
BLUISH GRAY,TRIM1#
ORCHID BROWN,TRIM4#
69293ASNAP, FRONT DOOR OUTSIDE HANDLE
main69293-12030iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908
LH
RH
69310LOCK ASSY, FRONT DOOR, RH
W(POWER DOOR LOCK)
main69030-26011iRZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH103,11#,125,RZH102,103,104,114,125..RHD;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL)199808
W(*EL) & W(PNC.84931B = DRIVER SIDE ONLY)
W(E/G SPEED SENSING POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(*EL & DOOR LOCK CONTROL SWITCH(DRIVER SIDE)) & W(PNC.84931B = DRIVER & PASSENGERSIDE)
W(*EL) & W(PNC.84931B = DRIVER & PASSENGER SIDE)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(MANUAL DOOR LOCK)
69320LOCK ASSY, FRONT DOOR, LH
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
main69040-26031iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD199308-200008
W(POWER DOOR LOCK)
W(POWER DOOR LOCK = DRIVER & PASSENGER)
W(POWER DOOR LOCK = ARMREST SWITCH TYPE)
W(KEY LESS ENTRY & POWER DOOR LOCK)
W(POWER DOOR LOCK)
W(POWER DOOR LOCK)
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-26010×2iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0199506
69711BLINK, FRONT DOOR LOCK REMOTE CONTROL, RH
main69711-95J01iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908
69712ALINK, FRONT DOOR LOCK REMOTE CONTROL, LH
main69712-95J01iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908
69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH
69726APROTECTER, FRONT DOOR INSIDE LOCKING LINK, LH
main69726-26010iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0199308
69731ALINK, FRONT DOOR INSIDE LOCKING, NO.1 RH
main69750-26030iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0199308
69732ALINK, FRONT DOOR INSIDE LOCKING, NO.1 LH
main69760-26030iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0199308
69749ACLAMP, FRONT DOOR LOCK LINK, NO.1
main69749-20030×6iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#199907
69750BLINK ASSY, FRONT DOOR INSIDE LOCKING, RH
69755SILENCER, FRONT DOOR LOCK LINK
69759SSNAP, FRONT DOOR INSIDE HANDLE
LH
LH,RED
RH,PINK
RH
69760ALINK ASSY, FRONT DOOR INSIDE LOCKING, LH
8401
9015960303
main90159-60303
9015960358
main90159-60358
9015960522
main90159-60522
9015980001
main90159-80001
9018906128
main90189-06128
9020806001
main90208-06001
9046704014
main90467-04014
9046708117
main90467-08117
9352054010
main93520-54010
9356054010
main93560-54010
34 parts on this diagram · 3 diagrams in section
