INSIDE TRIM BOARD

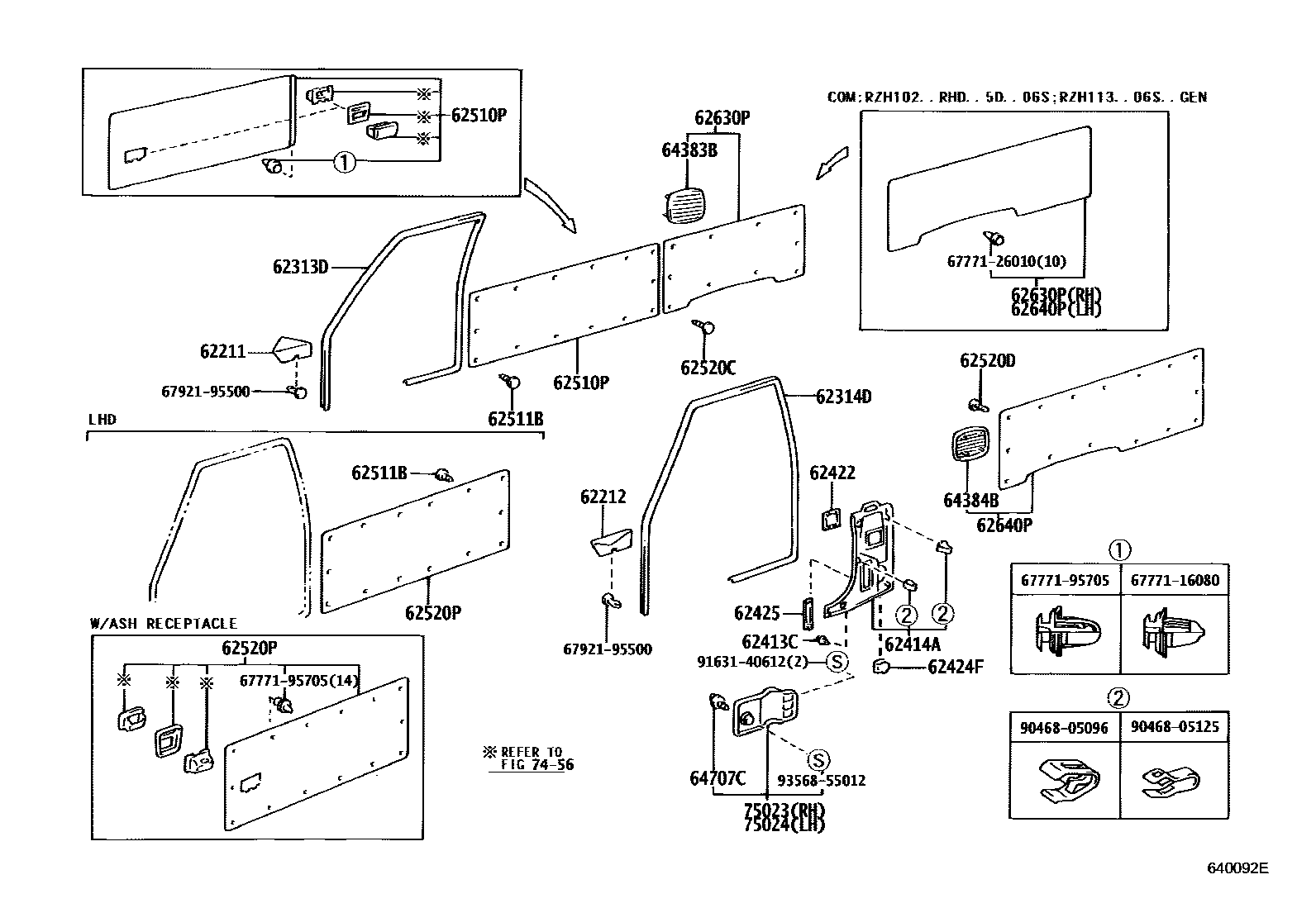

Parts diagram
62211GARNISH, FRONT PILLAR, RH
main62211-26080-B0i199808-200501
W(SRS AIR BAG),LT.BLUISH GRAY,TRIM1#
sub62211-95J10
main62211-26120-B0i200008-200501
LT. BLUISH GRAY,TRIM1#
sub62211-26120
main62211-26120-E0i200008-200501
LT.ANTELOPE,TRIM4#
sub62211-26120
main62211-95J07-03i198908-199308
GRAY,TRIM1#
sub62211-95J07
main62211-95J07-B1i199308-200208
BLUISH GRAY,TRIM1#
sub62211-95J07
main62211-95J10-B3i199611-200501
LT.BLUISH GRAY,TRIM1#
sub62211-95J10
sub62211-95J12
main62211-95J10-B3i199808-200501
W(SRS AIR BAG),LT.BLUISH GRAY,TRIM1#
sub62211-95J10
sub62211-95J12
62212GARNISH, FRONT PILLAR, LH
main62212-26080-B0i199808-200501
W(SRS AIR BAG),LT.BLUISH GRAY,TRIM1#
sub62212-95J10
main62212-26080-B0i200108-200408
W(*80),LT.BLUISH GRAY,TRIM1#
sub62212-95J10
main62212-95J07-03i198908-199308
GRAY,TRIM1#
sub62212-95J07
main62212-95J07-B1i199308-200208
BLUISH GRAY,TRIM1#
sub62212-95J07
main62212-95J08-B3i200008-200501
LT.BLUISH GRAY,TRIM1#
sub62212-95J08
main62212-95J08-E3i200008-200501
ANTELOPE,TRIM4#
sub62212-95J08
main62212-95J10-B3i199611-200501
LT.BLUISH GRAY,TRIM1#
sub62212-95J10
main62212-95J10-B3i199808-200501
W(SRS AIR BAG),LT.BLUISH GRAY,TRIM1#
sub62212-95J10
62313DTRIM, FRONT DOOR OPENING, RH
main62313-95J01-03i198908-199308
GRAY,TRIM1#
sub62313-95J01
sub62313-95J00
main62313-95J01-B0i199308-200208
BLUISH GRAY,TRIM1#
sub62313-95J01
sub62313-95J00
main62313-95J01-E0i199907-200501
ANTELOPE,TRIM4#
sub62313-95J01
sub62313-95J00
62314DTRIM, FRONT DOOR OPENING, LH
main62313-95J01-03i198908-199308
GRAY,TRIM1#
sub62313-95J01
sub62313-95J00
main62313-95J01-B0i199308-200208
BLUISH GRAY,TRIM1#
sub62313-95J01
sub62313-95J00
main62313-95J01-E0i199907-200501
ANTELOPE,TRIM4#
sub62313-95J01
sub62313-95J00
62413CCLIP (FOR CENTER LOWER GARNISH)
main90467-10034-B0i199907-200308
BLUISH GRAY,TRIM16
sub90467-10034
main90467-10034-B0i199808-200501
BLUISH GRAY,TRIM1#
sub90467-10034
main90467-10034-E1i200008-200501
ANTELOPE,TRIM4#
sub90467-10034
main90467-10034-N8i199907-200308
CREAM YELLOW,TRIM16
sub90467-10034
main90467-10034-N8i199808-199907
CREAM YELLOW,TRIM15
sub90467-10034
main90904-67023-B6i200108-200308
HONG KONG SPEC,BLUISH GRAY,TRIM1#
sub90904-67023
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-26040-B0i199611-199808
BLUISH GRAY,TRIM1#
main62414-26110-B0i199808-200501
BLUISH GRAY,TRIM1#
main62414-26120-B0i199808-200208
BLUISH GRAY,TRIM1#
main62414-26150-B0i199808-200501
BLUISH GRAY,TRIM1#
main62414-26160-B0i199808-200508
BLUISH GRAY,TRIM1#
main62414-26230-B0i200008-200501
BLUISH GRAY,TRIM1#
main62414-26240-B0i200008-200501
BLUISH GRAY,TRIM1#
sub62414-26240
main62414-26240-E0i200008-200501
ANTELOPE,TRIM4#
sub62414-26240
main62414-95J04-B0i199508-199808
BLUISH GRAY,TRIM1#
sub62414-95J04
main62414-95J04-B0i199509-199607
PHILIPPINES SPEC,BLUISH GRAY,TRIM1#
sub62414-95J04
main62414-95J05-03i198908-199108
GRAY,TRIM1#
sub62414-95J05
62422COVER, CENTER PILLAR GARNISH, LH
main62422-26030-B0i199808-200501
BLUISH GRAY,TRIM1#
sub62422-26030
main62422-26030-E0i200008-200501
ANTELOPE,TRIM4#
sub62422-26030
main62422-26040-B0i199808-200501
BLUISH GRAY,TRIM1#
62424FCOVER, CENTER PILLAR GARNISH, LOWER LH
main62424-95J01-B0i199808-200501
BLUISH GRAY,TRIM1#
sub62424-95J01
main62424-95J01-E0i200008-200501
ANTELOPE,TRIM4#
sub62424-95J01
62425COVER, CENTER PILLAR GARNISH
main62424-26020-B0i199808-200501
BLUISH GRAY,TRIM1#
sub62424-26020
main62424-26020-E0i200008-200501
ANTELOPE,TRIM4#
sub62424-26020
62510PPANEL ASSY, QUARTER TRIM, FRONT RH
main62510-26241-B0i199411-200501
BLUISH GRAY,TRIM1#
main62510-26450-B0i199611-199907
BLUISH GRAY,TRIM1#
main62510-26451-B2i199907-200501
BLUISH GRAY,TRIM1#
main62510-95J35-B0i199511-200501
W(BUILT IN TYPE REAR HEATER),BLUISH GRAY,TRIM1#
sub62510-95J35
main62510-95J36-03i198908-199308
GRAY,TRIM1#
sub62510-95J36
main62510-95J36-B0i199308-200602
BLUISH GRAY,TRIM1#
sub62510-95J36
main62510-95J38-03i198908-199308
GRAY,TRIM1#
sub62510-95J38
main62510-95J38-B0i199308-200501
BLUISH GRAY,TRIM1#
sub62510-95J38
main62510-95J42-03i198908-199308
W(FLOOR SET TYPE REAR HEATER),GRAY,TRIM1#
sub62510-95J42
main62510-95J42-B1i199308-200602
W(FLOOR SET TYPE REAR HEATER),BLUISH GRAY,TRIM1#
sub62510-95J42
main62510-95J48-03i198908-199108
GRAY,TRIM1#
main62511-95J21i198908-200602
sub62511-25010
62511BCLIP (FOR QUARTER INSIDE TRIM BOARD)
main90467-10034-16i198908-199308
BROWN,TRIM1#
sub90467-10034
main90467-10034-B0i199808-199907
BLUISH GRAY,TRIM1#
sub90467-10034
main90467-10034-B0i199907-200602
BLUISH GRAY,TRIM16
sub90467-10034
main90467-10034-N8i199308-200008
CREAM YELLOW,TRIM1#
sub90467-10034
main90467-10034-N8i199808-199907
CREAM YELLOW,TRIM15
sub90467-10034
main90467-10034-N8i199907-200602
CREAM YELLOW,TRIM16
sub90467-10034
62520CCLIP, QUARTER TRIM BOARD, NO.1
main90467-10034-16i198908-199308
BROWN,TRIM1#
sub90467-10034
main90467-10034-B0i199907-200602
BLUISH GRAY,TRIM16
sub90467-10034
main90467-10034-B0i199808-199907
BLUISH GRAY,TRIM1#
sub90467-10034
main90467-10034-N8i199308-200008
CREAM YELLOW,TRIM1#
sub90467-10034
main90467-10034-N8i199808-199907
CREAM YELLOW,TRIM15
sub90467-10034
main90467-10034-N8i199907-200602
CREAM YELLOW,TRIM16
sub90467-10034
62520DCLIP, QUARTER TRIM BOARD, NO.2
main90467-10034-16i198908-199308
BROWN,TRIM1#
sub90467-10034
main90467-10034-B0i199808-199907
BLUISH GRAY,TRIM1#
sub90467-10034
main90467-10034-B0i199907-200602
BLUISH GRAY,TRIM16
sub90467-10034
main90467-10034-N8i199308-200008
CREAM YELLOW,TRIM1#
sub90467-10034
main90467-10034-N8i199808-199907
CREAM YELLOW,TRIM15
sub90467-10034
main90467-10034-N8i199907-200602
CREAM YELLOW,TRIM16
sub90467-10034
62520PPANEL ASSY, QUARTER TRIM, FRONT LH
main62512-95J07i198908-200501
main62520-26051-B2i199608-199808
BLUISH GRAY,TRIM1#
main62520-26061-B2i199608-199708
W(3 POINT REAR SEAT BELT),BLUISH GRAY,TRIM1#
main62520-26071-B2i199608-199808
W(BUILT IN TYPE REAR HEATER),BLUISH GRAY,TRIM1#
main62520-26081-B2i199608-199708
W(3 POINT REAR SEAT BELT & BUILT IN TYPE REAR HEATER),BLUISH GRAY,TRIM1#
main62520-26090-B0i199808-199907
BLUISH GRAY,TRIM1#
main62520-26091-B2i199907-200008
BLUISH GRAY,TRIM1#
main62520-26100-B1i199509-199607
PHILIPPINES SPEC,BLUISH GRAY,TRIM1#
main62520-26130-B1i199808-199907
BLUISH GRAY,TRIM1#
main62520-26131-B2i199907-200501
BLUISH GRAY,TRIM1#
main62520-26140-B1i199808-199907
W(BUILT IN TYPE REAR HEATER),BLUISH GRAY,TRIM1#
main62520-26141-B2i199907-200501
W(BUILT IN TYPE REAR HEATER),BLUISH GRAY,TRIM1#
main62520-26150-B0i199808-200408
BLUISH GRAY,TRIM1#
main62520-26160-B0i199808-200008
W(BUILT IN TYPE REAR HEATER),BLUISH GRAY,TRIM1#
main62520-26170-B0i199808-199907
BLUISH GRAY,TRIM1#
main62520-26170-B0i200208-200508
VIETNAM SPEC,BLUISH GRAY,TRIM1#
main62520-26200-B0i199907-200008
BLUISH GRAY,TRIM1#
main62520-26210-B0i200008-200501
XXXX,TRIM1#
main62520-26220-B0i200008-200501
BLUISH GRAY,TRIM1#
main62520-26220-E0i200008-200501
ANTELOPE,TRIM4#
main62520-95J08-B0i199405-199508
BLUISH GRAY,TRIM1#
sub62520-95J08
main62520-95J12-03i198908-199308
W(FLOOR SET TYPE REAR HEATER),GRAY,TRIM1#
sub62520-95J12
main62520-95J12-B0i199308-200508
W(FLOOR SET TYPE REAR HEATER),BLUISH GRAY,TRIM1#
sub62520-95J12
main62520-95J13-03i198908-199308
GRAY,TRIM1#
sub62520-95J13
main62520-95J13-B0i199308-200508
BLUISH GRAY,TRIM1#
sub62520-95J13
62630PPANEL ASSY, QUARTER TRIM, REAR RH
main62630-26461-B2i199608-199808
BLUISH GRAY,TRIM1#
sub62630-26461
main62630-26461-B3i199808-199907
BLUISH GRAY,TRIM1#
sub62630-26461
main62630-26461-B4i199907-200408
BLUISH GRAY,TRIM1#
sub62630-26461
main62630-26471-B2i199608-199708
W(3 POINT REAR SEAT BELT),BLUISH GRAY,TRIM1#
main62630-26490-B0i199608-199708
BLUISH GRAY,TRIM1#
sub62630-26490
main62630-26490-B0i199708-199808
PHILIPPINES SPEC,BLUISH GRAY,TRIM1#
sub62630-26490
main62630-26490-B1i199808-199907
PHILIPPINES SPEC,BLUISH GRAY,TRIM1#
sub62630-26490
main62630-26490-B2i199907-200008
PHILIPPINES SPEC,BLUISH GRAY,TRIM1#
sub62630-26490
main62630-26500-B0i199511-199907
BLUISH GRAY,TRIM1#
sub62630-26050
main62630-26510-B1i199509-199607
PHILIPPINES SPEC,BLUISH GRAY,TRIM1#
sub62630-26460
main62630-26570-B0i199608-199708
W(3POINT REAR SEAT BELT & SPEAKER),BLUISH GRAY,TRIM1#
main62630-26590-B0i199608-199808
W(SPEAKER),BLUISH GRAY,TRIM1#
sub62630-26590
main62630-26590-B1i199808-199907
W(SPEAKER),BLUISH GRAY,TRIM1#
sub62630-26590
main62630-26590-B2i199907-200408
W(SPEAKER),BLUISH GRAY,TRIM1#
sub62630-26590
main62630-26610-B0i199608-200408
W(SPEAKER),BLUISH GRAY,TRIM1#
main62630-26620-B0i199608-199907
W(SPEAKER),BLUISH GRAY,TRIM1#
main62630-26630-B0i199608-199907
W(SPEAKER),BLUISH GRAY,TRIM1#
main62630-26640-B0i199708-199808
PHILIPPINES SPEC & W(SPEAKER),BLUISH GRAY,TRIM1#
sub62630-26640
main62630-26640-B0i199608-199808
W(SPEAKER),BLUISH GRAY,TRIM1#
sub62630-26640
main62630-26640-B1i199808-199907
PHILIPPINES SPEC & W(SPEAKER),BLUISH GRAY,TRIM1#
sub62630-26640
main62630-26640-B2i199907-200008
PHILIPPINES SPEC & W(SPEAKER),BLUISH GRAY,TRIM1#
sub62630-26640
main62630-26650-B0i199611-199907
BLUISH GRAY,TRIM1#
main62630-26651-B2i199907-200501
BL. GRAY,TRIM1#
main62630-2F060-B1i199808-199907
CHINA SPEC,BLUISH GRAY,TRIM1#
sub62630-2F190
main62630-2F061-B2i199907-200501
BLUISH GRAY,TRIM1#
main62630-2F180-B0i199808-199907
PHILIPPINES SPEC & W(SPEAKER),BLUISH GRAY,TRIM1#
main62630-2F181-B2i199907-200008
BLUISH GRAY,TRIM1#
main62630-2F190-B1i199808-199907
CHINA SPEC & W(SPEAKER),BLUISH GRAY,TRIM1#
main62630-2F191-B2i199907-200501
W(SPEAKER),BLUISH GRAY,TRIM1#
main62630-2F200-B1i199808-199907
BLUISH GRAY,TRIM1#
main62630-2F200-B1i200208-200508
VIETNAM SPEC,BLUISH GRAY,TRIM1#
main62630-2F260-B0i199907-200008
BLUISH GRAY,TRIM1#
main62630-2F390-B0i199907-200501
BLUISH GRAY,TRIM1#
main62630-2F510-B0i199907-200501
BLUISH GRAY,TRIM1#
main62630-2F520-B0i199907-200501
W(SPEAKER),BLUISH GRAY,TRIM1#
main62630-2F580-B0i200008-200501
BLUISH GRAY,TRIM1#
main62630-2F590-E0i200008-200501
ANTELOPE,TRIM4#
main62630-95J34-03i198908-199308
GRAY,TRIM1#
sub62630-95J34
main62630-95J34-B0i199308-200408
BLUISH GRAY,TRIM1#
sub62630-95J34
main62630-95J35-03i198908-199308
GRAY,TRIM1#
sub62630-95J35
main62630-95J35-B0i199808-200501
W/O(REAR SEAT),BLUISH GRAY,TRIM1#
sub62630-95J35
main62630-95J35-B0i199308-199907
BLUISH GRAY,TRIM1#
sub62630-95J35
main62630-95J42-03i198908-199108
GRAY,TRIM1#
main62630-95J52-B0i199405-199508
BLUISH GRAY,TRIM1#
sub62630-95J52
main62631-95J28i198908-200408
main62631-95J34i198908-200208
62640PPANEL ASSY, QUARTER TRIM, REAR LH
main62632-26050i199308-199808
main62632-26060i199308-199808
main62632-95J33i199808-200602
main62632-95J33i198908-200501
SERVICE CAR SPEC(AMBULANCE)
main62632-95J34i198908-199308
main62632-95J35i198908-199508
SERVICE CAR SPEC(AMBULANCE)
main62632-95J35i199508-200408
main62632-95J40i198908-199308
main62632-95J42i199411-200501
main62640-26351-B2i199608-199808
BLUISH GRAY,TRIM1#
sub62640-26351
sub62640-26550
main62640-26351-B3i199808-200408
BLUISH GRAY,TRIM1#
sub62640-26351
sub62640-26550
main62640-26371-B2i199608-199708
W(3 POINT REAR SEAT BELT),BLUISH GRAY,TRIM1#
sub62640-26530
main62640-26390-B0i199608-199708
BLUISH GRAY,TRIM1#
sub62640-26390
sub62640-26600
main62640-26390-B0i199708-199808
PHILIPPINES SPEC,BLUISH GRAY,TRIM1#
sub62640-26390
sub62640-26600
main62640-26390-B1i199808-200008
PHILIPPINES SPEC,BLUISH GRAY,TRIM1#
sub62640-26390
sub62640-26600
main62640-26420-B0i199511-199907
BLUISH GRAY,TRIM1#
sub62640-26050
main62640-26430-B1i199509-199607
PHILIPPINES SPEC,BLUISH GRAY,TRIM1#
sub62640-26350
main62640-26530-B0i199608-199708
W(3POINT REAR SEAT BELT & SPEAKER),BLUISH GRAY,TRIM1#
main62640-26550-B0i199608-199808
W(SPEAKER),BLUISH GRAY,TRIM1#
sub62640-26550
main62640-26550-B1i199808-200408
W(SPEAKER),BLUISH GRAY,TRIM1#
sub62640-26550
main62640-26570-B0i199608-200408
W(SPEAKER),BLUISH GRAY,TRIM1#
main62640-26580-B0i199608-200602
W(SPEAKER),BLUISH GRAY,TRIM1#
main62640-26590-B0i199608-199907
W(SPEAKER),BLUISH GRAY,TRIM1#
main62640-26600-B0i199608-199808
W(SPEAKER),BLUISH GRAY,TRIM1#
sub62640-26600
main62640-26600-B0i199708-199808
PHILIPPINES SPEC & W(SPEAKER),BLUISH GRAY,TRIM1#
sub62640-26600
main62640-26600-B1i199808-200008
PHILIPPINES SPEC & W(SPEAKER),BLUISH GRAY,TRIM1#
sub62640-26600
main62640-26610-B0i199611-199907
BLUISH GRAY,TRIM1#
main62640-26611-B2i199907-200501
BLUISH GRAY,TRIM1#
main62640-26840-B1i199808-199907
CHINA SPEC,BLUISH GRAY,TRIM1#
sub62640-2F120
main62640-26841-B2i199907-200501
CHINA SPEC,BLUISH GRAY,TRIM1#
main62640-2F110-B0i199808-199907
PHILIPPINES SPEC & W(SPEAKER),BLUISH GRAY,TRIM1#
main62640-2F111-B2i199907-200008
BLUISH GRAY,TRIM1#
main62640-2F120-B1i199808-199907
CHINA SPEC & W(SPEAKER),BLUISH GRAY,TRIM1#
main62640-2F121-B2i199907-200501
CHINA SPEC & W(SPEAKER),BLUISH GRAY,TRIM1#
main62640-2F130-B1i199808-200508
BLUISH GRAY,TRIM1#
main62640-2F210-B0i199907-200501
BLUISH GRAY,TRIM1#
main62640-2F330-B0i199907-200008
BLUISH GRAY,TRIM1#
main62640-2F360-B0i199907-200501
BLUISH GRAY,TRIM1#
main62640-2F370-B0i199907-200501
W(SPEAKER),BLUISH GRAY,TRIM1#
main62640-2F410-B1i200008-200501
BLUISH GRAY,TRIM1#
main62640-2F410-E1i200008-200501
ANTELOPE,TRIM4#
main62640-95J46-03i198908-199308
GRAY,TRIM1#
sub62640-95J46
main62640-95J46-B0i199308-200408
BLUISH GRAY,TRIM1#
sub62640-95J46
main62640-95J49-03i198908-199308
GRAY,TRIM1#
sub62640-95J49
main62640-95J49-B0i199308-200602
BLUISH GRAY,TRIM1#
sub62640-95J49
main62640-95J51-03i198908-199308
GRAY,TRIM1#
sub62640-26150
sub62640-95J51
main62640-95J51-B0i199907-200501
W/O(REAR SEAT),BLUISH GRAY,TRIM1#
sub62640-26150
sub62640-95J51
main62640-95J51-B0i199308-199907
BLUISH GRAY,TRIM1#
sub62640-26150
sub62640-95J51
main62640-95J54-B1i199405-199508
BLUISH GRAY,TRIM1#
sub62640-95J54
main62640-95J60-03i198908-199108
GRAY,TRIM1#
64383BGRILLE, REAR SPEAKER, RH
main64383-26020-B0i200008-200501
BLUISH GRAY,TRIM1#
main64383-26020-E0i200008-200501
ANTELOPE,TRIM4#
main67653-20010-B1i199608-199907
BLUISH GRAY,TRIM1#
sub67653-20010
main67653-26010i200008-200408
main67653-26010-B0i199608-200508
BLUISH GRAY,TRIM1#
64384BGRILLE, REAR SPEAKER, LH
main64384-26020-B0i200008-200501
BLUISH GRAY,TRIM1#
main64384-26020-E0i200008-200501
ANTELOPE,TRIM4#
main67653-20010-B1i199608-199907
BLUISH GRAY,TRIM1#
sub67653-20010
main67653-26010i200008-200408
main67653-26010-B0i199608-200508
BLUISH GRAY,TRIM1#
64707CKNOB, JACK COVER
main64769-13010-43i198908-199308
GRAY,TRIM1#
sub64769-13010
main64769-13010-B0i199308-200508
BLUISH GRAY,TRIM1#
sub64769-13010
7456
75023LID SUB-ASSY, TOOL BOX, RH
main75023-95J00-03i198908-199308
GRAY,TRIM1#
sub75023-95J00
main75023-95J00-B0i199308-200508
BLUISH GRAY,TRIM1#
sub75023-95J00
75024LID SUB-ASSY, TOOL BOX, LH
main75024-95J00-03i198908-199308
GRAY,TRIM1#
sub75024-95J00
main75024-95J00-B0i199308-200208
BLUISH GRAY,TRIM1#
sub75024-95J00
6777116080WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-16080
6777126010WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-26010
6777195705WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-95705
6792195500RETAINER, FRONT DOOR SCUFF PLATE
main67921-95500
9046805096
main90468-05096
9046805125
main90468-05125
9163140612
main91631-40612
9356855012
main93568-55012

30 parts on this diagram · 5 diagrams in section

INSIDE TRIM BOARD — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
