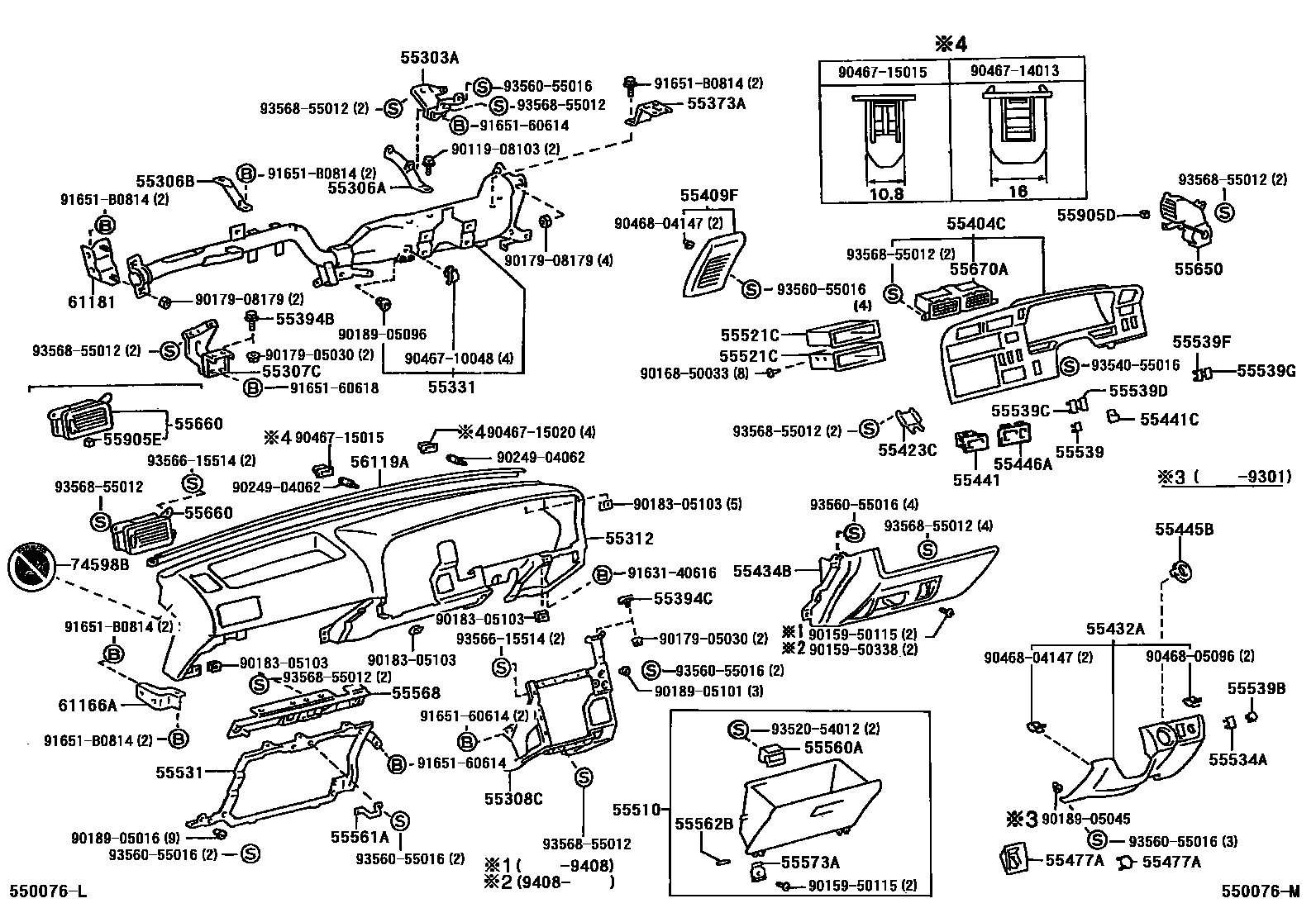

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1W(*80,DRIVER SIDE & PASSENGER

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-26010iRZH135,153¥2,110199611-200501

main55303-26030iLH113,115,172,174,RZH105,113,115..GCC¥1,920199907-200501

W(*80,DRIVER SIDE & PASSENGER SIDE),NO.2

main55303-95J05iRZH112..4D..06S¥1,920198908-200208

main55303-95J06iLH113,115,172,174,RZH105,113,115..GCC¥1,920199907-200501

W(*80,DRIVER SIDE & PASSENGER SIDE),NO.1

main55303-95J06iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD¥1,920198908-200508

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-95J01iLH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD¥1,540198908-200501

55306BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL

main55306-26050iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD¥1,350199804-200101

main55306-26060iRZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD¥780199907-200208

main55306-95J02iLH102,103,11#,125,RZH102,103,104,112,113,114,125..RHD¥1,400198908-199508

main55306-95J04iLH102,104,105,11#,RZH10#,11#..LHD¥1,390198908-199608

main55341-26010iLH102,103,11#,125,172,184,RZH102,103,104,11#,125,135,153..RHD¥740199508-199907

sub55306-26060¥780

main55341-95J03iLH10#,11#,154,164,166,17#,RZH102,104,105,11#,155..LHD¥1,360200101-200508

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-95J04iRZH135,153¥1,750199611-200501

main55307-95J05iLH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD¥1,750198908-200208

main55307-95J06iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD¥1,750198908-200508

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-26020iLH102,103,11#,125,RZH102,103,104,11#,125,135,153..RHD¥6,800199508-199907

sub55308-26021¥6,800

main55308-26021iRZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD¥6,800199907-200208

main55308-26041iRZH153¥6,800199808-199905

main55308-26050iRZH153¥6,800199905-200501

main55308-26061iRZH135¥6,800199907-200501

main55308-26070iRZH102..03S¥6,800199907-200508

main55308-95J00iLH102,104,105,11#,166,174,176,RZH10#,11#..LHD¥6,800198908-199907

sub55308-26070¥6,800

main55308-95J01iLH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD¥6,800198908-199508

sub55308-26080¥6,700

55312PANEL, INSTRUMENT, LOWER

main55312-26042-E0iRZH153200008-200501

W(*80,DRIVER SIDE & PASSENGER SIDE),ANTELOPE,TRIM4#

sub55312-26042¥43,500

main55312-26071-B0iLH162,172,RZH103,113..ARL;LH162,172,184,RZH103,113,125..RHD..SG..STD..(DSL,EFI)200008-200501

W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#

main55312-26080-B0iLH113,115,RZH105,113,115..GCC199808-200501

W(*80,DRIVER SIDE & PASSENGER SIDE),BLUISH GRAY,TRIM1#

main55312-26090-B0iRZH135,153199901-199905

BLUISH GRAY,TRIM1#

sub55312-26091¥43,500

sub55445-26090¥1,600

main55312-26091-B0iRZH135,153199905-200501

BLUISH GRAY,TRIM1#

main55312-26091-E0iRZH153199907-200501

ANTELOPE,TRIM4#

main55312-26110-B0iRZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH103,11#,125,RZH102,103,104,114,125..RHD;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL)199901-200208

BLUISH GRAY,TRIM1#

main55312-95J08-03iRZH102,112..LHD..06S;RZH114..LHD..SRF..5F;LH102,104,112,114,RZH104..LHD;RZH102,112,114..LHD..(03S,15S)..4F198908-199308

GRAY,TRIM1#

sub55312-95J08¥43,500

main55312-95J08-B0iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD199308-200508

BLUISH GRAY,TRIM1#

sub55312-95J08¥43,500

main55312-95J08-E0iLH154..10S200008-200501

ANTELOPE,TRIM4#

sub55312-95J08¥43,500

main55312-95J09-03iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

GRAY,TRIM1#

sub55312-26110¥43,500

sub55312-95J09¥43,500

main55312-95J09-B0iLH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD199308-199901

BLUISH GRAY,TRIM1#

sub55312-26110¥43,500

sub55312-95J09¥43,500

main55312-95J10-B0iRZH135,153199611-199901

BLUISH GRAY,TRIM1#

sub55312-26090¥43,500

sub55312-95J10¥43,500

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-26032iRZH153¥27,600199808-199907

main55330-26033iRZH153¥28,100199907-200501

main55330-26040iLH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD¥27,600199308-199508

main55330-26041iLH103,11#,125,172,184,RZH102,103,104,112,113,114,125,135..RHD¥27,800199508-199907

sub55330-26042¥27,800

sub90119-06779¥60

main55330-26042iLH103,11#,125,162,172,174,184,RZH103,104,105,112,113,114,125,135..RHD¥27,800199907-200208

sub55330-26043¥27,800

main55330-26043iRZH103..03S..GEN¥27,800200208

main55330-26140iLH103,113,125,RZH103,113,125..ARL¥28,000199808-199907

W(*80,DRIVER SIDE ONLY)

sub55330-26141¥28,000

sub90119-06779¥60

main55330-26141iLH172..5D..06S;LH162,172,RZH103,113..ARL;LH162,184,RZH103,113,125..RHD..SG..STD¥28,000199907-200208

W(*80,DRIVER SIDE ONLY OR DRIVER SIDE & PASSENGER SIDE)

sub55330-26142¥28,100

main55330-26141iLH103,113..ARL;LH103,113,125..SG¥28,000199907-200008

W(*80,DRIVER SIDE ONLY)

sub55330-26142¥28,100

main55330-26142iLH162,172,RZH103,113..ARL;LH162,172,184,RZH103,113,125..RHD..SG..STD..(DSL,EFI)¥28,100200208-200501

W(*80,DRIVER SIDE ONLY OR DRIVER SIDE & PASSENGER SIDE)

main55330-26150iLH113,115,RZH105,113,115..GCC¥27,800199808-199907

W(*80,DRIVER SIDE & PASSENGER SIDE) OR W(ABS)

sub55330-26151¥27,800

sub90119-06779¥60

main55330-26151iLH113,115,172,174,RZH105,113,115..GCC..(CBR,DSL)¥27,800199907-200501

W(*80,DRIVER SIDE ONLY OR DRIVER SIDE & PASSENGER SIDE)

main55330-26151iRZH155..GEN¥27,800200008-200501

W(ABS)

main55330-26151iRZH113,115..GCC..EFI¥27,800200108-200501

W(*80,DRIVER SIDE & PASSENGER SIDE) OR W(ABS)

main55330-26220iRZH102..03S¥28,400199907-200508

main55330-95J00iLH102,104,105,11#,166,174,176,RZH10#,11#..LHD¥28,300198908-199907

sub55330-26220¥28,400

sub90119-06779¥60

main55330-95J01iLH102..RHD;RZH103..GL¥28,200198908-199308

sub55330-26230¥28,000

sub90119-06779¥60

main55330-95J02iLH103,104,105,11#,125,RZH10#,11#,125..RHD..STD¥28,400198908-199010

sub55330-95J01¥28,200

55373ABRACKET, OIL RESERVOIR TANK

main55373-95J00iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD¥1,090198908-200508

main55373-95J01iLH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD¥1,090198908-200208

55394BBOLT, INSTRUMENT PANEL

main55394-95J00iLH125..ARL;LH10#,11#,RZH10#,11#,125¥130198908-200208

55394CBOLT, INSTRUMENT PANEL

main55394-95J00iLH125..ARL;LH10#,11#,RZH10#,11#,125¥130198908-200208

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-26030iRZH114..LHD..SRF..GEN¥18,100198911-199508

CHINA SPEC

main55404-26060iRZH114..LHD..SRF..STD..GEN¥18,200199412-199803

CHINA SPEC & W(FRONT HEATER)

main55404-26060iLH102,104,112,114,RZH102,104,112,114..LHD¥18,200199001-199308

W(FRONT HEATER)

main55404-26120iLH103,11#,125,RZH102,103,104,112,113,114,125..RHD¥18,100199308-199405

W(FRONT HEATER)

sub55404-26270¥18,200

main55404-26130iLH103,11#,RZH102,104,112,114..RHD..GEN¥18,100199308-199405

sub55404-26280¥18,200

main55404-26200iRZH115..STD..GEN¥14,800199308-200508

main55404-26210iLH112,RZH113..DX¥13,900199405-199508

main55404-26220iRZH114..LHD..15S;RZH115..LHD..STD..CBR;LH105,115,RZH113..LHD..STD..(GCC,GEN);LH102,104,112,113,114,RZH10#,112..LHD..SRF..(03S,06S,09S,12S,15S)..(GL,SGL,STD)..(CBR,D¥13,900199308-200508

W(FRONT HEATER)

main55404-26220iLH172,174..CIS,GCC;RZH115..(10S,15S)..(GL,SGL);LH105,113,115,164,166,176,RZH115..STD..CIS;LH154,174,RZH102,103,105,114,155..LHD..(09S,10S,11S,12S)..(CIS,GEN)¥13,900199808-200501

main55404-26260iLH172,184,RZH135,153..GL¥18,200199608-200501

main55404-26270iRZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD)¥18,200199405-200208

W(FRONT HEATER)

main55404-26280iRZH103..03S..GEN¥18,200199405-200208

main55404-26350iLH154,174,RZH115,155..GL,SGL¥18,200199907-200508

W/O(BOX)

main55404-26370iLH172..STD..DEFI200208-200501

STONE GRAIN

sub55404-26270¥18,200

sub55539-32010¥460

main55404-26370iLH172..STD..DEFI200112-200208

HONG KONG SPEC

sub55404-26270¥18,200

sub55539-32010¥460

main55404-26380iLH172..GL..DEFI¥28,900200208-200501

STONE GRAIN

sub55404-26260¥18,200

sub55539-32010¥460

main55404-95J02iRZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN¥18,100198908-199308

main55404-95J03iLH10#,11#,125,RZH10#,11#,125..RHD¥18,100198908-199308

W(FRONT HEATER)

main55404-95J06iLH102,104,112,114,RZH102,104,112,114..LHD¥18,300198908-199001

W(FRONT HEATER)

sub55404-26060¥18,200

main55404-95J09iLH102,104,112,114,RZH102,104,112,114..LHD¥18,300198908-198911

sub55404-26030¥18,100

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-26010-B0iRZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135..RHD199905-200208

BLUISH GRAY,TRIM1#

sub55473-26010¥3,490

main55473-26010-E0iRZH153199907-200501

ANTELOPE,TRIM4#

sub55473-26010¥3,490

main55473-95J00-03iRZH102,112..LHD..06S;RZH114..LHD..SRF..5F;LH102,104,112,114,RZH104..LHD;RZH102,112,114..LHD..(03S,15S)..4F198908-199308

GRAY,TRIM1#

sub55473-95J00¥3,470

main55473-95J00-B0iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD199308-200508

BLUISH GRAY,TRIM1#

sub55473-95J00¥3,470

main55473-95J00-E0iLH154..10S200008-200501

ANTELOPE,TRIM4#

sub55473-95J00¥3,470

main55473-95J01-03iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

GRAY,TRIM1#

sub55473-26010¥3,490

sub55473-95J01¥3,480

main55473-95J01-B0iLH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD199308-199905

BLUISH GRAY,TRIM1#

sub55473-26010¥3,490

sub55473-95J01¥3,480

55423CCOVER, CLOCK OPENING

main55423-95J03iRZH112..SRF;LH172..03S..GL;RZH105,115..STD..CIS;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..(ARL,GEN)..EFI;LH112,184,RZH105,113,115..(03S,06S,09S,¥760198908-200208

55432APANEL, INSTRUMENT PANEL FINISH, LOWER RH

main55432-26020-B0iLH102,103,11#,125,172,184,RZH102,103,104,11#,125,135,153..RHD199405-199905

BLUISH GRAY,TRIM1#

sub55432-26021¥11,400

main55432-26021-B0iRZH103..03S..GEN199905-200208

BLUISH GRAY,TRIM1#

sub55432-26021¥11,400

main55432-26021-E0iRZH153199907-200501

ANTELOPE,TRIM4#

sub55432-26021¥11,400

main55432-95J01-03iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

W(FUEL LID OPENER),GRAY,TRIM1#

sub55432-95J01¥11,200

main55432-95J01-B0iLH154..11S;LH102,104,105,11#,164,166,17#,RZH10#,11#,155..LHD199308-200508

BLUISH GRAY,TRIM1#

sub55432-95J01¥11,200

main55432-95J01-E0iLH154..10S200008-200501

ANTELOPE,TRIM4#

sub55432-95J01¥11,200

main55432-95J02-03iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

W(FUEL LID OPENER),GRAY,TRIM1#

sub55432-26110¥11,200

sub55432-95J02¥11,200

main55432-95J02-B0iLH103,11#,125,RZH102,103,104,112,113,114,125..RHD199308-199405

BLUISH GRAY,TRIM1#

sub55432-26110¥11,200

sub55432-95J02¥11,200

main55432-95J03-03iLH10#,11#,125,RZH10#,11#,125..RHD..STD198908-199212

GRAY,TRIM1#

sub55432-26120¥11,200

main55432-95J04-03iLH102,104,112,114,RZH102,104,112,114..LHD198908-199212

GRAY,TRIM1#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-26020-B0iRZH153199808-199905

BLUISH GRAY,TRIM1#

sub55434-26021¥10,000

main55434-26021-B0iRZH153199905-200008

BLUISH GRAY,TRIM1#

sub55434-26021¥10,000

main55434-26021-E0iRZH153199907-200501

ANTELOPE,TRIM4#

sub55434-26021¥10,000

main55434-26030-B0iLH103,11#,125,172,184,RZH102,103,104,112,113,114,125,135..RHD199408-199905

BLUISH GRAY,TRIM1#

sub55434-26031¥11,200

main55434-26031-B0iLH103,11#,125,172,184,RZH102,103,104,112,113,114,125,135..RHD199905-199907

BLUISH GRAY,TRIM1#

sub55434-26032¥11,400

main55434-26032-B0iLH103..4D..GEN;RZH103..03S..GEN199907-200208

BLUISH GRAY,TRIM1#

sub55434-26032¥11,400

main55434-26040-B0iLH102,104,105,11#,166,174,176,RZH10#,11#..LHD199408-199907

BLUISH GRAY,TRIM1#

sub55434-26041¥12,600

main55434-26041-B0iRZH102..03S199907-200508

BLUISH GRAY,TRIM1#

sub55434-26041¥12,600

main55434-26041-E0iLH154..10S200008-200501

ANTELOPE,TRIM4#

sub55434-26041¥12,600

main55434-95J00-03iRZH102,112..LHD..06S;RZH114..LHD..SRF..5F;LH102,104,112,114,RZH104..LHD;RZH102,112,114..LHD..(03S,15S)..4F198908-199308

GRAY,TRIM1#

sub55434-95J00¥12,800

sub55434-26040¥12,700

sub90159-50338¥110

main55434-95J00-B0iLH102,104,105,11#,RZH104,105,11#..LHD199308-199408

BLUISH GRAY,TRIM1#

sub55434-95J00¥12,800

sub55434-26040¥12,700

sub90159-50338¥110

main55434-95J01-03iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

GRAY,TRIM1#

sub55434-26030¥11,200

sub90159-50338¥110

sub55434-95J01¥11,200

main55434-95J01-B0iLH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD199308-199408

BLUISH GRAY,TRIM1#

sub55434-26030¥11,200

sub90159-50338¥110

sub55434-95J01¥11,200

55441BOX, INSTRUMENT PANEL

main55440-26050iLH162..5F..ARL;RZH103..5F..STD;LH162,RZH105..STD..GEN¥1,710199802-200501

main55441-26010iLH112,125,RZH113..09S,14S;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD¥1,730199308-199802

sub55440-26050¥1,710

55441CBOX, INSTRUMENT PANEL COIN

main55441-20140-11iLH10#,11#,125,RZH10#,11#,125198908-199308

BLACK,TRIM1#

sub55441-20140¥1,030

main55441-20140-C0iLH115..LHD..(GCC,GEN);LH113,174,RZH113..LHD..SRF..(03S,06S,10S);LH102,104,112,114,RZH10#,112,114,115..LHD..(CBR,DSL)199308-200508

BLACK,TRIM1#

sub55441-20140¥1,030

main55441-20140-C0iLH154..10S200008-200501

BLACK,TRIM4#

sub55441-20140¥1,030

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-95J00iLH125..ARL;LH10#,11#,RZH10#,11#,125¥300198908-200208

55446ABASE, SWITCH HOLE, NO.1

main55446-26010iLH103,113..ARL;LH103,113,125,174,RZH115..06S,10S,14S¥940199608-200501

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-95J00iRZH112..SRF;RZH105..CBR;LH172..03S..GL;RZH115..STD..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..GEN..EFI;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113,114..(03S,06S,15S).¥880198908-200208

main55477-95J01iRZH112..4D..06S¥880198908-200208

W(ILLUMINATION)

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-26010-B0iRZH112..5D;LH154,RZH112..03S,11S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125,135,155199905-200208

BLUISH GRAY,TRIM1#

sub55501-26010¥15,500

main55501-26010-E0iLH154,RZH153..03S,10S199907-200501

ANTELOPE,TRIM4#

sub55501-26010¥15,500

main55501-95J05-03iLH10#,11#,125,RZH10#,11#,125198908-199308

GRAY,TRIM1#

sub55501-26010¥15,500

sub55501-95J05¥15,500

main55501-95J05-B0iLH125..ARL;LH10#,11#,RZH10#,11#,125199308-199905

BLUISH GRAY,TRIM1#

sub55501-26010¥15,500

sub55501-95J05¥15,500

55521CCOVER, STEREO OPENING

main55521-16030iRZH112..5D;RZH112,114..03S,15S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,115,125,135,15#¥1,580198908-200303

W(RADIO)

main55521-16030iLH125..ARL;LH10#,11#,RZH10#,11#,125..(03S,06S,09S,12S,14S,15S)..(ARL,GCC,GEN)¥1,580198908-200303

55531PANEL, GLOVE COMPARTMENT

main55305-26040iRZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH102,103,11#,125,RZH102,103,104,114,115,125,135,153..RHD¥3,780199508-200208

main55305-95J02iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD¥5,800198908-200508

main55305-95J03iLH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD¥5,800198908-199508

55534ACOVER, ILLUMINATION LAMP HOLE

main55534-95J00iLH172..03S..GL;LH172,RZH112,113..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH102,103,11#,125,184,RZH102,103,104,114,115,135,153..RHD..GEN¥360198908-200208

main55539-32010-11iRZH102,112..LHD..06S;RZH114..LHD..SRF..5F;LH102,104,112,114,RZH104..LHD;RZH102,112,114..LHD..(03S,15S)..4F198908-199308

BLACK,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-B0iLH102,104,11#,RZH10#,11#..LHD199308-199608

BLUISH GRAY,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iLH172..LHD..4D;LH172,RZH115..GCC..(DSL,EFI);LH154,RZH113..LHD..(03S,06S,11S);LH102,104,11#,174,RZH102,104,105,112,114,115..LHD..(GCC,GEN)..(CBR,DSL)199808-200508

BLACK,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iLH102,104,105,11#,RZH10#,11#..LHD199308-199808

BLACK,TRIM1#,BLACK

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iLH154..10S200008-200501

BLACK,TRIM4#

sub55539-32010¥460

sub55539-32030¥470

55539COVER, SPARE SWITCH HOLE

main55539-32010-11iLH104,114..LHD199108-199308

BLACK,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-B0iLH10#,11#,125,RZH10#,11#,125..GL,SGL,STD199308-199608

BLUISH GRAY,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iLH103,11#,125,RZH102,103,104,11#,125,135,153..RHD199408-200208

BLACK,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iLH10#,11#,125,RZH10#,11#,125199308-199608

BLACK,TRIM1#,BLACK

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iRZH153199907-200008

BLACK,TRIM1#,4#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iLH154,RZH153..03S,10S200008-200501

BLACK,TRIM4#

sub55539-32010¥460

sub55539-32030¥470

55539BCOVER, SPARE SWITCH HOLE, NO.2

main55539-95J02iRZH103,104,112,113,114,125;LH10#,11#,125,RZH102,105,115..GCC,GEN¥250198908-199608

main55539-95J02-C0iRZH103..03S..GEN199608-200208

BLACK,TRIM1#

sub55539-95J02¥250

main55539-95J02-C0iRZH153199907-200008

BLACK,TRIM1#,4#

sub55539-95J02¥250

main55539-95J02-C0iLH154,RZH153..03S,10S200008-200501

BLACK,TRIM4#

sub55539-95J02¥250

55539CCOVER, SPARE SWITCH HOLE

main55539-32010-11iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;RZH103,113..STD..ARL;LH10#,11#,125,RZH104,112,114,125198908-199308

BLACK,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-B0iRZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..STD..(ARL,GCC,GEN)199308-199608

BLUISH GRAY,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iRZH112..4D..06S199408-200208

BLACK,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iRZH103,113..ARL,GCC;LH10#,11#,125,RZH102,104,105,112,114,115,125..STD..(ARL,GCC,GEN)199308-199708

BLACK,TRIM1#,BLACK

sub55539-32010¥460

sub55539-32030¥470

55539DCOVER, SPARE SWITCH HOLE

main55539-32010-11iLH10#,11#,125,RZH10#,11#,125198908-199308

BLACK,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-B0iLH10#,11#,125,RZH10#,11#,125..(GL,SGL,STD)..(ARL,GCC,GEN)199308-199608

BLUISH GRAY,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iLH112,RZH112,113..GL,STD;LH10#,113,114,115,125,RZH10#,114,115,125,135,153..ARL,GCC,GEN199308-199808

BLACK,TRIM1#,BLACK

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iRZH103..03S..GEN199408-200208

BLACK,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iRZH153199907-200008

BLACK,TRIM1#,4#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iLH154,RZH153..03S,10S200008-200501

BLACK,TRIM4#

sub55539-32010¥460

sub55539-32030¥470

55539FCOVER, SPARE SWITCH HOLE

main55539-26070iLH172..DEFI¥630200208-200501

STONE GRAIN

sub55539-32010¥460

main55539-32010-11iLH102,103,112,113,RZH102,103,112,113198908-199308

BLACK,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-B0iLH102,103,112,113,RZH102,103,112,113..GL,SGL,STD199308-199608

BLUISH GRAY,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iRZH103..03S..GEN199611-200208

BLACK,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iRZH153199907-200008

BLACK,TRIM1#,4#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iRZH153200008-200501

BLACK,TRIM4#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iLH125..GL;LH102,103,112,113,RZH102,103,112,113199308-199611

BLACK,TRIM1#,BLACK

sub55539-32010¥460

sub55539-32030¥470

55539GCOVER, SPARE SWITCH HOLE

main55539-32010-11iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

BLACK,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-B0iLH102,103,11#,125,RZH102,103,104,11#,125..RHD..(GL,STD)199308-199608

BLUISH GRAY,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iRZH105,115..STD..CIS;LH172,RZH103..RHD..(DSL,EFI);RZH114,115..15S..(GCC,GEN)..CBR;LH105,113,115,166,176,RZH103,105..CBR,DSL;LH102,103,104,112,114,125,184,RZH102,104199608-200208

BLACK,TRIM1#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iLH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD199308-199608

BLACK,TRIM1#,BLACK

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iRZH153199907-200008

BLACK,TRIM1#,4#

sub55539-32010¥460

sub55539-32030¥470

main55539-32010-C0iRZH153200008-200501

BLACK,TRIM4#

sub55539-32010¥460

sub55539-32030¥470

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-26010-B0iRZH112..5D;LH154,RZH112..03S,11S;LH10#,11#,125,16#,17#,184,RZH10#,113,114,115,125,135,155199410-200208

BLUISH GRAY,TRIM1#

sub55560-26010¥2,230

main55560-26010-E0iLH154,RZH153..03S,10S199907-200501

ANTELOPE,TRIM4#

sub55560-26010¥2,230

main55560-95J00-03iLH10#,11#,125,RZH10#,11#,125198908-199308

GRAY,TRIM1#

sub55560-95J00¥2,210

sub55560-26010¥2,230

sub72250-36010¥3,470

main55560-95J00-B0iLH125..ARL;LH10#,11#,RZH10#,11#,125199308-199410

BLUISH GRAY,TRIM1#

sub55560-95J00¥2,210

sub55560-26010¥2,230

sub72250-36010¥3,470

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-95J01iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#¥610198908-200208

55562BPIN, GLOVE COMPARTMENT DOOR LOCK

main55562-95J00iLH125..ARL;LH10#,11#,RZH10#,11#,125¥220198908-200208

55568PLATE, GLOVE COMPARTMENT DOOR PAD

main55568-26010iRZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172,RZH112..RHD..SRF..4D..STD..GEN..(CBR,DSL,EFI);LH102,103,11#,125,RZH102,103,104,114,115,125,135,153..RHD¥3,100199508-200208

main55568-95J00iLH174,RZH115..10S¥3,100199907-200008

main55568-95J00-03iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

GRAY,TRIM1#

sub55568-95J00¥3,100

main55568-95J00-C0iLH154..10S200008-200501

BLACK,TRIM4#

sub55568-95J00¥3,100

main55568-95J00-C0iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD199308-200508

BLACK,TRIM1#

sub55568-95J00¥3,100

main55568-95J01-03iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

GRAY,TRIM1#

sub55568-95J01¥3,100

main55568-95J01-C0iLH125..ARL;LH102,103,11#,RZH102,103,104,112,113,114,125..RHD199308-199508

BLACK,TRIM1#

sub55568-95J01¥3,100

55573AHINGE, GLOVE COMPARTMENT DOOR

main55573-95J00iLH125..ARL;LH10#,11#,RZH10#,11#,125¥390198908-200208

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-95J06iRZH115..LHD..STD..GEN..CBR;RZH113,114..LHD..(03S,09S,15S)..GEN;LH102,104,11#,RZH10#,112..LHD..(03S,06S,09S,12S,15S)..GEN..(CBR,DSL)¥5,300198908-200508

main55650-95J07iRZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(GL,SGL,STD)..(CBR,DSL)¥7,100198908-200508

W(FRONT HEATER)

main55650-95J08iLH125,172..(03S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN;LH112,RZH113..RHD..4D..STD..GEN;LH102,103,113,114,115,184,RZH102,103,104,112,114,115,135,153..RHD..GEN¥8,500198908-200208

main55650-95J09iRZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD..(DX,STD)¥7,100198908-200208

W(FRONT HEATER)

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-26010-B0iRZH112..4D..06S199308-200208

BLUISH GRAY,TRIM1#

sub55660-26010¥6,800

main55660-26030-B0iLH113,125,RZH103..RHD..STD;LH102,103,112,114,115,RZH102,104,11#,125..RHD199308-200208

W(FRONT HEATER),BLUISH GRAY,TRIM1#

sub55660-26030¥6,500

main55660-26030-B0iRZH103..DX199703-199808

W(FRONT HEATER),BLUISH GRAY

sub55660-26030¥6,500

main55660-26050-B0iRZH135,153199611-200501

BLUISH GRAY,TRIM1#

sub55660-26050¥4,770

main55660-26050-E0iRZH153199907-200501

ANTELOPE,TRIM4#

sub55660-26050¥4,770

main55660-95J12-03iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

GRAY,TRIM1#

sub55660-95J12¥4,750

main55660-95J12-B0iRZH115..STD..CBR;RZH113,114..LHD..(03S,06S,15S);LH102,104,11#,RZH10#,112..LHD..(03S,06S,09S,12S,15S)..(GCC,GEN)..(CBR,DSL)199308-200508

BLUISH GRAY,TRIM1#

sub55660-95J12¥4,750

main55660-95J13-03iRZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN198908-199308

GRAY,TRIM1#

sub55660-26010¥6,800

main55660-95J14-03iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

W(FRONT HEATER),GRAY,TRIM1#

sub55660-95J14¥6,500

main55660-95J14-B0iRZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(GL,SGL,STD)..(CBR,DSL)199308-200508

W(FRONT HEATER),BLUISH GRAY,TRIM1#

sub55660-95J14¥6,500

main55660-95J14-E1iLH154..10S200008-200501

W(FRONT HEATER),ANTELOPE,TRIM4#

sub55660-95J14¥6,500

main55660-95J15-03iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

W(FRONT HEATER),GRAY,TRIM1#

sub55660-26030¥6,500

55670AREGISTER ASSY, INSTRUMENT PANEL, CENTER

main55670-95J02iLH102,104,105,11#,154,164,166,17#,RZH10#,11#,155..LHD¥5,300198908-200508

main55670-95J03iRZH103..03S..GEN¥8,500198908-200208

55905DKNOB SUB-ASSY, CONTROL

main55905-20230-01iLH10#,11#,125,RZH10#,11#,125198908-199308

BLACK,TRIM1#,BLACK

sub55905-20230¥440

main55905-20230-13iLH10#,11#,125,RZH10#,11#,125198908-199308

GRAY,TRIM1#

sub55905-20230¥440

main55905-20230-B0iLH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD199308-199808

BLUISH GRAY,TRIM1#

sub55905-20230¥440

main55905-20230-C0iLH125..ARL;LH10#,11#,RZH10#,11#,125..GL,STD199308-199808

BLACK,TRIM1#,BLACK

sub55905-20230¥440

main55905-20230-C0iRZH103,113..RHD..STD..EFI199611-199808

BLACK,TRIM13

sub55905-20230¥440

main55905-20230-C0iRZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,166,176,RZH103,104,114,125..03S,06S,12S,14S,15S;LH174,R199808-200208

BLACK,TRIM1#

sub55905-20230¥440

main55905-20230-C0iLH154..10S200008-200501

BLACK,TRIM4#

sub55905-20230¥440

55905EKNOB SUB-ASSY, CONTROL

main55905-20230-01iLH10#,11#,125,RZH10#,11#,125198908-199308

BLACK,TRIM1#,BLACK

sub55905-20230¥440

main55905-20230-13iLH10#,11#,125,RZH10#,11#,125198908-199308

GRAY,TRIM1#

sub55905-20230¥440

main55905-20230-B0iLH10#,11#,125,RZH10#,11#,125..GL,STD199308-199808

BLUISH GRAY,TRIM1#

sub55905-20230¥440

main55905-20230-B0iRZH102..GL;RZH115..GEN..EFI;RZH104,114..LHD..STD;RZH115..STD..(CIS,GCC);LH154,174,RZH112,113..LHD..(03S,06S,11S,15S);LH102,104,112,114,164,166,172,176,RZH105,155..L199907-200508

BLUISH GRAY,TRIM16

sub55905-20230¥440

main55905-20230-C0iRZH103,113..RHD..STD..EFI199611-199808

BLACK,TRIM13

sub55905-20230¥440

main55905-20230-C0iRZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,166,176,RZH10#,112,114,115..LHD..(CBR,DSL)199808-200208

BLACK,TRIM1#

sub55905-20230¥440

main55905-20230-C0iLH154..10S200008-200501

BLACK,TRIM46

sub55905-20230¥440

main55905-20230-C0iRZH103..DX;RZH103..CBR;RZH113..LHD..EFI;LH113,125,RZH113..STD..(CBR,DSL);LH10#,112,114,115,RZH102,104,105,112,114,115,125199308-199808

BLACK,TRIM1#,BLACK

sub55905-20230¥440

main55905-20230-C0iRZH102..GL;RZH115..GEN..EFI;RZH104,114..LHD..STD;RZH115..STD..(CIS,GCC);LH154,174,RZH112,113..LHD..(03S,06S,11S,15S);LH102,104,112,114,164,166,172,176,RZH105,155..L199907-200508

BLACK,TRIM16

sub55905-20230¥440

main55905-20230-E0iLH154..10S200008-200501

ANTELOPE,TRIM46

sub55905-20230¥440

56119ASEAL, WINDSHIELD GLASS

main56151-26010iLH172..4D..06S..STD..DSL¥5,100199808-200501

61166ABRACKET, INSTRUMENT PANEL TO COWL SIDE, LH

main61166-95J00iLH172..HRF;LH172..RHD..5D;LH172..5F..ARL;LH172..03S..GL;LH172..GL..DEFI;RZH112..RHD..SP;RZH113..RHD..5F;LH112,184,RZH125,135,153..RHD;LH172,174..RHD..4D..(06S,15S).¥380198908-200501

61181BRACKET, INSTRUMENT PANEL SIDE

main61181-95J04iLH125..ARL;LH10#,11#,RZH102,103,104,112,113,114,125..RHD¥820198908-200501

74598BLABEL, PASSENGER AIRBAG CAUTION

main74598-20010iLH113,115..GCC¥90199808-200501

9011908103

main90119-08103¥90

9015950115

main90159-50115¥230

9015950338

main90159-50338¥110

9016850033

main90168-50033¥120

9017905030

main90179-05030¥120

9017908179

main90179-08179¥200

9018305103

main90183-05103¥90

9018905016

main90189-05016¥210

9018905045

main90189-05045¥130

9018905096

main90189-05096¥80

9018905101

main90189-05101¥130

9024904062

main90249-04062¥120

9046710048

main90467-10048¥90

9046714013

main90467-14013¥160

9046715015

main90467-15015¥160

9046715020

main90467-15020¥160

9046804147

main90468-04147¥70

9046805096

main90468-05096¥90

9163140616

main91631-40616¥170

9165160614

main91651-60614¥70

9165160618

main91651-60618¥90

91651B0814

main91651-B0814¥120

9352054012

main93520-54012¥70

9354055016

main93540-55016¥70

9356055016

main93560-55016¥70

9356615514

main93566-15514¥120

9356855012

main93568-55012¥60

71 parts on this diagram · 5 diagrams in section
