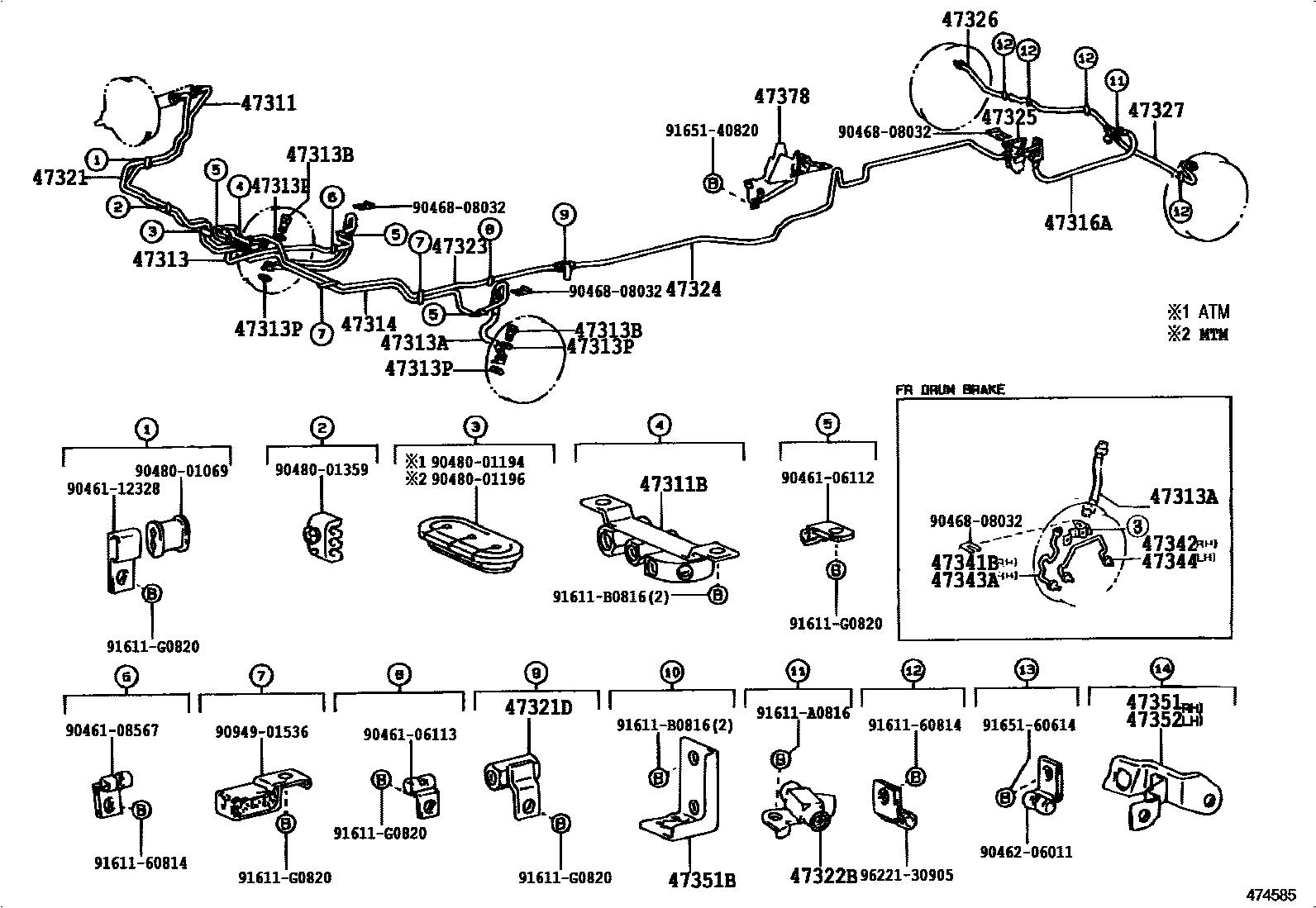

BRAKE TUBE & CLAMP

0001 1 0002 1 0003 1W/O(ABS) 0004 1W/O(ABS) 0005 1W/O(ABS) 0006 1W(ABS) 0008 1W(ABS) 0010 1W(ABS) 0014 1W(LSPV) 0015 1W/O(ABS)

47311TUBE, FRONT BRAKE, NO.1

main47311-26320iRZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN198908-199308

main47311-26330iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

main47311-26340iLH10#,11#,125..RHD198908-199308

W(FRONT DISC BRAKE)

main47311-26350iLH102,104,112,114..LHD198908-199308

W(FRONT DISC BRAKE)

main47311-26360iRZH10#,11#,125..RHD198908-199308

W(FRONT DISC BRAKE)

main47311-26370iRZH102,104,112,114..LHD198908-199308

W(FRONT DISC BRAKE)

main47311-26430iRZH102,103,104,11#,125..RHD199308-199608

main47311-26431iRZH112..4D..06S199907-200208

main47311-26440iLH102,103,11#,125..RHD199308-199608

main47311-26441iLH103,11#,125,162,172,174,184..RHD199907

main47311-26450iRZH113..LHD;RZH105,115..STD..CIS;RZH10#,112,114,115..LHD..CBR199808-200008

main47311-26460iLH102,104,105,11#,154,164,166,17#..LHD199907-200501

main47311-26670iLH113,115,RZH105,113,115..GCC199808-199907

W(ABS)

main47311-2F020iLH162,172,184,RZH103,113,125..ARL200108-200501

W(ABS)

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90414-10019iLH10#,11#,125,RZH10#,11#,125..4F,5F198908-199508

main90414-10022iLH166,17#,184;LH103,113,125,RZH103,113,114,125..4FC198908-199907

main90904-12010iRZH103,113,125..5F..ARL200108-200501

W(ABS)

main90904-12011iLH172,174..GCC200008-200501

W(ABS)

47313TUBE, FRONT BRAKE, NO.3

main47313-26140iLH10#,11#,125,RZH10#,11#,125,135,153198908-199808

main47313-26141iRZH115..CBR;RZH105,115..STD..CIS;RZH113..4D..STD..(ARL,GEN);RZH102,105,112,113..SRF..CBR;LH172..RHD..SRF..4D..STD..GEN..DSL;LH172,174,184,RZH103..(03S,09S,10S,15S).199808

main47313-26161iLH166,176199808-199907

main47313-26180iRZH153200208-200501

W(ABS)

main47313-26270iLH113,115,RZH105,113,115..GCC199808-199907

W(ABS)

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02590iLH10#,11#,125,RZH10#,11#,125198908-199308

RH

main90947-02591iLH10#,11#,125,RZH10#,11#,125198908-199308

LH

main90947-02592×2iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

sub90947-02929

main90947-02755iLH104,114..CIS;LH112,125,RZH113..09S,15S199308-199508

RH

main90947-02756iLH104,114..CIS;LH112,125,RZH113..09S,15S199308-199508

LH

main90947-02757iRZH114;RZH115..15S;LH112,125,RZH104,105,112,113..03S,06S,12S,14S;LH10#,113,114,115,172,RZH102,103,125..ARL,GCC,GEN199308-199907

RH

main90947-02758iRZH114;RZH115..15S;LH112,125,RZH104,105,112,113..03S,06S,12S,14S;LH10#,113,114,115,172,RZH102,103,125..ARL,GCC,GEN199308-199907

LH

main90947-02829×2iLH166,176199808-199907

main90947-02C03×2iLH166,176199907-200408

main90947-02C04iRZH115..STD..GEN200108

W(195/70R15C TIRE),RH

main90947-02C05iRZH112..4D..06S199907-200208

W(195/70R15C TIRE),LH

main90947-02C11iLH103..4D..GEN;RZH102,103..03S..GEN199907-200208

RH

main90947-02C12iRZH115..12S200208

LH

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908

47314TUBE, FRONT BRAKE, NO.4

main47314-26140iLH10#,11#,125,RZH10#,11#,125198908-199308

main47314-26180iLH162,172,184,RZH103,113,125..ARL200108-200501

W(ABS)

main47314-26190iRZH112..5D;RZH112..03S;LH10#,11#,125,154,162,164,172,174,184,RZH10#,113,114,115,125,135,15#199907

main47314-26210iLH166,176199907-200408

47316TUBE, FRONT BRAKE, NO.6

main47316-26140iLH10#,16#,RZH10#199907-200408

main47316-26150iLH11#,17#,RZH11#198908-199907

main47316-26160iLH125,184,RZH125199907-200501

main47316-26210iRZH153199611-199907

main47316-26230iRZH135199611-199907

47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)

main90947-02576iRZH135,153199611-199907

main90947-02L59iLH154,RZH135,15#199907-200501

main96940-32757iLH162,172,184,RZH103,113,125..ARL200208

main96940-33105iLH166,176199808-199907

main96940-33107iLH166,176199907-200408

main96940-33455iLH103,113,125,RZH103,113,125..ARL199308-199907

main96940-33456iLH103,113,125,RZH103,113,125..ARL198908-199308

main96940-33457iLH103,113,125,162,172,184,RZH103,113,125..ARL199907-200208

main96940-33555iLH10#,11#,125,172,174,184,RZH10#,11#..CIS,GCC,GEN199308-199907

main96940-33556iLH10#,11#,RZH10#,11#..GEN198908-199308

47321TUBE, REAR BRAKE, NO.1

main47321-26230iRZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN198908-199308

main47321-26240iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

main47321-26250iLH10#,11#,125..RHD198908-199308

W(FRONT DISC BRAKE)

main47321-26260iLH102,104,112,114..LHD198908-199308

W(FRONT DISC BRAKE)

main47321-26270iRZH10#,11#,125..RHD198908-199308

W(FRONT DISC BRAKE)

main47321-26280iRZH102,104,112,114..LHD198908-199308

W(FRONT DISC BRAKE)

main47321-26340iRZH102,103,104,11#,125..RHD199308-199608

main47321-26341iRZH112..4D..06S199907-200208

main47321-26350iLH102,103,11#,125..RHD199308-199608

main47321-26351iLH103,11#,125,162,172,174,184..RHD199907

main47321-26360iRZH113..LHD;RZH105,115..STD..CIS;RZH10#,112,114,115..LHD..CBR199808-200008

main47321-26370iLH102,104,105,11#,154,164,166,17#..LHD199907-200501

main47321-26500iLH113,115,RZH105,113,115..GCC199808-199907

W(ABS)

main47321-26680iRZH153200208-200501

W(ABS)

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10166iRZH112..4D..06S199907-200208

47322TUBE, REAR BRAKE, NO.2

main47322-26210iLH162,RZH103..5F..ARL200108-200408

main47322-26280iRZH155..GEN;LH172,174,RZH113,115..GCC199907-200501

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10147iLH154,RZH135,15#199907-200501

main90413-10243iRZH112..4D..06S199907-200208

47323TUBE, REAR BRAKE, NO.3

main47323-26310iLH10#,11#,125,RZH10#,11#,125198908-199308

main47323-26340iLH102,104,105,11#,RZH104,105,11#..LHD199308-199508

47324TUBE, REAR BRAKE, NO.4

main47324-26170iLH10#,16#,RZH10#199907-200408

main47324-26180iLH11#,17#,RZH11#198908-199907

main47324-26200iLH125,184,RZH125199907-200501

main47324-26300iLH154,RZH15#199907-200501

main47324-26310iRZH135199907-200501

47325TUBE, REAR BRAKE, NO.5

main47325-26250iLH10#,11#,125,RZH10#,11#,125198908-199808

main47325-26310iLH154,RZH135,15#199907-200501

main47325-26340iRZH115..CBR;RZH103..RHD..SG;RZH105,115..STD..CIS;LH172,RZH103..RHD..4D..(GL,STD);LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH10#,11#,125,184,RZH102,104,112,113,114199808-200008

main47325-26350iRZH112..4D..06S199907-200208

47326TUBE, REAR BRAKE, NO.6

main47326-26250iRZH135,153199611-199907

main47326-26270iLH10#,11#,125,RZH102,103,104,11#,125..RHD198908-199808

main47326-26280iLH102,104,105,11#,RZH10#,11#..LHD198908-199808

main47326-26310iLH166,176199907-200408

main47326-26360iRZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125..RHD199907

main47326-26390iLH102,104,105,11#,164,172,174,RZH10#,11#..LHD199907-200508

47327TUBE, REAR BRAKE, NO.7

main47327-26100iLH154,RZH135,15#199907-200501

main47327-26120iLH10#,11#,125,RZH102,103,104,11#,125..RHD198908-199808

main47327-26130iLH102,104,105,11#,RZH10#,11#..LHD198908-199808

main47327-26160iLH166,176199808-199907

main47327-26210iLH103,11#,125,172,184,RZH102,103,104,112,113,114,125..RHD199808-199907

main47327-26240iRZH105,115..STD..CIS;LH174,RZH113..LHD..(03S,06S,10S);LH102,104,105,11#,RZH10#,112,114,115..LHD..(CBR,DSL)199808-200008

main47327-26281iRZH112..4D..06S199907-200208

main47327-26311iLH102,104,105,11#,164,172,174,RZH10#,11#..LHD199907-200508

47341BTUBE, WHEEL CYLINDER, FRONT RH NO.1

main47341-26080iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47342TUBE, WHEEL CYLINDER, FRONT RH NO.2

main47342-26030iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47343ATUBE, WHEEL CYLINDER, FRONT LH NO.1

main47343-26080iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47344TUBE, WHEEL CYLINDER, FRONT LH NO.2

main47344-26030iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN198908-199308

47351BRACKET, FLEXIBLE HOSE(FOR FRONT RH)

main47351-26100iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..RHD..GEN198908-199308

main47351-26160iLH166,176199808-199907

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-26120iLH10#,11#,125,172,174,184,RZH10#,11#,125198908-199907

main47351-26171iLH103..4D..GEN;RZH102,103..03S..GEN199907-200208

47352BRACKET, FLEXIBLE HOSE(FOR FRONT LH)

main47352-26100iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..RHD..GEN198908-199308

main47352-26150iLH166,176199808-199907

47378PROTECTOR, BRAKE TUBE

main47378-26010iLH11#,RZH11#..RHD;RZH102,103..RHD..SG..(4FC,5F)198908-199012

main47378-26020iLH103..GEN;LH103..4FC;LH102,104,11#,RZH105,11#..LHD..(03S,06S,12S,15S);LH125,RZH102,103,104,125,135..(03S,06S,12S,14S,15S)..(GL,STD)199608-199808

AMBULANCE

main47378-26021iRZH103..03S..GEN200008

AMBULANCE

main47378-26030iRZH103..SG;LH113..4FC;LH113..RHD..GEN;LH112,RZH112,113..RHD;LH102,RZH102,153..DX,GL;LH103,114,115,RZH114,115..RHD..SG199308-199808

main47378-26031iLH112..5D;LH113..4FC;RZH112,113..RHD..03S;LH11#,172,RZH114..RHD..GEN;LH102,103,RZH102,103,112,113..SG199808-199907

main47378-26032iLH113,172..4FC;LH112,RZH112..5D;RZH112,113..RHD..03S;LH11#,172,174,RZH114..RHD..GEN;LH102,103,162,RZH102,103,113..SG199907

9046106112

main90461-06112

9046106113

main90461-06113

9046108567

main90461-08567

9046112328

main90461-12328

9046206011

main90462-06011

9046808032

main90468-08032

9048001069

main90480-01069

9048001194

main90480-01194

9048001196

main90480-01196

9048001359

main90480-01359

9094901536

main90949-01536

9161160814

main91611-60814

91611A0816

main91611-A0816

91611B0816

main91611-B0816

91611G0820

main91611-G0820

9165140820

main91651-40820

9165160614

main91651-60614

9622130905

main96221-30905

44 parts on this diagram · 10 diagrams in section
