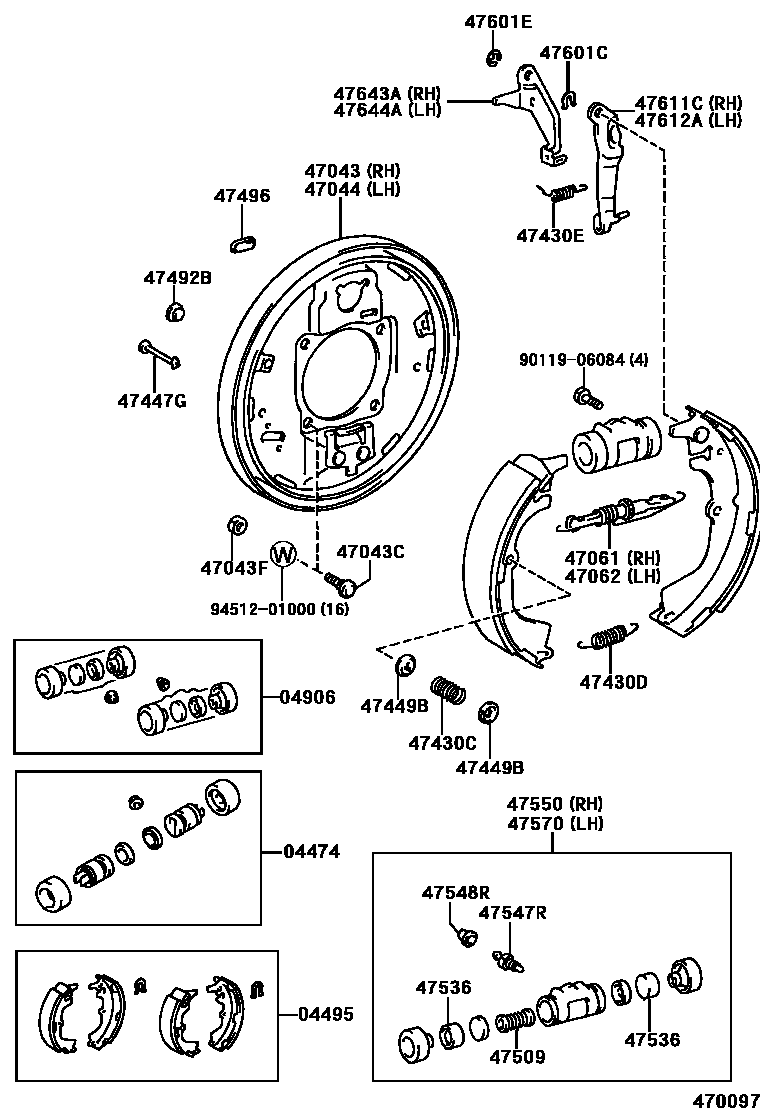

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1 0003 1

04474CYLINDER KIT, REAR WHEEL

main04474-30060iLH10#,11#,125,RZH10#,11#,125199308-199508

main04474-35070iRZH112,114..LHD..SG;LH184,RZH112..03S,14S;LH10#,11#,125,162,164,172,174,RZH10#,113,115,125,135,153199607-200510

main04474-35090iLH166,176199808-200408

04495SHOE KIT, REAR BRAKE

main04495-26130iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

W(FRONT DISC BRAKE)

main04495-26140iRZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN198908-199308

sub04495-26130

main04495-26150iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

W(FRONT DISC BRAKE)

main04495-26160iLH102,104,112,114,RZH102,104,112,114..LHD198908-199308

sub04495-26150

main04495-26180iRZH112..4D..06S199308-200510

MARK NBK LN508

main04495-26190iLH102,104,105,11#,164,172,174,RZH10#,11#..LHD199308-200508

MARK NBK LN508

main04495-35151iLH166,176199808-199907

MARK NBK LN508

sub04495-35230

main04495-35230iLH166,176199907-200408

MARK NBK LN508

04906CUP KIT, REAR WHEEL CYLINDER

main04906-30060iLH10#,11#,125,RZH10#,11#,125199308-199607

main04906-30060iLH103..5D..03S;LH114..SRF..GEN;LH103,112,125..4D..(03S,06S,14S)..STD..(ARL,GEN);LH102,104,105,113,115,RZH102,103,104,112,113,114,125..(ARL,GEN)..(CBR,DSL)198908-199508

W(FRONT DISC BRAKE)

main04906-30100iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN199004-199308

main04906-35120iLH166,176199808-200408

main04906-35140iRZH112,114..LHD..SG;LH184,RZH112..03S,14S;LH10#,11#,125,154,162,164,172,174,RZH10#,113,115,125,135,15#199607-200510

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-26072iLH166,176199808-200408

main47043-26090iLH10#,11#,125,RZH10#,11#,125..RHD198908-199101

sub47043-26091

sub47492-28010

main47043-26091iLH10#,11#,125,RZH10#,11#,125..RHD199101-199308

main47043-26100iLH102,104,112,114,RZH102,104,112,114..LHD198908-199101

sub47043-26101

sub47492-28010

main47043-26101iLH102,104,112,114,RZH102,104,112,114..LHD199101-199308

main47043-26120iLH102,103,11#,125,RZH102,103,104,112,113,114,125..RHD199308-199508

main47043-26130iLH102,104,105,11#,164,172,174,RZH10#,11#..LHD199308-200508

main47043-26170iLH154,RZH155;RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD199508-200208

47043CBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90114-10002iLH172..5D..03S;RZH112..RHD..SP;RZH113..5D..03S..GEN;RZH112,113,115..LHD..CBR;LH162,172,RZH103,113..4FC..ARL;LH172,RZH113,115..4D..(CIS,GEN)..(DSL,EFI);LH10#,11#,164198908-200602

*10-1.25PX37-18.5

47043FNUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main90179-10041iLH10#,11#,125,RZH10#,11#,125,135,153198908-200602

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-26072iLH166,176199808-200408

main47044-26090iLH10#,11#,125,RZH10#,11#,125..RHD198908-199101

sub47044-26091

sub47492-28010

main47044-26091iLH10#,11#,125,RZH10#,11#,125..RHD199101-199308

main47044-26100iLH102,104,112,114,RZH102,104,112,114..LHD198908-199101

sub47044-26101

sub47492-28010

main47044-26101iLH102,104,112,114,RZH102,104,112,114..LHD199101-199308

main47044-26120iLH102,103,11#,125,RZH102,103,104,112,113,114,125..RHD199308-199508

main47044-26130iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,RZH102,104,112,113,114..LHD199308-200508

main47044-26170iLH154,RZH155;RZH112..RHD..03S;LH103,11#,125,162,172,174,184,RZH103,104,105,113,114,125,135,153..RHD199508-200208

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-26010iRZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN199004-199308

main47061-35020iLH102,103,11#,125,RZH102,103,104,11#,125..RHD199308-200208

main47061-35020iLH103..5D;LH103..ARL;LH11#,125,RZH102,103,104,11#,125,135,153..RHD198908-200008

W(FRONT DISC BRAKE)

main47061-60011iLH166,176199808-200408

main47062-26010iLH102,104,112,114,RZH102,104,112,114..LHD199004-199308

main47062-35020iRZH114..LHD..15S;LH105,115,RZH113,115..LHD..(DX,STD)..(GCC,GEN);LH102,104,112,113,114,RZH10#,112..LHD..SRF..(03S,06S,09S,12S,15S)..(CBR,DSL)198908-199907

W(FRONT DISC BRAKE)

main47062-35020iRZH115..GL;LH174,RZH102,114..SRF..GL;LH105,113,115,RZH105,115..CIS199808-199907

47062STRUT SET, PARKING BRAKE SHOE, LH

main47061-26010iLH102,104,112,114,RZH102,104,112,114..LHD199004-199308

main47061-35020iRZH114..LHD..15S;LH105,115,RZH113,115..LHD..(DX,STD)..(GCC,GEN);LH102,104,112,113,114,RZH10#,112..LHD..SRF..(03S,06S,09S,12S,15S)..(CBR,DSL)198908-199907

W(FRONT DISC BRAKE)

main47061-35020iRZH115..GL;LH174,RZH102,114..SRF..GL;LH105,113,115,RZH105,115..CIS199808-199907

main47062-26010iRZH102..4D;RZH102..RHD..5D..03S;LH10#,11#,RZH104,112,114..RHD..GEN199004-199308

main47062-35020iLH103..4D..GEN198908-200008

W(FRONT DISC BRAKE)

main47062-35020iLH112..GL;LH114..HRF;LH103,125..SG..GEN199308-200208

main47062-60011iLH166,176199808-200408

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20012iRZH112..4D..06S198908-200208

main90501-20604iLH166,176199808-200408

47430DSPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-18031iLH166,176199808-200408

main90506-18299iLH10#,11#,125,RZH10#,11#,125,135,153199308-199708

main90506-20070iRZH112..4D..06S199708-200208

main90506-26021iLH10#,11#,125,RZH10#,11#,125198908-199308

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-26011iLH166,176199808-200408

LH

main90506-26014iLH166,176199808-200408

RH

main90507-12036iRZH112..4D..06S198908-200208

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-20010iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

main47447-30020iLH166,176199808-200408

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30020iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,135,15#198908-200208

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-28010iRZH112..4D..06S199101-200208

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200208

47509SPRING SUB-ASSY, REAR WHEEL CYLINDER PISTON

main47509-20010iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN199004-199308

main47509-35020iLH10#,11#,125,RZH10#,11#,125198908-199607

W(FRONT DISC BRAKE)

main90029-60009iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..199607-200602

47536PISTON, WHEEL BRAKE CYLINDER(FOR REAR BRAKE)

main47051-22020iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN199004-199308

main47051-30030iLH10#,11#,125,RZH10#,11#,125198908-199607

W(FRONT DISC BRAKE)

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-12010iLH125..SMRF;RZH114..LHD..GEN;LH10#,11#,RZH102,105,112,113,115,125..ARL,GCC,GEN;LH125,RZH103,104..(03S,06S,09S,12S,14S)..(GL,SGL,STD)199608-199808

main47547-20030iRZH112..LHD;RZH112..RHD..SP;RZH113..4D..STD..GEN;RZH103,114..(03S,15S)..GEN;LH10#,11#,RZH104,105,113,115..(03S,06S,12S,15S)..(CBR,DSL)198908-200602

W(FRONT DISC BRAKE)

main47547-20030iLH125..4FC;RZH115..GL;RZH102,114..10S,12S;RZH103,113..ARL..EFI;LH105,113,115,RZH105,115..CIS;LH172,174,184,RZH125..DSL,EFI;LH125,RZH103..(HRF,SRF)..SG..GEN..(DSL,EF199703-199907

main47547-60020iLH166,176199808-200408

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iLH112..4D;RZH102..GL;LH172,RZH103,112,113..03S,06S,08S;LH102,104,114,162,174,184,RZH104,105,114,115,125..03S,12S,14S,15S198908-200602

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-26110iLH166,176199808-200408

main47550-30100iLH10#,11#,125,RZH10#,11#,125198908-199607

W(FRONT DISC BRAKE)

main47550-30130iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN199004-199308

main47550-35180iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;RZH113..4D..STD..(ARL,GEN)..EFI;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..199607-200208

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-26110iLH166,176199808-200408

main47550-30100iLH10#,11#,125,RZH10#,11#,125198908-199607

W(FRONT DISC BRAKE)

main47550-30130iRZH102..4D;RZH102..5D..03S;RZH102..LHD..06S;LH10#,11#,RZH104,112,114..GEN199004-199308

main47550-35180iRZH112..4D..06S199607-200208

47601CWASHER, C(FOR REAR BRAKE)

main90213-07010iRZH112..5D;RZH112..03S;LH10#,11#,125,154,16#,17#,184,RZH10#,113,114,115,125,155198908-200501

T=1.6

47601ERING, E(FOR REAR BRAKE)

main96160-00500iRZH102,112..SRF;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,0198908-200501

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-26050iLH103..4D..GEN;RZH102,103..03S..GEN198908-200208

main47611-35040iLH166,176200009-200408

main47611-60010iLH166,176199808-200009

sub47611-35040

main47612-26050iLH102,104,105,11#,174,RZH10#,11#..LHD198908-199907

47612ALEVER, PARKING BRAKE SHOE, LH

main47611-26050iLH102,104,105,11#,174,RZH10#,11#..LHD198908-199907

main47612-26050iRZH112..4D..06S198908-200208

main47612-35040iLH166,176200009-200408

main47612-60010iLH166,176199808-200009

sub47612-35040

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-26010iRZH112..LHD;RZH112..RHD..03S;LH10#,11#,125,154,162,164,172,174,184,RZH10#,113,114,115,125,135,15#198908-200209

sub47643-26020

main47643-26020iRZH112..5D;RZH112..03S;LH10#,11#,154,162,164,172,174,184,RZH10#,113,114,115,125,135,15#200209

main47643-60010iLH166,176199808-200408

main47644-26010iLH102,104,105,11#,174,RZH10#,11#..LHD198908-199907

sub47644-26020

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47643-26010iLH102,104,105,11#,174,RZH10#,11#..LHD198908-199907

sub47643-26020

main47644-26010iLH10#,11#,125,172,184,RZH102,103,104,11#,125,135,153..RHD198908-200209

sub47644-26020

main47644-26020iRZH112..5D;RZH112..03S;LH10#,11#,154,162,164,172,174,184,RZH10#,113,114,115,125,135,15#200209

main47644-60010iLH166,176199808-200408

9011906084

main90119-06084

9451201000

main94512-01000

30 parts on this diagram · 3 diagrams in section
