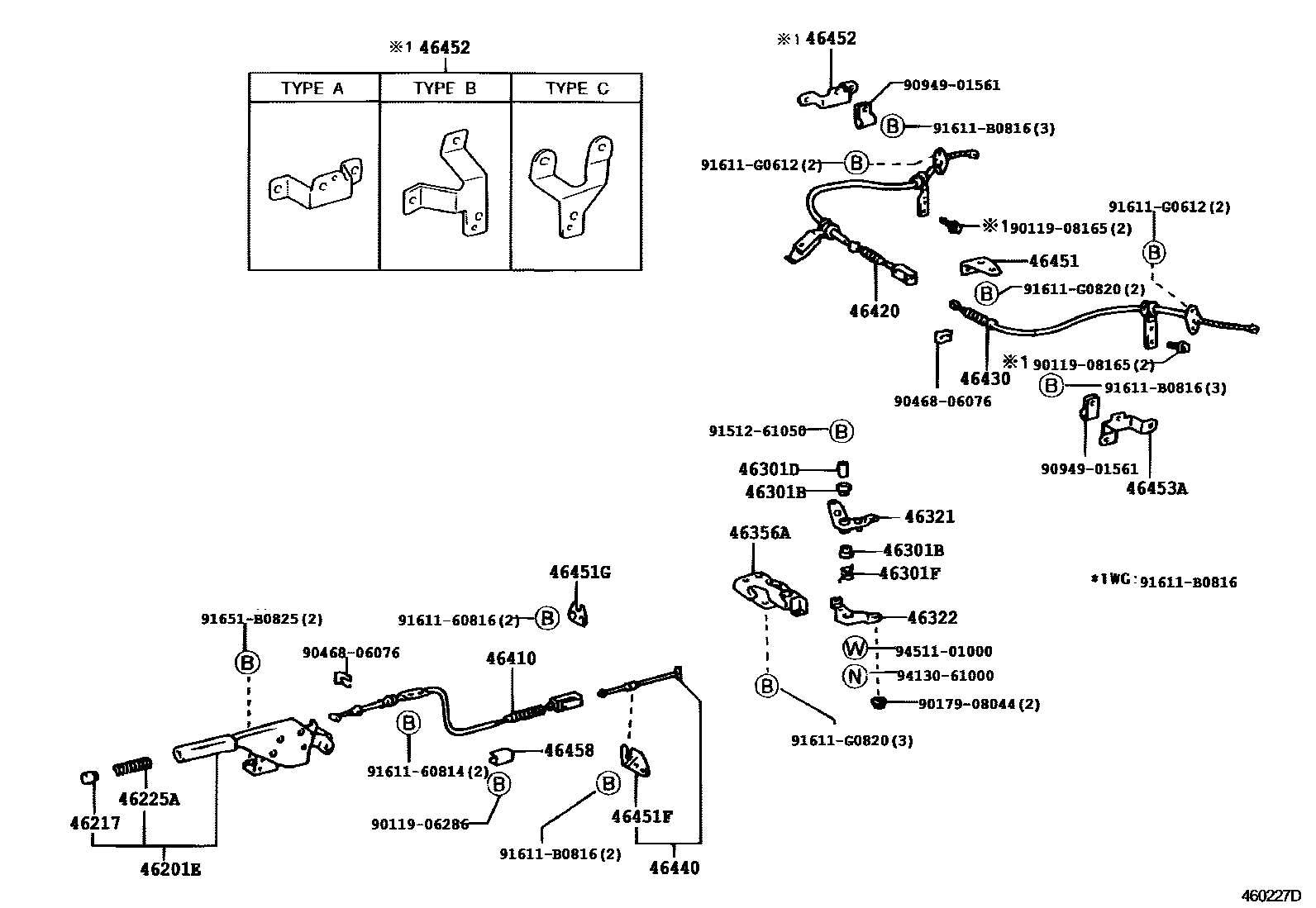

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-26010-03iLH10#,11#,RZH10#,11#..RHD..GEN198908-199308

GRAY,TRIM1#

sub46201-26010

main46201-26010-B0iLH102,103,11#,125,172,184,RZH102,103,104,11#,135,153..RHD..(03S,06S,09S,12S,15S)..GEN199308-200208

BLUISH GRAY,TRIM1#

sub46201-26010

main46201-26010-E0iRZH153199907-200501

ANTELOPE,TRIM4#

sub46201-26010

main46201-26020-03iLH103,113,125,RZH103,113,125..ARL198908-199308

GRAY,TRIM1#

sub46201-26020

main46201-26020-B0iLH103,113,125,RZH103,113,125..ARL199308-200501

BLUISH GRAY,TRIM1#

sub46201-26020

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-33iLH10#,11#,RZH10#,11#..RHD..GEN198908-199308

GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-12020-B3iLH102,103,11#,125,RZH102,103,104,11#,135,153..RHD..GEN199308-199803

BLUISH GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-12020-E6iLH103..4D..GEN;RZH103..03S..GEN199907-200008

ANTELOPE

sub46217-12020

sub46217-16030

main46217-16030-B1iLH103,11#,125,172,184,RZH102,103,104,11#,135,153..RHD..(03S,06S,12S,15S)..GEN199803-200208

BLUISH GRAY,TRIM1#

sub46217-16030

main46217-16030-E2iRZH153199907-200501

ANTELOPE,TRIM4#

sub46217-16030

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iRZH112..RHD..03S;LH103,11#,162,172,174,184,RZH103,104,105,113,114,135,153..RHD..GEN198908-200208

46301BBUSH(FOR INTERMEDIATE LEVER)

main90386-16009iRZH103..03S..GEN198908-200501

46301DCOLLAR(FOR INTERMEDIATE LEVER)

main90387-10110iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..198908-200501

46301FSPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90508-26079iRZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH10#,11#,125,RZH102,103,104,112,114,115,125,135,153..RHD198908-200501

46321LEVER, PARKING BRAKE INTERMEDIATE

main46321-26130iRZH115..STD..GEN..EFI;RZH113,115..LHD..(06S,12S)..GEN198908-200501

main46321-26140iLH166,176199808-200408

main46321-26150iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

main46321-26151iRZH103,113..4FC199308-200501

main46321-26190iRZH155..CIS200008-200501

46322LEVER, INTERMEDIATE, NO.2

main46322-26010iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

main46322-26011iRZH113..RHD..4D..STD;LH172,184..(03S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;LH102,103,11#,125,RZH102,103,104,112,114,115,125,135,153..RHD199308-200501

46356ABRACKET, INTERMEDIATE LEVER(FOR PARKING BRAKE)

main46356-26120iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD198908-200501

main46356-26130iLH162..4FC;RZH104..RHD;LH172..06S..GL198908-200501

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-26320iRZH115..LHD..CBR;RZH105,115..STD..CIS;LH174,RZH103,105..(09S,10S,12S)..(CBR,DSL);LH102,104,105,11#,166,176,RZH102,104,112,113,114..LHD198908-200508

main46410-26330iRZH10#,11#,125..RHD198908-199308

sub46410-26331

main46410-26331iLH103,11#,125,162,172,174,184,RZH103,104,105,112,113,114,125..RHD..(GL,STD)199308-199909

sub46410-26332

main46410-26332iRZH103..03S..GEN199909-200208

main46410-26350iLH10#,11#,125..RHD198908-199308

sub46410-26351

main46410-26351iLH102,103,11#,125..RHD199308-199808

main46410-26390iRZH135,153199611-200501

main46410-26420iRZH113..DX199907-200501

main46410-26430iLH172..DEFI200108-200501

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-26250iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

sub46420-26251

main46420-26251iLH103,113,115,125..RHD199308-200208

main46420-26271iRZH135,153199611-199907

main46420-26310iLH102,104,105,RZH10#..LHD198908-199808

main46420-26311iRZH104..LHD..STD;LH102,104,164,RZH102,105..LHD..4D..(03S,10S,12S)..(CIS,GEN)199808-200408

main46420-26320iLH11#,RZH11#..LHD198908-199808

main46420-26321iLH11#,174,RZH11#..LHD199808-200501

main46420-26331iLH166199808-200408

main46420-26341iLH176199808-200408

main46420-26430iLH172..RHD..SRF..4D..03S..GEN;LH184,RZH113..RHD..4D..(03S,15S)..GEN200108-200112

W(205/70R15 TIRE)

main46420-26431iLH172..ARL;LH172..HRF;LH172..4D..06S;LH172..RHD..5D;LH172..GL..DSL;RZH112..RHD..SP;RZH113..RHD..5F;LH112,174,184,RZH125..RHD..(03S,06S,14S,15S)200208-200501

main46420-26560iRZH135,153199907-200501

main46420-26600iRZH155..CIS200008-200501

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-26170iLH10#,11#,125,RZH10#,11#,125..RHD198908-199308

sub46430-26171

main46430-26171iLH162..4FC;RZH104..RHD;LH172..06S..GL199308-200208

main46430-26191iRZH135,153199611-200501

main46430-26280iRZH103..03S..GEN200108-200501

W(205/70R15 TIRE)

main46430-26280iRZH103,113..4FC200208-200408

main46430-26430iLH154,RZH155..GEN200008-200501

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-26010iLH10#,RZH10#..RHD198908-199308

main46440-26011iRZH103..4FC199308-200408

main46440-26030iLH11#,RZH11#..RHD198908-199308

main46440-26031iLH172..06S..GL199308-200501

main46440-26040iLH125,RZH125198908-199308

main46440-26041iLH125,184,RZH125,135199308-200501

46451BRACKET, CABLE SUPPORT

main46451-26140iRZH103,113..4FC198908-200501

main46452-26100iRZH104..GL;RZH105..CBR;RZH114..15S..GL;RZH115..GEN..CBR198908-200501

46451FBRACKET, CABLE SUPPORT

main46451-26130iRZH103..03S..GEN198908-200501

46451GBRACKET, CABLE SUPPORT

main46451-26160iLH125198908-200501

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-26040iLH103198908-200208

TYPE A:REFER TO ILLUSTRATION

main46452-26041iRZH103..5F;LH162,RZH105..RHD200208-200408

TYPE B:REFER TO ILLUSTRATION

main46452-26060iLH11#,125,172,184,RZH11#,125..RHD198908-200208

TYPE A:REFER TO ILLUSTRATION

main46452-26061iRZH113..4FC200208-200501

TYPE C:REFER TO ILLUSTRATION

main46452-26090iRZH135,153199611-200501

main46452-26110iLH102,104,105,11#,RZH10#,11#..LHD198908-199808

main46452-26111iRZH104..GL;RZH105..CBR;RZH114..15S..GL;RZH115..GEN..CBR199808-200501

46453ABRACKET, CABLE SUPPORT, NO.3

main46453-26010iLH162..4FC;RZH104..GL;RZH104..RHD;RZH105..CBR198908-200408

main46453-26030iLH11#,125,17#,184,RZH11#,125198908-200501

main46453-26060iRZH155..CIS199611-200501

46458RETAINER, CABLE

main46458-28010iRZH102;RZH103..RHD..EFI;RZH105,115..STD..CIS;RZH103,105,113,115..CBR;LH172,174,184..(03S,10S,15S)..GL;LH172..RHD..SRF..4D..STD..GEN..DSL;RZH113..4D..(03S,06S,09S)..198908-200501

9011906286

main90119-06286

9011908165

main90119-08165

9017908044

main90179-08044

9046806076

main90468-06076

9094901561

main90949-01561

9151261050

main91512-61050

9161160814

main91611-60814

9161160816

main91611-60816

91611B0816

main91611-B0816

91611G0612

main91611-G0612

91611G0820

main91611-G0820

91651B0825

main91651-B0825

9413061000

main94130-61000

9451101000

main94511-01000

33 parts on this diagram · 3 diagrams in section
